CNC turning and milling centre

DMG MORI CTX Beta 1250 TC 4A + Gantry Loader

Condition: like new (used), Year of construction: 2015, operating hours: 14,717 h, functionality: fully functional, turning length: 800 mm, turning diameter: 500 mm, spindle speed (max.): 12,000 rpm, travel distance X-axis: 480 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 845 mm, rotational speed (max.): 5,000 rpm, type of input current: three-phase, workpiece weight (max.): 7 kg, total height: 2,247 mm, total length: 2,890 mm, total width: 5,193 mm, overall weight: 7,800 kg, CNC controller: Siemens 840D sl with CELOS ERGOline Iedpfxsxdlynj Ad Detp Capacity X-axis travel mm: 480 (–10) Y-axis travel mm: ±100 Z-axis travel mm: 845 B-axis travel mm: ±110° (0,001º) C-axis: 360º (0,001º) Turning length mm: 800 Max. turning diameter mm: ø: 500 Distance between spindle centers mm: 1.020 Turn-mill spindle Speed spindle rpm: 12.000 Drive power kW: 22 / 19 Tool magazine Magazine places: 24 Tool holder: HSK-A63 Tool length max. mm: 300 Tool diameter max. mm: 125 Tool weight max kg: 7 Main spindle Speed spindle rpm: 5.000 Drive power spindle kW: 25 / 34 (100 / 40%) Spindle bore mm: 67 Maximun torque Nm: 380 / 280 Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 20 / 27 (100 % / 40%) Spindle bore mm: 52 Maximun torque Nm: 170 Counter spindle travel mm: 800 Coolant system Tank capacity liter: 600 L High-pressure bar: 8 / 20 Equipment Chip conveyor Blowing air through spindle center selectable via M-function Signal lamp Tool measuring arm Workarea light Coolant gun Internal coolant supply Interface for Bar feeder Paper band filter Working time hours Under power: 36.049 Cutting Time: 14.171 Basic machine dimensions / weight Length mm: 2.890 Width mm: 5.193 Height mm: 2.247 Weight kg: 7.800

Condition: good (used), Year of construction: 2018, functionality: fully functional, MITUTOYO Contracer CV-2100M4 contour measuring device Horizontal measuring range X = 100mm Vertical measuring range Z = 50mm Column travel range Z2 = 350mm Inclination +/- 45° Dimensions (W, D, H) 745mm x 450mm x 885mm Total weight approx. 150kg Iodevun Tpepfx Ad Djtp Incl. PC system, Incl. cross table 218-001 Incl. rotating vice 2028-003

Condition: used, Year of construction: 2015, TAKISAWA TS4000YS year 2015 CNC control FANUC 32i-MODEL B Max. turning diameter 315 [mm] Max. swing over bed 600 [mm] Max. Turning length 735 [mm] Stroke X axis 267 [mm] Itodpfowq Sf Tex Ad Dsp Stroke Z axis 840 [mm] Stroke Y axis -50 [mm] / +70 [mm] Stroke A axis 780 [mm] Rapid traverse rate X axis 30000 [mm/min] Rapid traverse rate Z axis 30000 [mm/min] Rapid traverse rate Y axis 10000 [mm/min] Rapid traverse rate A axis 30000 [mm/min] Spindle nose A2-8" Max. bar diameter 82 [mm] Spindle throughbore 94 [mm] Max. spindle speed 4200 [rpm] Spindle power 22 [kW] Counter spindle nose F140 Counter spindle throughbore 53 [mm] Max. counter spindle speed 6000 [rpm] Counter spindle power 11 [kW] Max. tool holder cross-section 25 [mm] Number of tool stations 15 Number of tool stations driven 15 Max. speed driven tools 6000 [rpm] Lubrication tank capacity 370 [l] Total power required 37 [kVA] Supply voltage 400 [V] Chip conveyor with machine 5 live tool holders Weight 6700 [Kg]

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, turning diameter: 500 mm, DMG CTX Beta 1250 TC 2009 Iodpfx Aov N Hc Ssd Dotp

Condition: ready for operation (used), Year of construction: 2020, operating hours: 6,056 h, Control Unit Brand SIEMENS Model 840D General Data Measurements width 3150 Measurements depth 5564 mm Measurements height 2135 mm Itedpfx Aewnkdcod Dep Machine weight 10000 kg Main Drive Spindle speed range 3600 Movement X-Axis Rapid Traverse 30 m/min Y-Axis Rapid Traverse 22.5 m/min Z-Axis Rapid Traverse 33 m/min Workpiece Workpiece drm over bed 800 mm Workpiece drm 600 mm Tools Slots in storage 12 This 3-axis horizontal turning machine manufactured in 2020 features a Siemens 840D control and a spindle speed up to 3,600 rpm. It offers a max turning diameter of 600 mm and a length of 2000 mm. Equipped with a chip conveyor, Siemens CELOS control system, and a fume extraction system, it's ideal for complex machining tasks. Consider the opportunity to buy this DMG MORI CTX 2000 horizontal turning machine. Contact us for more information about this machine. Application Types Turning

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 500 mm, turning diameter: 390 mm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 450 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 1,300 mm, bar passage: 65 mm, total height: 2,700 mm, total length: 7,000 mm, total width: 3,000 mm, overall weight: 12,000 kg, Equipment: documentation/manual, Manufacturer: DMGMORI Type: CTXbeta1250TC Year of manufacture: 2008 (retrofit in 2022) Control: Siemens 840D Solutionline Number of axes: 5 axes Equipment: - automatic tool changer - swivel head as B-axis - belt filter system with internal cooling and chip conveyor - differential pressure clamping main/counter spindle - workpiece collection device - preparation for bar loader (optionally available) Technical data: Max. turning diameter 500 mm X-axis 450 mm Y-axis 100 mm Z-axis 1300 mm B axis 220 ° Spindle bore 65 mm Speed 5000 rpm Spindle power 34 kW Counter spindle speed 6000 rpm Counter spindle passage 52 mm Counter spindle power 20 kW Tool changer 24 B-axis mount HSK 63 B-axis spindle speed 12000 rpm B-axis power 22 kW Installation dimensions approx. L 7000 / W 2300 / H 2300 mm Weight approx. 8,000 kg Chip conveyor: Yes Coolant device: Yes Internal coolant supply: Yes Options: Iedpfeubyv Rsx Ad Dstp · Full cabin · NC swivel head as B-axis · Coolant device and chip conveyor · Documentation · Geometrically within the new machine tolerances Condition: - Machine fully functional - Geometry within the manufacturer's tolerance for new machines - All wear parts replaced Retrofit 2022: - Linear guides Z1 and Z2/3 replaced - Linear guide Y-axis replaced - Main and counter spindle overhauled - Milling spindle overhauled - B-axis (bearings and clamping) renewed - sliding plates overhauled - hoses and cables overhauled, drag chains revised - cabin doors repainted, viewing windows renewed - maintenance carried out according to manufacturer's specifications

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Turning length: 3,000 mm Swing diameter over cross slide: 520 mm X-axis travel: 600 mm Y-axis travel: 150 mm Z-axis travel: 3,150 mm Swing diameter: 520 mm Turning length: 3,000 mm Control: SIN 840 D Siemens Z-axis: 3,150 mm Z-axis feed rate: 1 – 40,000 mm/min Rapid traverse Z-axis: 40.00 m/min X-axis: 600 mm Ijdexpfd Dopfx Ad Detp X-axis feed rate: 1 – 30,000 mm/min Rapid traverse X-axis: 30.00 m/min Main spindle S1 Spindle speed range: 1 – 3,300 rpm Drive power at 100% load: 29.00 kW Spindle nose DIN 55026 – size A11 Spindle diameter at front bearing: 160 mm Spindle bore: 115 mm C-axis: 360 x 0.001° Milling spindle S2 Tool holder: Capto C6 Infinitely variable speed range: 1 – 6,000 rpm Y-axis: -100 / +150 mm B-axis: -110 / +110° Tool magazine with 100 stations Total power requirement: 145 kW Machine weight approx.: 24 t

Condition: ready for operation (used), Year of construction: 2008, turning length: 1,542 mm, turning diameter over cross slide: 660 mm, spindle motor power: 22,000 W, spindle speed (min.): 4,000 rpm, spindle speed (max.): 12,000 rpm, travel distance X-axis: 750 mm, travel distance Z-axis: 1,550 mm, workpiece weight (max.): 8 kg, total height: 2,900 mm, total length: 6,800 mm, total width: 3,200 mm, overall weight: 25,600 kg, CNC controller: FS-31IA5 (MAPPS 4) Capacity Turning length mm: 1.542 Max. turning diameter mm: ø: ø660 Swing over bed mm: ø: ø730 Distance between spindle centers mm: 1.862 Iodpfxexcwf Tj Ad Dstp Turning diameter f. lower turret mm: ø350 Bar work capacity mm: 91 Turn-mill spindle Full indexing specifications: Yes X-axis travel mm: 750 Z-axis travel mm: 1.550+100 (for ATC) B-axis degree: ±180º (0.001°) C-axis degree: ±210 Speed spindle rpm: 12.000 Drive power kW: 18,5/11 Tool magazine Magazine places: 100 Tool holder: CAPTO C6 Tool diameter max. mm: 140 Tool weight max kg: 8 Lower turret X-axis travel mm: 195 Z-axis travel mm: 1.525 Number of tool slots St .: 12 Main spindle Speed spindle rpm: 4.000 Drive power spindle kW: 22/18,5 (30min/cont) Counter spindle Speed spindle rpm: 4.000 Drive power spindle kW: 22/18,5 (30min/cont) Coolant system High-pressure bar: 28 Equipment Electronic Handwheel Chip conveyor Rinsing gun Signal lamp Workarea light Internal coolant supply Measuring probe Gantry loader LG-10; 10 Pallets, 75kg per pallet, pieces of Ø200 x 150 (W x H) Basic machine dimensions / weight Length mm: 6.800 Width mm: 3.200 Height mm: 2.900 Weight kg: 25.600

Condition: excellent (used), Year of construction: 2015, Technical Data: Capacity Max. Swing Diameter: Ø 600 mm Max. Turning Diameter and Length: Ø 370 x 750 mm Spindle Bore: Ø 82 mm Spindle Center Height from Floor: 1,140 mm Spindle Bearing/Bore Diameter: Ø 140 / Ø 90 mm Spindle Nose: A2-8 Spindle Speed: 4,200 rpm C-Axis Resolution: 0.001° Sub-Spindle Center Height from Floor: 1,140 mm Spindle Bearing/Bore Diameter: Ø 90 / Ø 53 mm Spindle Nose: F-140 Spindle Speed: 6,000 rpm C-Axis Resolution: 0.001° Travel and Rapid Traverse Travels X-Axis: 267 mm, Z-Axis: 840 mm Y-Axis: -50 to +70 mm, A-Axis: 780 mm Rapid Traverse X-Axis: 30 m/min, Z-Axis: 30 m/min Y-Axis: 10 m/min, A-Axis: 30 m/min Power Spindle Motor (30 min. / 100% duty cycle): AC 22 / 15 kW Max. Torque: 618 Nm (S3 25%) Driven Tools Number of Turret Stations: 15 Max. Tool Speed: 6,000 rpm Drive Power (30 min. / 100% duty cycle): 7.5 / 3.7 kW Isdpfx Adjwp Uhhj Detp Max. Torque: 48 Nm Tooling Live Tool Stations: 15 Tool Cross Section: 25 x 25 mm For Boring Operations: Ø 40 mm LNS Short Bar Loader Servo III Dimensions Height: 2,300 mm Depth (without chip conveyor): 2,140 mm Width (without chip conveyor): 3,000 mm Net Weight: 6,200 kg

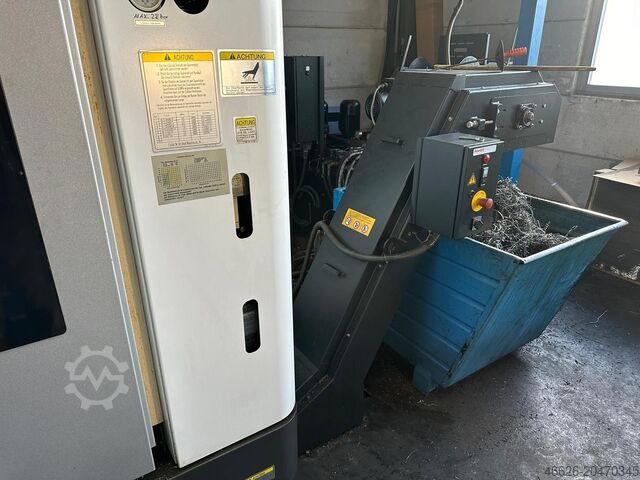

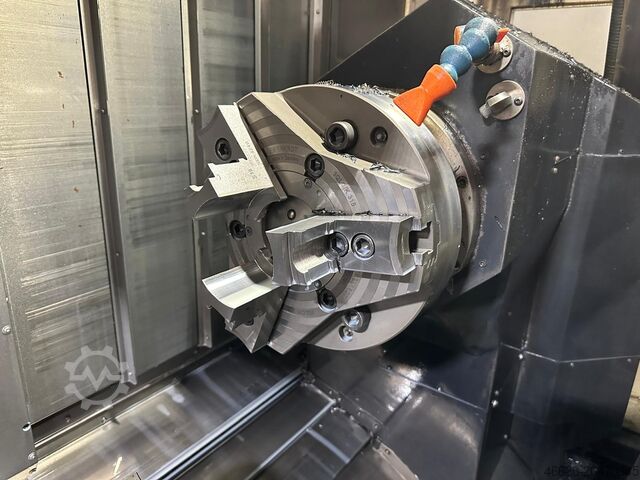

Condition: like new (used), Year of construction: 2015, operating hours: 15,000 h, functionality: fully functional, Year of manufacture: 10-2015 Control: OSP P300S Maximum turning diameter: 650 mm Main spindle Drive power: 32/22 kW Max. spindle speed: 3,000 rpm Max. torque: 955 Nm Spindle nose: A2-11 Spindle bore: 112 mm Hollow clamping cylinder SMW-VNK225-95, bore 95 mm Sub spindle Drive power: 26/22 kW Max. spindle speed: 4,000 rpm Max. torque: 420 Nm Spindle nose: A2-8 Bearing inner diameter: 80 mm Solid clamping cylinder SMW SIN-S175 Milling spindle Drive power: 22/18.5 kW Max. spindle speed: 12,000 rpm B-axis: 0.001° HSK-A63 Travel paths X1/X2-axis: 695/235 mm Y-axis: 300 mm Z1/Z2-axis: 1,600/1,524 mm B-axis: -30° to +210° Tool magazine / ATC 80 tool positions Max. tool diameter: 90/130 mm Max. tool length: 400 mm Lower turret 12-position tool turret Turning tool: 25 mm Boring bar: 40 mm Special equipment Software for limiting spindle speed to 3,500 rpm Software for multifunctional tools Software extension kit One Touch IGF-M-D Machining Navi M-g for milling operations Tool breakage detection – Renishaw TRS2 laser Machine-side preparation for high-pressure coolant 70 bar Factory-installed door automation Robot interface (Type “E”) Connection for oil mist extraction Itedpfx Adjxu Awlj Dsp Separate coolant filtration system TMF300/980, drum-type swarf filter, clean tank 980L Chip conveyor Standard equipment Lower turret with 12 stations, direct mounting system "radial", with cylindrical roller guide on ZB-axis, sliding guide on XB-axis Collision avoidance system (CAS) in real time 19'' color LCD TFT with 3D color graphics as touch screen Second operating system Windows 7 for operation and open data communication, freely usable for Windows 7 compatible applications Tool monitoring system for service life and breakage+ Tool measuring device Machine management MacMan with integrated BDE Ethernet interface with browser and DNC-T1 for program transmission Prepared for remote diagnostics Harmonic spindle speed oscillation by periodic speed variation Tool height correction in Y-axis for rotating tools Circular thread milling X/Z/Y/B including eccentric milling X/Y/C Hi-Cut Pro high-speed control for rotary tools Coordinate transformation Electronic spindle orientation Dimensions and weight L/W/H: 4,480/3,082/3,030 mm, Weight: 18,000 kg
