Machining Center - Horiz. (APC)

DMG MORI NHX 5000

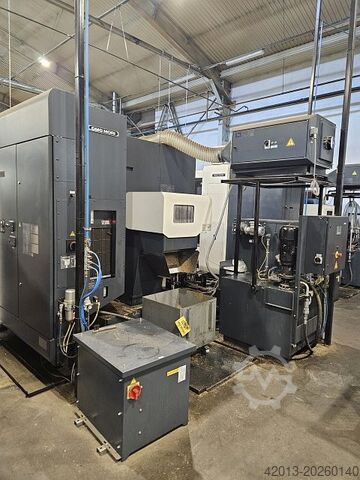

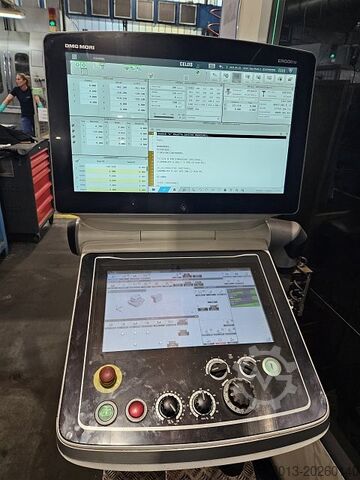

CONTROLS
.. CNC controls SIEMENS 840 D CELOS

WORKING RANGE -CUBIC-
.. number of processing axes (excl parallel axes): 4
.. X-axis travel: 730 mm
.. Y-axis travel: 730 mm
.. Z-axis travel: 880 mm
.. rotating range B-axis from: 0 °
.. rotating range B-axis up to: 90 °

TABLE
.. table surface (left-right): 500 mm
Fgjdpsxmllpjfx Afpsh
.. table surface (front-back): 500 mm
.. workpiece load (max): 500 kg

SPINDLE / HEAD
.. spindle revolutions (max): 15000 /min
.. tool fixture: ISO BT 40
.. drive power: 37.7 kW

AXIS DRIVES
.. traverse velocity X (max): 5000 mm/min
.. traverse velocity Y (max): 5000 mm/min
.. traverse velocity Z (max): 5000 mm/min
.. rapid traverse X: 60000 mm/min
.. rapid traverse Y: 60000 mm/min
.. rapid traverse Z: 60000 mm/min

TOOL MAGAZINE
.. magazin type: disc magazine
.. number of positions: 40
.. tool diameter max.: 70 mm
.. - with free neighbour positions: 170 mm
.. tool length max.: 550 mm
.. tool weight max.: 12 kg
.. tool changing time: 2.5 s

AUTOMATIC WORKLOAD EQUIPMENT
.. number of store positions: 2
.. Workpiece diameter max.: 800 mm
.. workpiece height (max): 1000 mm
.. pallet length: 500 mm
.. pallet width: 500 mm
.. number of pallets: 2

ELECTRICAL SPECIFICATIONS
.. mains power supply: 37.3 kVA
.. mains voltage: 400 V
.. mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
.. space requirements -left/right-: 4784 mm
.. space requirements -front/back-: 3078 mm
.. total height: 2852 mm
.. total weight approx.: 12000 kg

ATTACHMENTS
.. chip conveyor: yes
.. coolant unit: yes
.. closed cabin: yes
.. European CE standards: yes


Accessories
- Chip conveyor
