Vertical machining center

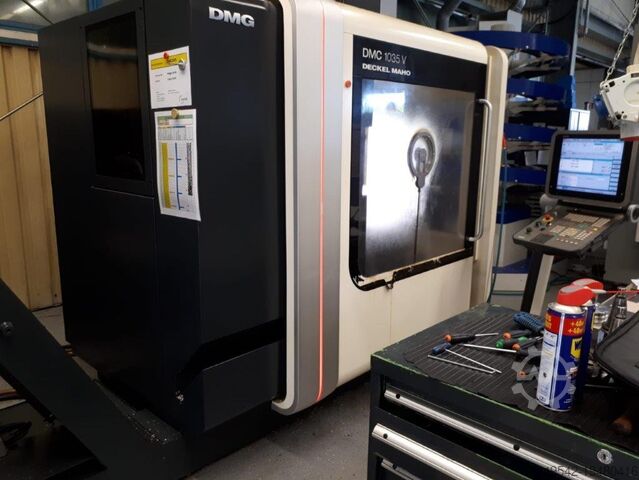

DMG DMC 1035 V

Condition: used, Year of construction: 2008, x-travel 1.035 mm y-travel 560 mm z-travel 510 mm control 810 D Powerline Siemens Main spindle: turning speed range - main spindle 20 - 8.000 min/-1 power capacity - main spindel 13 / 9 kW max. Torque 83 / 57 Nm tool taper SK 40 work table: table surface area 1.200 x 560 mm Dcsdpstzvy Tefx Aghsn max. table load 1.000 kg table height over floor 720 mm T-slots 4x H12 / 1x 14 H7 Tool-Presetter: number of toolpositions 20 pos. max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool length 300 mm max. tool weight 6,0 kg change time 1,6 sec change-time chip to chip 7,0 sec feeds: feed speeds 20.000 mm/min rapid traverse 25 m/min total power requirement 17 kVA weight of the machine ca. 4,1 t dimensions of the machine ca. 4,0 x 4,0 x 2,5 m CNC - Machining Center Vertical DMG MORI SEIKI - DMC 1035 V ecoline - only 3.800 spindle hours

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 1,035 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 25 m/min, rapid traverse Y-axis: 25 m/min, rapid traverse Z-axis: 25 m/min, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 20 m/min, nominal power (apparent): 17 kVA, torque: 83 Nm, controller manufacturer: Heidenhain, controller model: Heidenhain TNC 620, total height: 2,665 mm, total length: 3,250 mm, total width: 2,779 mm, table width: 560 mm, table length: 1,200 mm, table load: 720 kg, overall weight: 4,100 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 9,000 rpm, number of spindles: 1, number of slots in tool magazine: 20, tool length: 300 mm, tool diameter: 80 mm, tool weight: 6,000 g, Equipment: documentation/manual, rotational speed infinitely variable, Used DMC 1035 V eco for sale – High-performance vertical machining center Upgrade your manufacturing processes with this robust and powerful DMC 1035 V eco from DMG MORI! This vertical machining center is ideal for a wide range of milling tasks and offers outstanding performance when machining a wide variety of materials. Key Features: High rigidity and stability: Ensures precise machining results and a long service life. Large work area: Provides sufficient space for machining large workpieces. High spindle speed: Enables fast and efficient machining processes. Robust construction: Guarantees a long service life and reliable performance. CNC control: Equipped with a user-friendly CNC control for easy programming and operation. Additional Information: Year of Manufacture: 2010 Condition: Good, Used Control: Heidenhain TNC 620 Travel Range: 1,035 x 560 x 510 mm Speeds: 20 - 9,000 rpm Ideal for: General Machining Dcsdpfx Aexc Ignjghon Tool and Mold Making Single-Part and Small-Batch Production Mechanical Engineering Why this DMC 1035 V eco? This machine has been regularly serviced and is in good used condition. It offers a cost-effective way to expand your manufacturing capacity and increase your productivity.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Control: CNC-3 D path control system incl. Siemens 840 D Shop Mill TFT color display TECHNICAL DATA Travel Range: X-axis (longitudinal) 1035 mm Y-axis (transversal) 560 mm Z-axis (vertical) 510 mm Table working area 1200 x 560 mm Drive power (40/100% DC) 13/9 kW Speed range 20 – 10,000 rpm Tool holder (DIN 69871-1) SK 40 A Tool changer with double gripper Chain magazine Magazine positions 30 EQUIPMENT/ACCESSORIES - Chip and splash guard cabin with sliding door, electrically interlocked, and work area lighting Dsdpfjwvqxcex Aghocn - Automatic tool changer (double gripper/chain magazine) ATC 30 - Central lubrication - Spindle lubrication - Heat exchanger (work spindle) - Coolant system with filtration unit, 600 l, 20 bar belt filter system - ICS: Internal coolant supply through the tool - Switch-over from coolant to compressed air blow - Rinsing gun - Rotating viewing window - Chip conveyor with coolant tank - Infrared probe TS 649 - Tool measurement system TT 140 - Electrical cabinet cooling - 4-color signal light - Installation elements - Documentation

Condition: good (used), Year of construction: 2008, MACHINE SPECIFICATIONS X travel: 1035mm Y travel: 560mm Z travel: 510mm Rapid traverse X/Y/Z: 25m/min Feed: 20m/min Table dimensions X: 1200mm Table dimensions Y: 560mm Maximum table load: 1000kg Spindle speed: 9000rpm Dcjdpfx Agjlp Rliehsn Power: 13kW, torque: 83Nm Tool holder: SK40 Tool positions: 20 Maximum tool diameter: 80mm/130mm Maximum tool length: 300mm Maximum tool weight: 6kg Machine dimensions X: approx. 4000mm Machine dimensions Y: approx. 4000mm Machine dimensions Z: approx. 2500mm Weight: approx. 4100kg Control: FANUC 32 Operating hours: 23918h Processing hours: 11991h Including chip conveyor DMG EcoLine UNO 115 tool presetter Probe tool

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC vertical machining centre Manufacturer: DMG Model: DMC 1035 V Year: 2008 Serial number: 15425033554, Djdpfxsw Tdlpe Aghjcn Spindle SK-40, 10 kW, 8000 rpm, with 20 kVA drive, indicated operating hours approx. 53,001.90/12,233.41 hrs, Control HEIDENHAIN iTNC 530, table size 1400 x 650 mm, with 2 hydraulic vices, chip conveyor

Year of construction: 2010, condition: ready for operation (used), Travel X/Y/Z: 1035mm/560mm/510mm, rapid traverse X/Y/Z: 25m/min, feed: 20m/min, table dimensions X/Y: 1200mm/560mm, max. table load: 1000kg, spindle speed: 9000rpm, power: 13kW, torque: 83Nm, tool holder: SK40, tool positions: 20, max. tool diameter: 80mm/130mm, max. tool length: 300mm, max. tool weight: 6kg. Machine dimensions X/Y/Z: approx. 4000mm/4000mm/2500mm, weight: approx. 4100kg, control: Siemens Sinumerik 810D, operating hours: 23918h, machining hours: 11991h. Including chip conveyor, DMG EcoLine UNO 115 tool presetter, machine vices, clamping tools and various tool holders. The buffer battery is empty and may need to be replaced. Documentation available. On-site inspection is possible. Dodpovxvfhefx Aghscn

Condition: used, Year of construction: 2012, x-travel 1.035 mm y-travel 560 mm z-travel 510 mm CNC-control Heidenhain TNC620 table-size 1200 x 560 mm max. table load 1000 kg Dedpfx Agsw A Spvshocn spindle taper SK 40 spindle turning speed range 10.000 U/min drive capacity - spindle motor 13 kW feed stepless 20.000 mm/min rapid traverse 25 m/min tool change unit 20 Pos. coolant IKZ 20 bar voltage 400 V total power requirement 17 kVA weight of the machine ca. 4,1 t dimensions of the machine ca. 2,55 x 2,30 x 2,25 m - Serial No.: 1539000377A - Machine ON: 21.689 h - Program Run: 9.021 h - CNC-Control: Heidenhain TNC620 - elektronic hand wheel - chip conveyor - coolant through spindle 20 bar

Condition: excellent (used), Year of construction: 2011, Heidenhain TNC 620 control system Travel X/Y/Z: 1035/560/510 mm Spindle speed: 12,000 rpm Dsdpfx Aswid Ecoghecn Tool magazine for 30 tools, SK 40 Through-spindle cooling: 12 bar Chip conveyor

Condition: good (used), operating hours: 6,300 h, functionality: fully functional, travel distance X-axis: 1,035 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 510 mm, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 30, Equipment: chip conveyor, Machine comes from renowned medical technology company TECHNICAL DETAILS Control system: Siemens X-travel: 1,035 mm Y-travel: 560 mm Z-travel: 510 mm Table size: 1,200 x 560 mm Max. Table load: 1,000 kg Spindle hours: approx. 6,300 h Spindle Djdpfxeu T Rcre Aghscn Speed range: 20 - 12,000 rpm Interface: SK 40 Tool changer Capacity: 30 tools EQUIPMENT - Infrared sensor - IKZ (internal coolant supply) - Chip conveyor - Rinsing gun - Signal lamp - Suction unit - Preparation for 4th axis - Cabin roof
