Machining center

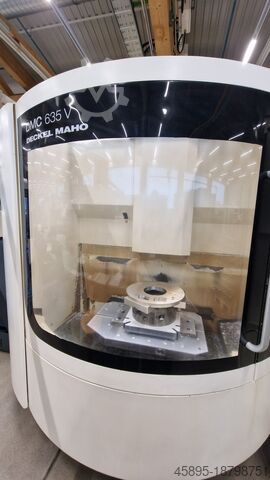

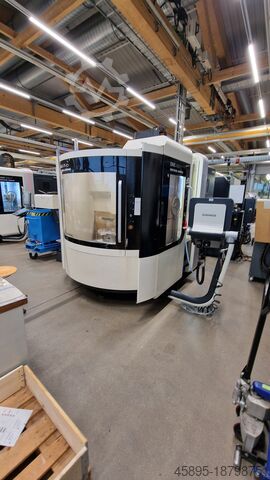

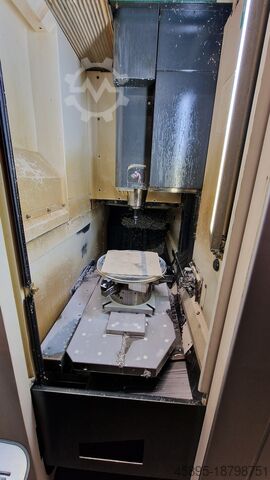

DMG DMC 635 V PW

Condition: excellent (used), functionality: fully functional, For sale: this lathe, currently connected and available for testing. Accessories for the machine included. A video of the machine can be sent via WhatsApp upon request. Cjdpfx Afev Nw A Nj Hjgu Swing over bed: 1050 mm Distance between centers: 6000 mm Swing over carriage: 840 mm

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : BT40 - Spindle power : 15 [kW] - Spindle speeds : 8100 [rpm] - Gearbox - Speed ranges : 2 - Number of spindle hours : 4000 [h] LINEAR AXES - Travels on X/Y/Z axes : 1270/508/635 [mm] - Rapid traverses rates (X/Y/Z) : 35.6/35.6/35.6 [m/min] - Cutting feed rates (X/Y/Z) : 21 [m/min] - Distance table / spindle nose (min./max.) : 742 [mm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 40 TABLE - Table dimensions : 1321/495 [mm] - Maximum weight upon table : 794 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 30 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3870/2510 [mm] - Machine height : 2690 [mm] - Machine weight : 6260 [kg] MACHINE HOURS - Number of hours under power : 16247 [h] - Number of working hours : 6025 [h] Cgsdpfxeyn R Ige Af Hou EQUIPMENT - CNC : HAAS - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming - Electronic handwheel - Rigid tapping - Prepared for a 4th-5th axis divider - Coolant tank : 208 [l] - Chips conveyor - Tool probe - Electric transformer

Condition: like new (used), Year of construction: 2024, functionality: fully functional, grinding length: 1,650 mm, grinding diameter: 400 mm, We offer a new BUB40 x 1500 NC machine equipped with a MITSHUBISHI NC controller. The machine is still under lease with ING Lease. It has been thoroughly refurbished based on the TOS HOSTIVAR BUB 40 model by FAS GŁOWNO. Technical data: • Maximum workpiece diameter: 400mm • Maximum workpiece length: 1500mm • Centre height: 200mm • Distance between centres: 1500mm • Minimum grindable workpiece diameter with a 380 mm grinding wheel: 20mm • Tailstock quill stroke: 40mm • Maximum tailstock clamping force: 4000N • Spindle headstock centre taper: ISO 296-1991/Morse 5 • Tailstock centre taper: ISO 296-1991/Morse 5 • Maximum workpiece weight between centres: 500kg • Maximum workpiece weight in chuck (including chuck): 100kg • Machine width (with enclosure): 6650mm Csdpfx Ajwzkywsf Hogu • Machine depth (with enclosure, without control panel): 2400mm • Machine height (with enclosure): 1850mm • Machine weight: 7000kg • Total power requirement: 38kVA Grinding spindle: • Standard grinding wheel dimensions: 500 x 80 x 203.2mm • Grinding spindle drive motor power: 11kW • Grinding spindle rated speeds (for 430 mm / for >430 mm and 500 mm wheels): 2000 / 1744 rpm • Grinding headstock traverse servo motor power: 2kW • Grinding headstock traverse servo motor torque: 9.5Nm • Maximum continuous X-axis traverse speed: 2m/min • Minimum X-axis grinding wheel increment: 0.001mm • Maximum continuous X-axis traverse speed: 6m/min • Minimum X-axis grinding wheel increment: 0.001mm • Maximum grinding wheel increment in INC mode: 0.1 mm • Table traverse servo motor power: 3.5 kW • Table traverse servo motor torque: 16.7 Nm Workpiece spindle: • Workpiece spindle speed range: 1 – 150 rpm • Workpiece spindle servo motor power: 3.5kW • Workpiece spindle servo motor torque: 16.7Nm More information available upon request via email or phone.

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Description Trumpf TRUBEND 5085 - WORKING INSIDE PRODUCTION DAILY ORDERS WORKING HORS: PRESENT ON PHOTO OF SCREEN Year 2011 Compression force: 85 tonnes Table length: 2,200 mm Free travel speed: 220 mm/s Accessories: Increased lift height from 230 mm to 615 mm. 5-axis bending. Hydraulic tool clamping at the bottom. Hydraulic tool clamping at top. Automatic bombing. Bendguard guard ACB angle measurement FOR CLIENT WE ORGANIZE AS WELL DISMANTLING AND TRANSPORT Specifications Manufacturer TRUMPF Model TRUBEND 5085 Year 2011 Csdpovlayvjfx Af Hegu Condition Used (EXCELLENT)

Condition: excellent (used), Year of construction: 2020, Unique opportunity to purchase this high quality CHIRON 5-axis machining center for profiles. Built and first use in 2020. The spindle was replaced in June 2022 and currently has 4500 operation hours. Machine is in very good condition and it can be inspected under power upon appointment. Availability: on request Including: Chip conveyor (scraper type) Profile bar feeder for bar lengths up to 6 m, for guiding profiles up to Ø 212 mm Coolant system TPF 350 / FKA 900 Coolant through the spindle Fixed 3D probe Type TS 27 R – RENISHAW Renishaw RLP40Q probe system Cnc control SIEMENS 840D X-axis 730 mm Y-axis 400 mm Z-axis 425 mm Maximum spindle speed 15,000 rpm Maximum torque 140 Nm Drilling capacity Ø 42 mm Thread tapping M30 Tool magazine capacity 20 tools Tool taper DIN 69893 HSK A63 Maximum tool diameter 65 mm Milling capacity 500 cm³/min in E355 steel Csdpfx Asyt I Uhef Hogu Full technincal specifications in the attached document. Optional: ARMIN automatic robot cell (2024)

Condition: good (used), functionality: fully functional, travel distance X-axis: 820 mm, travel distance Z-axis: 275 mm, rapid traverse X-axis: 15 m/min, rapid traverse Z-axis: 15 m/min, controller model: SIEMENS SINUMERIK, workpiece height (max.): 750 mm, workpiece diameter (max.): 680 mm, spindle speed (max.): 3,500 rpm, Equipment: chip conveyor, For sale: universal CNC turning center (lathe) from Czech manufacturer KOVOSVIT MAS PRIM S80i. This is a robust machine designed for precise turning, drilling, and threading in single-piece and small series production. The PRIM version is equipped with driven tools (live tooling) and a C-axis, enabling complex machining in a single setup. Max spindle speed: up to 3500 rpm Turret: 12-station C-axis: Yes, allows turning and milling Control: Siemens Sinumerik 810D/840D Cjdpfx Aey E Iiksf Hjgu Machine weight: approx. 6700 kg Key machine advantages: Versatility — Thanks to the C-axis and driven tools, it performs turning, milling, drilling, and threading in one setup. High repeatability — Suitable for precise parts made of steel, cast material, and stainless steels. Robustness — Heavy-duty construction and powerful spindle enable heavy milling and long-term operation. Usability — Ideal for workshops needing a single machine for a wide range of applications (from simple shafts to complex components with gears, holes, etc.).
