Milling machining centers - vertical

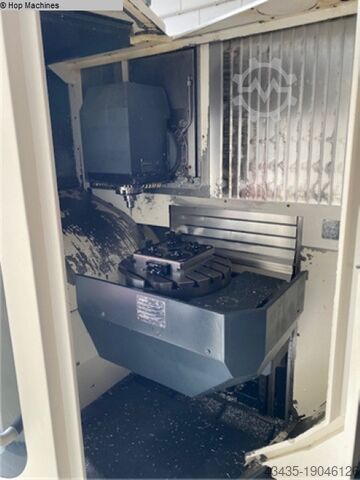

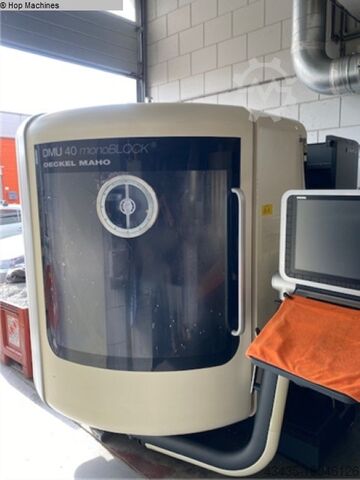

DMG DMU 40 Mono Block

Condition: used, TECHNICAL DETAILS - max. power : 40 [t] - max. workpiece diameter : 40 [mm] - spindle diameter : 80 [mm] - spindle length : 120 [mm] Nwjdpfjuhb Uhsx Agrel - max. tool diameter : 250 [mm] - dimensions : 2400 x 2100 x 2200 [mm] - weight : 7100 [kg] EQUIPMENT - control CNC (base Siemens) - tail stock device - coolant tank with pump - 2 boring wheel 80, diameter : 260 [mm]

Condition: new, Year of construction: 2016, 1 unit of a completely overhauled, unused industrial bevel-helical gearbox from ASUG. TGL 21815. All gearbox parts have been replaced, with the exception of the housing!!! Clutch: 800 mm (only one half available) Maximum torque: 27,829 Nm Gear ratio: i = 1:80 Maximum power: 51 kW Nwodegwlrdjpfx Agrjl Oil capacity: 170 kg Speed: n1 = 1400 Speed: n2 = 17.5 Weight: 1450 kg Shaft diameter d1: 65 mm Shaft diameter d2: 160 mm Shaft height h1: 500 mm Overall height h2: 925 mm Length of base: 1170 mm !! The gearbox does not have an oil cooler !!

Condition: used, Year of construction: 2001, functionality: fully functional, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Nwodsw Imq Rspfx Agrol

Condition: excellent (used), Year of construction: 2021, operating hours: 3,000 h, travel distance X-axis: 6,100 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 950 mm, CNC Travelling Column Milling Machine – Fully Retrofitted by REM (2021) Powerful and versatile heavy-duty milling machine, completely modernized by REM specialists in 2021 with state-of-the-art Heidenhain TNC 320 control. Ready for immediate production use. Nwsdpon D N H Tofx Agrjl KEY SPECIFICATIONS: • X-axis (transversal travel): 6,000 mm • Y-axis (vertical head travel): 2,000 mm • Z-axis (axial slide travel): 950 mm • Dual-spindle head | Head rotation: 360° • Spindle speed: 1,000 – 4,000 rpm • Spindle taper: ISO 50 (automatic locking/unlocking) • Head dimensions: 290 × 290 mm • Spindle motor power: 15 kW (DC) • Machine weight: approx. 32 tonnes • CNC Control: Heidenhain TNC 320 WHY BUY FROM REM? ✔ Machine fully inspected and tested in working conditions ✔ Modern CNC retrofit – new electrics, new drives ✔ Documentation and technical support available ✔ Export worldwide | Competitive shipping Ideal for heavy component machining in aerospace, energy, and heavy industry. Contact us today for full technical specifications, photos, and video demonstration.

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation Nodow Rrb Hspfx Agrswl

Condition: excellent (used), Year of construction: 2018, operating hours: 19,394 h, functionality: fully functional, machine/vehicle number: 2522027, travel distance X-axis: 2,500 mm, travel distance Y-axis: 2,200 mm, travel distance Z-axis: 1,250 mm, total length: 5,900 mm, table length: 2,500 mm, table width: 2,500 mm, total width: 6,139 mm, total height: 5,980 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 50 m/min, distance between stands: 3,225 mm, table load: 4,000 kg, workpiece weight (max.): 16,000 kg, rotational speed (min.): 1 rpm, rotational speed (max.): 15,000 rpm, distance table center to spindle nose: 1,500 mm, tool weight: 8,000 g, Equipment: rotational speed infinitely variable, Control: Heidenhain TNC640 Number of controlled axes: 5; simultaneous Commissioned: 2019 Spindle run time (h): 12,629 Tool holder: HSK 100 Nwodpfx Ajxx Svxogrjl Tool changer: 30 positions Linear motor Internal coolant supply (IKZ): 65 bar incl. chip conveyor incl. special operator panel

Condition: used, Year of construction: 2009, faceplate diameter 3000 mm swing diameter 3500 mm turning height 3200 mm Control Fanuc type Series 320i Model A slide adjustment 1750 mm ram head dimension 300x300 mm x-axis 2700 mm Table load 30000 kg main drive motor 100 kW Tool changer 16 weight of the machine ca. 89 t dimensions of the machine ca. 8,5x6x8 m No. 1104 Nwjdeyqu Rwspfx Agrjl The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: refurbished (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 1,600 kg, total height: 2,780 mm, total width: 2,265 mm, total length: 2,110 mm, quill stroke: 450 mm, workpiece length (max.): 1,220 mm, workpiece width (max.): 870 mm, workpiece height (max.): 470 mm, GF AgieCharmilles FORM 300 Year of manufacture: 2014 Die-sinking EDM machine in C-frame design (fixed table) with automatic lowering tank Travel paths (X/Y/Z): 600 x 400 x 450 mm Maximum workpiece size: 1220 x 870 x 470 mm Table dimensions: 750 x 600 mm Maximum workpiece weight: 1,600 kg Maximum electrode weight: 50 kg Innovative ISPG Generator (Intelligent Speed Power Generator) for maximum efficiency Maximum working current: 80 amps Surface finish up to Ra 0.08 µm AC FORM HMI with intuitive user interface & touchscreen Intelligent workpiece measurement & 3D correction Reduced electrode wear thanks to iQ technology Adaptive control (ACC & ACO) for optimized spark erosion and reduced electrode wear Pneumatic chuck of your choice (Erowa or 3R Systems) Includes 6-position electrode changer LTC Machine dimensions: 2265 x 2110 x 2780 mm Total weight: 4,500 kg The machine will be cleaned, overhauled and extensively tested prior to sale to ensure the highest quality and reliability. We are also happy to offer you additional services: Nwodpfjx Sv E Hex Agrjl - Transport - Commissioning - Training - Accessories such as clamping devices

Condition: used, Year of construction: 2013, max. wheel diameter 260 mm gear width 320 mm Nsdpfx Agox R U Hgerjwl max. module 4,5 min. module 0,5 Control SIN 840D max.helical angle +/- 45 ° total power requirement 68 kW weight of the machine ca. 15,50 t dimensions of the machine ca. 3,25 x 3,25 x 3,30 m Fire extinguishing system Siemens Sinorix TM Knoll Filtering system VL1500/8000 year 2017 Wekal loading cell

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, The machine is currently operating in an Italian high-end facility specializing in individual components and custom manufacturing for Formula 1 as well as the aerospace sector. The machine is in exceptional condition. Photos are available upon individual request and under strict confidentiality. CNC turning/milling center (multitasking) with full 5-axis simultaneous machining - 2 turning spindles (main spindle + sub spindle) - B-axis milling head (swivelling milling head) + C-axes on both turning spindles - Designed for complete machining (turning + milling + drilling + threading + contouring) Working area / capacities: - Max. turning diameter: 640 mm - Max. turning length: 1,100 mm - Distance between spindle noses (min./max.): 250 / 1,350 mm - Distance between centers (min./max.): 125 / 1,225 mm - Bar capacity / spindle bore: 71 mm - Chuck diameter (typical for A2-8 configuration): 254 mm (10") Main spindle (left): - Spindle nose: A2-8 - Bar capacity: 71 mm Nwsdpfxeynmgls Agrsl - Speed range: stepless up to 4,500 rpm - Spindle power (depending on spindle package): approx. 22/18.5 kW (alternatively 15/11 kW available depending on package) Sub spindle (right): - Design: fully-fledged sub spindle (workpiece transfer/complete machining) - C-axis available (for milling/indexing operations) - Clamping device: hydraulic chuck (compatible with A2-8 configuration, typically 10") Milling unit / 5-axis kinematics: - B-axis swivel range: 225° (−120° / +105°) - Y-axis: ±125 mm (250 mm total) - X/Y “square stroke” / machining window: 250 mm × 250 mm - X-axis undercut below spindle center: 125 mm (for extended machining range) - C-axis on main and sub spindle (C1/C2) Tool / milling spindle (typical version): - Milling spindle in B-head for drilling/milling/threading/simultaneous machining - Speed (depending on package): approx. 8,000 rpm (higher speeds optionally available) - Power (depending on package): typically up to 18.5 kW (package dependent) Tool handling: - Automatic tool magazine (ATC): 120 positions - Automatic tool changer (magazine/ATC) Control / software: - Nakamura NT-Smart X user interface / process management - 5-axis capable CNC platform (CAM-compatible complete machining, simultaneous machining) Typical applications and process capability (for your listing): - Complete “done-in-one” machining: turning + milling + drilling + threading + 5-axis contours
