5 Axis Machining Center

DMG DMU 75 Monoblock

Condition: good (used), Year of construction: 2014, Universal Machining Centre Machine type: DMG DMU 75 monoblock Control: Heidenhain iTNC 530 Year of manufacture: 2014 TECHNICAL DATA: 5-axis simultaneous machining Travel distances: X-axis: 750 mm Y-axis: 650 mm Z-axis: 560 mm B-axis: +/- 120° C-axis: 360° Number of controlled axes: 5 5-axis simultaneous Spindle speed range: 18,000 rpm Tool holder: SK 40 Tool changer Number of tool stations: 60 NC rotary-swivel table: Ø 650 mm Table size: 800 x 650 mm Max. table load: 600 kg Connected load: 48 kVA Fpsdpsxrcx Dsfx Aa Nop Machine weight: 12,000 kg Space requirements (LxWxH): 3.2 x 2.62 x 2.93 m Equipment features: Chip conveyor Internal coolant supply (IKZ): 40 bar Paper band filter Measuring probe: 3D Tool measurement: Blum laser Electronic handwheel Oil mist extraction Air through spindle center Bed flushing Operating mode: 4

Condition: used, Year of construction: 2020, Wire erosion / EDM Travel distance X: 600 mm Travel distance Y :400 mm Travel distance Z: 270 mm max. workpiece size X: 920 mm max. workpiece size Y: 700 mm max. workpiece size Z: 215 mm Fsdpfew H Aw Ejx Aa Nspp max. workpiece weight: 5000 kg submerged cooling unit

Condition: used, Year of construction: 2017, x-travel 750 mm y-travel 650 mm z-travel 560 mm Control 3D HEIDENHAIN TNC 640 table-size 800 x 650 mm rotary table 650 mm table weight 600 Kg c-axis ° b-axis -120+120 ° Tool diameter 840 mm toolpiece height max. 500 mm rapid taverse 40.000 mm turning speeds 20.000 U/min Tool adapter HSK-A63 Torque 130/86 0 engine output 35 kW Internal cooling system 40 bar Machine on 26.972 h Spindle hours 11.412 h tool change unit 60 pos. Internal cooling system 40 bar total power requirement 49 kW weight of the machine ca. 11.600 kg -Tool charger -No. Positions in the tool charger 60 -Tank with 500l paper filter -Active refrigerator cabinet -Infrared measuring probe Heidenhain piece Fjdpfovw Dwvjx Aa Njpp -Blum laser probe measuring device -chip extractor -Cleaning gun with 2 bar 40 l/min pump -3D quick set -HEIDENHAIN HR-510 Portable Steering Wheel

Condition: excellent (used), Year of construction: 2018, Brand: DMG MORI Model: DMF DMU 75 Monoblock Year: 2018 CNC: Heidenhain iTNC640 Equipped with: Spindle hours: 7,300 h Integrated rotary table, dia. 600mm / 600kg Spindle: 35 kW – 20,000 rpm Tool changer with 60 positions Probe: TS 649 3D quickset Through-spindle coolant 40 bar Fodpfjxmi Alex Aa Nopp Tool probe Coolant gun Chip conveyor Specifications: Table size: 800 x 650 mm (dia. 600 tiltable) X-axis travel: 750 mm Y-axis travel: 650 mm Z-axis travel: 560 mm B-axis: -/+120° C-axis: 360.000° Spindle speed: 2 – 20,000 rpm Spindle power: 35 kW Spindle taper: SK 40 Rapid traverse (XYZ): 40 m/min Machine dimensions (approx.): 3,200 x 2,600 x H 2,900 mm Weight (approx.): 11,600 kg

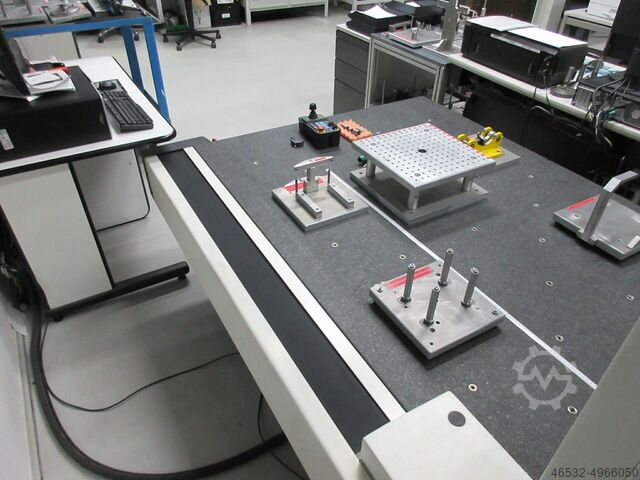

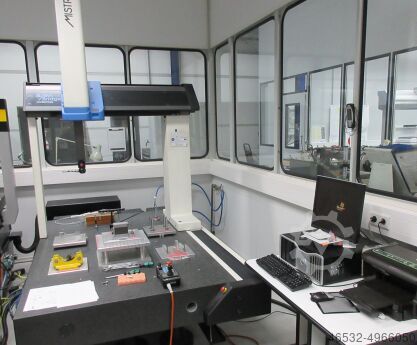

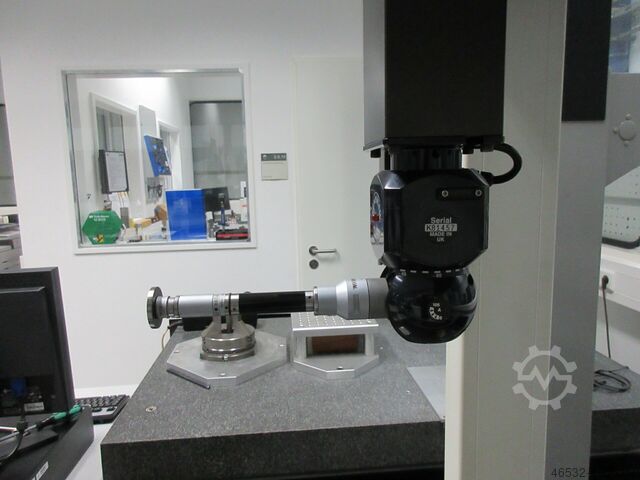

Year of construction: 1995, condition: excellent (used), Technical data Manufacturer: brown & sharp Type: DEA Mistral Year of construction: 1995 Measuring range Fpedpfef Dvzcex Aa Nsp X = 1500 mm Y = 1000 mm Z = 900 mm Equipment Renishaw PH10M probe TP200 touch probe + probe changing bench 6 garages Software PC-DMIS Version 4.2 Status 2008 PC (WIN XP), monitor, inkjet printer, computer table The machine can be upgraded with new accessories according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer. Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices and subject to prior sale)

Condition: used, Year of construction: 2016, Universal Machining Center Machine Type: DMG DMU 75 monoblock Control: Siemens 840 D sl shopmill Year of Manufacture: 2016 Fpjdpewv Rnwjfx Aa Njp TECHNICAL DATA: 5-Axis Simultaneous Travel Paths: X-Axis: 750 mm Y-Axis: 650 mm Z-Axis: 560 mm B-Axis: + / - 120° C-Axis: 360° Number of Controlled Axes: 5 Speed Range: 20,000 rpm Drive Power: 35 kW Torque: 130 Nm Tool Holder: SK 40 Tool Changer Tool Stations: 60 NC Swivel Rotary Table: Ø 650 Table Size: 800 x 650 mm Max. Table Load: 600 kg Connected Load: 48 kVA Machine Weight: 12,000 kg Footprint (LxWxH): 3.2 x 2.62 x 2.93 m Features: Chip Conveyor Internal Coolant Supply (IKZ): 40 bar Touch Probe: Renishaw Through-Spindle Air Supply Electronic Handwheel 3D Quickset Load Display on Z-Axis Chip Washing Gun

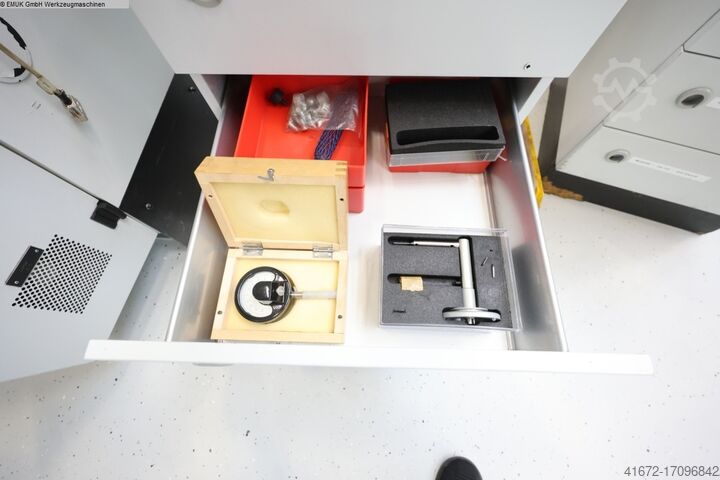

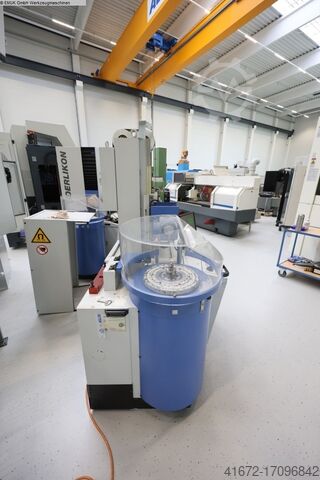

Condition: good (used), Year of construction: 2004, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with Fedpfx Ajul Efmja Nspp tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: used, Year of construction: 2023, Wire erosion / EDM Travel distance X: 400 mm Travel distance Y :300 mm Travel distance Z: 250 mm max. workpiece size X: 850 mm max. workpiece size Y: 610 mm max. workpiece size Z: 250 mm max. workpiece weight: 500 kg table size X: 630 mm Fjdexdnkiepfx Aa Nepp table size Y: 493 mm with AWF ( Automatic Wire Feeding ) U / V axis: 150x150mm generator: 40 Ampere

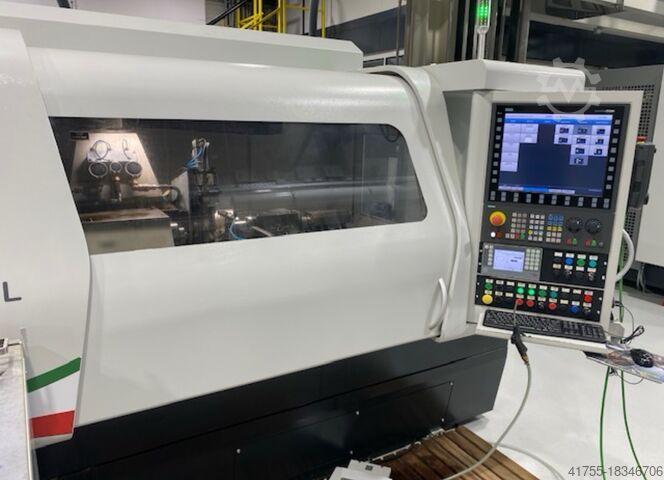

Condition: like new (used), Year of construction: 2019, absolutely as good as new condition, Fpjdpfx Aevt R Awoa Njp 2 external wheels, 1 internal grinding spindle Siemens control controlled B-axis suitable for Capto grinding (out of round) center width 1000 mm center height 200 mm

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 50 h, functionality: fully functional, machine/vehicle number: K17483-152-1, arm reach: 1,440 mm, type of input current: three-phase, Yaskawa MA 1440 welding robot with Abicor Binzel iROB pulse 500 welding source , Abicor Binzel welding neck and unrolling device , with Scansonic TH6D , and automatic centering and cleaning station . Fpedpfxsvb D Eho Aa Nep The equipment is like new , barely used, and used the Scansonic TH6D to self correct during welding .
