CNC turn-mill center

DOOSAN Puma 2600SYII

Condition: good (used), Year of construction: 2007, - SIEMENS 840 D control - Bar capacity 65 mm - Main and sub spindle with speed 5,000 rpm - C-axis, Y-axis - 3 turrets, each with 12 stations (all driven) - Driven tool speed 4,000 rpm - Tool holder VDI 30 with drive according to DIN 5480 TRAVELS Ksdsuw Izvopfx Ag Isdw X1= 165, Z1= 220 mm X2= 165, Z2= 150 mm X3= 165, Z3= 650, Y3= 80 (+50/-30) mm ACCESSORIES Coolant system Chip conveyor Bar loader TOP Automazioni XF 375

Condition: used, machine/vehicle number: 008112, X axis working area: 3390 mm Y axis working area: 1535 mm Working Table: Pod and Rail Main Electrospindle power: 15 KW Number of controlled axes: 5 axes Total number of drilling spindles: 21 Total number of tool changer positions: 14 Kdsdew Idgvjpfx Ag Ijw

Condition: used, Year of construction: 2002, functionality: fully functional, turning diameter: 1,600 mm, spindle motor power: 45 W, spindle speed (max.): 1,500 rpm, travel distance X-axis: 1,200 mm, travel distance Z-axis: 900 mm, rapid traverse X-axis: 10,000 m/min, rapid traverse Z-axis: 10,000 m/min, Daewoo Doosan PUMA V-1200M CNC vertical lathe, year 2002, equipped with FANUC Series 18-T control, designed for machining large and heavy workpieces, ideal for heavy-duty and industrial sector applications. Main technical specifications: Maximum swing and turning diameter: Ø 1,600 mm Maximum turning height: 1,200 mm Maximum workpiece weight: 6,000 kg Chuck diameter: Ø 1,200 mm Kdsdpfx Aswt S Rhog Ijw RAM axes: X (horizontal): 1,200 mm Z (vertical): 900 mm C axis: 360° rotation, minimum positioning increment 0.001° Main spindle: Speed: 2 ÷ 320 rpm (2 ranges) Power: 37/45 kW RAM driven spindle: Taper ISO-50 Speed: 15 ÷ 1,500 rpm RAM section: 240 x 240 mm Tool turret: 16 stations, with BT-50 type tools Max. tool diameter: Ø 400 mm Max. tool length: 450 mm Max. tool weight: 50 kg Maximum tool weight in magazine: 600 kg Feeds: Rapid traverse X/Z axes: 10,000 mm/min Working feeds X/Z axes: 3,000 mm/min Included accessories: Chip conveyor Coolant tank with pumps Spindle line air conditioner Various fixed and driven tool holders Manuals, electrical diagrams, CE declaration Solid and high-performance machine for vertical machining of large workpieces with high precision.

Condition: used, total height: 1,700 mm, total length: 6,000 mm, total width: 1,700 mm, Empty weight: 6.500 kg Price: On request Lathe metal lathe Model: Conventional Manufacturer: TOS Type: SUI 63 Serial number: 407620860 Center distance: 4000mm Center height: 325mm Turning diameter: 630mm Spindle passage: 80mm Kodpfx Ajwnhy Ieg Iedw Spindle speed: 11,2-1800 rpm Machine-afmeting: 6000x1700x1700mm Machine weight: 6500kg - Documentation available: No - CE certificate present: No - Drive system: Conventional - Centre height [mm]: 325 - Swing over bed [mm]: 630 - Distance between centres [mm]: 4000 - Spindle bore [mm]: 80 - Min. spindle speed [rpm]: 11.2 - Max. spindle speed [rpm]: 1800 - Transport dimensions: 6000mm x 1700mm x 1700mm (l x w x h) - Transport weight [kg]: 6500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, turning diameter: 500 mm, DMG CTX Beta 1250 TC 2009 Ksdpfxsv N Hc Sj Ag Iodw

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Kedpfx Aod Tm D Ejg Ijdw Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: new, Year of construction: 2025, functionality: fully functional, travel distance X-axis: 3,200 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 200 mm, feed length X-axis: 3,200 mm, feed length Y-axis: 1,600 mm, feed rate X-axis: 70 m/min, feed rate Y-axis: 70 m/min, feed rate Z-axis: 25 m/min, controller manufacturer: Syntec, controller model: SYNTEC, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Working area price; 2600x1300 € 48,500 CNC NESTING ROUTER MACHINE CNC Machining Center Year of manufacture: 2025 9Kw ATC spindle Tool changer magazine with 16 positions (depending on the model) Multi-drill (optional) 7x vertical drills 8x horizontal drills 1 grooving saw, X-axis 1 grooving saw, Y-axis Professional Pegasus software Working fields X-axis: 2,600-3,200-4,200-5,200-6,000mm Working field Y-axis: 1,300-1,600-2,100mm Working field Z-axis: 200mm Kdedpjtty Ahefx Ag Ijw Vacuum pump Becker VTLF2.250 5.5Kw Omron safety light curtain Central automatic grease lubrication Suction connection diameter Ø150-200mm Cad Cam - programming Pegasus Professional Programs of any format: Adobe Illustrator, DXF, ESP, PLT, TXT. Special nesting function

Condition: new, Year of construction: 2024, Operating massive working pieces? Then this CNC laser machine would be the ideal option. The Wattsan 2030 Flat Bed is a laser cutter designed to work with large materials. There is no need for extra preparation; go right to work! This CNC laser machine has a table size of 2000x3000 mm. It also includes a trash collecting container, which will make the job much more enjoyable. Wattsan 2030 can cut materials such as cloth, plywood, cardboard, rubber, acrylic, plexiglass, and wood. You can give our managers a call for additional details! Wattsan 2030 Flat Bed characteristics Working area: 2000x3000 mm Laser power: 100-130 W Working table lowering depth: 40 mm Positioning precision: 0,03 mm Machine size: 2400 x 3750 x 800 mm Kodpory Uf Asfx Ag Ijdw Packing size: 3860 x 2540 x 1020 mm Weight: 1075 kg Virmer provides not only prime machines but also service and delivery. Our engineers and managers are ready to answer all of your questions and provide video assistance if required. Also, owners of Wattsan equipment get lifetime online support. Virmer is located in the Netherlands and works all over Europe. Virmer is Wattsan's official supplier. We provide not only laser engravers, but also metal cutters, welders, markers and cleaning machines. Wattsan is a Chinese manufacturer, which has been creating laser equipment for almost 15 years and keeps evolving with the help of its clients. Thanks to feedback Wattsan made over 50 modernizations, which made machines more reliable, precise and powerful so you could upgrade your business up to the new level. YOU CAN WRITE OR CALL US! WE WILL SELECT THE RIGHT MACHINE FOR YOUR TASK On our company you can find a wide range of machines and components: Laser Metal Cutting Machine; Laser Metal Machine, Fiber Metal Laser, Fiber Metal Laser Engraver; CNC laser machine for metal; Laser machine for wood; CNC laser machine; Laser engraving machine; Laser engraver; Laser cutting machine for plywood; Laser engraver; Laser cutting machine for metal; CNC milling machine; laser marker. Lenses; Chillers; Cooling system for machine; Chiller S&A ; IPG laser, MAX photonics, Raycus; Compressor; Rotary device; Mirror for laser machine.

Year of construction: 2007, condition: ready for operation (used), - USED - 4-AXIS CNC LATHE MAX ROTATING DIAMETER: 550 mm MAX TURNING LENGTH: 513 mm MAX TURNING DIAMETER: 300 mm BAR CAPACITY: 65 mm SPINDLE: 4500 rpm; 15-18,5 kW; ASA A2-6 COUNTER SPINDLE: 6000 rpm; 5,5 kW X-AXIS TRAVEL: 205 mm Z-AXIS TRAVEL: 580 mm RAPID FEEDS X-Z: 24 - 30 m/min DRIVEN TURRET HEAD: 12 POS; 5000 rpm; 3,7 kW CONTROL UNIT: FANUC 18i-TB WEIGHT: 4240 Kg OVERALL DIMENSIONS: 3315 x 1600 x 1750 mm ACCESSORIES: PARTS CATCHER ; SWARF CONVEYOR ; PIECE CONVEYOR ; Kdedpfsxburuex Ag Ijw TOOL SETTER

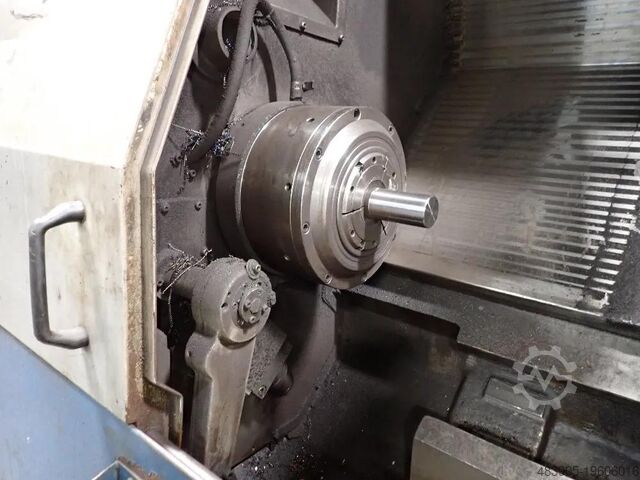

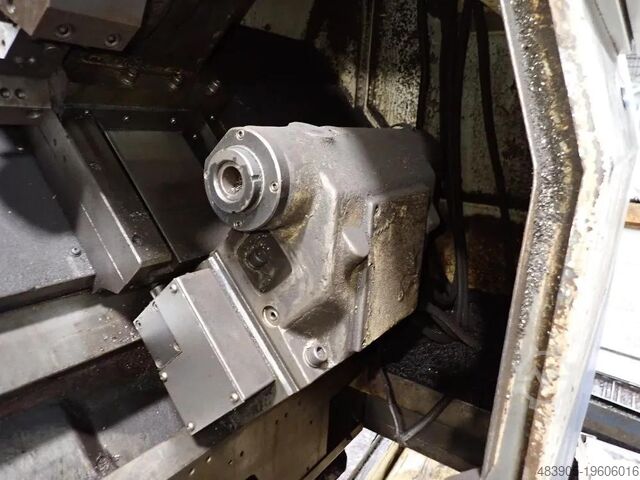

Condition: used, Year of construction: 2002, operating hours: 32,700 h, functionality: fully functional, turning diameter over cross slide: 570 mm, turning length: 550 mm, turning diameter: 350 mm, spindle bore: 90 mm, spindle speed (max.): 3,500 rpm, spindle speed (min.): 35 rpm, travel distance X-axis: 242 mm, travel distance Z-axis: 580 mm, Daewoo Puma 230C Year: 2002 Control: Fanuc 21i-T Swing Over Bed: 510 mm Swing Over Cross Slide: 390 mm Max Turning Diameter: 350 mm Max Turning Length: 550 mm Distance Between Centers: 670 mm Spindle Bore: 90 mm Spindle Nose: A2-8 Spindle Speed: 35–3,500 RPM Spindle Motor: 18.5 kW X-Axis Travel: 242 mm Z-Axis Travel: 580 mm Rapid Traverse X/Z: 20 / 25 m/min Chuck Size: 254 mm Turret: 12-station Tailstock Taper: MT-4 Tailstock Quill Diameter: 75 mm Tailstock Quill Travel: 80 mm Chip Conveyor: included Kjdpjw Amuaofx Ag Ijdw Coolant System: included Weight: approx. 4,300 kg Dimensions: 2,970 × 1,625 × 1,750 mm Alle technische specificaties zijn ontleend aan betrouwbare bronnen. Voor uw zekerheid adviseren wij deze nogmaals te controleren.
