CNC turning and milling center

DOOSAN DAEWOO PUMA V-1200M

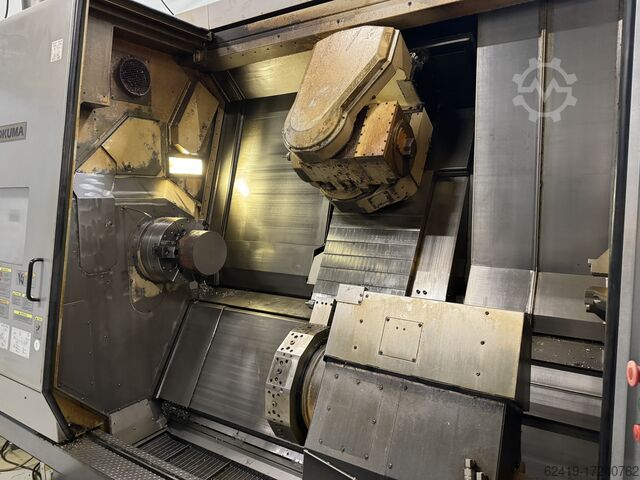

Condition: good (used), Year of construction: 2009, functionality: fully functional, turning length: 1,500 mm, turning diameter: 550 mm, spindle motor power: 22,000 W, spindle speed (min.): 3,800 rpm, spindle bore: 80 mm, power: 22 kW (29.91 HP), Equipment: rotational speed infinitely variable, Okuma Macturn 350 2SW-1500 Big Bore main spindle, machine type CNC turning-milling center Make / manufacturer Okuma Okuma Model / type MacTurn 350 2SW1500 BigBore Year of manufacture 2008 / 2009 Control OSP P 200 L IGF One Touch Advanced + CAS Spindle turning time 6437 h Technical data Max. turning diameter: 550 mm Max. turning length: 1,500 mm Travel path of upper turret (milling spindle): X-axis: 505 mm/190 mm/1670 mm Y-axis: 190 mm (+95 /-95) Z-axis: 1670 mm W-axis: 1680 mm Travel path of lower turret: X/Z 210 mm/ 1670 mm Main spindle “Big Bore” version Spindle motor main spindle 22 kW, 412 Nm Max. speed main spindle 3800 rpm Spindle nose main spindle JIS A2-8 Spindle passage 80 mm Max. bar diameter: 71 mm C-axis 0.001 ° Counter spindle “Super Big Bore” version Spindle motor counter spindle 22 kW, 412 Nm Max. speed counter spindle 3300 rpm Spindle end counter spindle JIS A2-8 Spindle passage 80 mm Max. bar diameter: 71 mm Milling spindle Spindle motor milling spindle: 11 kW Max. speed milling spindle: 12000 rpm Tool holder: HSK 63 B-axis: 0.001° Tool magazine: 44 stations Lower turret Tool positions: 12 Tool holder: VDI-40, Driven tool stations: 12 positions Max. power of driven tools: 7.5 kW Max. speed of driven tools 4500 rpm Machine weight: approx. 15,000 kg Space requirement 6000 x 3500 x 3000 cm Other features - High pressure cooling 40 bar - Chip conveyor Interlit ISF 614 - Heavy crane filter Interlit SBP 4 - Touch Setter - Helical Cutting - 4 Extra M-Code Set - 2x hydraulic power chuck SMW BH-D 315-95 diam. 250 mm - DNC- T1 interface - RS 232 C interface - Chuck blow-off function main counter spindle - TAS -S + TAC-C Status report after commissioning in Bergisch Gladbach Geometry measurement results Reverse play XA - axis 0.015 mm Reverse play XB - axis 0.015 mm Reverse play ZA - axis 0.020 mm Reverse play ZB - axis 0.020 mm Reverse play Y - axis 0.010 mm XA - axis measured with measuring mandrel at 300 mm 0.02, YA at 300 mm 0.007in T1,T2, T3 B-axis: alignment and function good M-drive lower turret: tested and good Milling spindle: tested up to 6000 rpm, no abnormalities Main/counter spindle tested , no abnormalities High pressure pumps function well, no abnormalities Accessories - 2 x hydraulic crane chuck SMW - pallet with 16 driven tool holders, 10 HSK 63 holders, 3 VDI 40 holders Dodpfevta Rdjx Aa Nowd - lifting hook on the front - all original axle locks Neff The Okuma specialist and NeffBuy We are also happy to provide you with the all-round carefree package, a tour of our showroom including demonstration and acceptance, loading, transport, assembly and commissioning of the machine as well as instruction and subsequent service. We operate Okuma CNC service throughout Europe, both electronically and mechanically, and on top of that we have a 1200 m2 inventory of all Okuma spare parts, please visit us on our homepage.

Condition: excellent (used), Year of construction: 2008, DMG CTX 510 Sinumerik 840D Machine in perfect condition, equipped with bar feeder and C axis Spindle operating hours: 6720 Spindle bore: 95 mm Collet chuck Forkardt D=100 mm max; I also have a brand new Hainbuch SK100 collet chuck for this machine Dwjdjr Ak S Nopfx Aa Nod Tool holder VDI 40

Condition: good (used), Year of construction: 2007, - SIEMENS 840 D control - Bar capacity 65 mm - Main and sub spindle with speed 5,000 rpm - C-axis, Y-axis - 3 turrets, each with 12 stations (all driven) - Driven tool speed 4,000 rpm - Tool holder VDI 30 with drive according to DIN 5480 Dodpfx Aouw Izvsa Nowd TRAVELS X1= 165, Z1= 220 mm X2= 165, Z2= 150 mm X3= 165, Z3= 650, Y3= 80 (+50/-30) mm ACCESSORIES Coolant system Chip conveyor Bar loader TOP Automazioni XF 375

Condition: excellent (used), With C-axis With Y-axis With driven tools SIEMENS 840D SL ShopTurn control Dedpew S Iq Hjfx Aa Nswd Turning diameter max 700 mm Turning length -3065 mm Swing Diameter -900 mm Spindle speeds -2'500 rpm C-axis Dividing 0.001° Bar diameter 105mm Top turret tool holders 12 driven positions Y-axis travel 160 mm Tool breakage control system Misc. accessories MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 2006, operating hours: 21,437 h, functionality: fully functional, machine/vehicle number: 122574, Controller: OSP P200 L  Remarkably few spindle hours.    Max. turning diameter ø 720mm  2.000 mm distance between spindles  Spindle speed 3.500 rpm  Spindle power 30 kW  Sub-spindle; spindle speed 3.800 rpm  Spindle power 22 kW  Spindle speed aangedr. Ger 5.000 rpm  Dwsdeurfz Iepfx Aa Nod Spindle power aangedr. Ger. 22 kW  Number ger. Under 12 Turret  Upper mill spindle HSK100 ATC 32 HSK 100   Y-axis 250 (+125 / 1-125) mm  Floor space: 6150 x 3073

Condition: used, machine/vehicle number: 008112, X axis working area: 3390 mm Y axis working area: 1535 mm Working Table: Pod and Rail Main Electrospindle power: 15 KW Number of controlled axes: 5 axes Dwodpfx Asw Idgvoa Nod Total number of drilling spindles: 21 Total number of tool changer positions: 14

Condition: excellent (used), Year of construction: 2018, operating hours: 1,730 h, functionality: fully functional, turning length: 760 mm, turning diameter over cross slide: 780 mm, turning diameter: 376 mm, spindle motor power: 22 W, spindle speed (min.): 20 rpm, spindle speed (max.): 4,000 rpm, spindle bore: 82 mm, travel distance X-axis: 260 mm, travel distance Y-axis: 105 mm, travel distance Z-axis: 830 mm, mount diameter: 24 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 30 m/min, bar passage: 80 mm, collet bore: 80 mm, bar diameter (max.): 80 mm, CNC Turning and Milling Center Doosan Puma 2600 SYII with Fanuc i Series Control including Accessories The machine has had very little use, with approximately 1,730 spindle hours, so it is as good as new and available from 01.01.2026. Additional accessories for Doosan Puma 2600 SY II lathe: - 2 tool holders for external turning tools 25x25 - 1 double tool holder for external turning tools 25x25 - 1 tool holder for face machining 25x25 - 2 tool holders for internal turning tools (boring bars) diameter 50 mm - 1 double tool holder for internal turning tools diameter 32 mm - 1 tool holder for parting-off tools - 1 double right tool holder for external tools (sub spindle) - 1 double left tool holder for external tools (main spindle) Dedpfexauwbsx Aa Nswd - 4 driven tool holders ER-32 radial (X axis) - 5 driven tool holders ER-32 axial (Z axis) - 1 driven tool holder ER-32 radial (X axis) with internal coolant supply - 1 driven tool holder ER-32 axial (Z axis) with internal coolant supply - 1 three-jaw chuck for main spindle with 1 set of hardened jaws + 2 sets of soft jaws - 1 three-jaw chuck for sub spindle with 1 set of hardened jaws + 2 sets of soft jaws - 1 collet chuck for main spindle including collets for Ø50 mm and Ø30 mm - 1 collet chuck for sub spindle including collets for Ø50 mm and Ø30 mm - 1 set of reduction sleeves for Ø50 mm (10 pieces) - 1 set of reduction sleeves for Ø32 mm (7 pieces) - 1 set of adapters for driven tool holders (ER 32 collet, Weldon, milling holder) - Flushing device with coolant on main spindle for automatic jaw cleaning - Device for automatic jaw cleaning with compressed air - Additional high-pressure pump for internal coolant supply (drilling with indexable drills) - Automatic machine shut-off function (machine also switches off the main power, thus disconnecting the power supply) - Interface for automatic bar feeder magazine Iemca

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Dsdpjd Tm D Esfx Aa Newd Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: used, total height: 1,700 mm, total length: 6,000 mm, total width: 1,700 mm, Empty weight: 6.500 kg Price: On request Lathe metal lathe Model: Conventional Manufacturer: TOS Type: SUI 63 Serial number: 407620860 Center distance: 4000mm Center height: 325mm Turning diameter: 630mm Spindle passage: 80mm Spindle speed: 11,2-1800 rpm Machine-afmeting: 6000x1700x1700mm Machine weight: 6500kg - Documentation available: No - Drive system: Conventional - Centre height [mm]: 325 - Swing over bed [mm]: 630 - Distance between centres [mm]: 4000 - Spindle bore [mm]: 80 - Min. spindle speed [rpm]: 11.2 - Max. spindle speed [rpm]: 1800 - Transport dimensions: 6000mm x 1700mm x 1700mm (l x w x h) Dsdewnhy Ispfx Aa Newd - Transport weight [kg]: 6500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, turning diameter: 500 mm, DMG CTX Beta 1250 TC 2009 Dsdpsv N Hc Sofx Aa Newd
