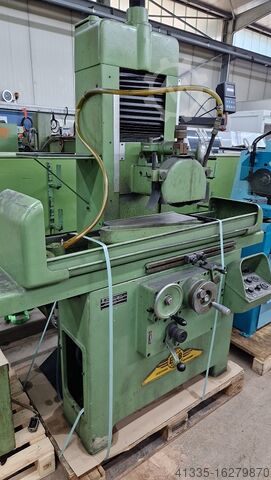

FLAT GRINDING MACHINE

ELB-Schliff Komet 4

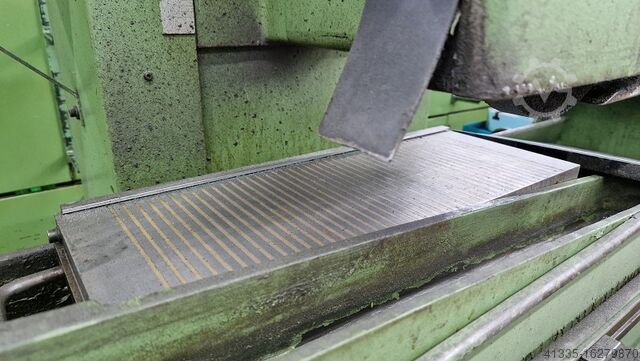

Condition: used, dayligth 420 mm Magnetic field 420x200 mm grinding length . mm The tech. Data are manufacturer or operator information and therefore non- Hfjdpsyqtt Rsfx Ad Hsf binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: good (used), Year of construction: 2014, spindle turning speed range 170 - 18000 U/min weight of the machine ca. 7,5 t dimensions of the machine ca. 5,00 x 4,00 x 2,20 m --> Control conversion (2014) to Siemens Sinumerik 840D Solutionline --> Overhaul of the new control system in 2016 Hfjdpow Intajfx Ad Hsf --> Technical data Grinding diameter: 20 - 300 mm --> Oscillation diameter: 350 (500) mm --> Workpiece length: 300 (1300) mm --> Recommended grinding depth up to: 300 mm --> Grinding table stroke Z-axis (total): 650 (950) mm --> Resolution: 0.001 mm --> Rapid traverse: 12 m/min-1 --> Grinding stroke speed: 0 - 9.99 m/min-1 --> Feed rate: 0 - 99.99 m/min-1 --> Step feed value during reversal: 0 - 0.999 mm --> Grinding table stroke X-axis (total): 150 mm --> Resolution: 0.001 mm / Ø --> Rapid traverse: 5 m/min-1/R --> Grinding stroke speed: 0 - 5 m/min-1/R --> Feed rate: 0 - 99.99 m/min-1/R --> Step feed value during reversal: 0 - 0.999 mm / Ø --> Swivel capability of the workpiece headstock: --> B-axis: -32° (-23°) / +2° --> Resolution: 0.0001° (0.36") --> U-axis stroke (total): 300 mm --> Resolution: 0.001 mm / Ø --> Travel speed: 5 m/min-1 --> Centre height above workpiece table: 200 (300) mm --> Centre height above grinding table: 330 (430) mm --> Workpiece spindle passage: 50 (70) mm --> new in 1988

Condition: excellent (used), 1 permanent - magnetic Chuck D = 315 mm with mounting flange DIN 55027 Gr. 6 Hjdpfx Aded Eaauj Hsff

Condition: used, Year of construction: 1983, Bohrleistung in Stahl (-Ø 50 mm throat 1500 mm workpiece height max. 1380 mm Bohrleistung in Guß (-Ø 60 mm Abstand Spindelmitte bis Säule 320 - 1250 mm swival range +/- 180 ° base plate surface area 2640 x 1000 mm max. torque on the spindle 310 Nm Bohrspindel-Ø/ Aufnahme 75 mm /MK 5 bore spindle stroke 310 mm spindle turning speed range 28 - 2500 U/min feed: 0,05 - 2 mm/U power capacity 4 kW weight of the machine ca. 4,3 t dimensions of the machine ca. 3,2 x 1 x 2,75 m Hfsdpfx Aetv Ikljd Hjf cube table 500 x 500 x 500 mm

Condition: used, Year of construction: 1991, bore capacity in steel (diameter) 50 mm arm length 1100 mm workpiece height max. ca. 1000 mm bore capacity in cast iron 60 mm spindle taper MK 5 spindle turning speed range 28 - 2500 U/min feeds 0,05 - 2 mm/U quill stroke 300 mm distance basic plate - spindle nose 630 - 1380 mm crossrail adjustment vertical 750 mm total power requirement 6 kW Hfodpeu Sblwefx Ad Hef weight of the machine ca. 4 t dimensions of machine L x W x H 2,74 x 1,14 x 2,59 mm - with thread cutting attachment - Accessories: box table 550 x 550 x 550 mm, vice, coolant

Condition: used, BROACHING MACHINE Hfsdjt Hr Dfspfx Ad Hjf

Condition: ready for operation (used), Romanian Forging Hammer CM 2500 (The hammer is similar to Huta Zygmunt MPM 6300B) - Maximum impact energy at full stroke: 7000 kgm - Ram weight: 2500 kg - Mode of operation: pneumatic - Ram stroke: 850 mm - Number of blows per minute: 100 - Working pressure: 5–7 bar - Anvil weight: 48 t - Total weight: 65 t Romanian Forging Hammer CM 1250 (The hammer is similar to Huta Zygmunt MPM 3150B) - Maximum impact energy at full stroke: 3600 kgm - Ram weight: 1250 kg - Mode of operation: pneumatic - Table size (front to back): 700 mm - Stroke: 800 mm - Number of blows per minute: 110 - Working pressure: 5–7 bar - Max. upper die weight: 400 kg - Die height: 220 mm - Ram (front to back): 500 mm - Air consumption: 15 m³/min - Anvil weight: 24 t Hfjdpsw Sdxaefx Ad Hjf - Height of machine above floor: 3750 mm - Total machine height: 4380 mm - Total weight: 35 t

Condition: good (used), Year of construction: 1971, functionality: fully functional, machine/vehicle number: 12.02-37-31, grinding wheel width: 250 mm, grinding wheel diameter: 500 mm, grinding diameter: 125 mm, grinding length: 200 mm, type of input current: three-phase, overall weight: 5,000 kg, workpiece diameter (max.): 125 mm, nominal power: 28 kW (38.07 HP), The machine was used exclusively for grinding piston rods with a diameter of 10 mm. Hodpfx Adew E D Euo Hoff

Condition: ready for operation (used), Year of construction: 2004, operating hours: 37,165 h, travel distance X-axis: 560 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 630 mm, rapid traverse X-axis: 50 m/min, controller manufacturer: FS-18IMB (MAPPS 2), workpiece height (max.): 800 mm, workpiece diameter (max.): 560 mm, workpiece weight (max.): 300 kg, table width: 400 mm, table height: 400 mm, table length: 400 mm, spindle speed (min.): 14,000 rpm, tool length: 400 mm, tool weight: 8,000 g, CNC controller: FS-18IMB (MAPPS 2) Axes X-axis travel mm: 560 Y-axis travel mm: 560 Hodpswx Itvsfx Ad Hjff Z-axis travel mm: 630 Rapid traverse m/min: 50 Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE Worktable Number of pallets: 3 Table dimensions mm: 400 Maximum workpiece size (D x H) mm: 560 x 800 Max. workpiece weight kg: 300 APC time s: 6 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 18.5/11 KW Spindle torque Nm: 120 Nm (10%ED) Tool system Tool holder: BT-40 Tool magazine slots: 120 With free neighboring places mm: 140 With occupied neighboring places mm: 70 Max. Tool Length mm: 400 Max tool weight kg: 8 Tool-to-tool time s: 0,9 Chip-to-chip time s: 2,8 Equipment Chip conveyor Signal lamp 4th axis Ready for internal cooling (40/80 bar) RENISHAW OMP60 CE Round pallet storage Measuring system (worktable) Cooling Tank capacity: 500 High-pressure bar: 70 Machine running times Under power: 135.042 Rated power kVA: 32,8 Operating Time: 37.165 Basic machine dimensions / weight Length mm: 4.004 Width mm: 2.397 Height mm: 2.711 Weight kg: 9.600

Year of construction: 1989, condition: ready for operation (used), Table dimensions X/Y: 600mm/200mm, grinding dimensions X/Y: 600mm/250mm, magnet dimensions X/Y: 600mm/200mm, grinding wheel diameter: 225mm, grinding wheel width: 25mm, grinding wheel bore: 51mm, spindle center-to-table distance: 350mm (+/-50mm), table feed: 20m/min, creep speed: 0mm/500mm/min, speed: 4200rpm, machine dimensions X/Y/Z: approx. 2700mm/2100mm/2100mm, weight: approx. 2500kg. On-site inspection is possible. Hjdpfxjv Exrwe Ad Hsff
