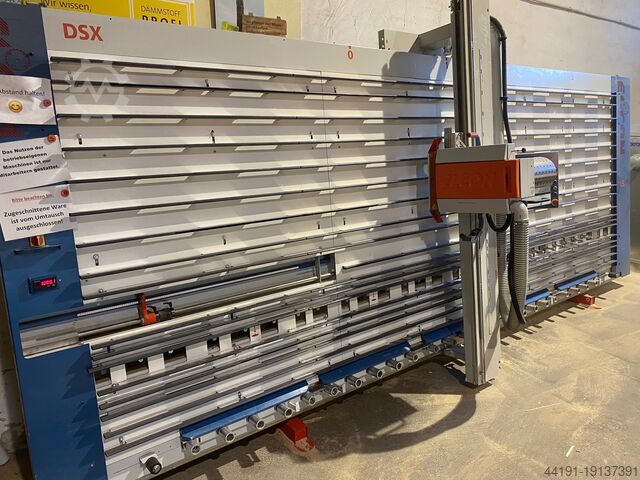

Standing panel saw

Elcon 215 DSX

Condition: used, Year of construction: 2020, Cutting height: vertical 0-2,150 mm, horizontal 80-2,000 mm Cutting length: 4,300 mm Cutting depth: 80 mm (with clamps: 55 mm) Saw blade diameter: 303 mm / bore 30 mm Saw blade rotation: 5,000 rpm Motor: 4 kW Air pressure: 6 bar Horizontal dimension readout: -via scale from 0-2,070 mm -via strip cutting stop from 75 - 500 mm Vertical dimension readout: -via scale from 0 - 1,300 mm Extraction nozzle: 1 x 100 mm / 1 x 120 mm ADVACNE clamping system (2 x pneumatic clamps) can carry panels weighing up to 150 kg. Freestanding machine frame, pneumatically adjustable slatted frame, 3 center support elements, 5 material support rollers per meter of cutting length, 1 feed and 1 discharge roller, template holder, lighting, scale for vertical cuts. Equipment package I consists of: -Digital display for the folding stop -Digital display for the saw unit with incremental function -Pneumatically pivoting saw unit -Scoring system with controlled counter-air nozzle Storage location: Customer Ioljwp Uplehccqpeic

Condition: new, Year of construction: 2023, New machine Year of construction 2023 Partnership Edition Technical description: Cutting height: vertical: 0-2,150mm, horizontal: 80-2,000mm Cutting length: 5,300mm Cutting depth: 80mm (with clamps: 55mm) Saw blade: diameter 303mm, bore 30mm, Z=60 hollow roof tooth Saw blade rotation: 5,000 rpm. Required air pressure: 6 bar Dimension readout for horizontal saw cuts: -via scale from 0 - 2,070 mm -via strip cutting fence from 75 - 500mm Dimension readout for vertical saw cuts: -via scale from 0 - 1,300mm Suction nozzle: 1 x 100mm 1 x 120mm Equipment features: -ADVANCE clamping system, consisting of: 2 pneumatic clamps clamps, which are motorized on vertical axes on a ball screw motorized on a ball screw from top to bottom. The tongs carry panels with a maximum weight of 150 kg. Torsion-free, free-standing machine frame - Round bar guide, vertical and horizontal -pneumatically adjustable slatted frame -Finely adjustable folding fence with fence extension -Fine adjustment for horizontal saw cuts via handwheel -Strip cutting fence -Manual programming rail with 5 sliding blocks -Pneumatic immersion of the saw unit -25 material support rollers -1 infeed and 1 outfeed roller -Pneumatic workpiece clamping device between the support rollers -3 center support elements, pneumatically folding out -Pneumatic saw head blocking -Control panel with template holder -Switch unit on the sawing unit: start button, stop button -Tool cabinet -Lighting scale for vertical saw cuts Partnership Editon equipment: Ioloqfafcjhccqpoic - Digital display for the folding fence - Digital display for the saw unit with incremental function - Pneumatically swiveling saw unit - Scoring system with controlled counter-air nozzle, numerical display for scoring and grooving depth setting and activation light - 5.5 kW motor incl. star delta start switch - Cutting line laser Availability: short term Storage location: Hochheim

Year of construction: 2015, Condition: ready for operation (used), An Elcon vertical panel saw including Höcker extraction system is available. 1) Vertical panel saw Elcon 215 D, year of manufacture: 2015, max. cutting length: 4300mm, max. cutting height: 2150mm, cutting depth: 60mm, saw blade diameter: 250mm, saw blade bore: 30mm, speed: 5100rpm, machine dimensions X/Y/Z: approx. 5750mm/1100mm/2900mm, weight: approx. 850kg. 2) Mobile extraction unit Höcker Polytechnik Vacumobil VT 140/160-L, year of construction: 2015, max. volume flow: 1950m³/h, negative pressure: 2600Pa, extraction nozzle diameter: 140mm/160mm, motor power: 2.2kW, machine weight: approx. 320kg. Documentation available. On-site inspection is possible. Islowr Dwkshccqpeic

Condition: used, Year of construction: 1997, machine/vehicle number: 970715, reserviert frankreich #15989 max. Schnittbreite : 4300 mm max. Schnitthöhe vert. : 2150 mm max. Bearbeitungsdicke : 80 mm Sägeblattdurchmesser : 300 mm Sägeblattbohrung : 30 mm Auflage unten : Rollen starr Materialauflage : Kunststoffelemente Ielowgr Hvehccqpjic Kleinteilauflage : Ja Messsystem : Skala Schwenkung Sägekopf : manuell Befestigung : freistehend Absaugung : Limpio Absaugsystem Motorleistung : 3 kW

Condition: used, Year of construction: 2007, total height: 3,100 mm, total length: 6,520 mm, total width: 1,300 mm, Weight: 1.250 kg Price: On request - Automatic: 1 - Vertical cutting: Yes - Max. horizontal cutting height [mm]: 2550 Iijlhccewp D Ikoqpoc - Horizontal cutting: Yes - Max cutting width [mm]: 5300 - Year: 2007 - Documentation available: No - Serial number: 701162 - Transport dimensions: 6520mm x 1300mm x 3100mm (l x w x h) - Transport weight [kg]: 1250kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: excellent (used), Panel saw ELCON 215 Advance -used- automatic clamps for trimming the underside, welded frame with extremely high rigidity, pneumatically deflecting sliding grid, stable locking of the saw carriage at the top and bottom, retractable riving knife for cut-outs, Control panel at eye level, Digital display on the rip fence, Digital display for horizontal cut ----- Technical data ----- Cutting length: 5,300 mm, Cutting height: 2,150 mm, Trimming height: 2,070 mm, Cutting depth: 80 mm, Saw blade Ø: 300 mm, Motor: 3 kW, Extraction nozzle Ø: 160 mm, Compressed air: 6 bar, space requirement (LxDxH): 6,700x2,800x3,100 mm Ijlou R Tbnjhccqpeic Quality info: - Complete basic inspection - Complete basic cleaning - electrics checked - ready for immediate use

Condition: used, Year of construction: 2012, total height: 2,900 mm, total length: 5,510 mm, total width: 1,450 mm, Weight: 865 kg - Max. vertical cutting height [mm]: 2150 - Vertical cutting: Yes - Max. horizontal cutting height [mm]: 2100 - Horizontal cutting: Yes - Max. cutting depth [mm]: 55 - Max cutting width [mm]: 4400 - Max. saw blade diameter [mm]: 250 - Year: 2012 - Documentation available: No - CE mark available: Yes - Serial number: 1111212 - Voltage [V]: 400 - Power [kW]: 3.0 - Transport dimensions: 5510mm x 1450mm x 2900mm (l x w x h) - Transport weight [kg]: 865kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT Iislhjwnin Tsccqpec VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: used, Year of construction: 2009, total height: 2,900 mm, total length: 1,250 mm, total width: 5,750 mm, Weight: 865 kg Ielhccqewnillspoic - Max. vertical cutting height [mm]: 2150 - Vertical cutting: Yes - Max. horizontal cutting height [mm]: 2100 - Horizontal cutting: Yes - Max. cutting depth [mm]: 55 - Max cutting width [mm]: 4400 - Max. saw blade diameter [mm]: 250 - Year: 2009 - Documentation available: No - Serial number: 906031 - Voltage [V]: 400 - Power [kW]: 3.0 - Transport dimensions: 1250mm x 5750mm x 2900mm (l x w x h) - Transport weight [kg]: 865kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: used, Year of construction: 2008, total height: 2,860 mm, total length: 5,510 mm, total width: 1,450 mm, - Max. vertical cutting height [mm]: 2150 - Vertical cutting: Yes - Max. horizontal cutting height [mm]: 2150 - Horizontal cutting: Yes - Max. cutting depth [mm]: 55 - Max cutting width [mm]: 4300 - Max. saw blade diameter [mm]: 250 - Year: 2008 - Documentation available: No - Power [kW]: 2.2 - Transport dimensions: 5510mm x 1450mm x 2860mm (l x w x h) Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Iiolewnhmujhccqpoc Glenn Smeets

Condition: used, total height: 2,860 mm, total length: 5,720 mm, total width: 1,100 mm, Weight: 825 kg Vertical wall saw Elcon 215 D Max cutting height vertical 2150mm Max cutting height horizontal 2105mm Max cutting width 4300mm Cutting depth 60mm Year of construction 2016 Saw blade 250mm 380V 10 Amp 4kW Motor Horizontal and vertical cutting Transport dimensions: 5720x1100x2865mm, weight 875kg - Max. vertical cutting height [mm]: 2150 - Vertical cutting: Yes - Max. horizontal cutting height [mm]: 2105 - Horizontal cutting: Yes - Max. cutting depth [mm]: 60 - Max cutting width [mm]: 4300 - Max. saw blade diameter [mm]: 250 - Documentation available: No - Voltage [V]: 400 - Power [kW]: 4.0 - Transport dimensions: 5720mm x 1100mm x 2865mm (l x w x h) - Transport weight [kg]: 825kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets Iiolowng U Dshccqpec
