Vertical lathe

EMAG & Lang-Laru VTC 250

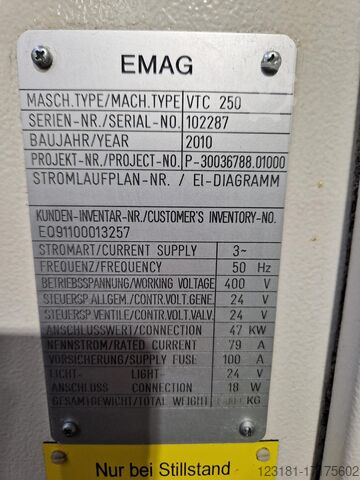

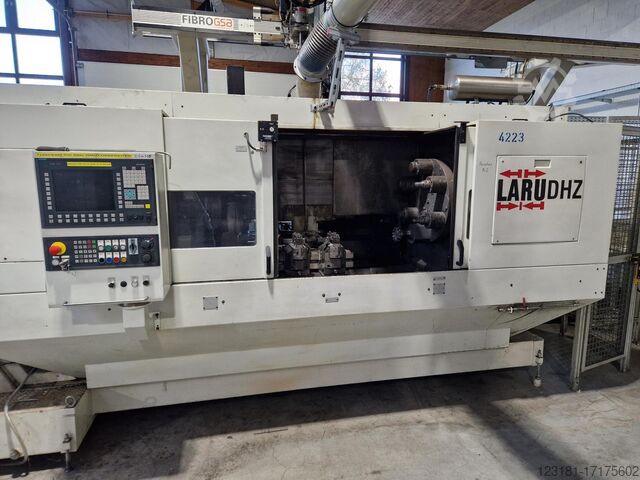

Year of construction: 2010, condition: ready for operation (used), A complete turning line for the production of drive shafts, consisting of a Lang-Laru cut-off and centering machine, three EMAG lathes with robot automation, conveyor peripheral equipment and measuring station, is available. 1) End machining machine Lang-Laru DHZ 03/1250-RR-S, year of manufacture: 2010, tool stations: 2x12, loading: Kuka robot/EWAB conveyor, machine dimensions X/Y/Z: approx. 8600mm/3000mm/4100mm, weight: approx. 15000kg, control: Siemens Sinumerik 840D. 2) 3x vertical shaft turning centers EMAG VTC 250, year of manufacture: 2010, loading: Kuka robot/EWAB conveyor, max. turning length: 630mm, max. swing diameter over bed: 140mm, max. workpiece weight: 20kg, spindle bore: 52mm, speed: 5000rpm, tool stations: 2, tool holder: VDI40, machine dimensions X/Y/Z: approx. 8100mm/3300mm/4300mm, weight: approx. 14000kg, control: Siemens. This is a complete turning line with peripheral equipment and automation. Documentation available. An on-site inspection is possible. Tjdpszfp Hhefx Aklea

Condition: ready for operation (used), Year of construction: 2017, operating hours: 15,208 h, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, overall weight: 12,000 kg, spindle speed (max.): 15,000 rpm, spindle motor power: 21,000 W, number of axes: 4, This 4-axis DMG MORI NHX 5000 was manufactured in 2017. It features a maximum spindle speed of 15,000 rpm and a travel of 730 mm in both the X and Y axes, with a Z-axis travel of 880 mm. The machine includes a robust pallet size of 500 x 500 mm and a tool capacity of 40 tools. If you are looking to get high-quality machining capabilities, consider the DMG MORI NHX 5000 horizontal machining centre we have for sale. Contact us for further details. • Spindle torque: 111 Nm (continuous 85 Nm) • Tool capacity: 40 tools (optional magazine 60 tools) • Rapid traverse (X/Y/Z): 60 m/min • Acceleration (X/Y/Z): 1G • Pallet size: 500 x 500 mm • Number of pallets: 2 • Automatic rotary pallet changer: 2 stations Tjdjyt Hwzspfx Aklsa • NC table B axis: direct drive, indexing 0.001°, max speed 100 rpm • Maximum pallet load: standard 500 kg (optional 700 kg) • Direct position measuring system; Linear scale standard • Control system: CELOS Siemens 840D sl with 21.5" ERGOline multi-touch display • Electronic handwheel: Siemens • Coolant through spindle preparation up to 70 bar • Renishaw probe OMP60 • Tool breakage detection system • Machine status signal lamp • Water-glycol spindle cooling unit • Application Tuning Cycle (ATC) • Machine bed: 3-point support • Power connection: L1 L2 L3 N PE • Connected load: 46 kVA • Maximum input current: 67 A • Fuse protection: 125 A • Short circuit current: 1.25 kA • Maximum supply voltage: 4.0 kV • Supply voltage: 400 V ±10 % • Frequency: 50 Hz • Control voltage: AC 230 V / DC 24 V • Operating time: 27,715 h • Spindle hours: 15,208 h Additional equipment • Knoll KF110/700 • Knoll Flow Monitor • High-pressure coolant system • 2x clamping towers (250 x 250 x 650 mm) TRIAG incl. accessories • 95x tool holders HSK63 (various clamping devices) Technical Specification Taper Size BT 40

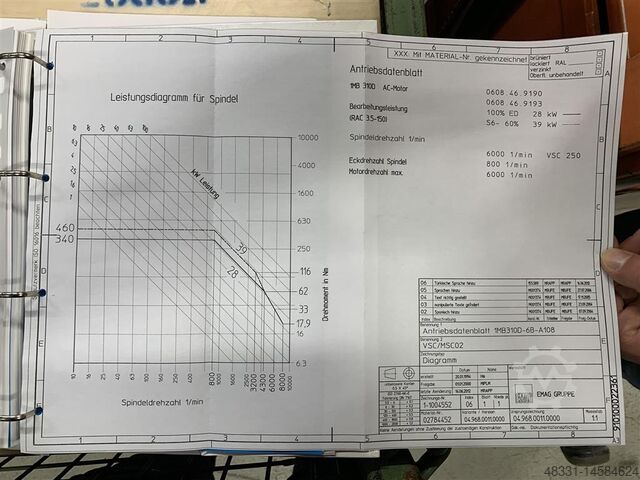

Condition: refurbished (used), Year of construction: 2014, functionality: fully functional, total width: 2,500 mm, total length: 4,500 mm, total height: 3,200 mm, Offered is a double spindle pick up turning machine VSC 250 DUO. There are 2 nearly identical machines available. Each machine is equipped with 2 independent working spindles and 2 EMAG turrets. The machine can produce 2 identical workpieces with the same machining operation, as well as one workpiece in two successive machining operations. The VSC 250 DUO will receive a general overhaul before delivery and gets a control upgrade to Siemens Sinumerik ONE. The machine can be equipped with other periphery (chip conveyor, coolant system, external automation, etc.), depending on requirements. Todpfsr Nc Ufox Akloa COTROL Siemens Sinumerik One TECHNICAL DATA workpiece diameter: max. 250 mm workpiece height: max. 150 mm chuck diameter: 250/315 mm swing diameter: 350 mm X-stroke: 745 mm Z-stroke: 300 mm TOOL CARRIER working area 1 1x EMAG disc turrets, 12x VDI 50 without driven tools working area 2 1x EMAG disc turret, 12x VDI 50 with driven tools Price, delivery time and equipment of the machine on request.

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, Working area Grinding length: 250 mm Centre height: 100 mm Workpiece weight: 30 kg Z-axis: 350 mm Table adjustment: 8 ° degrees X-axis: 190 mm Grinding spindle Grinding wheel diameter max.: 500 mm Grinding wheel width max.: 80 mm Grinding wheel bore: 127 (203) Grinding wheel motor power: 5.5 kW Peripheral speed: 50 m/s Grinding wheel protection cover: D500 x 80mm Workpiece spindle Speed: 1 - 2,000 rpm Workpiece spindle mount: MK4 Tailstock Tailstock quill mount: MK3 Todsvz Snkepfx Akloa Tailstock quill stroke length: 30 mm Cylinder fine adjustment range: ± 0.04 Equipment Paper belt filter system Rinse gun Mechanical fume extraction

Condition: excellent (used), Year of construction: 2019, operating hours: 403 h, functionality: fully functional, turning length: 1,200 mm, spindle bore: 120 mm, controller model: Siemens 840 Dsl, Equipment: documentation/manual, Technical data: Turning length 1200 mm Chuck diameter 350 mm Working stroke X top/bottom 200 mm Working stroke Y. axis 210 mm (+130/-80) Working stroke Z. axis 1200 mm Maximum travel speed W/X/Y/Z meters/minute 45/40/40/46 Ball screw diameter W/X/Y/Z mm 40/40/40/40 Profile rail guide, B/X/Y/Z mm 45/45/45/55 Tool flight circle 700 mm Maximum center distance 1200 mm Main spindle/counter spindle Spindle bearing diameter 120 mm/160 mm Spindle passage 65/105 mm Spindle bore diameter 80/120 mm Spindle flange/spindle head DIN 55026 A6 / A8 Drive power 100% ED 22 KW/67.4 Drive power, 40% ED 24 KW/80 Tedpfx Akevw Upcoloa Nominal speed 1400 rpm Maximum speed 5,700 rpm Torque 100% ED 150 nm/585 Torque 40% ED 191 nm/795 C-axis resolution 0.001 degrees Both turrets: Tool holder: VDI 40 Maximum speed rpm 6000 torque drive 12,000 speed drive Maximum drive power kW: 28.5 torque drive 23.5 speed drive Maximum torque (25% ED) Nm: 85 torque drive 56 speed drive Dimensions: 4500 x 2500 x 2500 Weight approx. 16000 kg Control: Siemens 840 Dsl

Condition: used, Year of construction: 2006, Technical details: max. wheel diameter: 300 mm max. module: 7 weight of the machine ca.: 15 t table turning speeds: 100 U/min table diameter: 180 mm hob turning speeds: 750 U/min max. hob diameter: 300 cutter length max.: 230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion Todpfoyz Sd Rex Akloa *

Condition: excellent (used), Year of construction: 2011, operating hours: 29,000 h, functionality: fully functional, Weiler E40 Precision Lathe Manufacturer: Weiler Type: E40 Year of Manufacture: 2011 Condition: Used, operational, ready for demonstration Operating Hours: 29,000 h Scope of Supply: - Documentation - Machine feet - Coolant system - Machine lamp - Full chuck jaws - Half chuck jaws - 3-jaw chuck - 4-jaw chuck - 4-position automatic tool changer incl. 4 tool holders Tsdpfx Aey Uzc Nsklja - MultiFix tool changer

Condition: used, Year of construction: 1999, Technical details: turning diameter over bed: 554 mm turning dia. over face-slide: 370 mm turning length: 1000 mm centre distance: 1100 mm control: Fanuc 210i longitudinal traverse (z-axis): 1000 mm Transversal stroke (x-axis): 290 mm revolution per minute: 16 - 1800 U/min spindle stroke: 178 mm feed:: 10 m/min. Tjdpfx Akjv Azdwelsa spindle passage: 104 mm spindle nose: D1 - 11 tailstock taper ISO: 6 MT spindle drive: 11/7,5 kW connection voltage: 380 V electrics - voltage/frequency: 3 Ph / 400 V / 50 Hz V/Hz total power requirement: 11 kW Weight approx.: 4,0 t dimension machine xH: 3,3 x 1,8 x 1,7 m

Condition: used, Year of construction: 2017, Technical details: x-travel: 560 mm y-travel: 560 mm z-travel: 660 mm control: Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds: 20 - 20.000 1/min spindle drive: 25/ 35 kW max. torque on the spindle: 86 / 130 tool taper: HSK-A63 Number of tool station: 60 diameter of tools max.: 70 mm Tool diameter with no neighbouring tools: 170 mm tool length - max.: 450 mm weight of tools max.: 12 kg numbers of pallets: 2 Pallet dimension: 400 x 400 mm max. workpiece diameter: 630 mm workpiece height max.: 900 mm table load: 400 kg rapid travel x/y/z: 60 m/min Feed x/y/z: 60 m/min internal coolant system feed: 70 bar weight of the machine ca.: 8,5 t dimensions: 3200 x 4800 x 2900 mm Accerories Tedpfjyqybbox Aklea Rotoclear window Signal lamp 4 colours Electronic handwheel Probe for tool breakage and length measuring Coolant shower Renishaw probe (spindle) Vorbereitung / preparation only HSK cone cleaning station with brushes Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spindle. *

Condition: like new (used), Year of construction: 2024, operating hours: 7,556 h, functionality: fully functional, 4 x LIEBHERR LC 280 DC Gear Hobbing Machines For sale are 4 identical LIEBHERR LC 280 DC gear hobbing machines, all manufactured in 2024. Manufacturer: Liebherr Verzahntechnik GmbH Model: LC 280 DC Machine Type: CNC gear hobbing machine with integrated ChamferCut unit Quantity Available: 4 units Year of Manufacture: 2024 Example Machine No.: XXX Control: Siemens CNC / HMI user interface Technical Data: Max. Workpiece Diameter: 280 mm Max. Module: 6 mm / 4 mm depending on the version Axial Travel: 400 mm Shift Travel: 200 mm Max. Hob Diameter: 150 mm Hob Speed: 2,250 / 6,000 rpm Table Speed: 250 / 800 rpm Max. Module ChamferCut: 5 mm Max. Tool Speed ChamferCut: 2,000 rpm Max. Tool Diameter ChamferCut: 130 mm Max. Tool Clamping Length Drilling Tool: 236 mm Todpfx Ajzdv Upoklja Max. Tool Clamping Length Shank Tool: 360 mm The LC 280 DC is a compact gear hobbing machine for workpieces up to 280 mm in diameter and integrated ChamferCut machining; according to Liebherr, it is designed for gear hobbing and parallel, defined deburring/chamfering. ([Liebherr][1]) Equipment: Integrated ChamferCut unit Automatic workpiece handling / round magazine Siemens CNC control Liebherr HMI / production interface Workpiece spindle Hobbing head Deburring/chamfering unit Full protection cabin Work area lighting Automation interface CE marking Machine suitable for dry and wet machining, depending on equipment and process Electrical data per machine according to the nameplate: 400 V AC 50 Hz Control voltage: 24 V AC Installed power: 29 kVA Rated current: 42 A cos φ: 0.81 Fuse: 63 A gL Control cabinet weight: 900 kg All 4 machines are identical, manufactured in 2024, and come from modern industrial series production. Technical data according to nameplate, manufacturer's specifications, and photo documentation. Subject to errors and prior sale.
