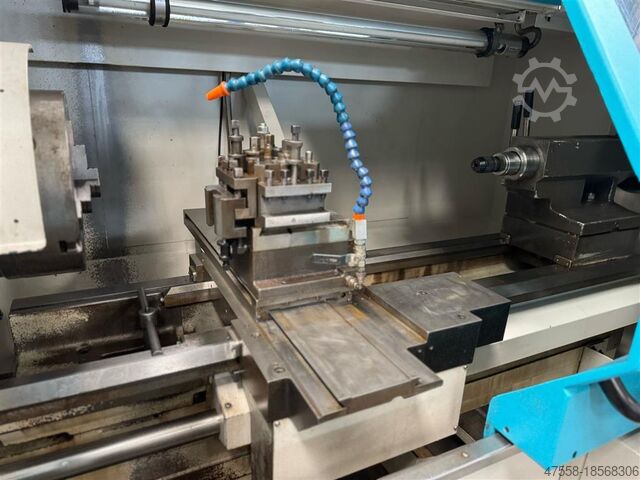

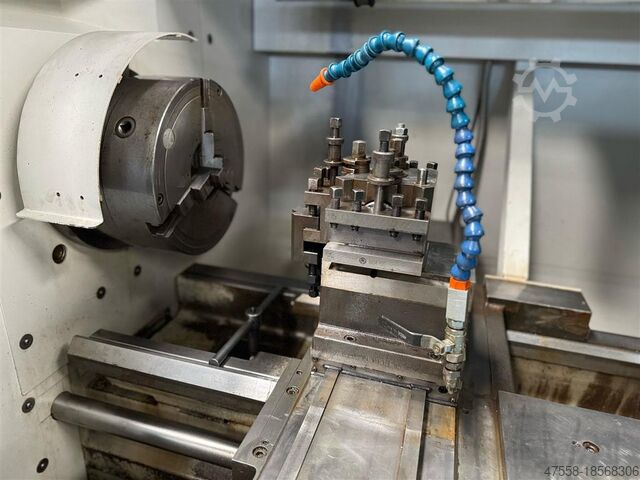

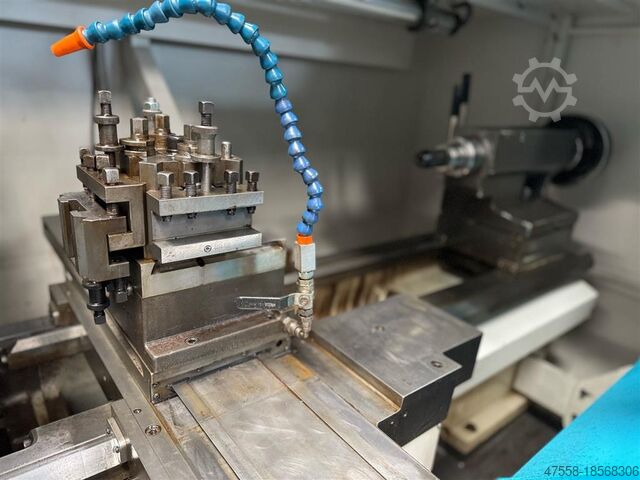

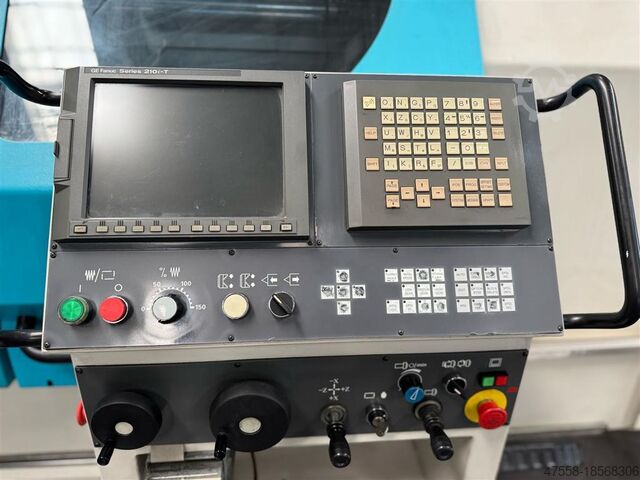

CNC Lathe

COLCHESTER Combi 4000

Condition: like new (used), Year of construction: 2022, functionality: fully functional, Universal milling machine DMG FP4M Special Edition With 3-axis digital display ND7013 by Heidenhain, in new condition, Made in Germany, CE compliant!!! Technical data: >> Year of construction 2022 >> Fixed angular table, clamping area 480x800 mm >> Spindle drive, speed range 25-3000 rpm, stepless adjustment with input on the control panel >> Controlled main drive 6 kW >> Vertical milling head, swiveling +- 90 degrees (180 degrees) >> Linear axes, feed range 6-500 mm/min >> Rapid traverse 1500 mm/min >> Space requirement (W+D) approx. 2.2 x 1.9 meters >> Weight approx. 1600 kg Accessories and equipment: >> Heidenhain digital display ND 7013 >> Coolant system >> Minimum quantity lubrication >> Central lubrication >> Machine feet >> Operating manual, etc. About the machine: Offered is a universal milling machine DMG FP4M Special Edition with a 3-axis digital display by Heidenhain ND 7013, in new condition. A reliable and user-friendly machine, Made in Germany. An oil change has been performed. Mechanically and electrically inspected. Take the opportunity to inspect and test the Deckel machine on-site while it is powered on. Dcjdszung Espfx Aiiop

Condition: excellent (used), Year of construction: 2019, operating hours: 403 h, functionality: fully functional, turning length: 1,200 mm, spindle bore: 120 mm, controller model: Siemens 840 Dsl, Equipment: documentation/manual, Technical data: Turning length 1200 mm Chuck diameter 350 mm Working stroke X top/bottom 200 mm Working stroke Y. axis 210 mm (+130/-80) Working stroke Z. axis 1200 mm Maximum travel speed W/X/Y/Z meters/minute 45/40/40/46 Ball screw diameter W/X/Y/Z mm 40/40/40/40 Dcodpfxevw Upcs Aiiep Profile rail guide, B/X/Y/Z mm 45/45/45/55 Tool flight circle 700 mm Maximum center distance 1200 mm Main spindle/counter spindle Spindle bearing diameter 120 mm/160 mm Spindle passage 65/105 mm Spindle bore diameter 80/120 mm Spindle flange/spindle head DIN 55026 A6 / A8 Drive power 100% ED 22 KW/67.4 Drive power, 40% ED 24 KW/80 Nominal speed 1400 rpm Maximum speed 5,700 rpm Torque 100% ED 150 nm/585 Torque 40% ED 191 nm/795 C-axis resolution 0.001 degrees Both turrets: Tool holder: VDI 40 Maximum speed rpm 6000 torque drive 12,000 speed drive Maximum drive power kW: 28.5 torque drive 23.5 speed drive Maximum torque (25% ED) Nm: 85 torque drive 56 speed drive Dimensions: 4500 x 2500 x 2500 Weight approx. 16000 kg Control: Siemens 840 Dsl

Condition: used, Year of construction: 2012, swing diameter 560 mm turning length 800 mm control C200-4D Siemens 840 D spindle head 8 DIN 55026/55021 ISO 7027/1 bar capacity 90 mm spindle diameter in front bearing 140 mm turning speed range - spindle ~ 3.500 U/min Dodpfx Aiex Emp Nsiocp drive capacity - spindle motor 100% / 40%: 43 / 57 kW Torque 275 / 363 Nm Indexing 2,5 ° C-Axis 0,001 ° Number of Turrets 1 number of toolpositions 12 pos. Spindle speed - driven tool stations ~ 6.000 min -1 power capacity - driven tool-stations 11 kW tool taper 40 x 63 mm DIN 69880 Torque 21,5 Nm travel -x axis 300 mm travel -z axis 800 mm rapid traverse X/Z: 30 / 22,5 m/min feed power X: 7.200 N feed power Z: 9.000 N dia. of quill 65 mm Cone SK 30 longitudinal travel 800 mm rapid traverse 10 m/min total power requirement 51 kVA weight of the machine ca. ca. 14 t dimensions of the machine ca. 7,3 x 4,0 x 2,6 m CNC Turning- and Milling Center INDEX - G 250 - Precision package for main or counter spindle - Selected spindle housing - Bearingless clamping cylinder - Precision balancing of work spindle, clamping cylinder, and collet clamping

Condition: used, Year of construction: 2012, turning diameter 400 mm swing diameter 420 mm x-travel 850 mm z-travel 315 mm Dcsdpsvxwx Ajfx Aiisp spindle head DIN 55026 - Size 11 spindle bearing diameter 140 mm turning speeds max. 4000 U/min tool turret 12 times C5 Capto rapid traverse x + z axis 45 / 30 m/min feeding force 11 kN total power requirement 58 kW weight of the machine ca. 9 t dimensions of the machine ca. 9,5 x 4,5 x 3 m Hard turning Dry machining Chip conveyor Promot Portal and Cellmaster No clamping device available No tools available no Cellmaster accessories available

Condition: used, Year of construction: 2015, turning diameter max. 315 mm swing diameter 315 mm turning height 175 mm Control SIEMENS 840 D SL x-travel 660 mm z-travel 300 mm turning speeds 7500 U/min tool change unit 12 fach VDI 40 total power requirement 36 kW weight of the machine ca. 7,5 t Djdpfsvxwrcjx Aiijcp dimensions of the machine ca. 4,4 x 2,2 x 2,7 m Renishaw LP2H Chip conveyor No chuck available No tool holders available No live tooling

Condition: ready for operation (used), Year of construction: 2010, For sale is a turning line for drive shafts incl. end machining machine (cutting to length & drilling) The line consists of the following machines: Lang -Laru > cutting to length and drilling 3x Emag VTC 250 for turning the drive shafts All machines are connected with an Ewab belt Each lathe is loaded with a KUKA robot Dcjdpfx Aoupgbweiijp The technical data of the machines can be seen in the pictures.

Year of construction: 2008, condition: ready for operation (used), Main spindle: max. bar capacity: 65mm, draw tube bore: 75mm, collet holder diameter: 160mm, centering chuck diameter: 175mm, spindle nose: 140mm, max. speed: 5000/min, nominal torque (S1): 150Nm, nominal power (S1): 22kW. Counter spindle: draw tube bore: 45mm, centering chuck diameter: 175mm, spindle nose: 140mm, max. speed: 5000/min, nominal torque (S1): 100Nm, nominal power (S1): 16.8kW. W2 axis counter spindle: travel: 690mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X1 axis: travel: 165mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Z1 axis: travel: 220mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X2 axis: travel: 165mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Z2 axis: travel: 150mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X3 axis: travel: 165mm, max. speed: 40m/min, max. acceleration: 10m/s², nominal thrust (S1): 2400N. Z3 axis: travel: 678mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Y3 axis: travel: 80mm (+50/-30), max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Workpiece unloading (UA-WA): max. unloading weight: 4daN, max. unloading diameter: 70mm. Total number of tool stations: 12, tool holder diameter: 30mm, driven positions: 12, max. speed of driven tools: 4000/min, nominal torque (S1-n = 0/min): 17Nm, nominal power (S1-n = 4000/min): 2.9kW, control: Siemens 840D, operator panel: ErgoLine, screen: color TFT 19 inch, number of spindles (C-axes): 2, number of axes: 10, number of channels: 4. Operating hours: 70,035h power on, 48,657h in production, machine operates with cutting oil. With documentation and Bar Loader FMB Turbo 8-80 XT 3200. An on-site inspection is possible. Dodpfoyln Ekjx Aiiecp

Condition: good (used), Year of construction: 2014, functionality: fully functional, Buffalo Machinery Microcut BNC 446, Dcsdpfx Ajzc H Rmjiiep Fagor CNC 8055 TC control system, 8-position turret, tailstock, turning length 750 mm, swing diameter 250 mm.

Condition: ready for operation (used), Year of construction: 2016, spindle speed (max.): 2,800 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 1,350 mm, spindle motor power: 26,000 W, total height: 2,198 mm, total width: 2,030 mm, overall weight: 7,050 kg, controller manufacturer: FANUC, product length (max.): 4,855 mm, number of axes: 3, This 3-axis DOOSAN PUMA GT3100LM was manufactured in 2016. It features a maximum turning diameter of 376 mm and a turning length of 1,245 mm. The machine is equipped with a 12-station turret and live tooling capability, providing versatility for various applications. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA GT3100LM horizontal turning machine we have for sale. Contact us for further details. • Electrical: Nominal capacity 33.91 kVA; AC 400 V; 3Ø, PE, 50/60 Hz; Full load current 48.95 A; Interrupt power 5 kA; Short circuit withstand 10 kA; Electrical diagram edition GT3100H31UA00 • Chuck: Samchully MH-212, 3-jaw hydraulic; Chuck size 305 mm • Turning capacity: Max swing over bed 720 mm; Max turning diameter 376 mm; Max turning length 1,245 mm; Max bar capacity 102 mm • Spindle: Nose A2-11; Bore diameter 115 mm; Motor power 26/22 kW (30 min/continuous); Max torque 1,123 Nm; C-axis indexing increment 0.001° • Turret: BMT65P, 12 stations; Live tool max speed 5,000 rpm; Live tool motor power 7.5 kW; 12-station turret with live tooling capability • Axes: Rapids X 24 m/min, Z 30 m/min; Guideways: Solid box guideways on all axes • Tailstock: Programmable movable/digital tailstock with live center; Quill taper MT5 • Counters: Power-on 13,813 h 38 min; Operating 8,538 h 37 min; Cutting 5,547 h 03 min Dsdpfszbilqsx Aiiecp Additional equipment • External Eppinger Preci-Flex live tool holders and static blocks • Tool-setting probe arm • Original technical documentation Technical Specification Counter Spindle No Driven Tools Yes

Condition: used, Year of construction: 2001, functionality: fully functional, input voltage: 400 V, We offer 4 pieces Emag VL 3 for sale. Three machines with Lifetool. One machine without Lifetool. Year of construction of the machines 2000-2001 General description: Manufacturer: Emag Machine type: VL3 Technical data: Control: Fanuc 21i-T and Fanuc 18i-T Rotation diameter: approx. 210 mm Maximum speed 6,500 1/min Turret: VDI 40 mm, 12 stations Hinged belt chip conveyor Spindle holder: GR. 5 Circulating parts conveyor. Machine weight: approx. 5.5 t Dcodpfetrdlaex Aiiop A used three-jaw chuck is included with every machine. The description is non-binding and should be checked during an inspection.
