Vertical Turning Machine

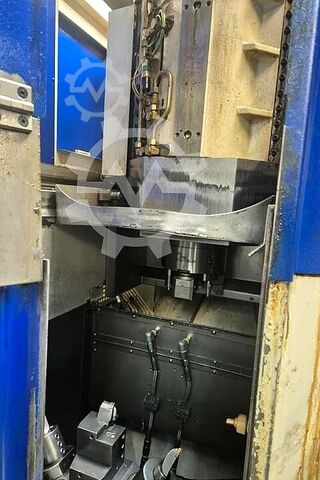

EMAG VL 5S oLT

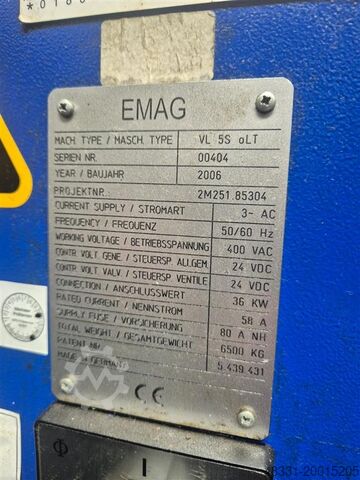

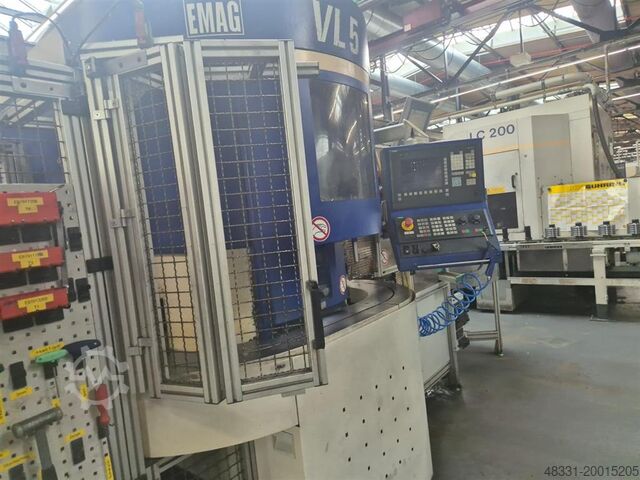

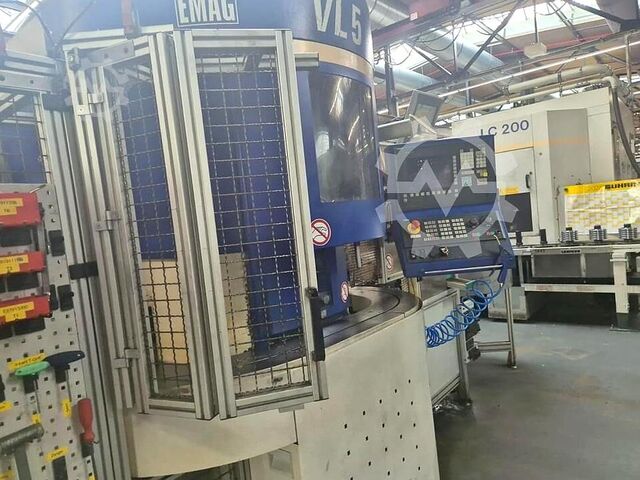

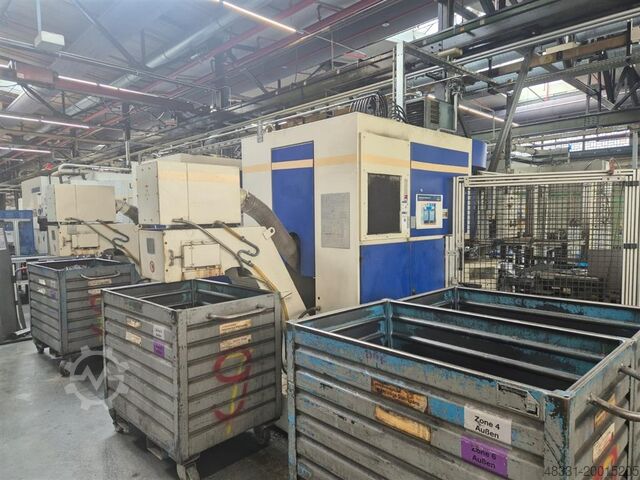

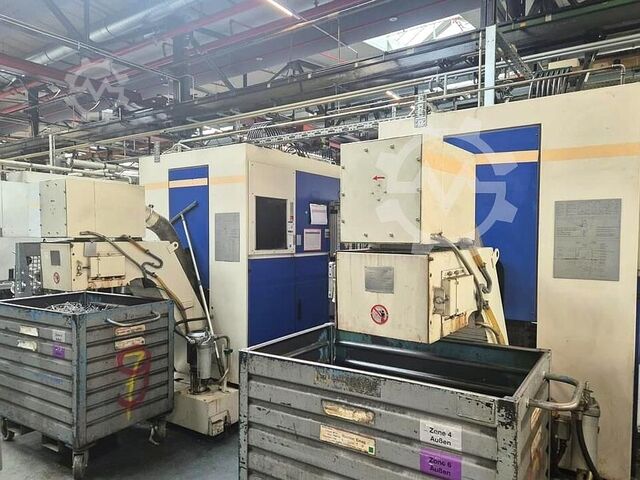

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 00404, turning diameter: 250 mm, Available from: 10.10.2025 – The system consists of two individual units that are linked together. TECHNICAL DETAILS Turning diameter: 250 mm Swing diameter: 260 mm MACHINE DETAILS Power supply: 3-phase AC Frequency: 50/60 Hz Operating voltage: 400 V AC Psdpfx Asw T Rx Neigora Control voltage: 24 V DC Connected load: 36 kW Rated current: 58 A Main fuse: 80 A NH Total weight: 6,500 kg EQUIPMENT - No driven tools

Condition: like new (used), Year of construction: 2015, Workpiece Ø max. 400 mm Workpiece length max. 300 mm Chuck Ø max. 500 mm Swing Ø 520 mm Travel X-axis: 1,110 mm Travel Z-axis: 595 mm Main spindle: Power 40 / 100 % duty cycle: 47/34 kW Predpsxy Ac Ssfx Aigea Main spindle: Torque 40 / 100 % duty cycle: 600 Nm Main spindle: Max. speed: 2,850 rpm Control: Fanuc 31i No Y-axis

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 103979, We offer for sale CNC vertical lathe EMAG, VL5i F., year of production 2016, used, preserved, functional. Still in production. Must see. EXW price incl. loading. Pedpsuyh Tdofx Aigjra More information on request.

Condition: used, Year of construction: 2017, Machine type Vertical CNC turning center Manufacturer EMAG GmbH & Co. KG Model VL 4 Year of manufacture 2017 Control system Fanuc 32i-B CNC Number of axes 3 (X, Z, Y-Axis) Tool turret 12 stations, including fixed and driven holders (BMT65) Max. chuck diameter 260 mm (10.2 inches) Max. workpiece diameter 200 mm (7.9 inches) Psdpfxsyyazbj Aigsra Max. workpiece length 200 mm (7.9 inches) X-axis 740 mm (29.1 inches) Z-axis 400 mm (15.7 inches) Y-axis ±30 mm (±1.18 inches) Rapid traverse X-axis 60 m/min Rapid traverse Y-axis 15 m/min Rapid traverse Z-axis 30 m/min Power (40% cycle) 25 kW (33.5 hp) Power (100% cycle) 18 kW (24 hp) Torque (40% duty cycle) 280 Nm Torque (100% duty cycle) 202 Nm Max. speed 4,500 rpm Machine weight Approx 10,000 kg Machine dimensions (L × W) Approx 6,000 mm × 3,600 mm

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, year of last overhaul: 2023, Offered is a VSC 250 vertical turning center, which has been mechanically and electrically overhauled by EMAG. The control system was upgrated to Siemens Sinumerik One. Depending on requirements, the machine can be equipped with various automation options (shuttle, O-type conveyor, L-type conveyor, turn around station) and other peripherals such as chip conveyors, coolant systems, etc. CONTROL Siemens Sinumerik One TECHNICAL DATA Workpiece diameter: 250 mm Workpiece height: 100 mm X-stroke: 860 mm Z-stroke: 200 mm MAIN SPINDLE power 28 kW Predpfxorq Damo Aigja TOOL CARRIER EMAG wheel turret, 12x VDI 40 Delivery time and additional equipment of the machine on request.

Condition: ready for operation (used), Year of construction: 2015, A combined vertical CNC turning and cylindrical grinding center EMAG is available. Chuck diameter: 250mm, max. swing diameter: 260mm, travel X/Z: 680mm/200mm, rapid traverse X/Z: 45m/min/30m/min, grinding spindle speed: 45000rpm, tool stations: 12, basket dimensions X/Y: 400mm/600mm, basket stack: 3. Machine dimensions X/Y/Z: approx. 3200mm/1900mm/2650mm, weight: approx. 8000kg, control: Siemens 840DS, operating hours: approx. 35000h, program hours: approx. 22000h. Documentation available. An on-site inspection is possible with power. Pedpsx Dm Dzefx Aigsra

Condition: good (used), Year of construction: 2002, Machine type: CNC turning lathe Manufacturer: Reinecker Karstens Kopp - EMAG Model: VSC 250 DS Pedpfx Aiokyrwwegjra Serial number: M02.43446 Year of manufacture: 2002 Available immediately Ex works, for self-disassembly Optional, we can offer disassembly and loading services.

Condition: used, Year of construction: 2011, Vertical Twin-Spindle Turning Center - Siemens 840 D CNC control Psdoy N Snxspfx Aigjra - VSC 400 Duo machine bed - 2 x disc turrets, 12 station, dia. 40 mm, driven - 2 x additional drilling and countersinking stations - Open workpiece transport system - Transfer and turning unit - Interface for an external handling system - Central high-pressure coolant supply with pump, 70 bar - Air blow-off for pick-up unit and clamping devices - Workpiece measurement system - Tool monitoring - Emag network option - Sister tool management system Swing diameter: 260 mm X travel: 860 mm Z travel: 200 mm Main spindles: 2 Max spindle speed: up to 4,500 rpm Spindle distance: 1,055 mm Main drive: 2 AC asynchronous motor 60% / 100% duty cycle: 39 / 28 kW Max torque: 460 Nm Rapid traverse (X / Z): 45 / 30 m/min

Condition: good (used), Year of construction: 2010, functionality: fully functional, We offer you: CNC vertical turning center Manufacturer: EMAG Type: VSC 250 Duo DD Year of manufacture: 2010 / 2012 Control system: Siemens 840D sl Technical data: Max. turning diameter: 250 mm Max. swing diameter: 260 mm Pjdpfx Aiezdbv Tjgora Main spindle: Max. speed: 4,500 rpm Max. torque: 250 / 340 / 460 Nm Spindle bore: 52 mm Chuck diameter: 250 mm Tool turret: Number of turrets: 2 Number of tool positions: 12 Max. tool diameter: 50 mm Max. workpiece weight: 20 kg Max. workpiece diameter: 240 mm Feeds: Rapid traverse (x / z): 45 / 30 m/min Total power consumption: 66 / 75 kW Machine weight: approx. 16 / 18.5 tons There are 3 identical machines available, 2 manufactured in 2010, 1 in 2012. Technical features & accessories: - Marposs measuring system - Open automation - W10 loading portal - Safety guard - Minimum quantity lubrication - In-process quality control - Central coolant supply (not included) - Chip conveyor Accessories, tools and clamping devices shown in the images are only included in the scope of delivery if this is stated in the additional information. Subject to change and errors in the technical data and information, as well as prior sale!

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: M250.81009, Technical characteristics: # Main Drive: * Connected Load: 400 V/50 Hz / 43 kW * Main Spindle Drive Power (100% duty cycle / 40% duty cycle): 18 kW / 28 kW * Main Spindle Torque: 300 Nm * Spindle Speed Range: 0-4500 rpm * Spindle Nose: DIN 55026-A6 # Working Area: * Rapid traverse, X-axis: 60 m/min * Rapid traverse, Z-axis: 30 m/min * Feed force, X-axis: 10 kN * Feed force, Z-axis: 10 kN # Control System: * Siemens SINUMERIK 840Dsl * 15'' TFT monitor # Working Accuracy: * Axes (X / Z): ±0.001 mm * Spindle (C-axis): ±0.01° # Tool Carrier: * EMAG Flange Turret, Generation C361 - Capto C5 * Tool shank diameter: TN340009 * Max. tool dimensions: Workpiece-dependent * Tool change times (turret / driven tool): 0.03 min / 0.04 min * Max. speed, driven tool: 6000 rpm * Max. torque, driven tool (100% duty cycle / 10% duty cycle): 15 Nm / 3.5 kW / 40 Nm / 8.5 kW # Coolant System: * Standard delivery pressure / Max. delivery pressure: 7 bar * Pressure range for internal coolant supply: 7 bar (non-adjustable) * Coolant tank capacity: 360 liters # Part Handling: * No part catcher installed. Parts are loaded and unloaded via automation. * Ambient conditions (Room temperature / Humidity): up to approx. 30°C / max. 50% * Noise levels (Sound pressure / Sound power): 78 dB(A) Prjdpfxexvx T Se Aigja # General Data: * Machine dimensions (L x W x H): 3900 mm x 1500 mm x 3200 mm * Machine weight: approx. 7,000 kg Main Features and Capabilities: # Vertical Design: Optimized for chip evacuation and convenient loading/unloading. # Control: Siemens SINUMERIK 840Dsl with integrated S7-300 PLC and 15'' TFT monitor. # High Precision: Positioning accuracy in X and Z axes of ±0.001 mm. # Main Spindle: High power and wide speed range. # Automated Loading/Unloading: Workpieces are handled automatically through integrated automation systems. # Driven Tools: Capability to use driven tools for extended machining, including drilling and milling operations. # Chip Conveyor # Equipped Chuck: EMB3 Expanding Mandrel (Autoblock) # Capto C5 Tool Holders on Turret (for external/internal machining, 2 units & 2 driven tools) # Tool Load Monitoring: Artis system capability available
