CNC Turning- and Milling Center

EMAG VLC 800 MT

Condition: used, Year of construction: 2009, functionality: fully functional, Offered is a turning and milling machine EMAG VLC 800 MT with tool changer. The machine has a turret with 12 tool positions (VDI 50) and a milling spindle with tool changer for up to 96 tools. The tool magazine can be loaded during processing, which reduces setup time and allows the use of sister tools. The proven EMAG turret is available for turning operations on the machine. On the multifunctional VLC 800 MT production center, workpieces up to 800 mm in diameter can be completely processed in a single clamping. The following components will be sold with the machine: - Pick-up station - Extraction unit (IFM) - Coolant system with belt filter - Chip conveyor CONTROL Siemens 840D MACHINE CONNECTION Mains voltage: 400V AC 50 Hz Connected load: 92kW Rated current: 143A Max. backup fuse: 160A The machine is sold on an “as seen” basis, without any warranty claims. The machine will be available from November 2025, machine is in production until Oktober. The machine can be completely overhauled on request. Please do not hesitate to contact us fot further information. Gedpfxew Au U Uo Adreui

Year of construction: 2011, condition: ready for operation (used), Horizontal machining center with 5-axis Fanuc CNC, tilting table with 120° and continuous B-axis. Godpsku A A Hsfx Adrjui Pallet magazine with 10 stations, automatic tool changer with 199 stations. Accessories included with the machine: Chip conveyor, high pressure coolant system through the spindle line with separate tank and paper filter.

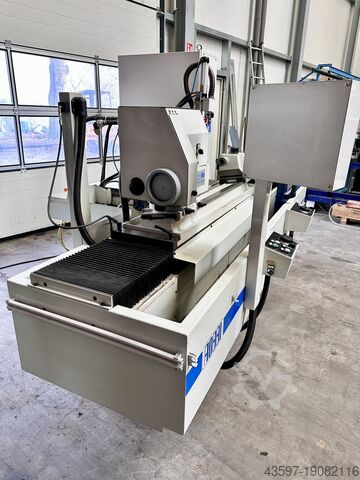

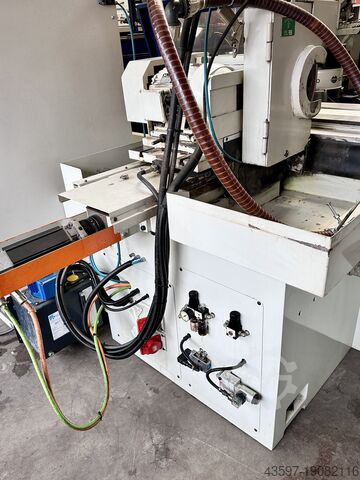

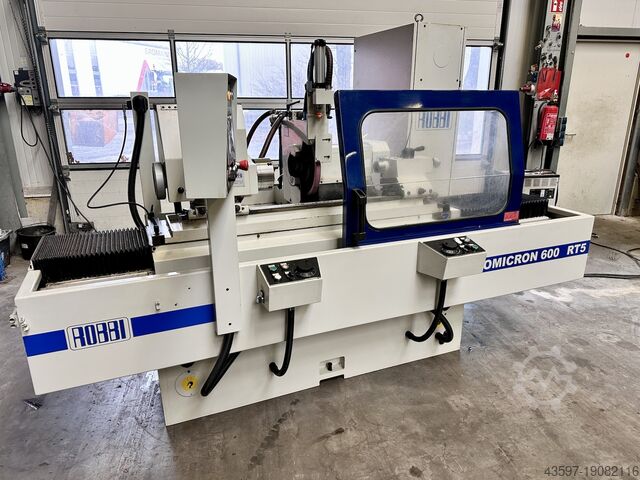

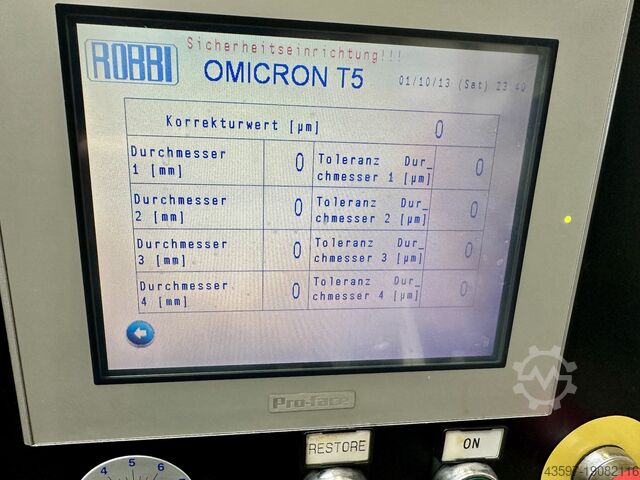

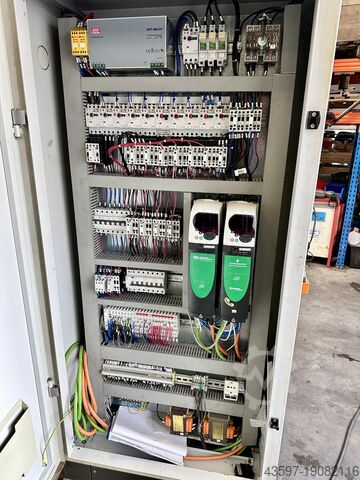

Condition: excellent (used), Year of construction: 2010, Cylindrical grinding machine Gujdpfx Adowhm Rferji Fab. Robbi Group Typ. Omicron 600 RT5 Year 2010 Technical data Make Robbi Group, IT Type OMICRON 600 RT5 Year of manufacture 2010 table Center width 600 mm Sanding length max. 600 mm Swivel range + 9° / - 5° Center height above table 160 mm Workpiece weight between centers 120 kg Workpiece weight for fly grinding 40 kg Tailstock Quill stroke 25 mm Quill diam. 43 mm Internal mounting cone CM 4 Workpiece headstock Rotation speed 0 - 600 Internal mounting cone CM 4 Spindle passage 26 mm Grinding wheel Diameter 450 mm Width min 20 / max 50 mm Bore 127 mm Equipment - Manual or automatic cycle - Automatic dressing compensation - Simplified presetting of grinding wheel and workpiece All information without guarantee. A demonstration under power is possible at any time in our exhibition hall.

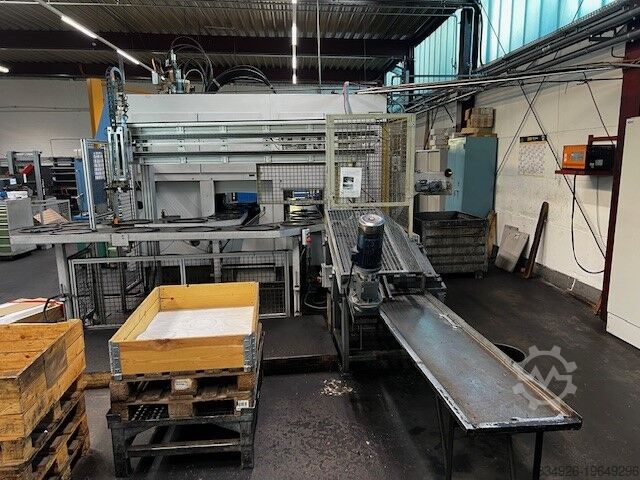

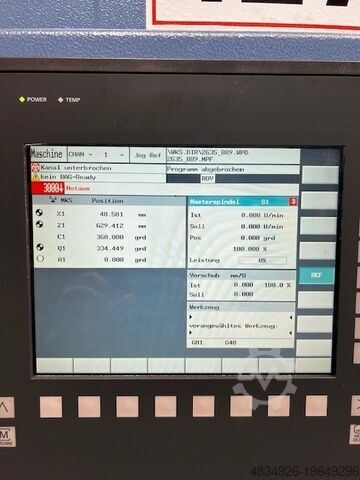

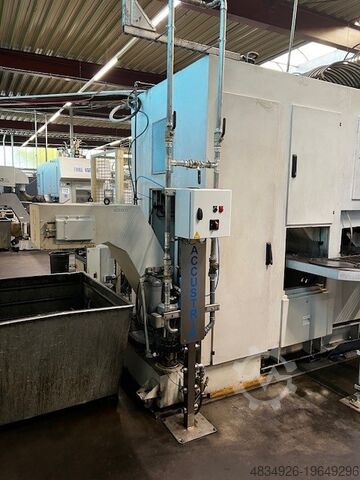

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, feed length X-axis: 685 mm, feed length Z-axis: 200 mm, travel distance X-axis: 850 mm, travel distance Z-axis: 315 mm, chuck outer diameter: 315 mm, rapid traverse X-axis: 45 m/min, rapid traverse Z-axis: 30 m/min, turning diameter: 400 mm, total length: 5,200 mm, total height: 3,500 mm, total width: 6,300 mm, rotational speed (max.): 4,000 rpm, torque: 460 Nm, overall weight: 9,900 kg, controller model: Siemens 840D, control type: CNC control, Equipment: cooling unit, For sale is an EMAG VSC400, year of manufacture 2006. Equipped with a Siemens 840 D control system. Equipment: - Infeed and outfeed conveyor (O-belt) - Pneumatically controlled transfer unit - Stamping unit - Chip conveyor (rear ejection) - Coolant system - Tool turret 12x VDI40 - Oil mist extraction Known defect: - Interior workspace lighting Gjdpjw Dy Eusfx Adroui The machine is powered and can be inspected.
