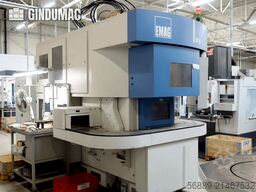

EMAG VSC 250

EMAG VSC 250

Condition: ready for operation (used), Year of construction: 2011, operating hours: 38,546 h, travel distance X-axis: 745 mm, travel distance Z-axis: 300 mm, spindle motor power: 18,000 W, spindle speed (max.): 4,500 rpm, total height: 3,200 mm, total width: 1,500 mm, overall weight: 7,000 kg, controller manufacturer: SIEMENS, controller model: SINUMERIK 840Dsl with integrated PLC S7-300, positioning accuracy: 1 mm, product length (max.): 3,900 mm, number of slots in tool magazine: 12, number of axes: 2, This EMAG VSC 250 vertical turning machine was manufactured in 2011. It features a Siemens SINUMERIK 840Dsl control system, a robust hydraulic 6-jaw chuck, and a flange turret with 12 tool positions. With a spindle speed up to 4500 rpm and a main spindle drive power of 18kW, it's ideal for precise, efficient operations. For more information about this vertical turning machine, please reach out to us. Additional equipment, optional • Hydraulic 6-jaw special chuck from EMAG with face clamping device and central lubrication • 15-inch TFT monitor • V24 interface Machine Benefits Qualitative Machine Benefits • Machine from single-shift operation • Maximum room temperature: up to 30°c • Maximum humidity: 50% • Sound pressure level: 78 db(a) • 2nd unit with yom 2014 available Technical Machine Benefits • Spindle torque: 300 nm • Vdi shaft diameter: 40 mm • Maximum speed of driven tools: 6000 rpm • Maximum torque of driven tools: 40 nm / 8. 5 kw • Coolant system standard delivery pressure: 7 bar maximum delivery pressure: 7 bar internal coolant supply pressure range: 7 bar (non-adjustable) coolant tank capacity: 360 liters • Chuck model: 6agf 260 k6 k14 • Chuck diameter: 260 mm • Chuck weight: 57 kg • Maximum clamping force for internal clamping (50 bar): 12. 8 kn • Maximum clamping force for external clamping (50 bar): 4. 2 kn Ledpfx Aoy Ehckjmmjac Extra Information Machine still under power Dimensions Machine Depth 3900 mm Technical Specification Driven Tools Yes

Condition: used, Year of construction: 2011, Technical details: x-travel: 800 mm y-travel: 950 mm z-travel: 1020 mm control: Sinumerik 840D sl MDynamics Operate turning speeds: 10.000 1/min Spindle power: 26/20 kW max. torque on the spindle: 340/262 Nm tool taper: HSK-A 100 tool change unit: 120 (2x60) Pos. Pallet changer 2x: 630 x 630 mm table load capacity: 800 kg weight of the machine ca.: 20 t dimensions of the machine ca.: 3,3 x 6,15 x 3,2 m 6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don’t accumulate on pallet, they can fall free into the chip conveyor CNC controlled U-axis enables radial movement of tool for variable spindling diamenter. twin pallet changer 630 x 630 mm Ledpfx Ajyzza Ijmmsac 6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axis special hydraulic pump for fixture coolant through spindle (10-80bar), one channel with proportional valve for pressures 10-200 bar, electromech. tool-length measuring device GROB, BLUM laser for tool measuring, tool coding, chip conveyor, 3D touch probe M&H, el. handwheel Siemens HT8 coolant gun, coolant shower, air gun, oilskimmer, automatic door Remote diagnosis A 6th axis MAPAL Tooltronic U-axis system comes with the machine with two heads: 1. LAT125-HSK100 2. LAT160-HSK100 *

Condition: used, Year of construction: 2004, turning diameter 250 mm turning length 100 mm control SIEMENS 840 D total power requirement 35 kW weight of the machine ca. 7500 kg dimensions of the machine ca. m Lajdpfx Aot Hxa Temmoc E M A G (Germany) Vertical CNC Controlled Hard Turning and Grinding machine with tool turret and workpiece handling System Model VSC 250 DS Year 2004 # M7 28.69324 _____ Turning Ø, max. 250 mm Turning length internal / external 100 mm Workpiece length min./max. 29 – 100 mm 6-positon tool turret Ø / swing-Ø 480/790 mm Workpiece spindle Slide travel, X / Z / stroke 680 / 400 / 200 mm Feed rate / Quick feed X/Z 45/30 m/min. Feed force X/Z 5,5/11 kN Spindle speed 4.300 / 6.000 rpm Spindle drive 28 kW Total electrical load, approx. 35 kW - 400 V - 50 Hz Weight, approx. 7,500 kg Accessories / Special Features: * CNC – Continuous Path Control SIEMENS Model 840 D, with colour monitor, graphics, menu-supervised dialogue programming, and all the usual options, cycles and subprograms, etc. * Hexagon Tool turret head with 6 tool positions (Ø 40 mm) without motorized tools posts, two positions T 3 u. T 6 equipped with grinding spindles with 42.000 rpm and with 18.000 rpm, using CBN discs resp. regular grinding tools * Workpiece handling device with WP transportation frames and circulation system and pick-up and unloading of finished parts directly through the motor spindle which is equipped with a hydraulic 3 jaws chuck make SMW Autobloc with membrane clamping and clamping control system. * MARPOSS MIDA Measuring Probe for measuring blank parts a. the finished parts * NORGREN air measuring system, hydraulic weight compensation of spindle, * Main elements of machine are temperature stabilized by a coolant system made by HYFRA * Recooler for the grinding coolant sitting on a large Coolant device consisting of SEITZ Paper Band filter and a mobile Chipconveyor, Magnetic separator, Centrallubrication, etc. Vertical CNC lathes offer a thermo-resistant construction (chips do not fall onto the machine bed),fast workpiece change times (pick-up system through the main spindle) and a ridged tool arrangement,which also allows unrelated machining work, like hard turning or grinding process on the same machine. Condition : Good. Machine can soon be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: good (used), Year of construction: 2010, functionality: fully functional, We offer you: CNC vertical turning center Manufacturer: EMAG Type: VSC 250 Duo DD Year of manufacture: 2010 / 2012 Control system: Siemens 840D sl Technical data: Max. turning diameter: 250 mm Max. swing diameter: 260 mm Main spindle: Max. speed: 4,500 rpm Max. torque: 250 / 340 / 460 Nm Spindle bore: 52 mm Chuck diameter: 250 mm Tool turret: Number of turrets: 2 Number of tool positions: 12 Max. tool diameter: 50 mm Max. workpiece weight: 20 kg Max. workpiece diameter: 240 mm Feeds: Rapid traverse (x / z): 45 / 30 m/min Total power consumption: 66 / 75 kW Machine weight: approx. 16 / 18.5 tons There are 3 identical machines available, 2 manufactured in 2010, 1 in 2012. Technical features & accessories: - Marposs measuring system - Open automation - W10 loading portal - Safety guard Lsdpezdbv Tsfx Ammjac - Minimum quantity lubrication - In-process quality control - Central coolant supply (not included) - Chip conveyor Accessories, tools and clamping devices shown in the images are only included in the scope of delivery if this is stated in the additional information. Subject to change and errors in the technical data and information, as well as prior sale!

Condition: new, Year of construction: 2025, saw band length: 4,420 mm, saw band width: 34 mm, Double-column bandsaw, fully automatic Everising H-360 HB Lajdjq St U Njpfx Ammjc Cutting range round: 0 - 360mm Cutting range square: 360 x 360mm Bundle tension: Width: 180 - 280mm Bundle tension height: 50 - 160mm Drive power: 3.7 kW Saw blade dimensions: 4420 x 34 x 1.1mm Weight: 2310 KG Machine dimension 2500 x 2200mm The standard equipment of the machines is as follows: Solid steel construction in double column principle - NC feed system - Frequency-controlled cutting speed (infinitely variable, inverter-controlled) - Digital cutting speed display - Hydraulically controlled double horizontal clamping vices - Hydraulic saw blade tensioning - Saw band guides (incl. band back guide) made of carbide - Hydraulically pre-tensioned band guides - Precise PLC control (SPS) for all hydraulic and electrical components. - Cutting counter with automatic switch-off - Automatic out-of-stock switch-off - Multi-job function - Bundle clamping device - Driven chip brush - Automatic band breakage control incl. emergency stop - Chip flushing gun - Flexible work light - 2 meter roller conveyor - Tool box - Carbide function Special equipment included: - Variable clamping pressure reduction - Cutting process control Extensive complete German documentation.

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, year of last overhaul: 2023, Offered is a VSC 250 vertical turning center, which has been mechanically and electrically overhauled by EMAG. The control system was upgrated to Siemens Sinumerik One. Depending on requirements, the machine can be equipped with various automation options (shuttle, O-type conveyor, L-type conveyor, turn around station) and other peripherals such as chip conveyors, coolant systems, etc. CONTROL Siemens Sinumerik One TECHNICAL DATA Lodpsrq Damsfx Ammjac Workpiece diameter: 250 mm Workpiece height: 100 mm X-stroke: 860 mm Z-stroke: 200 mm MAIN SPINDLE power 28 kW TOOL CARRIER EMAG wheel turret, 12x VDI 40 Delivery time and additional equipment of the machine on request.

Condition: used, Year of construction: 2011, Vertical Twin-Spindle Turning Center - Siemens 840 D CNC control - VSC 400 Duo machine bed - 2 x disc turrets, 12 station, dia. 40 mm, driven - 2 x additional drilling and countersinking stations - Open workpiece transport system Laedpfx Asy N Snxsmmjc - Transfer and turning unit - Interface for an external handling system - Central high-pressure coolant supply with pump, 70 bar - Air blow-off for pick-up unit and clamping devices - Workpiece measurement system - Tool monitoring - Emag network option - Sister tool management system Swing diameter: 260 mm X travel: 860 mm Z travel: 200 mm Main spindles: 2 Max spindle speed: up to 4,500 rpm Spindle distance: 1,055 mm Main drive: 2 AC asynchronous motor 60% / 100% duty cycle: 39 / 28 kW Max torque: 460 Nm Rapid traverse (X / Z): 45 / 30 m/min

Condition: good (used), Year of construction: 2011, functionality: fully functional, number of driven tool stations in tool turret 1: 48, number of driven tool stations in tool turret 2: 12, Available immediately and can be viewed under power. Upper X Y Z ballscrews fully refurbished mid 2023 by UK company. Included as shown in pictures -- Live tooling turret NA44A/BMT44 -- Capto C4 milling -- Capto C4 turning holders -- Capto C4 extensions -- 3 x Dual Capto C4 for turret -- Various other turret holders as pictured -- See attached spreadsheet (PDF below), for included holders. -- Renishaw arm -- Part catcher arm + converyor (not used for a long time) -- Old version of CAMplete TurnMill with USB dongle TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 4500 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] - Travel : 780 [mm] - Spindle / counter-spindle distance : 980 [mm] Ljdpfx Asycl Epsmmoac TURNING-MILLING SPINDLE - X/Z stroke : 570/1297 [mm] - Y stroke : +/- 100 [mm] - B Axis stroke : 190 (+/-95) [°] - Tool type : Capto C4 - Spindle speeds : 12000 [rpm] - Spindle power : 7,5 [kW]

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: M250.81009, Technical characteristics: # Main Drive: * Connected Load: 400 V/50 Hz / 43 kW * Main Spindle Drive Power (100% duty cycle / 40% duty cycle): 18 kW / 28 kW * Main Spindle Torque: 300 Nm * Spindle Speed Range: 0-4500 rpm * Spindle Nose: DIN 55026-A6 # Working Area: * Rapid traverse, X-axis: 60 m/min * Rapid traverse, Z-axis: 30 m/min * Feed force, X-axis: 10 kN Lajdpfx Amexvx T Ssmjc * Feed force, Z-axis: 10 kN # Control System: * Siemens SINUMERIK 840Dsl * 15'' TFT monitor # Working Accuracy: * Axes (X / Z): ±0.001 mm * Spindle (C-axis): ±0.01° # Tool Carrier: * EMAG Flange Turret, Generation C361 - Capto C5 * Tool shank diameter: TN340009 * Max. tool dimensions: Workpiece-dependent * Tool change times (turret / driven tool): 0.03 min / 0.04 min * Max. speed, driven tool: 6000 rpm * Max. torque, driven tool (100% duty cycle / 10% duty cycle): 15 Nm / 3.5 kW / 40 Nm / 8.5 kW # Coolant System: * Standard delivery pressure / Max. delivery pressure: 7 bar * Pressure range for internal coolant supply: 7 bar (non-adjustable) * Coolant tank capacity: 360 liters # Part Handling: * No part catcher installed. Parts are loaded and unloaded via automation. * Ambient conditions (Room temperature / Humidity): up to approx. 30°C / max. 50% * Noise levels (Sound pressure / Sound power): 78 dB(A) # General Data: * Machine dimensions (L x W x H): 3900 mm x 1500 mm x 3200 mm * Machine weight: approx. 7,000 kg Main Features and Capabilities: # Vertical Design: Optimized for chip evacuation and convenient loading/unloading. # Control: Siemens SINUMERIK 840Dsl with integrated S7-300 PLC and 15'' TFT monitor. # High Precision: Positioning accuracy in X and Z axes of ±0.001 mm. # Main Spindle: High power and wide speed range. # Automated Loading/Unloading: Workpieces are handled automatically through integrated automation systems. # Driven Tools: Capability to use driven tools for extended machining, including drilling and milling operations. # Chip Conveyor # Equipped Chuck: EMB3 Expanding Mandrel (Autoblock) # Capto C5 Tool Holders on Turret (for external/internal machining, 2 units & 2 driven tools) # Tool Load Monitoring: Artis system capability available

Condition: good (used), Year of construction: 2002, Machine type: CNC turning lathe Manufacturer: Reinecker Karstens Kopp - EMAG Model: VSC 250 DS Serial number: M02.43446 Laedpfx Amekyrwwjmec Year of manufacture: 2002 Available immediately Ex works, for self-disassembly Optional, we can offer disassembly and loading services.

Condition: excellent (used), Year of construction: 2009, operating hours: 29,000 h, functionality: fully functional, Equipment: documentation/manual, The INDEX C200 – manufactured in 2009 – is a powerful CNC production turning center with a FANUC 31i control, main and counter spindle, and a 65 mm bar capacity. The machine features a high-quality 3-turret design, with turrets 1 and 2 each equipped with X, Z, and Y axes, and turret 3 used for machining on the counter spindle. All three disc turrets are equipped with 10 stations and, with driven tools up to 6,000 rpm, enable highly flexible complete machining. With a portal parts handler, conveyor belt, C-axes on the main and counter spindles, and powerful spindle drives, the machine is particularly suitable for productive series production of complex turned/milled parts. Control: FANUC 31i Design: Machine with 3 tool holders / 3 disc turrets Bar capacity: 65 mm Machine bed: Vertically arranged gray cast iron machine bed Main spindle: Spindle 4 Counter spindle: Spindle 5 with Z-axis Spindles Main spindle Bar capacity: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose: ISO 702/1, Size 140 Cyl. Chuck diameter: 160 mm Power: 25 kW at 100% ED / 33 kW at 40% ED Torque: 112 Nm at 100% ED / 150 Nm at 40% ED Speed: 5,000 rpm C-axis: Resolution 0.001° Counter spindle Bar capacity: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose: ISO 702/1, Size 140 Cyl. Chuck diameter: 160 mm Power: 25 kW at 100% ED / 33 kW at 40% ED Torque: 112 Nm at 100% ED / 150 Nm at 40% ED Speed: 5,000 rpm C-axis: Resolution 0.001° Counter spindle Z-axis: 700 mm travel Rapid traverse Z-axis: 50 m/min Tool holder / Turret Design with 3 disc turrets, each with 10 stations. Tool system with 10 stations: Cylindrical shank DIN 69880 – Ø30 x 55 mm. Tool holder 1 X, Z, Y axes 10 stations X-axis: 110 mm Z-axis: 320 / 550 mm (according to documentation) Y-axis: 100 mm, ±50 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Tool holder 2 X, Z, Y axes 10 stations X-axis: 110 mm Z-axis: 550 mm Y-axis: 100 mm, ±50 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Tool holder 3 X-axis 10 stations Used exclusively for machining on the counter spindle X-axis: 180 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Further technical equipment according to documentation Portal parts handling system with numerically controlled Z-axis Workpiece removal from main or counter spindle to conveyor belt Removal of scrap material from the main spindle into a scrap container Portal parts handler: Traverse speed: 100 m/min Traverse range: 70 mm Workpiece diameter max.: 90 mm Workpiece length max.: 250 mm Scrap length max.: 250 mm Workpiece weight max.: 3.5 kg Hydraulic system: Flow rate: 19 l/min System pressure: 90 bar Hydraulic tank: 40 l Coolant circuit: Laedpfx Asy Tmhzjmmec Flow rate: 19 l/min Coolant unit power: 13 kW Coolant system: Pump output: 80 l/min / 8 bar Tank capacity: 300 l Chip conveyor: Chip discharge height: 1,250 mm

Condition: ready for operation (used), Year of construction: 2015, A combined vertical CNC turning and cylindrical grinding center EMAG is available. Chuck diameter: 250mm, max. swing diameter: 260mm, travel X/Z: 680mm/200mm, rapid traverse X/Z: 45m/min/30m/min, grinding spindle speed: 45000rpm, tool stations: 12, basket dimensions X/Y: 400mm/600mm, basket stack: 3. Machine dimensions X/Y/Z: approx. 3200mm/1900mm/2650mm, weight: approx. 8000kg, control: Siemens 840DS, operating hours: approx. 35000h, program hours: approx. 22000h. Documentation available. An on-site inspection is possible with power. Laodpfx Amsx Dm Dzemsc

Condition: refurbished (used), Year of construction: 2014, functionality: fully functional, total width: 2,500 mm, total length: 4,500 mm, total height: 3,200 mm, Offered is a double spindle pick up turning machine VSC 250 DUO. There are 2 nearly identical machines available. Each machine is equipped with 2 independent working spindles and 2 EMAG turrets. The machine can produce 2 identical workpieces with the same machining operation, as well as one workpiece in two successive machining operations. The VSC 250 DUO will receive a general overhaul before delivery and gets a control upgrade to Siemens Sinumerik ONE. The machine can be equipped with other periphery (chip conveyor, coolant system, external automation, etc.), depending on requirements. COTROL Ledpor Nc Ufjfx Ammsac Siemens Sinumerik One TECHNICAL DATA workpiece diameter: max. 250 mm workpiece height: max. 150 mm chuck diameter: 250/315 mm swing diameter: 350 mm X-stroke: 745 mm Z-stroke: 300 mm TOOL CARRIER working area 1 1x EMAG disc turrets, 12x VDI 50 without driven tools working area 2 1x EMAG disc turret, 12x VDI 50 with driven tools Price, delivery time and equipment of the machine on request.

Condition: used, Year of construction: 2008, Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Lsdpfoia Rtdox Ammsac Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at) or *
