Vertical lathe CNC (pick up spindle)

EMAG VSC 500

Condition: used, TECHNICAL DETAILS - Max. turning Ø : 520 [mm] - Strokes (X/Z) : 1000 / 400 [mm] - Max. push on X and Z : 1100 [daN] - Quick feeds (X/Z) : 45 / 30 [m/min] - Ball screw diameter (X/Z) : 50 [mm] - Spindle nose : A2-11 - Spindle motor power : 71 [kW] - Spindle speed : 0 - 3400 [Rpm] - Max. chuck torque : 750 [Nm] - Number of positions on turret : 12 - Number of motorized positions : 12 - Tool-holder type : VDI50 - Machine alone dimensions : 4.050 x 1.960 [mm] - Installation dimensions : 8.500 x 5.000 [mm] - Machine weight : 13.500 [kg] - Installed power : 45 [kW] - Electric supply : 400 V, 50 Hz EQUIPMENT - CN SIEMENS 840D - Interface : RS232 / RJ45 / USB - Touch part sensor Marposs - 1 fixed tool support on table : Capto C6 - Lubricating tank - HP coolant tank : 23 [bars] - Cooling tank - Chip conveyor KNOLL - Part conveyor capacity : 70 - 320 [mm] - Rotary tool holders number : 6 - Fixed tool holders number : 6 Fjdpfeuhbfgox Aa Njgi - Chuck 3 jaws Forkhardt Ø : 400 [mm]

Condition: ready for operation (used), Year of construction: 2006, operating hours: 83,799 h, functionality: limited functionality, feed length X-axis: 685 mm, feed length Z-axis: 200 mm, travel distance X-axis: 685 mm, travel distance Z-axis: 200 mm, chuck outer diameter: 315 mm, rapid traverse X-axis: 45 m/min, rapid traverse Z-axis: 30 m/min, turning diameter: 400 mm, total length: 5,200 mm, total height: 3,282 mm, total width: 6,300 mm, rotational speed (max.): 4,000 rpm, torque: 460 Nm, overall weight: 10,000 kg, controller model: Siemens 840D, control type: CNC control, Equipment: cooling unit, For sale is an EMAG VSC400, year of manufacture 2006. Equipped with Siemens 840 D control. Equipment: - Infeed and outfeed conveyor (O-belt) - Pneumatically controlled transfer unit - Stamping unit - Chip conveyor (discharge left) - Coolant system - Tool holder 12x VDI40 Fgsdpfx Aajw Dyzio Nji Known defects: - Loading flap - Interior lighting The machine is under power and can be inspected.

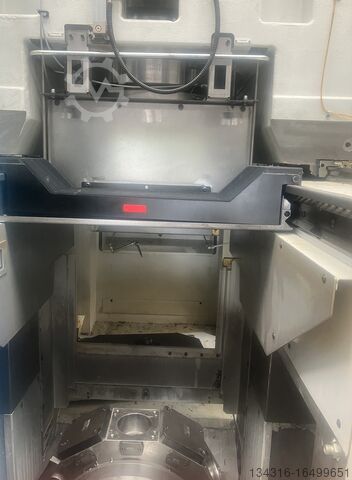

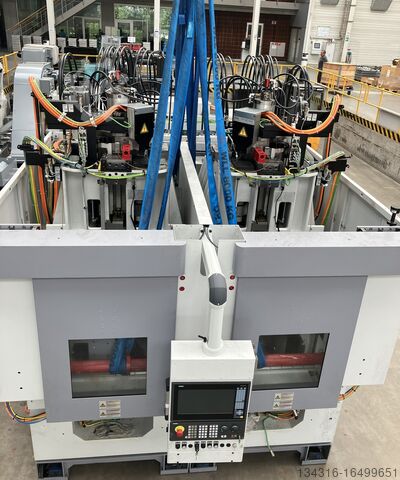

Condition: like new (used), Year of construction: 2021, Offered is a double spindle pick up turning machine VSC 500 DUO. The machine is equipped with 2 independent working spindles and 2 EMAG turrets. The machine can produce 2 identical workpieces with the same machining operation, as well as one workpiece in two successive machining operations. The machine can be equipped with various periphery (chip conveyor, coolant system, external automation, etc.), depending on requirements. COTROL Siemens 840 Dsl TECHNICAL DATA workpiece diameter: max. 440 mm workpiece height: max. 250 mm chuck diameter: 450 mm swing diameter: 550 mm X-stroke: 925 mm Z-stroke: 400 mm Fgedpfst Du Tdex Aa Nei TOOL CARRIER 2x EMAG disc turrets, 12x CDI 68, with driven tools Price, delivery time and equipment of the machine on request.

Condition: used, Year of construction: 2016, IMPORTANT: The sale and delivery of this machine are strictly limited to customers whose registered office and delivery address are located within the European Union (EU). Delivery to recipients outside the European Union is excluded. Machine Details – PITTLER • Manufacturer: Pittler • Model/Type: LP03B • Serial Number: 2198 • Year of Manufacture: 2016 • TAR No.: 12244247 • Machine Weight: 19,500 kg • Country of Manufacture: Germany • CE Marked: Yes • Control System Manufacturer: Pittler T&S GmbH • Control System Type: Board PLS/G-RZ 10 Fgodpfx Ajw Tidqea Nji Electrical Specifications: • Power Supply: 3-phase AC 400 V • Frequency: 50 Hz • Lighting Voltage: 42 V • Control Voltage: 230 V AC / 24 V DC • Control Fuse: 25 A • Max. Cable Length to Tool Head: 10 m • Coolant Supply Line: Connection as per site requirements
