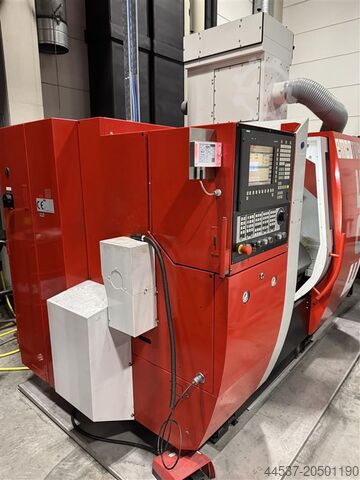

CNC lathe

Emco E 65

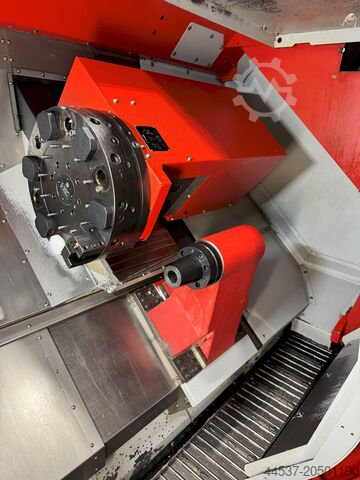

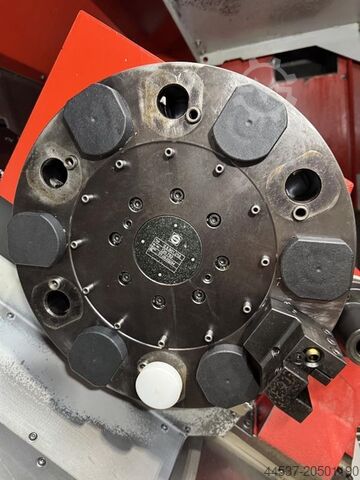

Condition: good (used), Year of construction: 2005, functionality: fully functional, turning diameter over cross slide: 310 mm, turning length: 520 mm, turning diameter: 310 mm, travel distance X-axis: 210 mm, travel distance Z-axis: 610 mm, Sinumerik 810D Powerline with Shopturn CNC control 3-jaw chuck Schunk (diameter 210mm) 12-fold turret head (VDI 30 taper) C-axis driven tools tailstock coolant device chip conveyor Technische Daten / technical details: max. Umlaufdurchmesser über Bett / max rotary diameter over bed 600 mm Gbjdpfx Aoxvy Ahsbpew max. Umlaufdurchmesser über Schlitten / max. rotary diameter over sledge 360 mm max. Drehdurchmesser / max. turning diameter 310 mm max. Drehlänge / max. turning length 520 mm Abstand zwischen den Spitzen / distance between centers 680 mm Planweg (x) / cross way (x) 210 mm Längsweg (z) / longitudinal way (z) 610 mm max. Stangendurchmesser / max bar diameter 65 mm Drehzahlbereich / spindle speed 0-4200 UpM /rpm Drehzahl angetriebene Werkzeuge / speed of driven tools 5000 UpM /rpm Werkzeugrevolver / turret head 12 fach /holes Eilgang x,z / rapid feed x,z 24,24 m/min Antriebsleistung Spindel / drive capacity spindle 18 kW Gewicht der Maschine ca. / weight 3900 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Year of construction: 2005, condition: ready for operation (used), Main Drive Number of axis 2 Movement X-Axis Movement 260 Z-Axis Movement 610 Media Chip conveyor Yes Additional Equipment Bar Feeder: Equipped with Emco bar loader Chip Conveyor: Included Part Catcher: Integrated turret has 12 positions (all are driven) maximum bar diameters that can be processed are Ø65mm due to the drawtube VDI 30 Gsdpfoxpyvzex Abpebw This EMCO Turn E65 was manufactured in 2005. A horizontal turning machine equipped with an Emco bar loader, chip conveyor, and an integrated part catcher. It features a single turret with driven tools, enhancing its functionality. If you are looking to get high-quality turning capabilities, consider the EMCO Turn E65 machine we have for sale. Contact us for more information. Application Types Turning

Condition: good (used), Year of construction: 2006, Machine used only for plastic. Gjdpfx Abou Ibihspsbw Technical details shown in attached pdf document. Parts shown by hand not come.

Condition: good (used), Year of construction: 2007, with UniRobot FMB Control: SIEMENS 828D Bed swing: Ø 540 mm Gbsdpfx Abov S Ekyjpew Cross slide swing: Ø 360 mm Spindle – tailstock: 680 mm Max. turning diameter: Ø 310 mm Max. part length: 520 mm Max. bar diameter: Ø 65 mm Travel: X = 210, Z = 610 mm Max. chuck size: Ø 254 mm Main spindle: 15/18 kW (100%, 60% duty cycle) Speed range: 60 – 4200 rpm continuously variable Max. torque: 192 Nm C-axis Rapid traverse: 1000 rpm TOOL TURRET 12 stations all driven Mounting: VDI 30 Speed range: 0-5000 rpm Max. drive power: 5 kW Max. torque: 20 Nm Automatic tailstock, hydraulic Travel: 500 mm Internal taper: MK 4 FMB MH5L-XP robot cell With Yaskawa Motoman MH 5 L robot Max. payload: 5 kg Max. working radius: 895 mm Weight: 27 kg Working range: S-axis (rotation): -170° ~ +170° L-axis (lower arm): -65° ~ +150° U-axis (upper arm): -138° ~ +255° R-axis (hand roller): -190° ~ +190° B-axis (joint/articulation): -135° ~ +135° T-axis (hand rotation): -360° ~ +360° With coolant system Chip conveyor, extraction system Total weight (machine/robotic): approx. 5300 kg

Year of construction: 2012, condition: ready for operation (used), X-travel: 210mm, z-travel: 610mm, swing over bed/ slide: 540/ 360mm, max. turning diameter: 310mm, length: 1730mm, width: 2860mm, height: 1880mm, weight: 4.3t, with Automation FMB unirobot MH5L-XP. Gjdpog Rcf Isfx Abpjbw

Condition: repair required (used), Year of construction: 2008, operating hours: 9,000 h, functionality: not functional, machine/vehicle number: R65EW1851, turning length: 520 mm, turning diameter over cross slide: 360 mm, turning diameter: 600 mm, travel distance X-axis: 210 mm, travel distance Z-axis: 610 mm, rotational speed (max.): 4,200 rpm, No reserve price - guaranteed sale at the highest bid! Nimble and precise machine with lots of accessories, driven tools and collet chuck with various collets, including square and hexagon. Condition: Used machine, previously used in Thailand. Due to the climatic conditions on site, the machine shows external signs of use. The pneumatics show signs of wear, especially from the distributor: brittle hoses, some broken. It is not possible to assign the hoses from the distributor valve without a diagram. The pneumatics must be repaired. TECHNICAL DETAILS Swing diameter over bed: Ø 600 mm Swing diameter over cross slide: Ø 360 mm Distance main spindle (clamping flange) - tailstock center: 680 mm Max. turning diameter: Ø 310 mm Max. part length: 520 mm Max. bar diameter: Ø 65 mm Travel ranges Travel path X: 210 mm Travel path Z: 610 mm Main spindle Spindle connection according to DIN 55026: KK 6 Outer spindle diameter in the front bearing: Ø 100 mm Spindle bore: Ø 73 mm Hollow clamping cylinder with draw tube, max. passage: Ø 66.5 mm Max. chuck size: Ø 250 mm AC motor, power (100%, 60% ED): 15 / 18 kW Speed range (infinitely adjustable): 60 - 4,200 rpm Max. torque: 192 Nm Tailstock Automatic tailstock: hydraulically operated Tailstock travel: 500 mm Max. tailstock pressure force: 8,000 N Travel speed: 20 m/min Inner taper of the tailstock quill: MK 4 Feed drives Godovrz A Sopfx Abpebw Rapid traverse speed X/Z: 24 / 24 m/min Feed force X: 5,000 N Feed force Z: 7,000 N Acceleration time from 0 to rapid traverse: 0.2 s Position spread (according to VDI 3441 in X/Z): 3 / 5 µm C-axis (spindle 1 and 2) Resolution of the rotary axis: 0.001° Rapid traverse: 1,000 rpm Spindle indexing (disc brake): 0.01°

Condition: good (used), Year of construction: 2009, Machine used only for plastic. thry spindle 95.mm Technical data shown on picture. Gbjdju Ibnqspfx Abpjw 27.03.2025. With machine will come another spannpfutter with possibility 80 mm. Parts shown by hand not come.

Year of construction: 2007, condition: ready for operation (used), X-travel: 210mm, z-travel: 610mm, swing over bed/ slide: 540/ 360mm, max. turning diameter: 310mm, length: 1730mm, width: 2860mm, height: 1880mm, weight: 4.3t, with Automation FMB unirobot MH5L-XP. Gjdeg Rcf Sepfx Abpjbw
