Used Emco Cnc Lathe for sale (134)

Condition: excellent (used), Year of construction: 2005, Functionality: fully functional, Description WE OFFER AN NICE CONDITION TWO MACHINES EMCO HYPERTURN 665 WITH BARR FEDERS AND TOOLS ACCESSORIESS YEAR: 2005 FULLY FUNCTIONAL , READY TO WORK CONNECTED ON POWER. FOR THE CUSTOMER WE ORGANIZE DISMANTLING LOADING AND TRANSPORT TECHNICAL DATA: Specifications: Max. swing diameter 430 mm dia. Max. rotary. About Bed 600 mm Dia. Turning length 744 mm Distance between spindle lugs 975 mm Main engine power 21/29 kw Main spindle speed range 0-5000 rpm Kolhcdevk E Atewxslr Bore through drawing tube 65 mm dia. C axis - main spindle movement 0.001 degree Y axis 100 +/- 50 mm B Axis Movement Stepless 45 Degree Tool turret 1 with 12 VDI 30 stations Powered stations turret 1 12 pc. - 4000 rpm Y+B pieces. Engine power driven tools 6.7 Kw Tool turret 2 with 12 pc. VDI 30 stations Counter spindle C axis - counter pindel movement 0.001 degree Counter spindle speeds 0-5000 D46485 Pr/min Motor power counter spindle 17/22 Kw Control Siemens 840 D Controlled in 8 axis - x1-x2-z1-z2-c1-c2-y-b axes Accessories: BAR FEDER AND HUGE LIST OF TOLLINGS ON PHOTOS Length: 3400 mm + convoyer , Height: 2300 mm, Width: 2550 mm, Weight: 7600 kg

Condition: good (used), Year of construction: 2014, Magnetic chuck (instead of collet chuck) Max. turning diameter 400 mm Main spindle speed 0-4,000 rpm Max. workpiece length 200 mm Travel X = 960, Y = +/- 90, 400 mm TOOL TURRET 12 driven stations VDI 40 chuck Speed 0-4,000 rpm Klolhswcdytscdwxsr Parts feeding via shuttle (included) Two machines are available

Condition: good (used), Year of construction: 1983, turning diameter 340 mm turning length 290 mm centre height 160 mm control Sinumerik 810T spindle bore 53 mm turning speed range 60 - 4000 U/min quill stroke 120 mm diameter of quill 60 mm tailstock quill taper MT 4 tool change unit 8 fach total power requirement 13 kW Kelowbi Iyohcdwxelr weight of the machine ca. 2200 kg dimensions of the machine ca. 2,4 x 2,0 x 1,9 mm CNC lathe - cycle controlled

Condition: good (used), Year of construction: 2004, Emco ET 420 / double spindle lathe, Year of manufacture 2004, Siemens control, max. bar capacity 26 mm, max. part length 600 mm, 2 main spindles, 2 counter spindles, double bar loading magazine, main spindle up to 5,000 rpm, Klslhcdor Izcpowxjr C axis 0.01° , Revolver 2 x 12-fold VDI 16, 4 driven tool stations / turret, chip conveyor, coolant device, parts catcher long parts ( self-made )

Condition: used, Year of construction: 2006, turning diameter 500 mm turning length 1300 mm control Fanuc 18i TB main spindle: turning speed range - main spindle 0 - 3500 min/-1 drive capacity - main spindle 33 kW max. torque 800 Nm tool turret: number of tool places 12 axial / 12 direkt Pos. tool taper VDI 40 Kjlhcovdt Tyedwxolr Driven tools: output max. 8 kw max. torque 35 Nm turning speed range - driven tools 0 - 4000 U/min travel: x-travel 318 mm z-travel 1360 mm y-travel -60 / +80 mm total power requirement kW weight of the machine ca. t dimensions of the machine ca. m In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as subject to prior sale reserved!

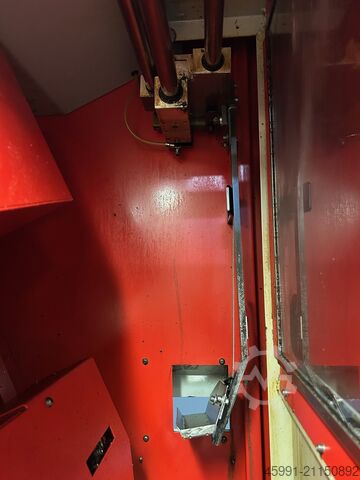

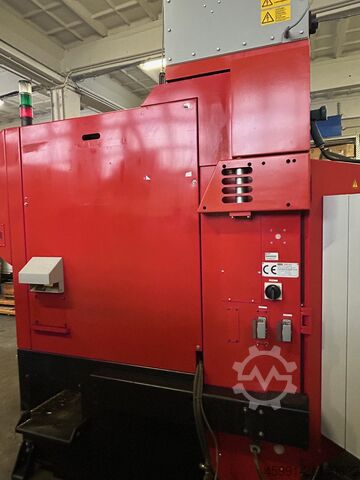

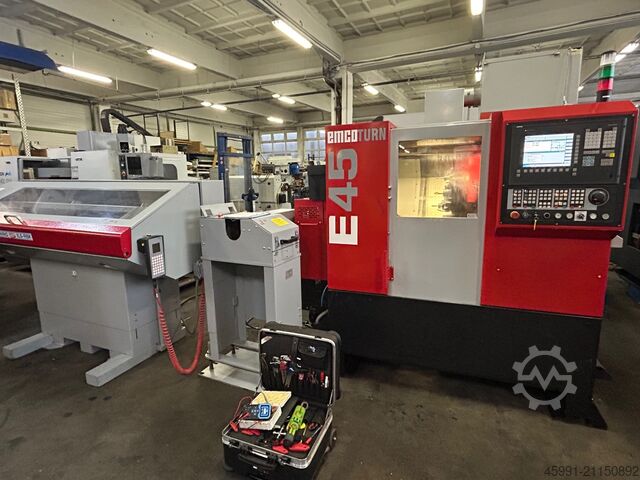

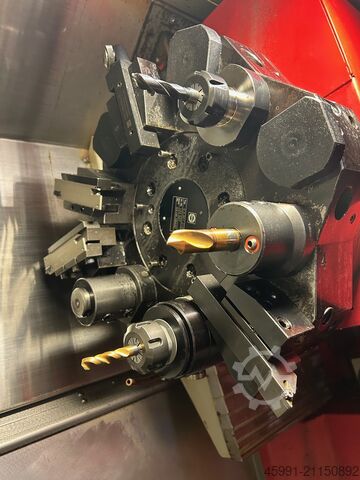

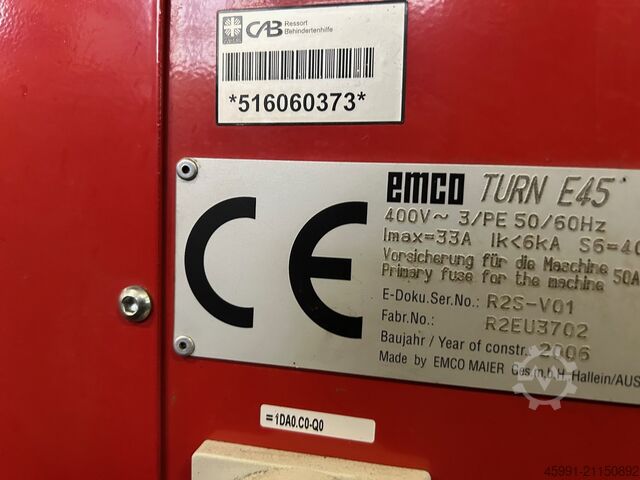

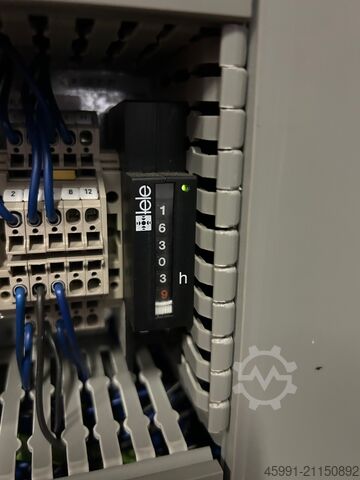

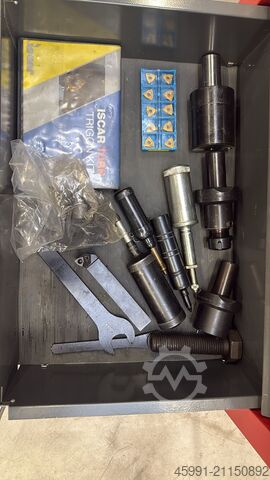

Condition: good (used), Year of construction: 2015, Functionality: fully functional, turning diameter over cross slide: 210 mm, turning length: 300 mm, turning diameter: 220 mm, spindle bore: 51 mm, spindle speed (max.): 6,300 rpm, travel distance X-axis: 160 mm, travel distance Z-axis: 310 mm, EMCO Emcoturn E 45 CNC Lathe Year of manufacture: 2015 Control: Sinumerik 828D Technical specifications: Main spindle speed: 10 - 6,300 rpm Drive power: 13 kW Spindle bore: 53 mm Bar capacity: 45 mm Travel ranges: X-axis: 160 mm Z-axis: 310 mm C-axis: 0.001° Turret: Number of stations: 12 Adapter: VDI 30 Klolhcdwov Sm N Rsxer Accessories: - Chip conveyor - Coolant system - Emco Compact Load short-bar loader

Condition: used, Year of construction: 2013, Technical details: bar material dia.: 51 mm turning length: 644 mm turning dia. over bed: 600 mm turning diameter over slide: 430 mm y-axis: 100 (+-50) mm turning speeds: 2x 5.000 1/min positive location each: 2x C-Achse, 0,001° Grad Sub spindle: ja/yes turret (x-stations): 2x 12 VDI 30 Pos. driven tools: 2x 12 Pos. turning speeds: 2x 4.000 1/min Kslhcdsphuwqewxolr control: FANUC 18 iTB total power requirement: 30 kVA weight of the machine ca.: 8 t dimensions of the machine ca.: 3,5 x 2,5 x 2,3 m turning- milling center with Y-axis, collet device on main and subspindle, high pressure pumps 2x 14bar, parts catcher/conveyor, barloader ENTL 10-65, chip conveyor, lot of accessories approx. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding" *

Condition: good (used), Year of construction: 2007, with UniRobot FMB Control: SIEMENS 828D Bed swing: Ø 540 mm Cross slide swing: Ø 360 mm Spindle – tailstock: 680 mm Max. turning diameter: Ø 310 mm Max. part length: 520 mm Max. bar diameter: Ø 65 mm Travel: X = 210, Z = 610 mm Max. chuck size: Ø 254 mm Main spindle: 15/18 kW (100%, 60% duty cycle) Speed range: 60 – 4200 rpm continuously variable Max. torque: 192 Nm C-axis Rapid traverse: 1000 rpm TOOL TURRET 12 stations all driven Mounting: VDI 30 Speed range: 0-5000 rpm Max. drive power: 5 kW Max. torque: 20 Nm Automatic tailstock, hydraulic Travel: 500 mm Klolhcov S Ekyodwxsr Internal taper: MK 4 FMB MH5L-XP robot cell With Yaskawa Motoman MH 5 L robot Max. payload: 5 kg Max. working radius: 895 mm Weight: 27 kg Working range: S-axis (rotation): -170° ~ +170° L-axis (lower arm): -65° ~ +150° U-axis (upper arm): -138° ~ +255° R-axis (hand roller): -190° ~ +190° B-axis (joint/articulation): -135° ~ +135° T-axis (hand rotation): -360° ~ +360° With coolant system Chip conveyor, extraction system Total weight (machine/robotic): approx. 5300 kg

Condition: used, Year of construction: 2001, turning diameter 220 mm turning length 510 mm control FANUC 21i swing diameter 430 mm x-travel 160 mm z-travel 510 mm spindle bore 45 mm spindle nose DIN 55026 A5 spindle turning speed - stepless 0 - 6300 U/min spindle drive 13 kW max. torque on the spindle max. 78 Nm feed power 4000 / 6000 N rapid traverse X-axis 20 m/min rapid traverse Z-axis 24 m/min tool turret 1 x 12 Pos tool shaft (cylinder shaft DIN 69880) VDI 30 travel of tailstock automatisch 510 mm tailstock taper MT 4 total power requirement 17 kVA weight of the machine ca. 2,6 t dimensions of machine L x W x H 2,70 x 2,00 x 2,00 m Kelhcdev Irhwowxolr Accessories: hydr. 3-jaw chuck RÖHM 160 mmø, various toolholders for turret, coolant - condition like new, 100 running hours only -

Condition: like new (used), Year of construction: 2016, operating hours: 180 h, Functionality: fully functional, machine/vehicle number: A6D160702, turning diameter: 60 mm, spindle speed (max.): 4,200 rpm, travel distance X-axis: 60 mm, travel distance Z-axis: 280 mm, turning diameter over bed slide: 130 mm, bar passage: 15 mm, Machine is prepared for automation! The machine was used for training purposes and has only approximately 180 spindle hours. TECHNICAL DETAILS Travel in X / Z: 60 / 280 mm Bar capacity: 15 mm Turning diameter: 60 mm Part length with tailstock: 60 mm Swing diameter over bed: 130 mm Tool cross-section for external machining: 12 x 12 mm Tool cross-section for internal machining: Ø 10 mm Rapid traverse speed: 3 m/min Working feed: 0 - 2 m/min Max. feed force: 1,000 N Main spindle Max. speed: 300 - 4,200 rpm Spindle connection: EMCO Max. drive power: 1.1 kW Max. torque: 10 Nm Tailstock & turret Quill stroke: 35 mm Number of tool positions: 8 Kljlhjv Ipbujcdwxer MACHINE DETAILS Spindle hours: 180 h Dimensions (L x W x H): 895 x 745 x 550 mm Machine weight: 150 kg Control: Win NC Siemens Sinumerik Operate EQUIPMENT - EMCO Win 3D-View Simulation - Portable machine control panel - Workbench converted into a machine base with swivel table - Electronic handwheel - Optical tool presetter - Tailstock - Pneumatic chuck - Automatic door - I/O expansion board for robotics and DNC interface

Condition: used, _____ Description: Year of manuf. : 2017 Control : Siemens 840Dsl Turning diam. : 300 mm Turning length : 480 mm Mainspindle: Klslhev Hvgnocdwxsr Technology:Motorspindle Speed:7.000 rpm Power (max.):15 kW Torque (max.):100 Nm Barcapacity (max.):51 mm Workpiececlamping:Collet chuck, Hainbuch Spanntop nova Modular Gr. 52 Subspindle: Technology:Motorspindle Speed:7.000 rpm Power (max.):15 kW Torque (max.):100 Nm Workpiececlamping:3-Jaw chuck, Röhm KFD-HS 160 Toolcarrier I (X/Y/Z): Technology:Turret with 12 stations Taper:VDI25 Tooldrive:6.000 rpm, 4 kW, 16 Nm Movement in X/Y/Z:160/70/510 mm Rapid travers in X/Y/Z:30/15/45 m/min Toolcarrier II (X/Z): Technology:Turret with 12 stations Taper:VDI25 Tooldrive:6.000 rpm, 4 kW, 16 Nm Movement in X/Z:150/510 mm Rapid travers in X/Z:30/45 m/min Equipment/Accessory: Chipmanagement:Chip conveyor Coolingmanagement:Internal coolant pumps with High-pressure, 10 bar Rawmaterialfeed:Barloader, Top Automazioni ETL8-50 Finished-part-removal:Parts handling device with conveyor belt Oilmistseparation:Interface mechanical prepared Further Equipment:Spindle chiller, Rinsing pistol

Condition: excellent (used), Year of construction: 2009, Functionality: fully functional, machine/vehicle number: A8EW4982, turning diameter: 250 mm, spindle speed (max.): 6,300 rpm, travel distance X-axis: 100 mm, travel distance Z-axis: 300 mm, controller model: Sinumerik Operate, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS X-axis travel: 100 mm Z-axis travel: 300 mm C-axis for main spindle: available C-axis speed: 0 - 1,000 rpm Main drive power: 5.5 kW Main drive speed: 60 - 6,300 rpm Tool turret: 12-way VDI16 Driven tools: 6 pieces Driven tool speed: 200 - 6,000 rpm Driven tool power: 1.2 kW Max. finished part length: 120 mm Max. finished part diameter: 25 mm Max. finished part weight: 0.5 kg EQUIPMENT - Coolant system Klslhcdwsv Dlr Ijxor - Pneumatic hollow clamping cylinder - Pneumatic tailstock - Full enclosure - Central lubrication - WinNC for Sinumerik Operate -I/M - Machine license M.M - SINUMERIK Operate key module - MOC: Integrated PC with 12" color display, keyboard and mouse - Safety devices in accordance with CE - Various tool holders (radial tool holder M4 (2x), radial tool holder M3 (1x), collet holder ESX 16 (2x), set of collets ESX 16 (1x), indexable insert drill holder Ø16 mm (1x), boring bar holder Ø10 mm (1x), radial angle milling holder 90° (1x), axial milling holder straight (1x)) - Various clamping systems (RÖHM power chuck KFD #HS 895/3 with 926 mm through-hole, 1 set of soft top jaws (432 095) with 1/16" × 90° serration, set of hard reversible jaws 95/3, collet chuck 385E / 5C including draw tube (A8Z 150 010) for draw collets 385E / 842 / 5C Ø2 - 25.5 mm

Condition: new, Year of construction: 2023, Functionality: fully functional, NEW PLANT / READY FOR OPERATION / IMMEDIATELY AVAILABLE HT 45 SM2 / SIEMENS - with driven tools CNC lathe for the complete machining of turned and milled parts with 2 spindles, 2 tool systems, 5 linear axes and 2 rotary axes, integrated spindle motors on main and counter and counter spindle (water-cooled), preloaded roller guides. Kljlhcdolxqf Newxor Drive power: Main spindle - 15 kW Counter spindle - 15 kW Speed range: Main spindle 0 - 7000min-1 Counter spindle 0 - 7000min-1 Spindle connection (DIN 55026): Main spindle: KK 5 (max. bar capacity ø 45mm) Counter spindle: KK5 Includes: - Hollow clamping cylinder on the main spindle - Draw tube for main and counter spindle - Mechanical spindle brake (main/counter spindle) - Part ejector and flushing through the counter spindle - Control Sinumerik 840D-sl / OPERATE o emcoNNECT/APP-based user interface o 22" multi-touch display o IPC with 240 GB o SHOPTURN dialogue programming o USB interface o Network drive / Ethernet o 3D simulation o and much more - 2x 12-fold tool turret VDI 25 radial with directional logic for up to 2x 12 driven tool stations Swivel speed adjustable with feed switch! Performance data: -Max. 4kW at 2080 rpm -Torque constant 16 Nm -speed range 0-6000 rpm -C-axis for main and counter spindle -TRANSMIT software for simple C-axis programming - Chip conveyor with an ejection height of 1100mm programmable Type "hinged belt" ) - Coolant device integrated in the chip conveyor 2 pcs. High pressure pumps with 14 bar 2 pcs. flushing pumps with 3,7 bar Air gun with spiral hose - LED machine room light - Hydraulic power unit - Documentation

Condition: used, Year of construction: 2007, Emco ET 420 / double spindle lathe, Year of manufacture 2007 Control Siemens Sinumerik 840 D Klelhcdwjvrkb Roxer Max. bar capacity 26 mm, Max. part length 600 mm, 2 main spindles, 2 counter spindles, Double bar loading magazine, Main spindle up to 5,000 rpm, C axis 0.01°, Turret 2 x 12-way VDI 16, 4 driven tool stations / turret, Bar loader FMB Turbo Chip conveyor, Coolant system Spindle is loud! Video available.

Condition: used, Year of construction: 2000, Technical details: turning diameter over bed: 600 mm turning dia. over face-slide: 260 mm turning length: 610 mm facing movement (x-axis): 160 mm longitudinal traverse (z-axis): 610 mm control: Siemens 810D revolution per minute: 1 - 6300 steples U/min max. torque on the spindle: 86 Nm spindle passage: Ø 42 mm external spindle dia. in forward position: Ø 80 mm feed motor: X/Z: 5000 / 7000 N rapid motion - x-axis: X/Z: 16 / 20 m/min tool turret - number of stations: 12 / VDI 30 tailstock taper ISO: MK4 tailstock adjustment: 500 (Hub) mm Main spindle capacity: 7,5 (100%=11kW) kW electrics - voltage/frequency: 3/PE ~ 400V und 50/60Hz V/Hz total power requirement: 20 kVA (11 kW) Weight approx.: 4,0 t dimension machine xH: 3,0 x 2,0 x 2,1 m Further technical specifications: C-axis Distance main spindle - tailstock: 805 mm Power chuck Röhm Ø 160 mm (without jaws), speed 7,500 rpm. Tailstock with live center Coolant device, coolant supply via tool turret Switch cabinet with cooling, Rittal type SK3393100 Workpiece collecting tray Machine lighting Accessories: 1x driven tool i.D. Kslhsu Ixwiocdwxjlr *

Condition: excellent (used), Year of construction: 2020, operating hours: 60 h, Functionality: fully functional, machine/vehicle number: A6D204605, turning diameter: 60 mm, spindle speed (max.): 4,200 rpm, travel distance X-axis: 60 mm, travel distance Z-axis: 280 mm, bar passage: 15 mm, The machine was used for training purposes and has only approximately 60 spindle hours. TECHNICAL DETAILS Travel in X / Z: 60 / 280 mm Bar capacity: 15 mm Turning diameter: 60 mm Part length with tailstock: 60 mm Swing diameter over bed: 130 mm Tool cross-section for external machining: 12 x 12 mm Tool cross-section for internal machining: Ø 10 mm Rapid traverse speed: 3 m/min Working feed: 0 - 2 m/min Max. feed force: 1,000 N Main spindle Max. speed: 300 - 4,200 rpm Spindle connection: EMCO Max. drive power: 1.1 kW Max. torque: 10 Nm Tailstock & turret Quill stroke: 35 mm Number of tool positions: 8 MACHINE DETAILS Spindle hours: approx. 60 h Dimensions (L x W x H): 895 x 745 x 550 mm Machine weight: 150 kg Control: Win NC Siemens Sinumerik Operate EQUIPMENT - EMCO Win 3D-View Simulation - Portable machine control panel - Workbench converted into a machine base with swivel table - Electronic handwheel Kolhcdwsv In Nkexelr - Chuck

Year of construction: 2012, Condition: ready for operation (used), X-travel: 210mm, z-travel: 610mm, swing over bed/ slide: 540/ 360mm, max. turning diameter: 310mm, length: 1730mm, width: 2860mm, height: 1880mm, weight: 4.3t, with Automation FMB unirobot MH5L-XP. Kljlhsg Rcf Ijcdwxer

Condition: excellent (used), Year of construction: 2008, turning diameter 500 mm turning length 550 mm control SIEMEMS Sinumeric 840D x-travel 260 mm z-travel 610 mm bar material dia. 65 mm main spindle speeds: 0-5000 speeds station 1 5000 U/min speeds station 2 7000 U/min c-axis 2 turret (x-stations) 12 y-axis mm toolpiece turning speed range 0-5000 U/min Y-axis (column - cross) mm weight of the machine ca. 5700 t dimensions of the machine ca. 5500 x 2100 x 2100 m The EMCO Maxxturn 65 is in very, very good condition and is delivered without accessories. Y-axis mm Main and counter spindle with 12-position turret with driven tools Kolhsvwgq Escdwxjlr Speed 0-5000rpm, parts catcher. Operating hours: 240009h / 27000h

Condition: ready for operation (used), Year of construction: 2019, operating hours: 9,680 h, Functionality: fully functional, turning diameter: 170 mm, travel distance X-axis: 160 mm, travel distance Z-axis: 310 mm, rotational speed (max.): 6,300 rpm, center width: 600 mm, TECHNICAL DETAILS Travel in X/Y/Z: 160 mm / - / 310 mm max. rod passage: DN 45 mm max. turning diameter: 170 mm Swing diameter over bed: 430 mm Center distance: 600 mm (spindle nose - center point) Main spindle max. speed: 0 - 6,300 rpm max. drive power: 11 kW max. torque: 70 Nm C-axis: available Kljlhjvbzr Eecdwxer Tool turret Number of tool positions: 12 Driven tools: 6 max. speed: 0 - 5,000 rpm max. drive power: 4 kW max. torque: 16 Nm MACHINE DETAILS Machine switched on: 33,250 h Ready for operation / automatic: 30,652 h Production mode: 9,680 h Workpiece counter: 400,014 pieces Machine dimensions: 2,250 x 1,675 x 1,940 mm Bar feeder dimensions: 5,800 x 550 x 1,500 mm Weight: 3,300 kg EQUIPMENT - C-axis and tailstock - Tool turret with 12 positions, 6 of which are driven - Bar loader LNS 6.26 HS 4.4 (year of manufacture 2019) - Large tool package

Condition: good (used), EMCOTurn 120 CNC lathe. 160 mm between centers, complete with EMCOTronic T1 control system. Turning diameter: 180 mm, turning diameter over compound slide: 75 mm, Kljlhcdsu Rd S Rswxsr spindle bore: 21 mm, speed range: 150-400 rpm, tool turret with 8 stations. Ex-College machine

Condition: used, Year of construction: 2008, Technical details: turning diameter over bed: 600 mm turning dia. over face-slide: 540 mm longitudinal traverse (z-axis): 800 mm facing movement (x-axis): 260 mm control: Fanuc 18i-TB spindle bore: Ø 73 mm bar material dia.: Ø 65 mm Kljlevvtpxehcdwxjr revolution per minute: 0 ... 5000 steples U/min max. torque on the spindle: max. 250 Nm rapid traverse in x-y-z axis: X/Z: 30 m/min. / Y: 12 m/min. rapid traverse c-axis: 1000 U/min. tool turret - number of stations: 12 (Sauter) electrics - voltage/frequency: 3 x 400 / 50-60 V/Hz operating pressure: 6 bar total power requirement: 40 kVA Weight approx.: 5,7 t dimension machine xH: 2,2 x 3,4 x 2,4 m dimension swarf conveyor LxWxH: ca. 2,9 x 0,6 x 0,55 (0,38 to) m dimensions LxWxH: Spänewanne: ca. 1,6 x 1,3 x 0,25 (0,2 to) m transport measurements machine: ca. 3,3 x 1,9 x 2,2 m The machine has a C-AXLE. The tool turret does NOT have a holder for driven tools Distance spindle to counter spindle = 1050mm Counter spindle: A2-6, travel 800mm, spindle Ø 105mm, torque 250 Nm Switch cabinet equipped with Rittal cooler with hinged belt chip conveyor chip tray compressed air gun Machine currently has NO lathe chuck! *

Condition: good (used), Year of construction: 1988, Functionality: fully functional, machine/vehicle number: 0-800002, CNC lathe, Emco 342 with FMB Turbo 3000 bar loader Year of manufacture: 1988 Functional: complete Description available: yes Machine description: Sinumerik 810T, FMB Turbo bar loader for 3 meter bars up to 42 mm in diameter (including collet set), turret with 8 stations, VDI20, max. speed max. 6000 rpm, including KSF chuck, clamping inserts and follow-on punch, air conditioning unit on the control cabinet Machine: • Width: 2275 mm • Depth: 2115 mm • Height: 1710 mm • Weight: 2400 kg • X-axis: 150 mm • Z-axis: 300 mm • Rapid traverse: 12 m/min Loader: • Width: 1000 mm • Depth: 3700 mm • Height: 1200 mm • Weight: approx. 500 kg Delivery ex works The offer is non-binding and subject to changes and errors in the technical data or equipment, as well as prior sale. Used machines are purchased as seen, with no warranty claims. Price ex works excluding packaging and insurance, unless otherwise agreed. Kljlhcdwju Egggexsr Price plus statutory VAT. Payment is made before loading, as is usual for used machines.

Year of construction: 2007, Condition: ready for operation (used), X-travel: 210mm, z-travel: 610mm, swing over bed/ slide: 540/ 360mm, max. turning diameter: 310mm, length: 1730mm, width: 2860mm, height: 1880mm, weight: 4.3t, with Automation FMB unirobot MH5L-XP. Kolsg Rcf Sshcdwxjlr

Condition: good (used), Year of construction: 2000, Emco Emcoturn 365 - 65, Year of manufacture 2000, Siemens 810 D control system, travel X/Z 210/610 mm, turret 12-fold VDI 30 all stations driven, Bg9gazp0esu driven tools up to 4,000 rpm, Kjlhcsrvh Tqjdwxelr collet chuck, tailstock, C axis 0.001°, spindle speed up to 6,300 rpm, coolant device, chip tray, accessories, Machine has only machined aluminum and brass, Machine is available at short notice,

Condition: good (used), Year of construction: 2005, operating hours: 25,217 h, Functionality: fully functional, machine/vehicle number: R7AT0601, turning length: 744 mm, turning diameter: 600 mm, rotational speed (max.): 7,000 rpm, bar passage: 65 mm, number of slots in tool magazine: 24, TECHNICAL DETAILS Specification: 7 axes, 2 spindles, 2 turrets Control: SIEMENS 840D Turning diameter: max. 600 mm Length of the workpiece: max. 744 mm Turning diameter on the slide: 500 mm Distance between spindle noses: 975 mm Turning diameter: 430 mm Diameter of bar passage: 65 mm Travel distance X/X2 axis: 280/205 mm Z/Z2/Z3 axis travel: 900/750/750 mm Y-axis travel: 100 (upper turret) ± 50 mm Main spindle speed: 0 - 5000 rpm Torque: max. 250 Nm Main spindle power: 29 kW Counter spindle speed: 0 - 7000 rpm Torque: max. 130 Nm Power of the counter spindle: 22 KW C-axis indexing: 0.001 ° Rapid traverse of the C-axis: 1000 rpm Upper turret: 12 motorized VDI40 stations Turret indexing time: 0.2 s Lower turret: 12 motorized VDI40 stations Switching time of the turret: 0.2 sec. Drive power of the motorized tools 6.7 kW MACHINE DETAILS Switch-on hours: 52,581 h Spindle hours: 25,217 h Machine dimensions: 3,400 x 2,550 x 2,300 mm Total weight: approx. 9,500 kg Connected load: 46 kVA EQUIPMENT - LNS MOVE bar feeder - 2 collet chucks - Various tool holders, including motorized axial and radial holders Kjlhcdst S T U Newxolr - Pneumatic parts reloader with conveyor belt - 300-liter high-pressure coolant system 2 pumps, 2.2 kW - Oil cooler for spindle - Air-conditioned cabinet - Complete manual and diagrams
