Vertical BAZ

EMCO MCX 750-1200

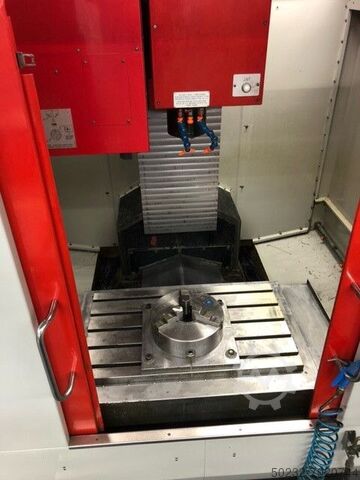

Vertical BAZ Emco FAMUP MCX 750-1200 with IKZ 40bar
year of construction: 2007
Control: Fanuc 21i
Running hours: 8.500h
Chip Blaster high pressure system

- Max. Speed 8.000 min.
- Tool magazine with 24 magazine places (ISO 40),
- Tool magazine ISO 40 - 24 tightening bolts ISO 40
- Standard painting: red - gray - black
- Spindle is prepared for high pressure cooling (connection A)
- Tapping without compensating chuck
- Central lubrication system
- Chip removal from the housing via flushing device
- Flushing gun for cleaning of working area, clamping devices, parts
- Coolant device with 3 adjustable nozzles
- Coolant tank 500 l
- Spindle blowing device for cleaning the fixture during tool change
- Illumination of the working area by halogen lamp 24 V
- Two-color alarm lamp

TECHNICAL DATA
MCX 750
axis X - longitudinal: 750 mm
axis Y - transverse: 500 mm

WORKING RANGE
axis Z - vertical: 640 mm
clamping area: 900 x 520 mm
T-slots: number, width, spacing 5x18x100 mm
max. table load: 400 KG

TABLE
distance table surface - floor mm 925
speed range: 50 ÷ 8.000 min
spindle motor power: 13/9 KW
tool holder ISO 40 DIN 69871
Hodpfx Ash Akhksfpefn
Torque: 82.7/57.3 Nm

SPINDLE
Drive Belt drive
rapid traverse X,Y,Z m/1' 24
Working feed X,Y,Z m/1' 20
AXIS DATA
Axis acceleration (X,Y,Z) G 0.25
One-way positioning accuracy in total stroke range XYZ µm ± 8
One-way repeatability X, Y, Z µm ± 8
PRECISION
Reversal span µm 5*
Number of tool positions: 24
Tool selection random
Max. Tool diameter with (without) adjacent tools
ø 75 (150)
Max. Tool length: 250 mm
Max. tool weight: 6 KG
TOOL CHANGE
Tool change time (tool/tool): 1.5".
Connected load: 20 KVA
dimensions LxDxH: 2,650x2,400x3,050m
weight: 5,5to
