Universal lathe

Emcomat 20D

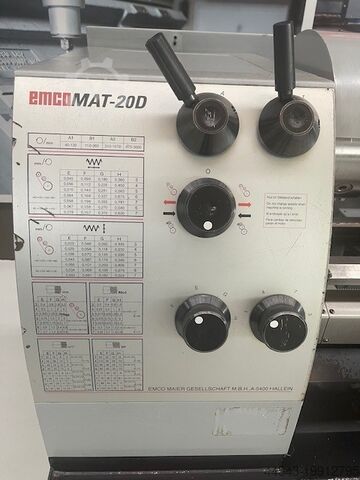

Condition: excellent (used), Year of construction: 1995, functionality: fully functional, Emcomat Emco EM20D Lead and Feed Lathe, built in 1995, in excellent condition, CE compliant! Technical specifications: >> Year of manufacture: 1995 >> Center height 200 mm >> Swing over bed 400 mm >> Swing over cross slide 250 mm >> Turning length: 1000 mm >> Spindle speed: 4 speed levels, continuously variable from 35-3000 rpm >> Quill stroke 120 mm >> Tailstock: MT3 >> Spindle bore: 50 mm >> 20 longitudinal feeds 0.045 / 0.787 mm/rev >> 20 cross feeds 0.023 / 0.406 mm/rev >> Space requirements / installation dimensions approx. length 1.900 x depth 0.9 x height 1.3 meters >> Weight approx. 850 kg Accessories and equipment: >> 3-axis position indicator >> 1 piece Three-jaw chuck with 1 set of jaws Bedpfx Aewag Stef Hodk >> Tool holder with 3 pockets >> Chip return wall >> Coolant system >> Bed stop About the machine: Offered is an Emcomat 20D centerline and feed spindle lathe, built in 1995, in lightly used condition. The machine is fully functional. All slides run very smoothly and evenly. The bed guides are in very good condition. Take advantage of the opportunity to view this machine on-site under power and see for yourself its condition.

Condition: new, Year of construction: 2025, CORMAK 400 metal lathes is a new, improved version of the popular metal processing lathes. Among other things, the tool holder cover, spindle bearing system, new digital readout have been improved. They are suitable for production plants, workshops and tool shops. They are perfect for unit and small lot production. NEW, IMPROVED MODEL !!! high-quality and reinforced spindle bearing system new guards system compliant with CE standards the latest model of digital axis reading reinforced and modernized lathe base with drawers for tools and an extendable chip tray Characteristics of the machine REINFORCED, RIBBED SURFACE OF THE LATHE'S BED PROVIDES MAXIMUM REDUCTION OF VIBRATION, ADDITIONALLY PRECISE GRINDED, HARDENED BED DIGITAL READOUT OF THE AXIS IN STANDARD EQUIPMENT LARGE SPINDLE BORE PROVIDES OPTIMUM PERFORMANCE 52 mm THE APPROPRIATE BED WIDTH ENSURES STABLE AND PRECISE WORKING CONDITIONS MACHINE EQUIPPED WITH HIGH-QUALITY AND HARDENED SPINDLE BEARING SYSTEM EFFICIENT MACHINING THANKS TO TWO AUTOMATIC FEEDS AND EQUIPMENT WITH A ROLLER AND A DRAFT BOLT HARDENED WHEELS IN THE SPINDLE GEAR ADJUSTABLE CLUTCH OVERLOADS ON THE PULL SHAFT POSSIBILITY TO MACHINE THE FULL RANGE OF THREADS WITHOUT REPLACING THE WHEELS IN THE GUITAR FEED CHOICE LOCK: THROUGH SCREW OR SHAFT THE REMOVABLE BRIDGE ENABLES THE WORKING OF ELEMENTS WITH AN INCREASED DIAMETER RETRACTABLE CHIP DRAWER AND TOOL DRAWERS FOR BETTER AND EFFICIENT WORK Technical data MAXIMUM TURNING DIAMETER 400 mm MAXIMUM TURNING DIAMETER OVER THE BED 250 mm MAXIMUM TURNING DIAMETER IN THE SELECTION OF THE BRIDGE 520 mm TURNING LENGTH IN DEAD CENTRES 1000 mm BED WIDTH 218 mm SPINDLE END CAMLOCK D5 SPINDLE CONE MK6 SPINDLE BORE 52 mm SPINDLE ROTATION RANGE 65-1810 rpm SPINDLE SPEED NUMBER 16 ranges RANGE OF LONGITUDINAL FEED (40) 0,053 - 1,291 mm RANGE OF TRANSVERSE FEED (40) 0,011-0,276 mm THE MAXIMUM DIMENSION OF THE TOOL 20 mm x 20 mm METRIC THREAD 0,4-7 mm INCH THREAD 4-60 T.P.I. MODULAR THREAD (22) 0,4-3 mm THREAD D. P. (28) 8-84 D. P. TAILSTOCK QUILL DIAMETER 50 mm TAILSTOCK QUILL STROKE 110 mm TAILSTOCK TAPER MT4 ENGINE POWER 2,2 kW PUMP POWER 0,1 kW WEIGHT 640 kg DIMENSIONS 2000x820x1650 mm EQUIPMENT digital readout steady rest follow rest Bdodpeiz Tczofx Af Hjk 200 mm 3-jaw chuck 200 mm 4-jaw chuck face plate 280 mm dead center MK4 x 2 reduction sleeve MK6/MK4 keys Factory new machine, under warranty For more information you can visit our web page.

Condition: new, turning diameter over bed 410 mm turning diameter over slide rest 240 mm turning length 1000 mm Bdjdpfx Afsm Rlb Ns Hek turning diameter in the gap 530 mm turning speeds 65 - 1810 U/min centre height 205 mm spindle bore 52 mm tailstock quill taper MT 4 total power requirement 2,2 kW weight of the machine ca. 0,9 t dimensions of the machine ca. 1,9 x 0,8 x 1,3 m Center lathe with: 3-axis digital measuring system fully assembled electromagnetic main spindle brake auto. Feed in longitudinal and transverse direction safety relay Micrometer end stop coolant device 3-jaw lathe chuck with 1 set of turning and drilling jaws German operating instructions.

Condition: new, TC 165 x 750V Illustration shows MIOTAL® TC 180 x 1000 Center distance: 750 mm Center height: 165 mm Swing diameter over bed: Ø 330 mm Bed width: 190 mm Cross slide travel: 160 mm Top slide travel: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm Max. Chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 1/min Mechanical feed stages: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Face feeds X: (40) 0.022 - 0.98 mm/rev Metric thread: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 Gg/inch Bjdpfsir Igwsx Af Hjdk Thread module: (32) 0.4 - 7.0 Diametral thread: (32) 7.5 - 112 Quill diameter tailstock: Ø 40 mm Inner taper of quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Features: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with recirculating oil lubrication, precision bearing-mounted spindle, hardened and ground gears for long-lasting quality - Electromagnetic spindle brake (TC), frequency converter with electric braking device (V models) - Torsion-resistant machine beds made of MEEHANITE quality casting, stress-free annealed and multi-ribbed for extremely smooth running - Electrical equipment from SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Pulse button for main spindle - CE / IEC as well as German documentation and German service Basic equipment (standard accessories): - Machine stand with splash guard rear panel - 3-jaw lathe chuck - 4-fold steel holder - Foot pedal with mech. brake device - Coolant device - Chuck guard and spindle cover in accordance with European safety standards CE - 1 Fixed center point for main spindle - 1 Fixed center point MK3 - 1 Test report - Safety devices and electrical equipment according to CE - Reducing sleeve for main spindle Operating tool Available options for this lathe: - 3-axis digital readout - Quick-change holder system Multifix also available as a gearbox version

Condition: good (used), Year of construction: 1988, Weiler lathe Type Condor B 2-axis digital readout Center height 165 mm Center distance 750 mm Rotation over bed 330 mm Rotation over cross slide 185 mm Bdsdpfx Afevgmbvs Hjk Spindle bore 40 mm Connected load 3 kw Speed 22-2800 rpm Tailstock MK 3 Coolant pump (not connected) work light Automatic longitudinal and planar feed spindle brake - Folding jaw chuck guard - splash guard Weight approx. 1040 kg 3 jaw lathe chuck Multifix B Rotating center point

Condition: used, turning diameter 210 mm turning length 1000 mm swing diameter over bed slide 435 mm centre height 210 mm greates pass round over bed 435 mm spindle head DIN 55027 / DIN ISO 702-3 spindle bore 52 mm turning speeds 44 - 2.000 U/min transmission ratio 12 feed per revolution 0,036 - 2 U/mm diameter of quill 65 mm quill stroke 120 mm taper bore DIN 228 MK4 total power requirement 5,5 kW From a training workshop Features: -Lead screw and feed screw cover Bodpfoxqrdysx Af Hedk -Brake for main spindle -Toolmaker precision according to DIN 8605 -High drive power and high torque on the main spindle -Large thread cutting range -Convenient operation -Digital position display (HEIDENHAIN ND 7013) -LED machine light -Coolant device

Condition: excellent (used), Year of construction: 2011, Lathe Trens Trencin SN 500 SA, lead and feed screw (2011) Manufacturer: Trens Trencin Model: SN 500 SA Year of manufacture: 2011 Swing diameter over bed: 505 mm Distance between centers: 1000 mm Scope of delivery: - Heidenhain digital readout Bdsdpoxladdefx Af Hjk - approx. 20 Multifix tool holders - Machine lamp - further accessories

Condition: used, Technical details: turning diameter over bed: 320 mm turning length: 800 mm centre distance: 800 mm centre height: 150 mm spindle bore of work spindle: 30 mm range of revolution per miute: 35 - 1500 / 16 step U/min range of feed in x - axis: 0,04 - 2,4 / 30 step m/min tailstock quill adjustment:: 125 mm tailstock taper MT: MK2 dimension machine xH: 1,7 x 0,8 x 1,5 m Equipment and other features: -3-jaw chuck Röhm 160mm -chuck guard -protection system WxH: 510x400mm -Multifix tool clamp (4 pieces) -Tip in tailstock -Upper slide swivels +/- 45°, maximum travel = 100mm -Cross slide travel = 300mm feed Bdodpsu Ixy Dofx Af Hok Pump for coolant device (without feed) *

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, Weiler Commodor – Lead and Feed Screw Lathe (partially overhauled, year approx. 1990) Condition: Partially overhauled, very good overall condition Year of manufacture: approx. 1990 Manufacturer: Weiler Model: Commodor Machine type: Lead and feed screw lathe Technical specifications (approx.): Bjdpfx Ajxv Sucof Hsdk Max. turning diameter over bed: 380 mm Max. turning diameter over carriage: 190 mm Max. turning length: 1000 mm Bar capacity: 56 mm Spindle speed range: 25 – 2000 rpm Spindle nose: A2-6 Drive power: 4.0 kW Tailstock: MT4 Automatic longitudinal & cross feeds: 0.011 – 0.80 mm/rev Thread cutting range: • Metric: 0.3 – 10 mm • Inch: 80 – 2 ¾ TPI • Diametral pitch: 80 – 5.5 Dp • Module: 0.2 – 5 Dimensions (L x W x H): 2200 × 1200 × 1800 mm Weight: approx. 1500 kg ⚙️ Equipment & accessories: • 3-axis digital readout SINO (new) • 200 mm 3-jaw chuck (new) • Quick-change tool post size B + 1 insert • Bed stop • Work lamp (new) • Coolant system (new) • Complete documentation • Electrical chuck guard (new) • Emergency STOP switch • Various chuck keys Optional accessories: • Drill chuck • Live center • Lead and feed screw guard • Collet system 173E + collet set • Additional quick-change tool posts ✅ Special features: The machine has been partially overhauled and is in very good technical and visual condition. Ideal for workshops, training, single-part production, or maintenance. Delivery time: On order / on request – Subject to prior sale.

Condition: good (used), Centre height: 195 mm Distance between centres: 1250 mm Max. swing diameter over bed/cross slide: 400/265 mm Spindle mount/bore: Camlock D1-6"/54 mm Bsdpfxoxlg Dwe Af Hedk Tailstock quill taper: MT 5 Spindle speeds steplessly adjustable in 3 ranges: 0 - 2500 rpm Longitudinal feeds: 0.018 - 1.2 mm/rev Cross feeds: 1/2 of longitudinal feeds 51 metric thread pitches: 0.2 - 14 mm 56 imperial (inch) threads: 2 - 56 TPI 20 module threads: 0.2 - 3.5 module 20 diametral pitch threads: 8 - 56 DP Electrical connection: 400 V, 7.5 kW Weight: 1500 kg Space requirement: 2500 x 1300 x 1300 mm
