Vertical Turret Lathe
Emsil group VTL 45/50

Name: Emsil group VTL 45/50
Brand: Emsil group
Availability: InStock

Condition

Used

Location

Germany

Vertical Turret Lathe Emsil group VTL 45/50

Show map

Machine data

Machine type:: Vertical Turret Lathe

Manufacturer:: Emsil group

Model:: VTL 45/50

Condition:: used

Price & Location

Location:: , Germany

Call

Details about the offer

Listing ID:: A176-49463

Reference number:: 1087-0300721

Update:: 28.03.2025

Description

Technical details:

table diameter: 4500 mm
faceplate diameter: 4500 mm
operating hours: 0 h
swing diameter: 5000 mm
turning diameter: 5000 mm
workpiece height max.: 2500 mm
control: Sinumerik 840D SL
x-axis: 300 Hub/ram Slide mm
x-axis: 2850 Hub / ram travel mm
x-axis: 2850 working without tool mm
x-axis: 5000 with tool changer mm
w-axis: 1800 Querwegelevating cross rail mm
tool holder / places: 12
tool taper: HSK 100 (spindle)
workpiece weight: 100 t
table speed: 1 - 50 U/min
Dsdou Ix H Dopfx Aa Newd
T-slots: 8 Stück (36 H12)
stroke speed: fräsen ram speed: 4000 U/min
rapid power traverse in X-and Z direction: 8000 mm/min
Torque: fräsen: 100.000 Nm
Torque: drehen: 200.000 Nm
total power requirement: 80 (2x40) kW
weight of the machine ca.: 140 t
dimension machine xH: 11,5 x 6,6 x 8,4 m

CNC vertical lathe - vertical - NEW ( It is a demonstration machine on the photos)

Application of the manufacturing processes:
Turning, such as external longitudinal turning, internal and external facing and profile machining. Grooving, such as internal and external
Drilling, such as short hole drilling and deep hole drilling
Milling, such as face-corner profile and T-slot milling
Thread cutting
But also suitable for roughing and end machining.

The machine bed, designed with a welded construction, absorbs extreme cutting forces.
The table is made of high-strength meehanite cast iron. To withstand heavy loads, the part weight is supported by two high-precision tapered roller bearings.
Furthermore, the table is equipped with hydrodynamic support for the workpiece.

other features:
automatic tool change
jaw chuck (8 pieces with power clamping spindle and hardened jaws)
incl. cooling system 40bar with filter unit
hydraulic and lubrication equipment ATOS and Dropsa
with measuring system of axes Heidenhain
Renishaw
NEW - with guarantee & service via WWM AG

*

Seller

Last online: A week ago

Registered since: 2012

811 listings online

Call

Send inquiry

Telephone & Fax

+49 341 6... show

+49 341 5... show

Fax:

These listings may also fit your interest.

Listing

5-axis portal milling machine Parpas DIAMOND LINEAR 30

Torbole Casaglia

8,223 km

5-axis portal milling machine
ParpasDIAMOND LINEAR 30

Call

Condition: like new (used), Year of construction: 2021, functionality: fully functional, travel distance X-axis: 2,600 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,400 mm, table length: 2,800 mm, table width: 3,100 mm, spindle speed (max.): 20,000 rpm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, workpiece weight (max.): 52,000 kg, spindle nose: HSK 63A, controller manufacturer: Heidenhain, controller model: 640, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, 5-Axis Gantry Milling Machine PARPAS Model DIAMOND LINEAR 30 Numerical control Heidenhain 640 Cross travel (X): 2,600 mm Longitudinal travel (Y): 3,000 mm Vertical travel (Z): 1,400 mm Feed rates: 60,000 mm/min Continuous orthogonal head (TOE29T) C axis: +/- 370° A axis: +/- 110° Tool holder: HSK-63A Spindle speed: 20,000 rpm Spindle power: 37 kW Table: 3,100 x 2,800 mm Dwedpewzv Umofx Aa Nod Load capacity: 6 t/m² Tool magazine: 60 positions Equipped with: - 2 chip conveyors - HR550FS handwheel USED MACHINE YEAR 2021

See details

Listing

Ostrach

8,014 km

Portal milling machine
BornemannB 2022

Call

Condition: excellent (used), Year of construction: 2016, travel distance X-axis: 2,400 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 810 mm, CNC HEIDENHAIN iTNC 530 X/Y/Z 2,400/1,500/810 mm retrofitted 4th axis 12,000 min-1, 40 kVA, , traverse paths weight 7.800 kg Dwjdpsq Rcu Eofx Aa Nod Table with vacuum plate with BORNEMANN 960 suction unit

See details

Listing

Travelling column milling machine Zayer 30 KCU 6000-AR

Germany

7,870 km

Travelling column milling machine
Zayer30 KCU 6000-AR

Call

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,600 mm, Hersteller: ZAYER, Typ: 30 KCU 6000-AR Baujahr: 2013 Serien-Nr.: 77258 5-Achs Verfahrwege (X/Y/Z) ca. 6000/3500/1600 mm, Werkzeugaufnahme SK50 2 heads: -45° Automatic Head -Direct Head 80-fach Werkzeugwechsler Dedew U E Unepfx Aa Njwd Steuerpult HEIDENHAIN iTNC 530 Späneförderband TECNIMETAL Kühlaggregat EURO COLD Aufspanntisch DEMMELER Kühlmittelanlage Sicherheitsabsperrung mit Lichtschranke LENZE

See details

Listing

5-axis gantry milling machine Heyligenstaedt Heynumill 2700-PF

Düsseldorf

7,655 km

5-axis gantry milling machine
HeyligenstaedtHeynumill 2700-PF

Call

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, Heyligenstaedt Heynumill 2700-PF 3/5-axis CNC portal milling machine with integrated C-axis and interchangeable milling heads. Heidenhain TNC 430 control X-axis Y-axis Z-axis 3,000 mm 4,000 mm 1,500 mm In 2018, the complete hydraulic system of the Heynumill was renewed, all electrical cables were replaced, the spindle cooling unit and both longitudinal conveyors were renewed, and the heads were fully overhauled. The total refurbishment cost €160,000. In 2020, the milling gearbox was replaced. Further technical data see PDF file. Dwjdpfxewthz Ao Aa Nsd

See details

Listing

Milling Machines - A portale FPT Industrie DINOX 350IAT

Matelica (MC)

8,557 km

Milling Machines - A portale
FPT IndustrieDINOX 350IAT

Call

Year of construction: 2018, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE LONGITUDINAL TRAVEL: 2500 mm TRANSVERSAL TRAVEL: 3500 mm VERTICAL TRAVEL: 1300 mm RAPID FEEDS L-T-V: 40 m/min Dsdswla Hnspfx Aa Nswd TABLE SIZE: 3500 x 2500 mm HEAD: A/B AXIS AUTOMATIC ; A-axis ±185° - B-axis ±270° ; HSK A100 ; 12000 rpm TOOL MAGAZINE: CHAIN-TYPE ; 64 POS CONTROL UNIT: HEIDENHAIN TNC640 WEIGHT: 51370 Kg ACCESSORIES: HIGH PRESSURE COOLANT ; SWARF CONVEYOR ; LASER TOOL SETTER ; PAPER FILTER ; TOUCH PROBE ; PORTABLE HANDWHEEL

See details

Listing

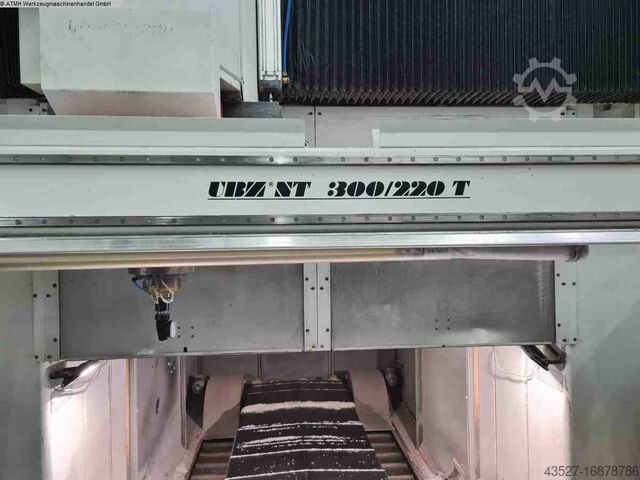

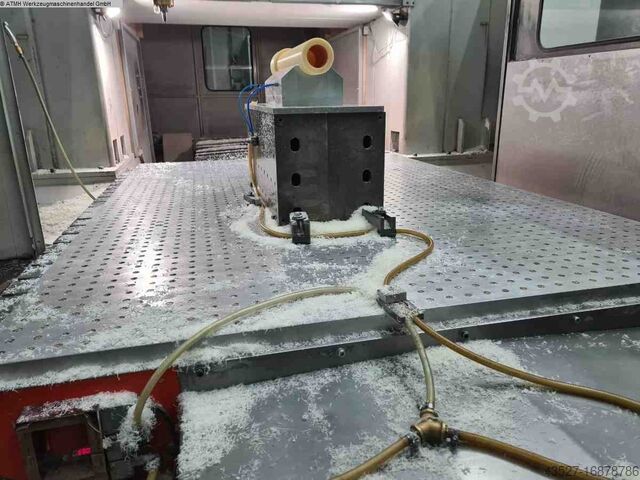

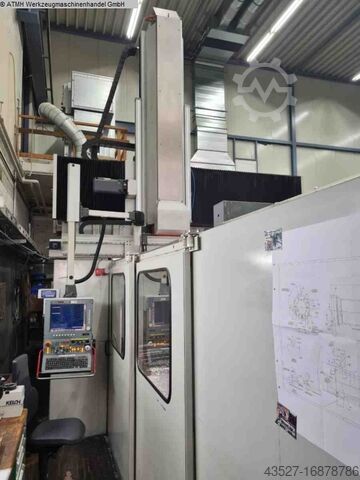

Planer-Type Milling M/C - Double Column HANDTMANN UBZ NT 300 / 220 T

Germany

7,683 km

Planer-Type Milling M/C - Double Column
HANDTMANNUBZ NT 300 / 220 T

Call

Condition: used, Year of construction: 2001, x-travel 4200 mm y-travel 2750 mm z-travel 1650 mm Control Fidia C20 total power requirement / kW weight of the machine ca. 40 t required space L9,5 x B5,9 x H6,4 m Handtmann NT 300 / 220 T: - Year of construction: 2001 - Traverse paths: X - axis approx. 4,200mm, Y - axis approx. 2,750mm, Z - axis approx. 1,650mm, °C axis approx. +/-275° and A axis +95° / -120° - Fixture space: approx. 3,000mm x approx.2,200mm x approx.980mm - Table size: 3,000mm x 2,200mm with T-slots in a 150mm grid - Table load: 1,000kg / m² table surface - Working and rapid traverse speed: max. 20m/min - Controller: Fidia C20 - Spindle: HSK 63 from Fischer (Switzerland), 24,000 rpm (grease lubricated) - Spindle hours: 6,939 hours (as of 05/16/22) - Total hours: 76,793 hours (as of 05/16/22) - Tool changer: 2 tool magazines with 30 tool places each, max. - - Tool weight 4kg, max. tool diameter 80mm or Ø125mm if no two sister tool places, max. tool length 280mm cover plate pneumatic - Cooling: tool spray device with a container of 19.5 l, spray head Dodpfeuddhcsx Aa Njwd with adjustable output 0.04 - max. 2.3l/h - Tool control: Blum Laser - Wireless probe: Manufacturer M&H, type 25.10, year of construction 2021 - Exchange ball screw X - axis 10.07.2018 - Telescope cover 26.02.2019 exchanged on one side Machine dimensions: Length approx. 9,500mm (without housing) Width approx. 5,900mm Height approx. 6,400mm (Z axis extended) Weight: approx. 40,000kg

See details

Listing

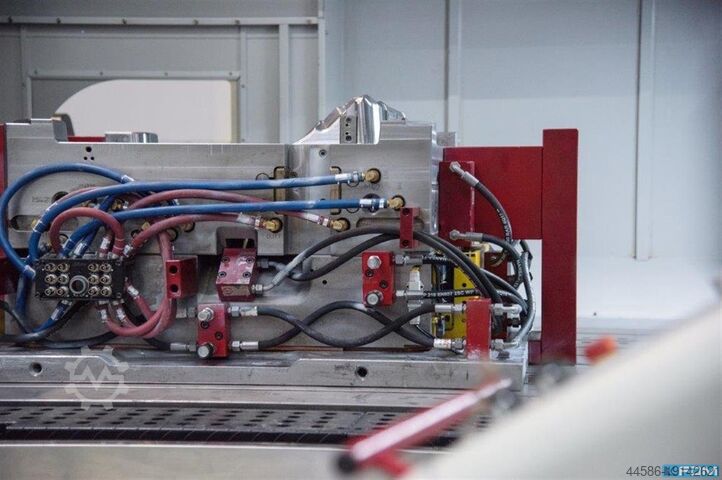

Planer-Type Milling M/C - Double Column Skymaster VM 2018
