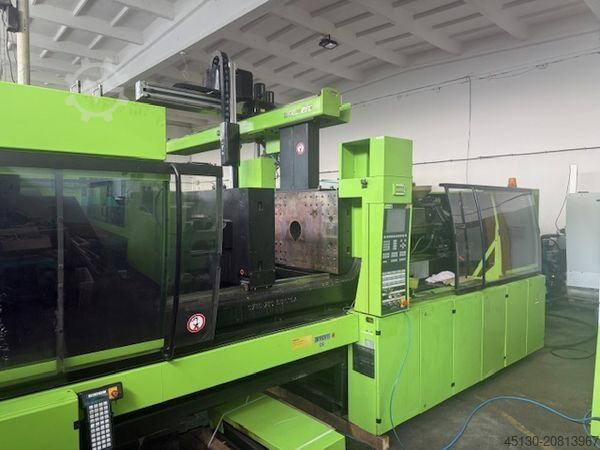

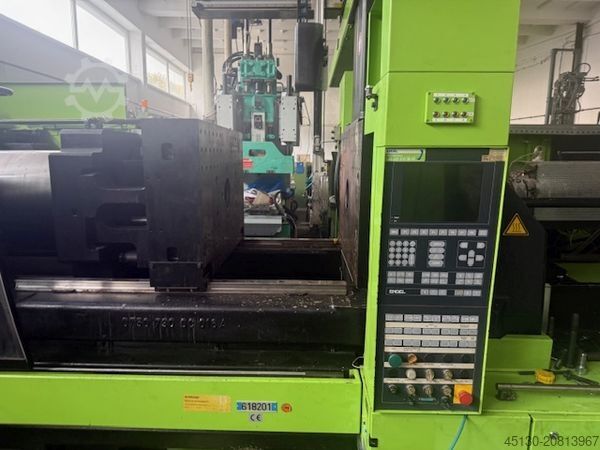

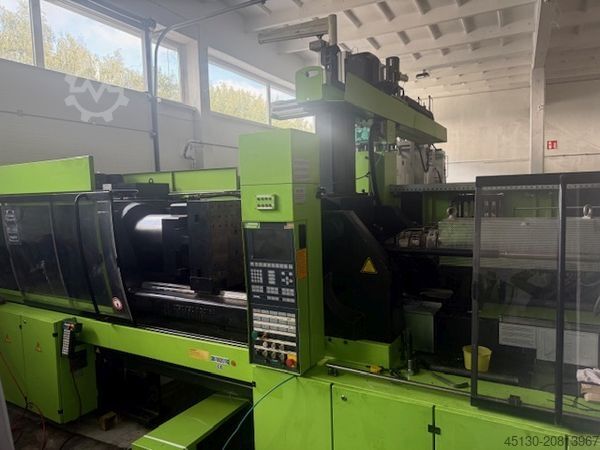

Injection molding machine

Engel ES1350/275 HL

Condition: excellent (used), Year of construction: 2001, Engel ES 1350/275 HL with Engel ERC 53/1-E Robot / Machine in very good technical condition Year of manufacture: 2001 Injection unit: Screw diameter: 60 mm Shot weight: 547 g Injection pressure: 1834 bar Metering volume: 618 cm³ Clamping unit: Clamping force: 275 t Tie bar distance: 0x0 mm Platen size: 1050x900 mm Ejector: hydraulic Clamping unit: hydraulic Control system: CC 100 Additional equipment: Machine in very good technical condition Operating hours: 35,819 h in automatic mode Tie-barless machine Hydraulic core pull x 3 Hot runner control x 16 Injection unit hardened - bimetallic Machine has been regularly serviced by authorized Engel service Dimensions: Weight: 20,000 kg Gbsdpfx Aaex Nhftj Iog Length/Width/Height: 7.10x2.15x2.30 m All offered machines are started and tested by our service technicians before sale. You can request a video of the technical tests of the selected machine or participate in live technical tests at our facility in Łódź. Price: On request

Year of construction: 2014, condition: ready for operation (used), Clamping force: 1600kN, weight: 9t, operational hours counter: 3638h, with Handling Robot ENGEL viper 20. Gbsdpoh Nypfofx Aa Isg

Condition: excellent (used), Year of construction: 2000, operating hours: 60,000 h, functionality: fully functional, clamping force: 9,000 kN, screw diameter: 120 mm, clearance between the columns: 1,120 mm, column diameter: 180 mm, displacement volume: 5,430 cm³, Equipment: documentation/manual, The machine is ready to load. 900 ton clamping force, equipped with take out robot, hopper dryer, hopper loader. First and only owner since produced. Gsdpfx Aasickd Hj Iobg The price is loaded on truck.

Condition: used, Year of construction: 1998, clamping force: 50 kN, displacement volume: 200 cm³, injection pressure: 2,587 bar, overall weight: 2,500 kg, load hours: 45,000 h, screw conveyor diameter: 18 mm, terms of delivery: FCA Pegnitz Gbsdpfx Aewi Uzhoa Ijg delivery time: on request terms of payment: 100% prior to delivery

Condition: like new (used), Year of construction: 2005, Injection moulding machine ENGEL CL 2550/550 Year of manufacture - 2005 Name of the robot-"ENGEL ERC53/1-F" Closing force [tons]- 550 Maximum distance between plates [mm]-1650 Min. mold height [mm]-310 Max. mold height [mm]-800 Gsdpfxoq Nybgs Aa Ijbg Column spacing (mm)-915x860 Size of mounting plates (mm)-1345x1280 Ejector stroke (max) [mm]-250 Auger diameter [mm]-80 Injection weight [g]-1800 Oil quantity [liter]-1000 Injection sequence into the mold -2 Machine with robot ready to work Number of hydraulic cores S/R- 1/1

Condition: good (used), Year of construction: 2004, ENGEL DUO 4550/700 – Technical Specification General Information: Machine designation: DUO 4550/700 Controll : CC100 Gsdpfx Aaev U Dn Ne Ijbg Clamping Unit: Clamping force: 7000 kN Opening force (with pressure pads): 510 kN Opening stroke: 1350 mm Minimum mould height: 450 mm Maximum mould height: 1350 mm Daylight (platens open): 2700 mm Platen dimensions (H × V): 1460 × 1360 mm Tie bar distance (H × V): 1030 × 930 mm Max. mould weight: 9000 kg Ejector stroke: 300 mm Ejector force: 90 kN Ejector strokes (Euromap 6): 8 Dry cycle time (Euromap 6): 7.0 seconds Injection Unit: Screw diameter: 90 mm L/D ratio (barrier): 24 Plasticizing rate: 2488 cm³/s Shot volume: 2860 cm³ Shot weight (theoretical): 2600 g Injection flow rate: 533 cm³/s Injection pressure: 1910 bar Specific injection pressure: 2100 bar Nozzle length: 185 mm Nozzle contact force: 65 kN Heater capacity (zone 7): 62 kW Pump drive power: 75 kW Oil capacity: 1000 liters Weight: Net weight of clamping unit: 22 tons Net weight of injection unit: 10 tons Cores: 2+2 Linear Robot Engel ERC

Condition: excellent (used), Year of construction: 2004, Engel ES 3550/600 HL Godpsxu Hnbjfx Aa Iobg Technical Data Year of manufacture: 2004 Clamping Unit: Clamping force: 6000 kN Platen size (W x H): 1480 x 1300 mm Minimum mould height: 500 mm Maximum mould height: 1700 mm Opening stroke: 1200 mm Ejector stroke: 250 mm Ejector force: 110 kN Injection Unit: Screw diameter: 80 mm Shot volume: 1960 ccm Specific injection pressure: 1730 bar Screw length: 22 l/d Dosing stroke: 390 mm Number of heating zones: 6 Nozzle stroke: 700 mm

Condition: good (used), Year of construction: 2004, ENGEL DUO 4550/700 Origin: ENGEL St. Valentin, Austria 🔧 CLAMPING UNIT 1. Clamping force: 7000 kN Gedpfxswnqk Nj Aa Isbg 2. Opening force (with pressure pads): 510 kN 3. Opening stroke: 1350 mm 4. Minimum daylight: 450 mm 5. Maximum daylight: 1900 mm 6. Minimum mold height: 450 mm 7. Maximum mold height: 950 mm 8. Distance between tie bars (H × V): 1465 × 1360 mm 9. Mold plate size (H × V): 1025 × 990 mm 10. Ejector stroke: 250 mm 11. Ejector force: 63 kN 12. Dry cycle time (Euromap 6): 3.6 s (Z) / 2.4 s (Stroke) 🔩 INJECTION UNIT 1 1. Screw diameter: 90 mm 2. Max. shot volume: 3180 cm³ 3. Max. shot weight (PS): 2880 g 4. Injection pressure: 1470 bar 5. Injection speed: 100 mm/s 6. Plasticizing capacity (3-zone screw): 270 g/s 7. Plasticizing capacity (barrier screw): 308 g/s 8. Injection flow rate: 465 cm³/s 9. Heating zones: 7 10. Installed heating power: 75 kW 11. Hydraulic pump drive: 100 kW Engel Linear Robot ERC53/1-E 22 Hotrunner 4 core pullers PC, ABS material

Condition: good (used), Year of construction: 2002, Engel ES200/45VTHL-PRO-ELAST (2002) Godsvy Anxepfx Aa Isbg Clamping force: 45 t Type: Vertical Drive: Hydraulic Machine for Rubber.

Condition: excellent (used), Year of construction: 1996, Engel ES 3550/650 Clamping force 650 t Clamping force up to 725 t Year 1996 Tie bar distance 102.5 x 92.5 cm Screw diameter 90 mm Shot weight 2400 g Shot weight 2230 g Gjdpfx Asxvmmyoa Isbg Tie bar spacing 92.5 x 102.5 cm
