Insert 500V/100 Schuttle

ENGEL

Year of construction: 1996, condition: ready for operation (used), Clamping force: 800kN, Opening stroke: 450mm, min. tool installation height: 250mm, Plate dimensions X/Y: 660mm/560mm, Tie bar spacing: 403mm/345mm, Ejector stroke: 100mm, Injection volume: 154cm³, Injection pressure: 1600bar, Machine dimensions X/Y/Z: approx. 6000mm/1850mm/2000mm, Weight: approx. 4900kg. An on-site inspection is possible. Nksdpjynat Eofx Afcsu

Condition: excellent (used), Year of construction: 2010, operating hours: 43,775 h, clamping force: 1,200 kN, screw diameter: 40 mm, displacement volume: 251 cm³, injection pressure: 1,300 bar, injection weight: 231 g, mold height (min.): 300 mm, Engel Victory 500/120 TECH injection molding machine (253) Equipped with an inverter – the drive motor is electronically controlled. Thanks to the inverter: -The speed of the injection molding machine screw can be smoothly adjusted. Nksdpfjym Unuox Afcsu -The machine uses less energy because the engine does not always run at full power. -Mechanical wear and noise are reduced. -Injection precision is improved, especially for complex details. Availability: in stock Year of production: 2010 Producer: Engel Screw diameter [mm]: 40 Injection weight [g]: 231 Injection pressure [bar]: 1300(2020) Closing force [kN]: 1200 Column spacing [mm]: without columns Plate size [mm]: 740×680 Min. mold height [mm]: 300 Control type: CC200 Tongue: English, German, Swedish Working hours [h]: 43775 Weight [kg]: 6800 Dimensions [mm]: 5000 x 1700 Robot socket: euro 67 Core string: 1x Control of heating for molds: 8x Air valve: 1x Feed hopper: NO

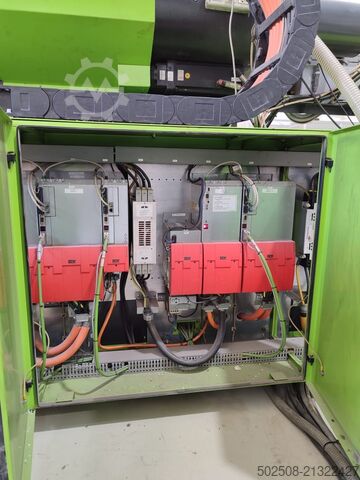

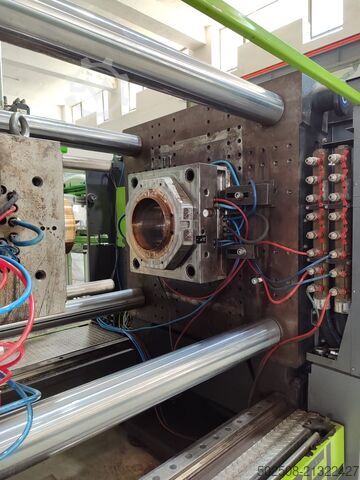

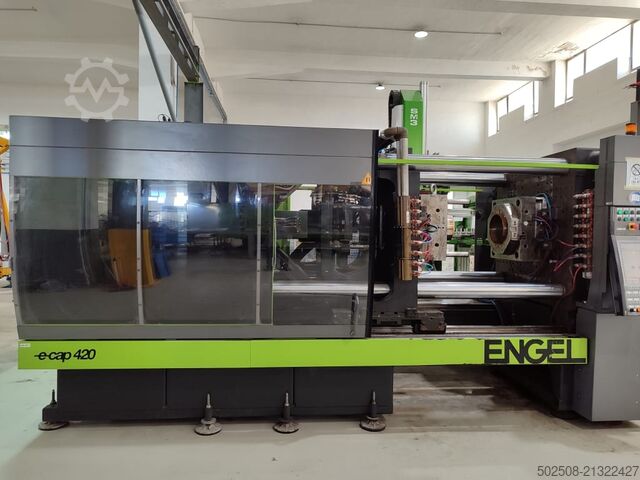

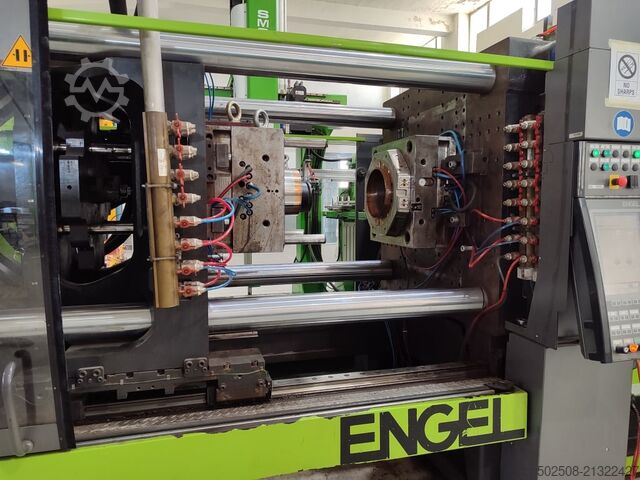

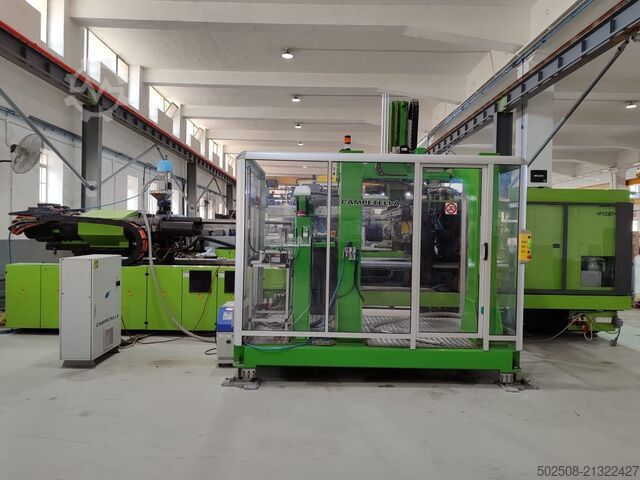

Condition: excellent (used), Year of construction: 2011, 2011 Engel E-Motion 3440/420 T Injection Moulding Machine Working Hours As Of (17.02.26) 65,000. Clamping Unit e-cap 420. Clamp Force To/ kN 420/4200. Opening Force 420kN. Opening Stroke 700mm. Screw Ø80mm, L/D 25. Mold Height Max. 750mm. Mold Height Min. 350mm. Mould Fixing Platens H1,350 x W1,350mm. Tie Bar Distance H920 x W920mm. Ejector Stroke 220mm. Ejector Force Forward/Return 120kN. Mold Weight, Max On Moving Platen/Centre Of Gravity (Without Additional Guide Block) 6,200/315kg/mm. Dry Operation Time 2.1 at 600sec at imm. E-cap 420 Injection Unit: Weight 36 Ton. Drive Power 147.3kW. Injection Unit Heating Capacity (Max.Capacity/Max Zones). 44.7 kW/6n. Total Power Premium ( When Using Compensation Equipment For Correcting The Power Factor Of Machines, plants Or Plant Components, Reactive Current Compensation With Impedance Capacitors Is Necessary) 193 kW. Connected Current Premium 286A ( With Voltage 3 x 380V - 400V + N + PE, 50/60Hz). Cooling Water Consumption Premium 1,980l/h (With An Ambient Temperature Of Maximum 35°C. S/No. 178804 (2011) Nedpfx Asym Az Nefcoku Weight 12,000kg. PLEASE NOTE: Machine Must Be Off Site No Later Than 27th March 2026. Seller Can Assist With Decommissioning If Required.

Condition: like new (used), Year of construction: 2019, operating hours: 11,337 h, functionality: fully functional, machine/vehicle number: 234917, clamping force: 1,600 kN, screw diameter: 30 mm, Equipment: documentation/manual, Due to a company relocation in the field of cleanroom injection molding, I have an ENGEL injection molding machine for sale with only 11,300 operating hours, in like-new condition. This is the last machine from a total inventory of 90 units. It was originally intended for another NYPRO facility but is now being made available for sale. Attached you will find: • Recent photos of the machine • The order confirmation from ENGEL to NYPRO Nkodpewb Dl Tjfx Afcou The original purchase price was approximately €330,000. The asking price is €85,500, including crane. I am happy to provide technical specifications upon request. If you are interested or have any questions, please feel free to contact me at any time.

Condition: excellent (used), Year of construction: 2008, Engel Victory 2050/300 Tech Year of manufacture: 2008 Nkjdpfx Afeymr Rgecou Clamping force: 300 tons Controller: CC200 Screw diameter: 70 mm Operating hours: 65,300 h

Condition: ready for operation (used), Year of construction: 2013, operating hours: 65,000 h, clamping force: 5,000 kN, screw diameter: 90 mm, total height: 2,355 mm, overall weight: 14,000 kg, product length (max.): 7,800 mm, This Engel DUO 4550/500 pico was manufactured in 2013. It features a clamping force of 5,000 kN, a screw diameter of 90 mm, and a maximum injection volume of 2,480 cm³. The machine dimensions are 7,800 x 2,405 x 2,355 mm, and it weighs 14,000 kg. Currently in production with approximately 65,000 operating hours, it remains in excellent condition. Contact us for more information about this machine. • Maximum injection volume: 2,480 cm³ • Minimum mold height: 350 mm • Maximum mold height: 900 mm • Platen opening stroke: 1,300 mm • Platen dimensions (W x L): 1,270 x 1,260 mm • Tie-bar distance (H x V): 910 x 830 mm • Motor power: 83 kW • Heater power: 61.2 kW • Number of electrical connection pins: 32 Njdox Nr Uxopfx Afcjku • Injection nozzle radius (tip): R35 • Centering ring diameter: 200 mm • Robot interface: Euromap 67 • Number of cores: 0 • Number of heating zones: 0 • Operating hours: approx. 65,000 h • Condition: Excellent • Status: In production Additional equipment • Robot (equipped)

Condition: good (used), Year of construction: 2004, operating hours: 63,000 h, functionality: fully functional, clamping force: 1,200 kN, screw diameter: 35 mm, Type: Engel Victory 500/120 Phoenix Year: 2004 Screw ø: 35 & 40 mm (Extra screw & barrel from 2021) Shot volume ccm: 193 & 251 Operating hours: approx. 63,000 h Complete line: Nsdpfxoymn Ine Afcoku – Robot: Wemo 8-5 3S, Year 2003 – Conveyor belt, Crizaf – Color doser, Moretto – 2 pcs. temperature control units, Regloplas – Extra screw & barrel

Condition: ready for operation (used), A large-format two-component injection molding machine Engel is available. Screw diameter: 120mm, metering stroke: 480mm, max. shot volume: 5430cm³, screw speed: 130rpm, L/D ratio: 20, plasticizing capacity: 132g/s, injection pressure: 1600bar, nozzle stroke: 950mm, nozzle force: 150kN, heating capacity: 80kW, pump capacity: 110kW, oil filling: 1600l, injection unit weight: 17t. Clamping force: 17000kN, opening force: 1230kN, opening stroke: 2550mm, mold installation height min./max.: 800mm/1600mm, max. platen distance: 3350mm, platen dimensions X/Y: 2640mm/2250mm, tie bar spacing X/Y: 1805mm/1405mm, tie bar diameter: 285mm, ejector stroke: 300mm, ejector force: 230kN, clamping unit weight: approx. 82t. Overall system dimensions X/Y: approx. 11500mm/7300mm, total system weight: approx. 100t. Documentation available. An on-site inspection is possible. Nkedpfx Aoymfdgjfcou

Condition: ready for operation (used), Year of construction: 2021, clamping force: 800 kN, screw diameter: 35 mm, injection weight: 140 g, Hydraulic injection moulding machine manufactured in 2021. This Engel Victory 320/80 spex features a clamping force of 800 kN and an opening stroke of 450 mm. The machine has a maximum daylight of 750 mm and a mould height minimum of 300 mm. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 320/80 spex machine we have for sale. Contact us for further details. • Opening Stroke: 450 mm • Max. Daylight: 750 mm • Mould Height (Min.): 300 mm • Platen Size (H x V): 670 x 600 mm Nsdoymawuopfx Afcjku • Tie-Bar Distance: Tie-barless (N/A) • Shot Volume: 154 cm³ • Injection Pressure: 2,040 bar • Control System: CC100 / CC200 / CC300 (Depends on Year)

Condition: excellent (used), Year of construction: 1997, Engel ES 2550/500 KG Clamping force: 500 tons Nksdpfsyl S Ensx Afcsu Year of manufacture: 1997 Distance between tie bars: 84x84 cm Screw diameter: 70 mm Shot weight: 1230 g Mould height (min-max): 250 mm – 850 mm Machine weight: 25,500 kg
