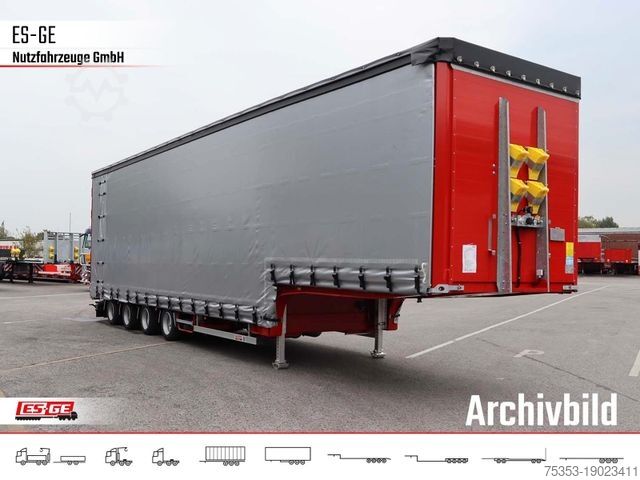

Low loader semitrailer

ES-GE 4-Achs-Satteltieflader mit Curtainsider-Aufbau

You can find our entire stock of vehicles, including those available immediately and at short notice, on our website.

Excerpt from the equipment list. Full specifications available upon request.

Chassis:
* Welded construction made from high-grade steel profiles with through cross-members for high floor or point loads
* Cranked design with heavy-duty outer frame
* UNP rail at the rear as a support for loading ramps

Fifth Wheel Coupling:
* 2" king pin, replaceable from underneath

Underrun Protection:
* In accordance with European regulations, permanently mounted

Landing Gear:
* 2 x 12 t aluminium drop-leg supports
* 2 drop-leg supports at the rear

Axles:
* 4 x 9 t Gigant axles (technically possible), with drum brakes approx. 300 x 200 mm, AGS, ABS
* Centrally located wheel mounting for twin tyres
* Total air suspension stroke approx. 200 mm; raising approx. 140 mm and lowering approx. 60 mm
* Air suspension control for raising and lowering via air suspension valve with detent function

Lift Axle:
* 1st axle can be lifted, operated from the chassis frame

Steering:
* 3rd and 4th axles self-steering
* Automatic reversing lock via reverse light, speed-dependent, and switchable

Braking System:
* Two-line brake system, Wabco make, in accordance with European regulations, with EBS and automatic load-dependent control
* Spring actuators acting as parking brake on 2 axles
Gsdjwfvvxjpfx Afpsuh
* Securely mounted coupling heads on the front cross member, no connecting line to the tractor unit

Tyres:
* 16 units, 205/65R17.5, on 6.00x17.5 rims

Mudguards:
* In accordance with European regulations, 1/4 PVC mudguards in front of and behind the wheels

Spare Wheel Holder:
* 1 unit for trailer tyres, without spare wheel

Lighting Equipment:
* In accordance with European regulations, 24 Volt
* Multi-chamber rear lights
* Number plate lamp
* Side marker lights
* White front position lights and lane marker lights at the rear
* 1x 15-pin and 2x 7-pin sockets on the front wall

Load Securing - Raised Deck:
* 5 pairs of folding lashing rings in the outer frame, evenly distributed, lashing capacity approx. 8 t

Load Securing - Lowered Deck:
* 9 pairs folding lashing rings in the outer frame, evenly distributed, lashing capacity approx. 8 t
* 1 pair of folding lashing rings recessed in front of the cranked section bulkhead, lashing capacity approx. 8 t
* 1 pair of folding lashing rings recessed in front of the rear end frame, lashing capacity approx. 8 t

Centre Stanchions:
* 3 movable stanchions per side, each with four locking positions
* Centre stanchions can be moved along the entire length incl. stanchion telescopes

Insert Pocket Holders for Struts:
* 1 central collecting pocket at the bottom, approx. 450 mm high, plus 4 (load bed) or 3 (raised deck) single pockets, evenly distributed above

Insert Braces:
* 3 rows of aluminium V-insert braces (raised deck)
* 4 rows of aluminium V-insert braces (lowered deck)

Flooring:
* Hardwood floor recessed into outer frame, flush finish

Front Wall:
* Fixed corner stanchions with approx. 25 mm aluminium hollow profiles, full roof height
* Interior covered with approx. 9 mm phenolic resin-coated plywood (approx. 1,250 mm high)

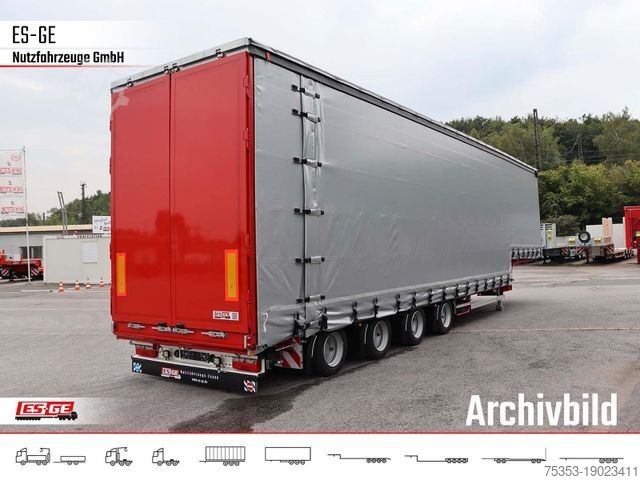

Rear Wall:
* Two-wing portal door, sandwich construction with 4 internal rotating bar locks
* 2 door retainers
* Swivel portal cross member
* Steel collision protection below rotating bar locks

Portal Widening:
* Rear portal can be hydraulically widened to approx. 4,550 mm (approx. 1,000 mm per side) by ha

The listing was translated automatically. Translation errors are possible.
