Frame saw

Esterer EHD 56

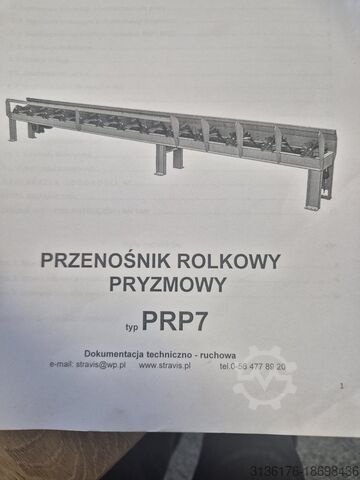

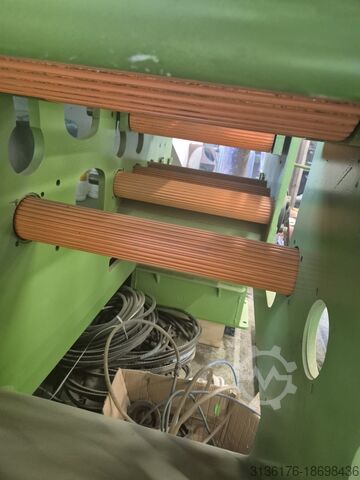

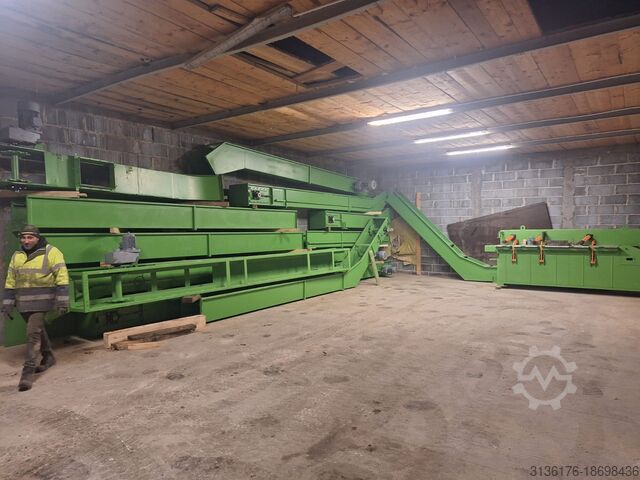

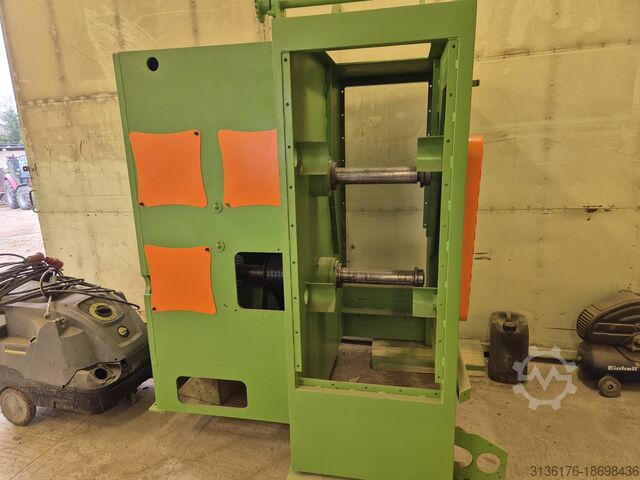

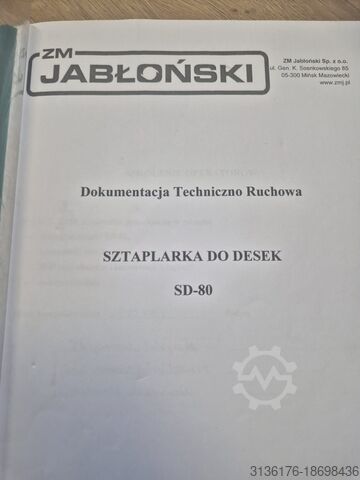

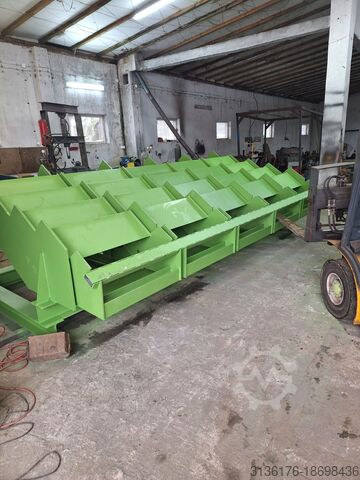

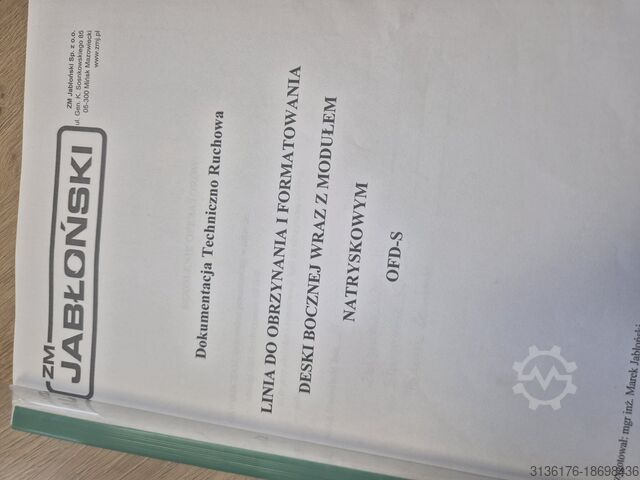

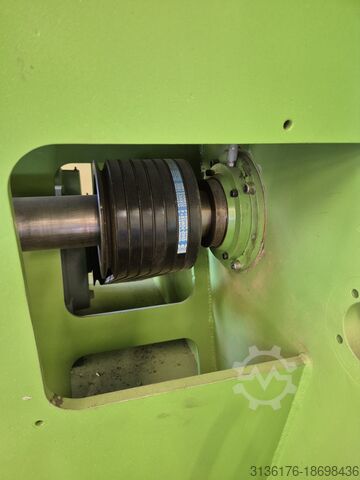

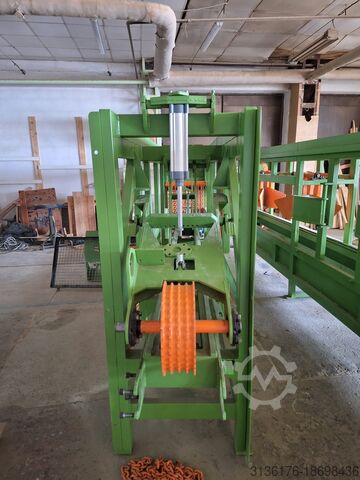

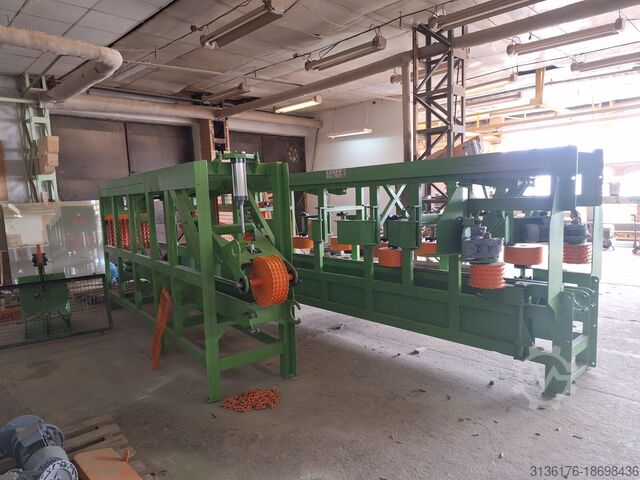

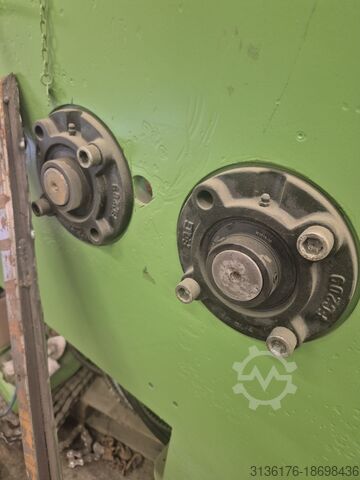

Condition: excellent (used), Year of construction: 2015, Stravis sawmill line with Jabłoński automatic edger after complete renovation. Condition like new. The line consists of: 1. Log conveyor for 5m logs with a cascade feeder 2. Caterpillar-chain saw 110 + 90 kW 3. Multi-blade saw (2 x 75 kW) spindle diameter 80mm 4. Roller conveyor l- 6m with a mechanism for stopping the movement of the left prism 5. Crosscut saw from 0.8 m to 5m 6. Base conveyor 7. Roller conveyor l=3.5m 8. Driven roller conveyor 4.5m 9. Driven roller conveyor l=4.0 m with a board dumping mechanism 10. Transverse belt conveyor b=3m, l=5m Gbodpfxev Iyhfj Aa Iog 11. Transverse belt conveyor with a pick-up b=2m, l=5m 12. Longitudinal belt conveyor b=0.4m, l=5m 13. Automatic edger Jabłoński 14. Gooseneck Jabłoński 15. Cross feeder with a scanner measuring the width of the board 16. Centering for the edger 17 17. Edge separator 18. Crosscutter from 0.8 m to 3.0 m 19. Gooseneck 20. Automatic stacker Jabłoński 21. Non-regenerated crosscutter Jabłoński 22. Bruks chipper with control (you need to make a belt or vibrating gutter) Assembly and start-up at the customer's premises is possible. Possibility of sending videos of the working machine before renovation. Possibility of setting the line in a turn or along the length. Optionally, construction of a base for the line. OPPORTUNITY

Condition: like new (used), Socolest DAS 200 twin-shaft multiblade feeding and receiving table - Made in Italy - centering feeding table - discharge receiving table - top drawing rollers TECHNICAL PARAMETERS: - cutting height 200 mm - cutting width 400 mm - engine power 2 x 55 kW - track width 630 mm - disc diameter max 350 mm - feed speed 40 m / min - hydraulic roller height adjustment - hydraulic cutting height adjustment - hydraulic feed - four top pulling rollers - four rows of anti-rejection latches - shaft diameter 70 mm - sleeve diameter 90 mm - pneumatic side pressure centering - diameter of ferrules 2 x 250 mm - minimum workpiece length 720 mm - laser - feeding table belt 5700 mm - width of table 600 mm - top roller pneumatic pressure roller - speed of table regulated on inverter Gbedpjqup Anofx Aa Ieg - receiving table 9200 mm - width of rollers 800 mm - diameter of rollers 135 mm - four drop chains - distance between chains 1900 mm Transport dimensions 1300 cm x 240 cm x 200 cm weight 8 t

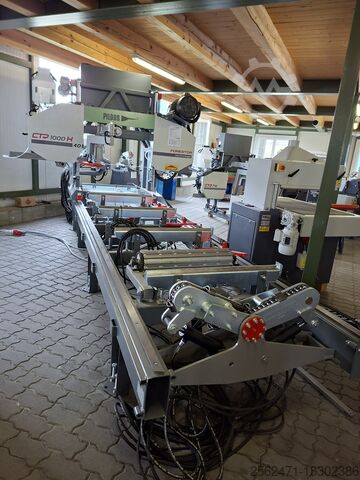

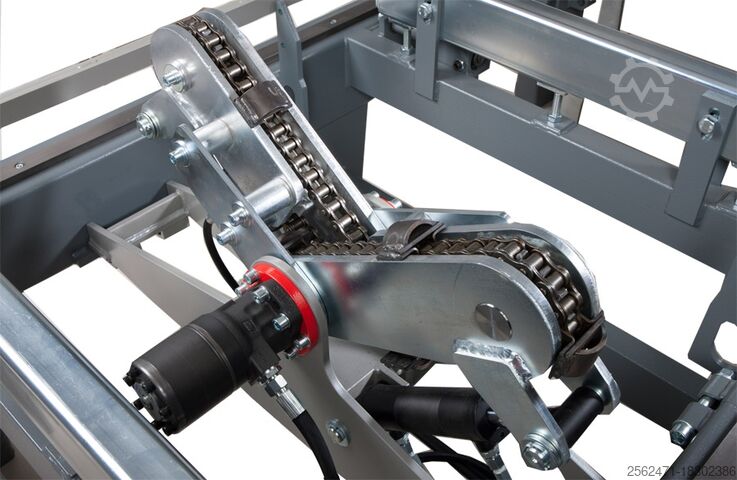

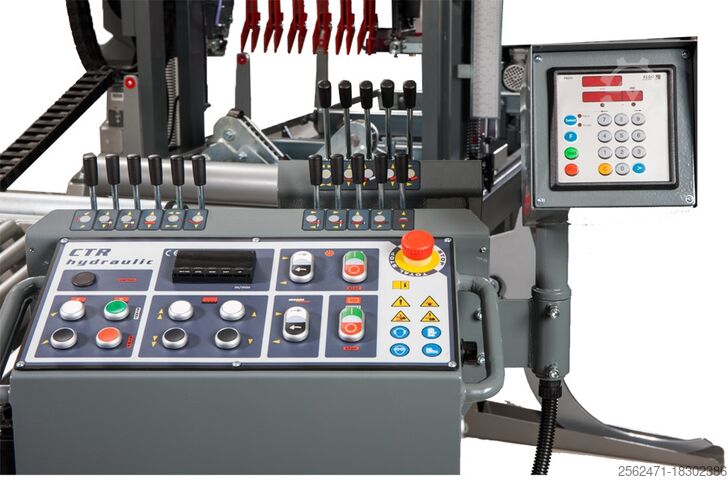

Condition: as good as new (ex-display), Demonstration Machine The professional block bandsaw for logs up to 100 cm in diameter from Forestor Pilous is the result of decades of sawmill tradition, specifically designed for professional sawyers. Equipped with a telescopic lever log turner, log lifter, and a powered log lifter for horizontal log feed. Features 5 hydraulic angle stops and 2 log clamping devices. The saw is standard for logs up to 7.6 m long and can be extended on request. Automatic feed with stepless speed adjustment. Electric height adjustment controlled from the operator panel. 8.4-inch touchscreen LCD for height settings, with two speeds for height adjustment. Includes stationary operator panel. Automatic rapid return. CE certified. Technical Data: Max. log diameter: 1000 mm Max. board width (plank width): 850 mm Max. saw blade rise: 875 mm Min. cutting height: 30 mm Max. frame clearance: 450 mm Cutting length of base section: 7.6 m Extension section length: 3 m Saw blade drive: 15 kW Portal travel motor: 1.5 kW Lift motor: 0.55 kW Hydraulic unit motor: 5.5 kW Saw blade dimensions: 5350 x 35 ÷ 40 x 0.9 ÷ 1.1 mm Weight of base version: 2580 kg Gbjdpfx Ajvrvqwea Ieg Extras not included in the price. (Image for reference only)

Condition: good (used), Year of construction: 2012, functionality: fully functional, saw band length: 7,750 mm, saw band width: 160 mm, power: 50 kW (67.98 HP), empty load weight: 5,200 kg, Last year, at the Mebor factory, the wheels were adjusted and fitted with new bearings. The log feeder is not part of the machine. Gjdpfx Aow Htb Uja Isbg

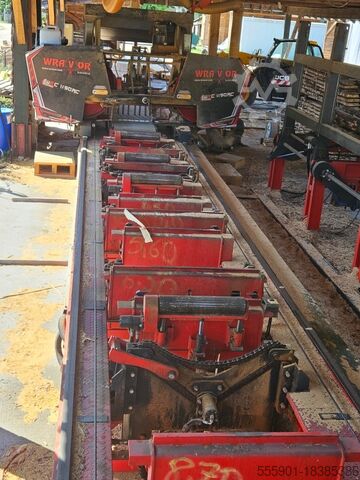

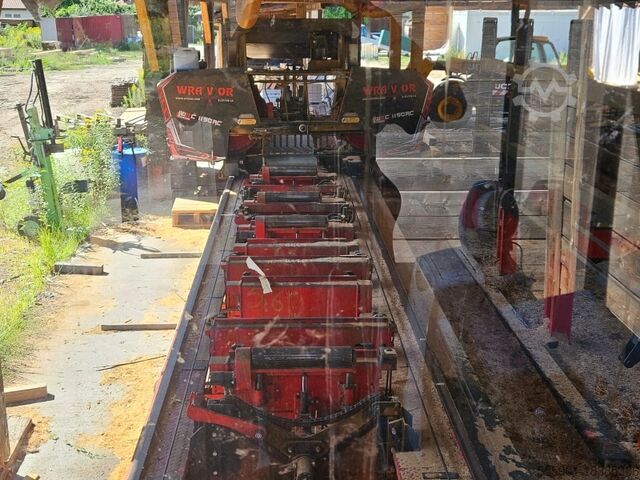

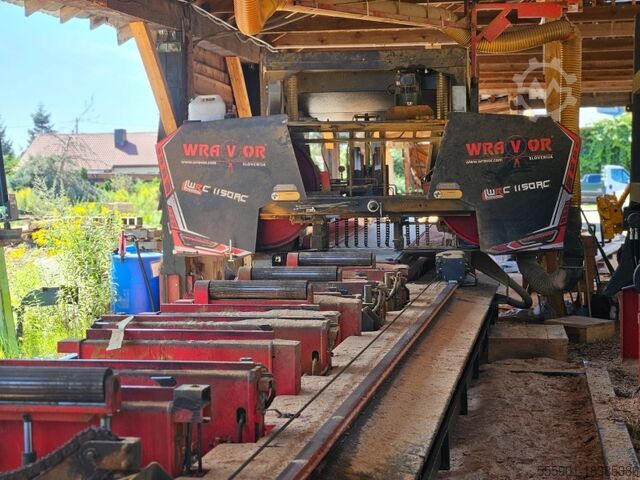

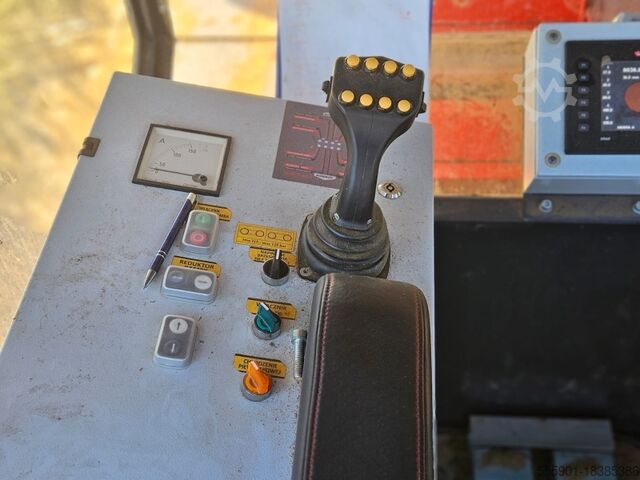

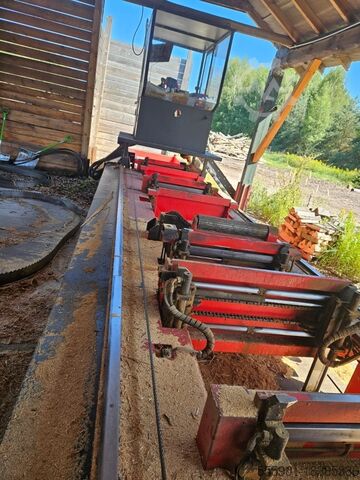

Condition: excellent (used), Year of construction: 2021, WRAVOR 1150 WRC Sawmill Year of production: 2021 Technical data: - Maximum log diameter: 1150 mm - Cutting length range: 13 m - Main engine power: 45 kW - Feed drive: hydraulic Control: - Operator panel with display - Electronic measurement of cutting thickness (e.g. possibility of entering cutting programs) Hydraulic systems: - Log rotation - Side clamps, stoppers Tape guiding: - Roller guides with adjustable spacing - Hydraulic tape tensioning - Feed speed: adjustable - Tape dimensions: width (e.g. 100–140 mm), length adapted to the size of the drive and guide wheels Additional functions: - Tape lubrication/cleaning system - Automatic log rotation and positioning for subsequent cuts - Ramp loading Gbjdpfx Aasvvctms Isg The machine is fully equipped. In very good technical condition. Used for a year and a half. Assembly and start-up are possible for an additional fee.

Condition: used, Three head band saw IDC000093 - manufacturer: Talsu - each electric motor: 11 kW - for square log cutting - with electric cabinet - hydraulic station - three head - for sawing pallet boards - feed chain Gbsdpfjupt Sijx Aa Iog - feed pushers from the top

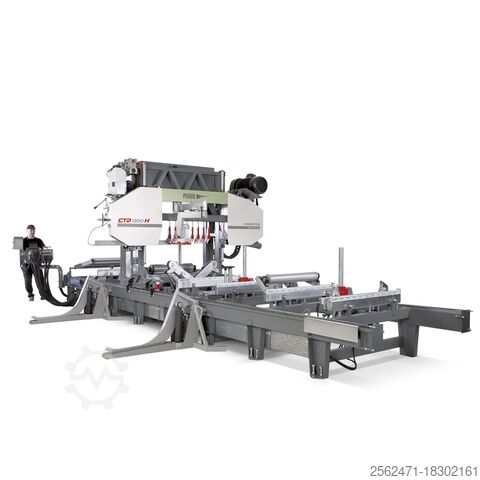

Condition: new, Solid block band saw for log diameters up to 130 cm. Soft starter included, extendable with additional sections. Automatic feed with stepless speed adjustment. Electric height adjustment conveniently operated from the control panel. 8.4-inch touchscreen LCD for height control. Gedsvrvhvjpfx Aa Isbg Equipped with telescopic log turner, log lifter, 3 telescopic angle stops with 2 extendable log clamps, powered log lifter for horizontal log feed, and coolant pump. Saw unit is suspended on both sides for greater stability and improved precision. CE certified. Technical Data: Cutting length: 6.6 m Max. log diameter: 1300 mm Max. board width: 1000 mm Max. saw blade stroke: 1080 mm Max. frame passage: 365 mm Motor ratings at 100% duty cycle: Main motor: 22 kW Feed motor: 3 kW Hydraulic unit: 7.5 kW Lift motor: 0.75 kW Saw blade size: 6500 mm x 50-60 mm Weight: 3600 kg Optional Special Equipment: Extension section, each 4 m 30 kW motor Pre-cutter unit Double-arm log lifter Telescopic log turner Chain log turner Log clamp Material return conveyor Material chute Sharpening machine Setting device Tarpaulin cover Extras not included in the price (Example image)

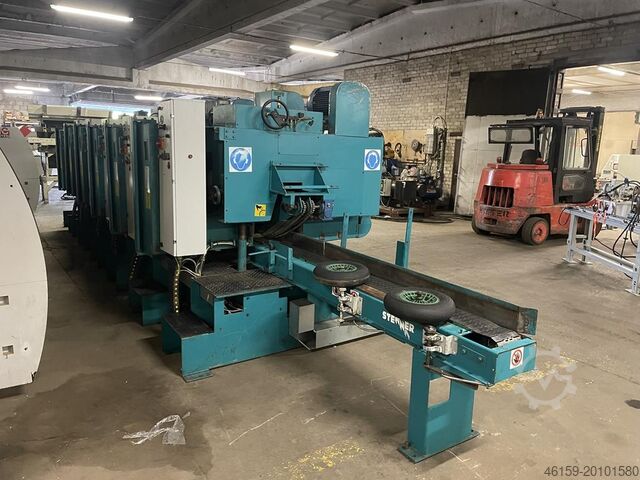

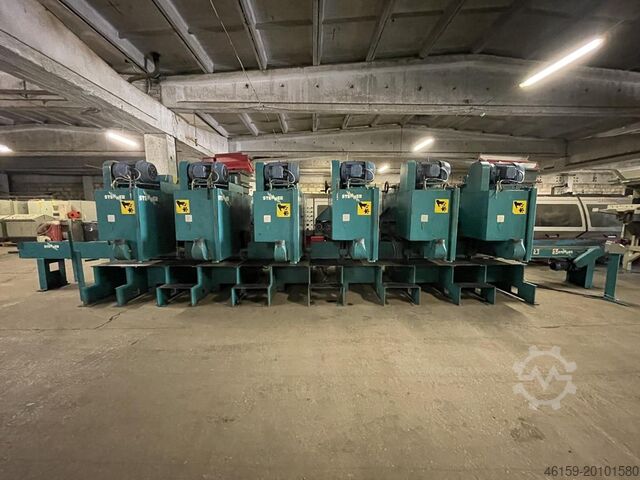

Condition: good (used), 6 Head Multi-head Horizontal Bandsaw Saw pulley diameter: 915mm Sawblade width (max): 100mm Standard saw speed 35m/s Timber width Max: 305mm – 450mm Maximum opening saw to chain bed: 305mm Feed chains to saw lines 292mm Main motor: 6x 18.5kw Feed speeds (variable): 15 – 60m/min std, 7.5 – 30m/min (optional) Type of feed: internal overhead feed system with driven chains synchronised with chain bed Operators control station including speed control and start stop controls Working height 800mm Gbodpjxgrrpofx Aa Ieg

Condition: used, Year of construction: 2011, total height: 1,730 mm, total length: 2,600 mm, total width: 1,700 mm, Weight: 2.000 kg Undercut crosscut saw Avola Gama 65 K Year of construction 2011 Main engine 10kW, 3000rpm Cutting speed 102 m/s Saw blade diameter 650mm Cutting height 90/45/30° degrees 245/164/113mm Table dimensions 1500x1500mm Including roller conveyors - Year: 2011 - Documentation available: Yes - CE certificate present: No - Transport dimensions: 2600mm x 1700mm x 1730mm (l x w x h) - Transport weight [kg]: 2000kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT Gjdowng S Nepfx Aa Ijbg VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels
