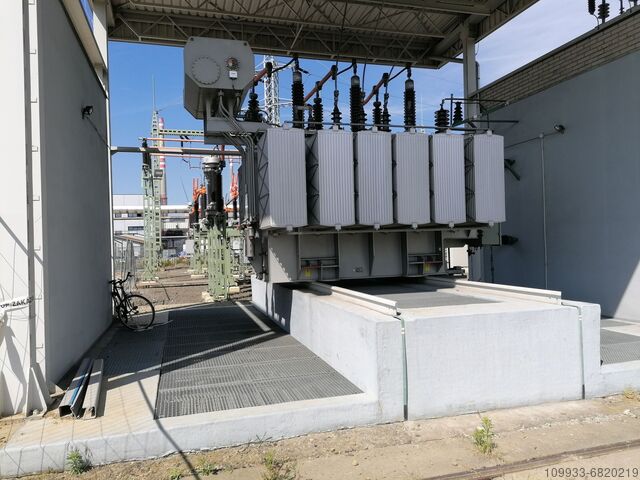

Power transformer 12,5MVA 110/23kV

ETD CZECH 12,5MVA 110/23kV

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, input voltage: 110,000 V, nominal power (apparent): 20,000 kVA, secondary voltage: 20,000 V, For sale is a high-performance power transformer from the renowned manufacturer ALSTOM. This unit is ideal for industrial power grids or as a redundancy transformer for grid operators. Key technical features: - Power rating: 20 MVA (20,000 kVA), upgradable to 25 MVA - Voltage: 110,000 V (HV) / 20,000 V (MV) / 10,000 V (LV) - Year of manufacture: 2001 (Type TC1743G) - Cooling: ONAN (option to upgrade to ONAF) - Tap changer: Equipped with high-quality MR on-load tap changer with 19 steps Weight specifications: - Total operational weight (incl. oil): 40.8 t - Dry weight (without oil): approx. 29.3 t Optional accessories such as switchgear and instrument transformers are available upon request. Condition & Service Options: The transformer is in operational condition. To ensure maximum operational safety, we offer the following options: ✅ Complete overhaul: Full technical refurbishment on request ✅ New paintwork: Professional repainting available Location: Cloppenburg Price: Negotiable / open to offers Fpsdpfxsyzl T Sj Aagoh For inquiries or detailed documentation (test protocols, dimension sheets), please contact us. An inspection can be arranged by appointment.

Condition: new, Year of construction: 2017, Dry epoxy casted traction rectifier transformer - manufacturer TESAR Italy, power 2800kVA 20(2x±2,5%)/2x0.586kV, Dd0yn11, IP00, load level VI (IEC 60146), 100%-2800kVA-continuous, 150%-4200kVA-2 hours, 300%-8400kVA-60s, standard losses according to IEC standard, Al-Al winding, electrostatic screen, dimensions 2.45x1.4x2.7m (lxwxh), weight 8000kg, never used, complete documentation and test report, available 6 pcs on stock, year of manufacture 2017, suitable for battery storage systems BESS, can be installed outdoors in case of IP33 protection. Price negotiable. Fedpfoxlybcox Aageph

Condition: new, Year of construction: 2024, functionality: fully functional, machine/vehicle number: 2838 664, type of input current: AC, overall weight: 4,710 kg, input voltage: 16,800 V, total height: 1,820 mm, total width: 1,270 mm, total length: 1,920 mm, nominal power (apparent): 2,000 kVA, secondary voltage: 420 V, protection type (IP code): IP54, temperature: 40 °C, space requirement width: 1,270 mm, space requirement length: 1,920 mm, space requirement height: 1,820 mm, Equipment: type plate available, Three-phase oil transformer according to IEC 60076, hermetically sealed design suitable for ambient temperatures from -25°C to 40°C and maximum installation altitude of 1,000 m above sea level, for outdoor installation, with aluminium windings, routine test according to IEC60076, in accordance with Regulation (EU) No. 548/2014 of 21.05.14 Stage 2, valid from 01.07.2021. Fsdpfx Aajynhwrjgsph

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, type of input current: three-phase, overall weight: 2,900 kg, input frequency: 50 Hz, nominal power: 1,250 kW (1,699.52 HP), Two used oil transformers, TRANSFIX brand, with aluminum windings and ONAN cooling. 1250 kVA, 20,000 Volt / 20 kV. Manufactured in 1999, in excellent condition. Available immediately. For more information, please contact us. Fpsdpfx Aaozbyq Regsh

Condition: used, Year of construction: 2010, functionality: fully functional, 3500 kVA (1750/1750 kVA) cast resin transformer, manufacturer SGB, year of manufacture 2010, primary side 20 kV, secondary side 2 x 690 V, Dy5d6. Fpedpfx Aasza Ugqogeh

Condition: new, Year of construction: 2023, Never used dry epoxy casted rectifier transformer - manufacturer TESAR Italy, power 1600kVA 21(2x±2,5%)/2x0,570kV, Dd0yn11, IP00, standard losses according to IEC standard, Al-Al winding, electrostatic screen, THDi=25%, complete design documentation and test report, available 1 pc on stock, year of manufacture 2023. Fedpfx Aaoy Ah Nregeph
