JigExeron
EDM314MF30
Machine data
- Machine type:
- Jig
- Manufacturer:
- Exeron
- Model:
- EDM314MF30
- Year of construction:
- 2016
- Condition:
- like new (used)
- Functionality:
- fully functional
- Operating hours:
- 1,011 h
Price & Location
- Location:
- Carl-Zeiss-Strasse 1, 72175 Dornhan, DE
Technical details
- Travel distance X-axis:
- 905 mm
- Travel distance Y-axis:
- 705 mm
- Travel distance Z-axis:
- 450 mm
- Workpiece weight (max.):
- 3,000 kg
- Total height:
- 3,100 mm
- Total width:
- 2,090 mm
- Total length:
- 3,400 mm
- Table width:
- 850 mm
- Type of input current:
- three-phase
- Distance table to quill:
- 705 mm
- Table length:
- 1,150 mm
- Warranty duration:
- 12 months
- Feed length X-axis:
- 1,100 mm
- Feed length Y-axis:
- 705 mm
- Feed length Z-axis:
- 450 mm
- Feed rate X-axis:
- 5 m/min
- Feed rate Y-axis:
- 5 m/min
- Feed rate Z-axis:
- 15 m/min
- Input voltage:
- 400 V
- Overall weight:
- 7,500 kg
- Year of last overhaul:
- 2025
- Table load:
- 3,000 kg
- Input frequency:
- 50 Hz
- Working range:
- 1,200 mm
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A195-47406
- Update:
- 22.07.2025
Description
Overhauled
Technical Data:
Travel X/Y/Z: 905x700x455 mm
Workpiece Clamping Table: 1150x850 mm
Work Tank: 1200x900 mm
Filling Height: 500 mm
Distance Table/Electrode Holder: 250/705 mm
Workpiece Weight: 3000 kg
Dielectric Capacity: up to 1800 liters
Dimensions (W x D x H): 2090x3416x3100 mm
Machine Weight: 7500 kg
Equipment:
Color: Light Grey
Operating Interface: MF30
Software with latest NC version
Mobile Panel
Handheld Control Console with Enable Switch
Generator: 60 Amps
Latest TEC 8 Technology
Fgedpfjwyvkrsx Afpjh
Table: Steel with T-slots

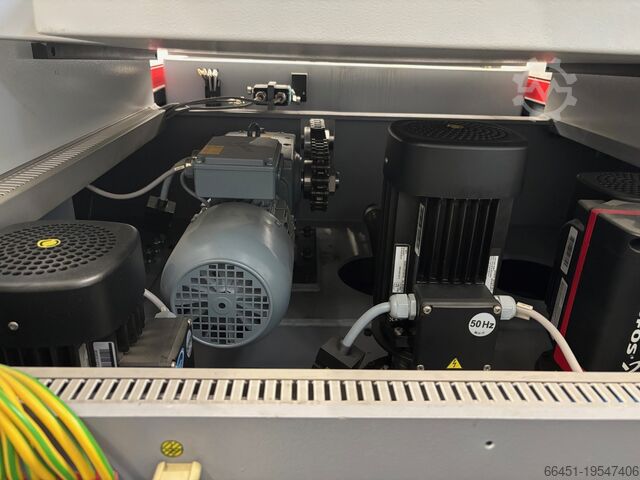

Filter Pump, Flushing Pump, Filling Pump
3 Cartridge Filters
Automatic Tank Height Adjustment
Integrated Cooler
C-Axis: 100 rpm, Direct Measurement, Holding Brake
Chuck System: EROWA, 3R, Hirschmann

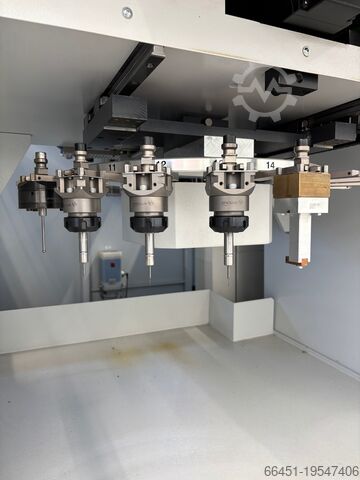

Tool Changer: 20 positions
CO₂ Fire Extinguishing System
Contact Protection
Transport, Commissioning, Training on request
Options:
120A Generator Power
AWEX/EROWA/Pcam Automation
Remote Access
Maintenance-free Backflush Filter
C-Axis Bridging
etc.
