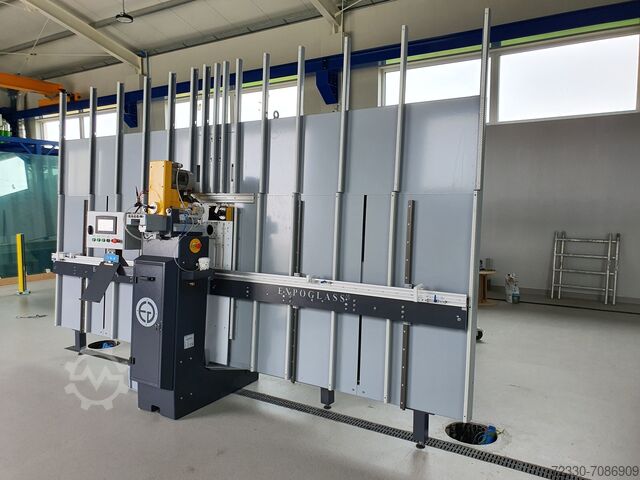

Vertical glass drilling machine

EXPOGLASS® Priam

NEW | YEAR 2026 | CE CERTIFIED | MADE IN POLAND | EXW €38,000 + VAT

WHY THE PRIAM

The Priam is a vertical, electronically controlled glass drilling machine that does most of the work for the operator. The entire feed is electronically controlled — drilling is smooth and repeatable.

The operator's role is minimal. After mounting the hole saws, they press the "Calibration" button — the machine measures the length of both drills (front and rear) and their diameter, then automatically assigns the correct spindle speed. After every drill change, the machine will not start drilling until calibration is done — setup errors are impossible. The hole position on the vertical axis is entered on the monitor and the support bar travels there automatically (up to 1,060 mm below the spindle axis); horizontally, the glass is positioned against 6 stops.

The machine does the rest: the pneumatic clamp measures the glass thickness, the rear spindle pre-drills to a depth calculated by the controller, and the front spindle completes the hole from the other side — chip-free, clean edges at the first attempt. Optional: double-sided chamfering (hole saw with chamfering ring), tapered holes, and pulse drilling mode for laminated (VSG) glass.

BUILT FOR SERIAL PRODUCTION

Up to 20 holes on the vertical axis can be programmed — the operator enters the dimensions once and the machine drills them automatically. In serial production (shower enclosures, balustrades) the following panes are drilled without re-entering positions.

Drilling at position 0 on the support bar allows holes on the glass edge (half-moon cut-outs).
Rcodpfsh Ek H Ssx Ankod

Performance: a Ø 75 mm hole in 4 mm glass in approx. 25–30 s (feed in glass approx. 1 mm/s, speed set by the operator). Recommended: thin-wall, self-sharpening hole saws (e.g. Champion, L=75 mm).

TECHNICAL DATA

Drilling diameter range: Ø 5–80 mm (both drills same diameter)
Glass thickness: 2–20 mm
Max. pane size: 2,000 × 4,000 mm, up to 200 kg
Support bar travel: up to 1,060 mm below spindle axis
Holes on the glass edge (half-moon): yes, position 0
Drilling program: up to 20 holes on the vertical axis
Spindle speed: adjustable 700–2,800 RPM, assigned automatically after calibration
Feed: automatic, electronically controlled
Cooling: closed water circuit, approx. 30 l
Compressed air: 6 bar (pneumatic clamping)
Power supply: 400 V / 16 A / 4 kW

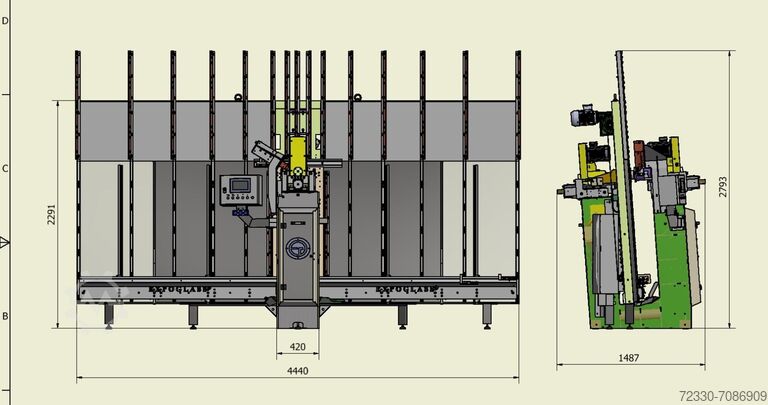

Machine dimensions (L × W × H): 4,440 × 1,487 × 2,793 mm
Weight: 1,900 kg
Scope of delivery: CE marking, documentation, operating manual

MANUFACTURER, SERVICE, TERMS

EXPOGLASS is a Polish manufacturer of glass processing machinery — built at our own factory in Nysa (in-house welding shop and powder coating). Service with online support; spare and wear parts available from stock. Delivery and commissioning across the EU, operator training on site.

Delivery time: approx. 8 weeks. Warranty: 12 months.

Visit our factory and see the Priam drill your own glass samples before you buy — video of the machine in operation in this listing.

Glasstec 2026, Düsseldorf, 20–23 October, Hall 12, Stand 12A72.
