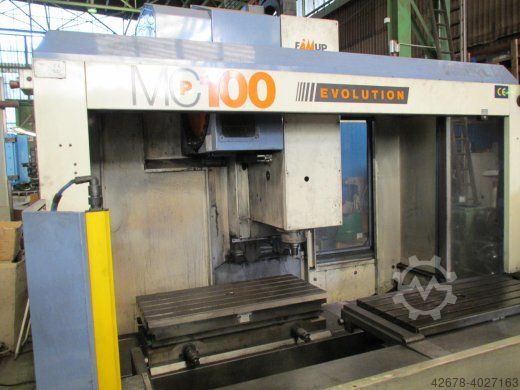

CNC vertical machining center

FAMUP - Emco MCP 100 Evolution

High-performance CNC vertical machining center with SIEMENS 840 D, dual pallet changer, internal coolant system, linear guides, and 30-tool automatic tool changer.

Table size: 2 x 1000 x 450 mm
Tool holder DIN 69871: ISO 40
Travel ranges:
X-axis: 1100 mm
Y-axis: 500 mm
Z-axis: 640 mm
Spindle speed range: 50 – 10,000 rpm
Table load: 600 kg
Feed rate range, X/Y/Z, stepless: -10,000 mm/min
Rapid traverse in all axes: 30 m/min
Drive power: 18.5 kW
Machine dimensions L x W x H: approx. 3605 x 3041 x 3220 mm
Weight: approx. 6700 kg

Accessories / Special features:

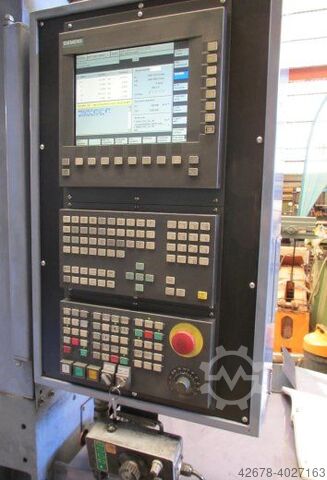

• CNC control system SIEMENS 840 D
• Dual pallet changer
• 30-tool automatic tool changer
• Full enclosure with safety doors, electrically secured
• High spindle speed up to 10,000 rpm and drive power of 18.5 kW
• Linear guides with double roller recirculating bearing, allowing high torques to be absorbed evenly in all directions
• Ball screws in all 3 axes
• The entire machine bed is made of Meehanite cast iron, ensuring precision, rigidity, and vibration damping
• Tool holder DIN 69871, ISO 40
• Chip conveyor with integrated coolant system
• 4th axis pre-configured
• CE compliant
