Vertical machining center

Fanuc Robodrill Alpha-D21LiB5

Accessories:

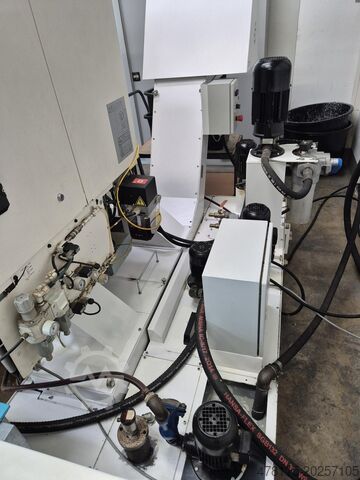

- Coolant tank MCO incl. belt filter system and scraper belt conveyor

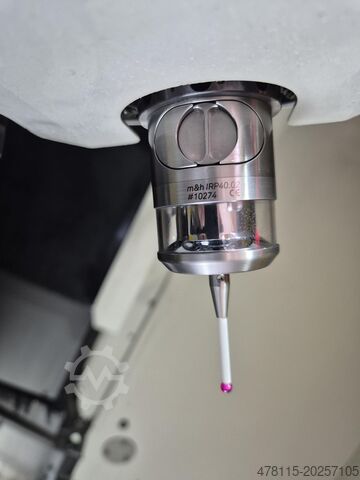

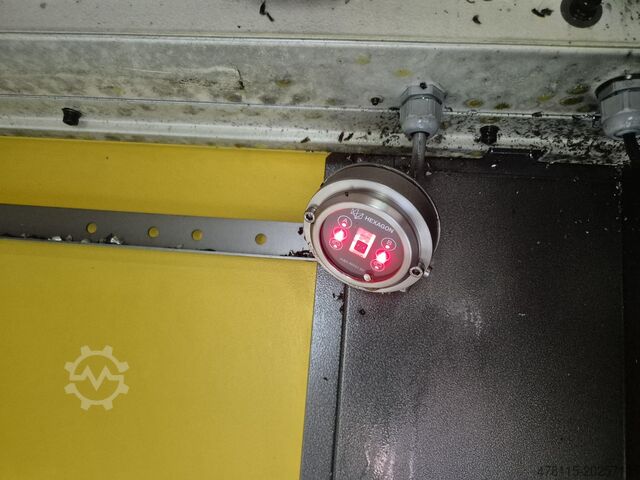

- M&H 3D probe
- Fanuc zero-point option

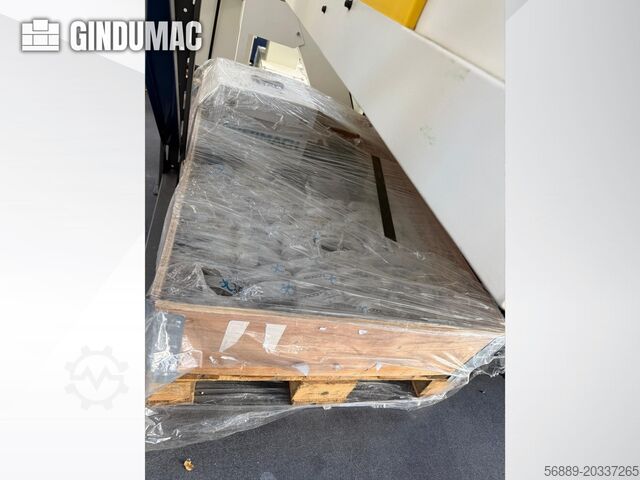

- Spare spindle
- 2GB data server (program storage)

Travel X/Y/Z:
mm: 700 x 400 x 330

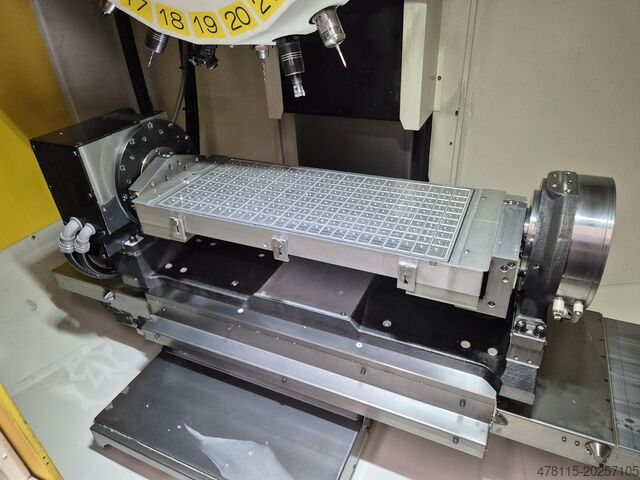

Table size:
mm: 850 x 410

Max. table load:
kg: 300

Machine weight/with DDR-TiB:
t: 2.1 / 2.3

Max. tool length:
mm: 250

Max. tool diameter:
mm: 80

Max. tool weight:
kg: 3

Total weight:
kg: 33

Number of tools: 21

Spindle taper 7/24 taper No. 30/SK30 DIN 69871A

Spindle interface BBT30

Distance spindle nose to table (with HC100):
mm: 250-580

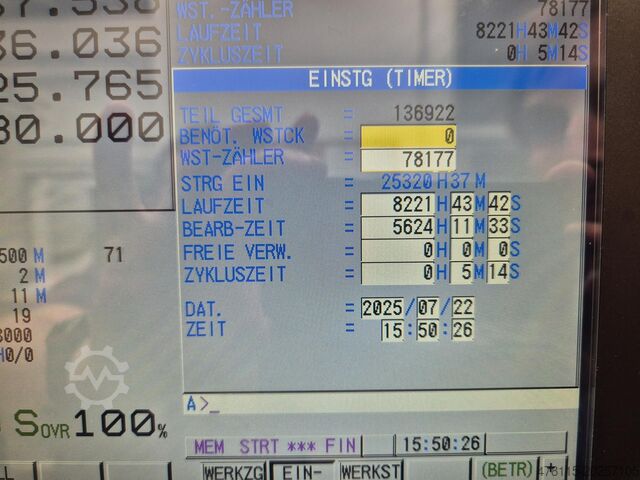

Control:
31i-B5 Plus

Spindle speed:
rpm: 24,000

Spindle torque at 24,000 rpm (1 min):
Nm | kW: 35 | 26

Spindle torque at 24,000 rpm (continuous):
Prsdpfx Agsxmhmvoqjd
Nm | kW: 7.5 | 5.5

Rapid traverse in all axes:
m/min: 54

Max. programmable feedrate:
mm/min: 30,000

Tool change time (2 kg tool, chip-to-chip):
S: 1.6

Bidirectional positional accuracy per axis (ISO230-2:1988):
mm: < 0.006

Bidirectional positional repeatability per axis (ISO230-2:1997, 2006):
mm: < 0.004

Air consumption:
L/min | MPa: 160 | 0.35-0.55
