CNC Vertical Machining Center

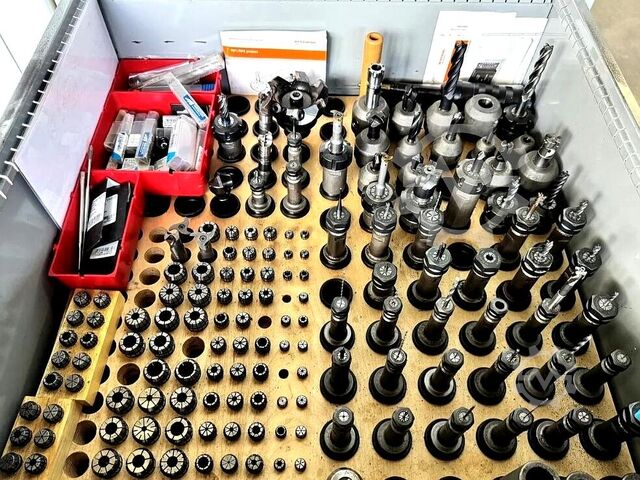

FEHLMANN PICOMAX 55 CNC

Condition: ready for operation (used), Year of construction: 2006, operating hours: 2,988 h, functionality: fully functional, machine/vehicle number: 14106232, travel distance X-axis: 500 mm, travel distance Y-axis: 255 mm, travel distance Z-axis: 160 mm, table load: 250 kg, spindle speed (max.): 9,000 rpm, Machining center with extensive accessories and only 2,988 spindle hours! TECHNICAL DETAILS Travel X-axis: 500 mm Travel Y-axis: 255 mm Travel Z-axis (manual): 160 mm Travel Z-axis (controlled): 147 mm Travel W-axis: 500 mm Table width: 320 mm Table length: 885 mm Table load capacity: 250 kg Spindle speed (min.): 50 rpm Spindle speed (max.): 9,000 rpm MACHINE DETAILS Control system: HEIDENHAIN iTNC 530 Spindle motor power: 9,900 W Spindle power (S6, 40%): 9.9 kW Dimensions & Weight Dimensions (L x W x H): 1,900 x 1,900 x 2,300 mm Machine weight: 2,450 kg Spindle hours: 2,988 h EQUIPMENT Dsdpexnz Tfjfx Ah Sjkg Documentation/manual Infinitely variable spindle speed Nameplate available 60 pcs. SF-32 tools 97 pcs. collets Renishaw probe: MP15 Handwheel (manual control unit) Complete machine documentation including EC Declaration of Conformity

Condition: used, Year of construction: 1985, bore capacity in steel (diameter) 30 mm x-travel 850 mm y-travel 435 mm Control HEIDENHAIN TNC 150 total power requirement 16 kW weight of the machine ca. 3500 kg dimensions of the machine ca. m F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109 _____ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle taper SF 32 Spindle quill travels 210 mm Drilling Capacity approx.. 30 mm Spindle speeds steplessly adjustable 50 – 2,500 rpm Feeds steplessly adjustable 1 – 8.000 mm/Min. Dsdpfet Hxa Hsx Ah Sjkg Quick feed 8.000 mm/Min. Spindle drive, approx. 6 kW Total electrical load 16 kW - 400 V - 50 Hz Weight, approx. 3,500 kg Accessories / Special Features: * HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc. Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach to the workpiece. * The quill movement can be actuated manually or also by the CNC-Control, * The Drilling depth can be presetted by a 12 fold turret drum for different quillstops and with a digital display of the values on monitor. * The complete Milling/Drilling head can be positioned in 3 different heights and with automatic clamping. * Hi Precision Coordinate table controlled by the XY – CNC axis with hardened ball screw spindles. * With quick change tool holders, chucks, millers, etc. and with coolant device. Condition : Very Good to excellent - Machine under power, ideal for small batch production Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: excellent (used), Control : Heidenhain TNC 426 Dimensions Space requirement (WxDxH) 1.92x1.85x2.4 m Weight Weight approx. 2'400 kg Working range travel lengthwise X-axis 500 mm Transverse travel Y-axis 255 mm Quill stroke (controlled) Z-axis 147 mm Quill stroke (manual) Z-axis 160 mm Machine head travel W-axis 500 mm Feed rates Speeds: Rapid traverse - X- and Y-axis 1-11,000 mm/min - Z-axis 1-6,000 mm/min - W-axis 1-3,600 mm/min Feed forces - X- and Y-axis 6'500 N - Z-axis 8'000 N Rapid traverse - X- and Y-axis 11 mm/min - Z-axis 6 mm/min Displacement measuring system Direct measuring system via linear scale X / Y / Z axis Resolution Indirect measuring system via rotary encoder Z axis Resolution in X-, Y-, Z- and W-axis 0.001 mm Accuracy of position tolerance P axis(es) X / Y 0.005 mm Position spread Ps axis(es) X / Y 0.003 mm Z / W 0.005 mm Table clamping surface (lxw) 885 x 320 mm Working area T-slots: - Number 5 - - Width 12-H8 mm - Spacing 50 mm Permissible table load 250 kg Table height from floor 1040 mm Distance table-spindle nose (min-max) 0-120-620 mm Horizontal projection 300 mm Work spindle Quick-change tool system SF 32 - Dkjdjtp S R Hopfx Ah Sog Hydraulic tool change via push buttons - - Repeat accuracy 0.002 mm - Changing time (manual) approx. 5 sec Speed range (infinitely variable) 50-9,000 rpm Drive power 7.6 kW Max. Torque 65 Nm Cutting capacity Drilling capacity ø 25 mm Thread cutting M 20 - Shuttering Semi-shuttering with sliding doors - - Coolant Coolant: Lubrication - External tank, capacity 100 l - Pump flow rate 75 l/min Central lubrication system Vogel

Condition: repair required (used), Fehlmann Picomax 60 M (5-axis universal milling machine) with Heidenhain TNC 426 x-axis 500 mm y-axis 350 mm z-axis 610 mm Motor spindle 18,000 rpm Power 10.2 kW 24-position tool changer Weight 3,200 kg with 4 axes SK 30 tools approx. 40 tool holders Dodpfx Aewmwrdoh Sjkg The machine has the following problems: - Heidenhain 430 control system is defective (booting up is not always possible, crashes during machining)

Condition: excellent (used), functionality: fully functional, overall weight: 1,200 kg, maximum load weight: 500 kg, lifting height: 3,300 mm, Year of construction: 1999, Equipment: type plate available, Hydrobull Mobile Industrial Crane with Counterweight – Load Capacity 500 kg Model: HYDROBULL HB 500 GK CE Mobile Workshop Crane Condition: Very good – fully functional Location: Graz Description: This original Hydrobull counterweight crane features a rear-extended chassis and a dedicated counterweight box. The counterweight design allows the crane to approach loads and machinery directly, making it ideal for a wide range of workshop applications. Technical Specifications: Lifting: Manual Travel: Manual Design: Counterweight Load capacity: 500 kg Max. lifting height: approx. 3.3 m Residual load capacity at approx. 1,000 mm outreach: 320 kg Residual load capacity at approx. 1,500 mm outreach: 240 kg Residual load capacity at approx. 2,000 mm outreach: 110 kg The machine is located in Graz and is in excellent condition. An inspection of the machine can be arranged either on-site or via video call. Dedpfevphv Tjx Ah Sjkg Contact us for further information and to arrange a viewing appointment!

Condition: excellent (used), Heidenhain TNC 124 control system X/Y/Z travel 450/260/120 mm W travel 450 mm Clamping area (L x W) 770 x 320 mm Permissible table load 100 kg Distance table to spindle nose (min. – max.) 0 – 110 – 560 mm Dodpfx Aewk Edpeh Sskg Feed rate X/Y 1 – 2000 mm/min Tool quick-change system SF 32 Speed range continuously variable 100 – 9200 rpm Drive power 5 kW Space requirement (W x D x H) 1500 x 1480 x 2330 mm

Condition: excellent (used), Year of construction: 1986, x-travel 500 mm y-travel 430 mm z-travel 400 mm table surface area 800 x 390 mm spindle taper SK 40 spindle turning speed range 40 - 2000 U/min spindle drive 3 kW quill stroke 80 mm feed - longitudinal/cross 4 - 1600 mm/min feeds vertical 4 - 1000 mm/min rapid motion -longitudinal/cross/vertical 1,6 / 1,6 / 1,0 m/min control HEIDENHAIN, TNC 135 total power requirement 5 kW weight of the machine ca. 1,4 t dimensions of machine L x W x H 2,3 x 2,3 x 1,7 m Djdpfx Ahswi Ugdj Sekg Accessories: vertical head with hydr. tool clamping and quill retraction, solid table, coolant

Condition: used, Year of construction: 2005, Weight 350 kg Dimensions (L/W/H) 1930,0 × 1850,0 × 2490,0 mm x-axis 610 mm y-travel 305 mm Djdpfx Ahowg Huuj Sjkg z-travel 520 mm table length 760 mm table width 360 mm
