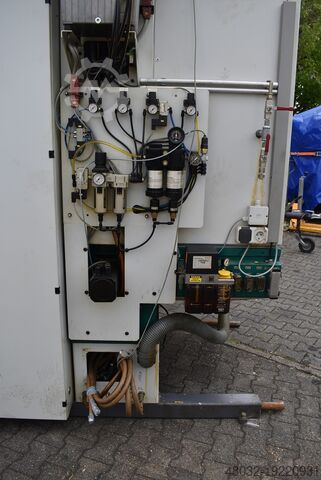

Universal machining center

Fehlmann Picomax 60 M

Condition: excellent (used), Year of construction: 1999, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 10,000 rpm, total height: 2,700 mm, total width: 1,700 mm, total length: 2,000 mm, power: 0.01 kW (0.01 HP), CNC-Drilling and Milling machine, Control Heidenhain TNC 426, only 8500 h Laodpfx Amstvmtksvsg table size 380x920 mm, travel X/Y/Z/W - 500/350/610 mm, max. table load 250 kg, spindle speed stepless 50-10'000 rpm., spindle performance 10,2 kw, drilling capacity Ø 25 mm, tapping capacity M20, taper SK 30, tool changer 24 places, elektronic handwheel, central lubrication, oil mist filter, coolant refigitor, preparation for spindle coolant + Renishaw, lot of tools and holders, manual

Condition: used, TECHNICAL DETAILS - max. power : 40 [t] - max. workpiece diameter : 40 [mm] Laedpfx Amsuhb Uhevsg - spindle diameter : 80 [mm] - spindle length : 120 [mm] - max. tool diameter : 250 [mm] - dimensions : 2400 x 2100 x 2200 [mm] - weight : 7100 [kg] EQUIPMENT - control CNC (base Siemens) - tail stock device - coolant tank with pump - 2 boring wheel 80, diameter : 260 [mm]

Condition: used, Year of construction: 2008, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, torque: 46 Nm, controller manufacturer: HEIDENHAIN, controller model: 530, spindle nose: HSK A 63, number of slots in tool magazine: 170, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, CNC Heidenhain iTNC 530 WORKING AREA Longitudinal travel X: 800 mm Transversal travel Y: 600 mm Vertical travel Z: 500 mm B axis: +30° / -100° C axis: n x 360° WORK TABLE Table dimensions: 320 x 320 mm Maximum workpiece weight: 120 kg SPINDLE Spindle taper: HSK A63 Maximum spindle speed: 24.000 rpm Motor power 40% ED: 22 kW Maximum torque 40% ED: 46 Nm AUTOMATION Tool magazine capacity: 170 tools Erowa pallet changer: 7 positions MACHINE EQUIPPED WITH • High-pressure coolant through spindle • Probe • Laser tool presetting • Chip conveyor • Oil mist cooling system • Rotoclear Lajdpfjy Tam Rox Amvog • ITC Intelligent Thermal Control • ITC-5X 5 Axis Intelligent Thermal Control • APS Advanced Process System • Remote electronic handwheel • Instruction manuals and CE declaration

Condition: used, Year of construction: 2001, functionality: fully functional, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Lasdpfxow Imq Rj Amvjg

Condition: excellent (used), Sound insulating cabins. For Bruderer high speed automatic presses. On stock available cabins for machines: BSTA 25 BSTA 41 BSTA 50 BSTA 60 BSTA 80 Cabins sold refurbished, carefully disassembled and packed for transport. Painted in white and anthracite (or colors requested by customer). Lasdpfsiw Icbjx Amveg Cabin is equipped with all needed holes for easy use of a Bruderer press. Front and rear doors with inspection glass. Air ventilator for climate control on top cover. For more information don't hesitate to contact us. We have on stock Bruderer BSTA 25, BSTA 30, BSTA 50, BSTA 110, also Mabu and Schaal automatic punching machines.

Condition: new, distance between shaft and table: 470total power requirements: 2,2 kwweight approx.: 1,2messurements (LxWxH): Länge2400 mm Breite/Tiefe2160 mm Höhe2300 mm Gewicht 1200 kgspindle rotation speed: 60 4200 min¯¹ Laedpfx Aod H Hhzsmvjg

Condition: good (used), Year of construction: 2006, machine/vehicle number: 860027, Offer 24331 Ledpsu Aq Amsfx Amvoag Technical data: - Table surface 1700 x 550 mm - manual travel X / Y 1300 x 500 mm - MAXION drilling machine, type: BT 18 STP - Drilling capacity up to 18 mm - Tapping device up to M 16 - Drill spindle holder MK 2 - Drill spindle stroke with fine drilling depth adjustment 76 mm - Pneumatic feed unit PV 12 - throat depth 670 mm - Spindle speeds 100 - 1800 rpm - 200 - 3600 rpm - mot. Stroke of the drilling unit - mot. Table clamping x + y - Minimum quantities Lubrication - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg

Condition: used, Year of construction: 1985, bore capacity in steel (diameter) 30 mm x-travel 850 mm y-travel 435 mm Control HEIDENHAIN TNC 150 total power requirement 16 kW weight of the machine ca. 3500 kg dimensions of the machine ca. m F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109 _____ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle taper SF 32 Spindle quill travels 210 mm Drilling Capacity approx.. 30 mm Spindle speeds steplessly adjustable 50 – 2,500 rpm Feeds steplessly adjustable 1 – 8.000 mm/Min. Quick feed 8.000 mm/Min. Spindle drive, approx. 6 kW Total electrical load 16 kW - 400 V - 50 Hz Weight, approx. 3,500 kg Accessories / Special Features: * HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc. Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach to the workpiece. * The quill movement can be actuated manually or also by the CNC-Control, * The Drilling depth can be presetted by a 12 fold turret drum for different quillstops and with a digital display of the values on monitor. * The complete Milling/Drilling head can be positioned in 3 different heights Lodpfx Ast Hxa Hjmveag and with automatic clamping. * Hi Precision Coordinate table controlled by the XY – CNC axis with hardened ball screw spindles. * With quick change tool holders, chucks, millers, etc. and with coolant device. Condition : Very Good to excellent - Machine under power, ideal for small batch production Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Year of construction: 2017, condition: ready for operation (used), Offered is an OptiMill MF 4V milling machine, almost new, 100h. Year of construction 2017, travel ranges X/Y/Z: 800mm/320mm/400mm, stepless spindle speed 9-6750rpm in 8 speed ranges, with electronic speed control, quill stroke: 127mm, 3-axis digital display DPA21, right/left rotation reversing switch, drilling depth stop, cross table X/Y 1244mm/230mm T-slot 16mm, chuck guard, coolant system, manual central lubrication, universal compressed-air tool clamping system ISO 40, stepless table feeds in X/Y, weight approx. 1200kg. Viewing is possible by arrangement. Lajdpfxjxyk Uco Amvjg

Condition: excellent (used), - Digital display Heidenhain - Accessories available Travel paths: X – path 280 mm Laodpsv E D Ttefx Amvjg Y – path 210 mm Cross table KS 255 D Spindle speeds 135 – 4,500 rpm
