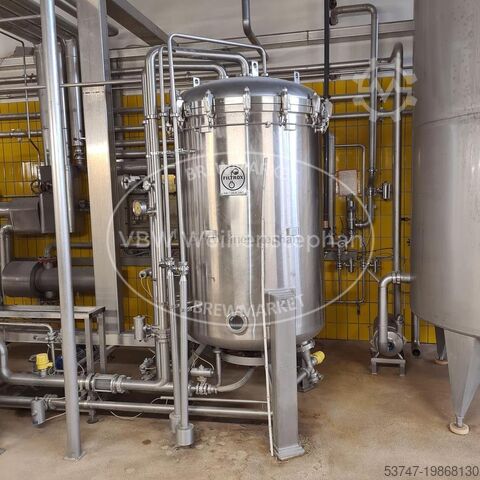

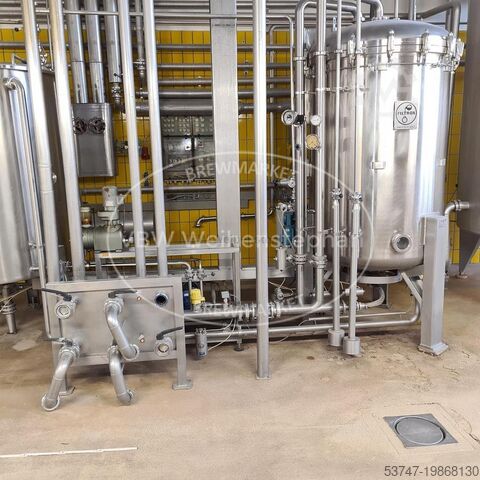

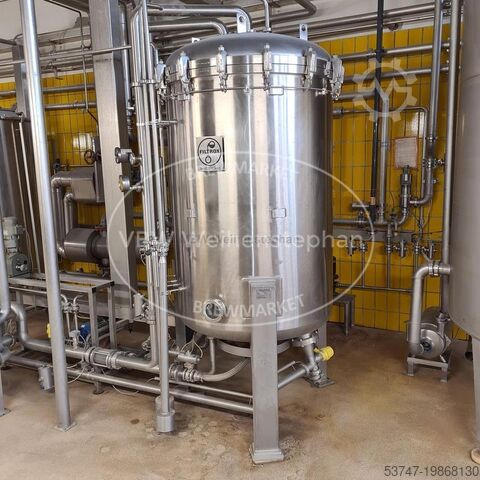

PVPP-Filter

FILTROX

Year of construction: 1991, condition: used, The Filtrox Cross Flow microfilter works with a permissible transmembrane pressure of 6 bar (0 °C - 95 °C) and a filtrate volume of 4.5 - 7 hl/h with a filter surface area of 26.4 m². Two pumps (20 kW) in the unfiltrate circuit transport the medium to be filtered. With 16 hl agitator tank as cleaning tank. Additional title: yeast-beer recovery Capacity: 7 hl/h Tol. operating pressure: 10 bar Tol. operating temperature: 85 °C Max. filter area: 26 m^2 Current: 4,85/2,8 A Pgsdpfevcq Daex Ag Dsk Voltage: 220/380 V Frequency: 50 Hz Operation / Control: Simatic S5 Features: 8 ceramic membrane modules (total filtration area 26.4 m2); high-pressure pump; 16 hl cleaning tank with agitator; various pipes, valves, measurement and control technology

Condition: excellent (used), Year of construction: 2013, GEA Modular Membrane Filtration System up to 6.25 m³/h, in excellent condition and barely used. This equipment was used for just two validation batches, and after that has been in storage. It is currently equipped with spiral-wound nanofiltration membranes but other membrane types can be used for microfiltration (MF), ultrafiltration (UF), etc. The complete original manufacturer documentation is included in digital format, comprising the operating manual, process flow charts, wiring diagrams, certificates, inspection reports, and other relevant technical documentation. The system is designed to process a maximum volume of approximately 100 m³ of product (feed) per day. An average feed flow rate of approximately 4 to 6 m³/h is assumed under the “16/4” or “20/4” operating regime (Explanation: “20/4” corresponds to 20 hours of filtration operation / 4 hours of CIP cleaning). If, at a later stage, the daily processing capacity needs to be increased or the installed membrane surface becomes insufficient due to unforeseeable fouling effects, two empty slots are provided for retrofitting additional membrane housings. The piping and recirculation pump are already prepared for such an expansion. The membrane unit is designed for a semi-automatic cleaning-in-place (CIP) procedure. The system includes the required valves for internal circulation of cleaning solutions, followed by system flushing. Specifications - Feed volume: 400 - 500 m³/week - Feed volume: 80 - 100 m³/day - Feed volume: 4.0 - 6.25 m³/h - Production time: 16 - 20 h/day - Operating temperature: 35 to max. 65 °C Consumption - Power supply (pumps): 3 x 400 V, 50 Hz - Installed power: approx. 65 kW - Electric power consumption: 53.1 kW/h - Compressed air: 6 bar, oil- and water-free - Steam: 6 bar (max.) - Seal water: approx. 75 - 150 l/h - CIP water: approx. 19 m³/h - CIP water per cycle: 6 m³/CIP - Steam consumption per cycle: 100 kg/CIP Pjdpovhctwsfx Ag Degk - CIP chemicals: (e.g., membrane cleaner, acid, alkali, preservative, biocide) Limits - Max. operating temperature: 65 °C - Max. operating pressure: 30 bar - pH range for feed water: - Maximum: pH 10.0 - Minimum: pH 2.0 Cleaning-in-Place (CIP) - Max. temperature: 85 °C - Max. pressure: 10 bar - pH limits (for up to 30 minutes): - Maximum: pH 10.5 - Minimum: pH 2.0

Condition: used, Year of construction: 1990, Additional title: beer filtration Filter capacity: 100 hl/h Filter area: 20 m² Perm. operating pressure: 6 bar Pgodsvcq D Hjpfx Ag Dsk Perm. operating temperature: 100 °C Voltage: 380 V Frequency: 50 Hz Weight: 2020 kg Features: 32 filter elements (30 x main filtration, 2 x residual filtration), 14 clamp screws (type: M20-L-8)

Year of construction: 1998, condition: ready for operation (used), Output: 200-300hl/h, operational pressure: 7bar. Pgodpjga Ub Aefx Ag Djk

Year of construction: 1980, condition: good (used), - Horizontal sieves - 30 filter plates - Filter area : 6 m2 - Max, operating pressure : 6 bar Pedpemn I Nxofx Ag Dogk - Capacity : 30 - 120 hl/h - With semi-automatic cleaning Dimensions : - Length : 1800 mm - Width : 850 mm - Height : 2000 mm

Year of construction: 1987, condition: good (used), - Year of construction: 1987 - Horizontal sieves - 30 filter plates - Filter area : 6 m2 - Max, operating pressure : 6 bar Pjdpfx Aot Igd Nsg Dsgk - Capacity : 30 - 120 hl/h - With semi-automatic cleaning - Dosing pump replaced in 2017 - Machine in good condition Dimensions : - Length : 1800 mm - Width : 850 mm - Height : 2000 mm

Year of construction: 2000, condition: good (used), - Filter area : 6 m2 Psdpjhlvhnefx Ag Djgk - Machine in good condition
