Circular sawing machinesFIMAL
concept 350 elite
Machine data
- Machine type:
- Circular sawing machines
- Manufacturer:
- FIMAL
- Model:
- concept 350 elite
- Condition:
- as good as new (ex-display)
- Functionality:
- fully functional
Price & Location
- Location:
- In den BÜgen 11, 88299 Leutkirch im Allgäu, DE
Technical details
- Cutting width (max.):
- 2,100 mm
- Cutting height (max.):
- 105 mm
- Saw blade diameter:
- 350 mm
- Total length:
- 4,300 mm
- Power:
- 7.35 kW (9.99 HP)
Details about the offer
- Listing ID:
- A196-14876
- Reference number:
- 65-0570/05
- Update:
- 21.07.2025
Description
Thanks to its pressure beam with automatic feed, the ELITE combines the flexibility of a sliding table saw with the cutting quality of a pressure beam saw â all within a footprint of just 28 m².
Technical Specifications
⌠Aluminum machine and extension tables
⌠Saw unit tiltable up to 46°
⌠Pressure beam, including LED lighting with 3 different action colors:
WHITE: Machine in stand-by
RED: Pressure beam lowering or emergency-stop function
BLUE: Saw unit in motion
⌠Versatile support table 1,000 x 500 mm
⌠Scoring system via the main saw blade (co-rotating)
⌠Automatic workpiece length detection for minimal travel distance
Csdsw Axf Rjpfx Abwohc

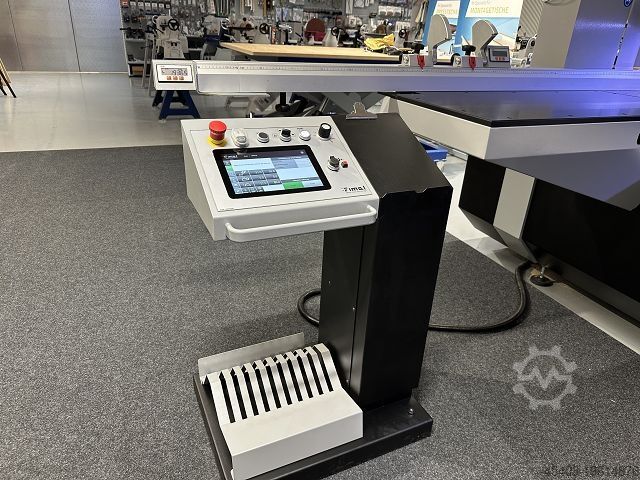

⌠Mobile and height-adjustable control panel, including:
Saw blade holder, template holder, emergency-stop button, start button, selector
switch for grooving/scoring/cutting, rotary switch for feed speed, switches
for laser (option) and USB socket
⌠Max. saw blade projection (350 mm blade): 100 mm at 90° / 70 mm at 45°
⌠Saw blade: diameter 300 â 350 mm, bore 30 mm
⌠Saw blade speed: 4,000 rpm
⌠Motor: 5 kW (= 7.5 HP)
⌠Feed speed: 0 â 40 m/min
⌠Total length: approx. 4,250 mm
⌠Weight: approx. 1,300 â 1,700 kg (depending on cutting length and configuration)
⌠Required air pressure: 7 bar
⌠Extraction port: 1 x 100 mm, 1 x 120 mm
⌠Extension table length: 3,670 mm / 4,270 mm / 4,870 mm (total length)
⌠Tilting range: 0 - 46°
⌠Sliding table: 1,000 x 400 mm (extension table)

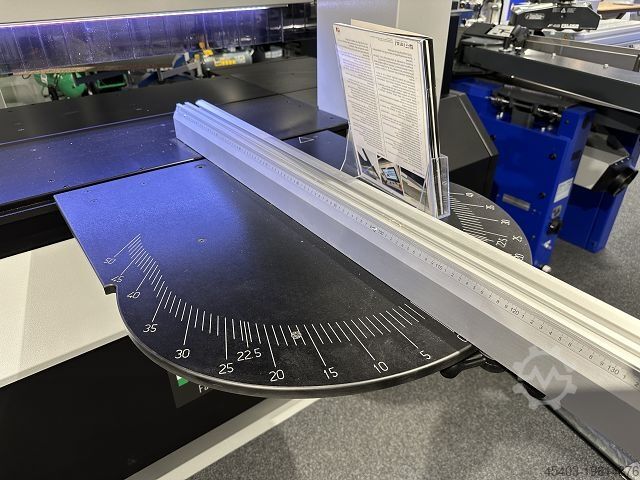

⌠Crosscut fence: 3,200 mm with 2 digital flip stops
⌠Speed: 4,000 rpm
⌠Air requirement: 6 bar
⌠Motor voltage: 400 V (50 Hz)
⌠Feed speed: 0 - 40 m/min
Options
Multistop, cutting width 2,100 mm instead of 1,300 mm
Programmable saw blade height adjustment
Miter fence +/-50°
Cutting line laser
Including delivery and installation within postal code areas 71,72,73,77,78,79,86,87,88,89
The listing was translated automatically. Translation errors are possible.
