Tipper

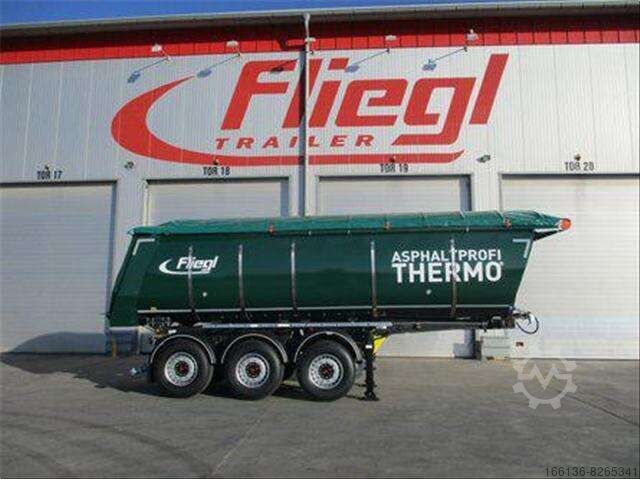

Fliegl DHKS 390 27m³ Asphaltprofi Thermo

Additional Information
Chassis
Fine-grain steel welded construction, lightweight design, kingpin plate with 2 interchangeable kingpins
Curved front end, patented
Telescopic support in the center, uncoupling with load not possible; in the uncoupled state, the vehicle must be tilted backwards.
Chocks + holder
Underrun protection, foldable
Half shell mudguards
Integrated mudguard holder, surface designed to repel stones
Splash flaps behind the last axle in asphalt design, attached to the mudguard with hinges, with the option to be hooked onto the mudguard at the top, mudguard shortened
Ijdpfxji Rix So Anweth
Towing hook at the rear
Axles + Suspension
SAF drum brake axles
Axle/suspension laser-aligned, reducing tire wear and fuel consumption
Axles in off-road design
Air suspension
1st axle: automatic lift axle, incl. forced lowering and starting assist; operation via 3x braking (starting assist is functional up to an axle load exceedance of 30% and up to a speed of max. 25 km/h)
Hot-dip galvanized lift axle mechanism
Braking System
2-line compressed air braking system, color-coded lines for easy servicing
Spring-loaded parking brake
2 fail-safe coupling heads at the front, without connecting line
EBS, electronic braking system with EBS socket at the front, without connecting cable
Note: The trailer may only be towed by towing vehicles that ensure the effectiveness of the ABS!
with lifting and lowering valve
Vehicle driving stability system
Wheels & Tires
385/65R22.5, manufacturer's choice
Steel rims, factory silver
Electrical System
24 Volt, multi-chamber lights, yellow LED lighting on the side
2 white position lights at the front
2 white/red side marker lights at the rear
2 x 7-pole fail-safe sockets at the front, without connecting cable
Hydraulics
High-pressure cylinder max. 250 bar, with HDK screw connection, fixed part, NW 48 mm (without hose connection)
Actuation hydraulically via truck auxiliary drive
Body
Steel round body in Stone Master design made of highly wear-resistant HB 400/450 steel. Sloping front wall with external hydraulic cylinders and ladder on the front wall.
Membrane rear wall
Rear wall as a pendulum flap, externally supported with double hook locking. 2 clamping screws with lever closures on the side at the bottom.
Side walls continuous, 4 mm thick, floor 4/5 mm thick, wear-resistant and weight-optimized design
Body in insulated version, Fliegl Asphalt Profi Thermo, body insulated at the front, side, bottom and rear with Fliegl Isotherm.
BASIC cover, tarpaulin cladding
Standing platform with ladder, connecting plate for air/electrical and brake connections with large space for optimal operation.
Roll-up tarpaulin on one side for storage on the right, with central locking on the left
Operating Instructions
For transport of salt, lime, etc., we recommend a tilting cylinder with a hard chrome-plated piston rod to protect against rust
The specified total weight is technically possible; depending on the load, the total weight may not be reached while adhering to the permissible axle/support and kingpin loads. (Poor driving and tracking behavior possible due to incorrect load distribution)
Country of Registration/ Signs
Germany
with Dekra approval and certificate (according to §13 EG - FGV)
Body strength according to EN 12642
24/7 service hotline
Manufacturer's certificate for thermal vehicles according to RS 10 - 2013
prepared for license plate holder, single row
Contour marking

The listing was translated automatically. Translation errors are possible.
