Swivel spindle milling machine

Format4 Profil 92 M

The new profil 92 M e-motion spindle moulder is Format4’s premium model, offering maximum operating comfort and ensuring absolute efficiency through minimal setup times during milling operations. The advanced electric spindle features an HSK 63F interface for a tool quick-change system with pneumatic clamping. The swiveling range of ±46° enables limitless machining versatility. With the self-explanatory e-motion control via a 15-inch touchscreen panel, spindle speed, spindle height and angle, as well as the fence position and even the table opening, can be set intuitively and precisely. Integrated memory for tools, spindle settings, and milling programs ensures perfect repeat accuracy and the shortest setup times.

Electrically controlled, eccentric inserts provide maximum table support area and significantly reduce adjustment work, especially when swiveling the spindle. The newly developed heavy-duty precision milling fence features two powered axes for precise depth adjustment of the complete fence, plus an independent, adjustable depth stop for the right-hand feeding jaw. For convenient access during curve milling, the fence can be swung completely out of the working area. Optionally, the Format4 profil 92 M e-motion can be equipped with an electrically height-adjustable power feeder.

Further technical data:
- Maximum tool diameter: 250 mm
- Usable spindle height: 140 mm
- Height adjustment: electric

Optional equipment:
12 Potential-free contact
106 HSK 63F spindle, Ø 30 mm, 140 mm
118 Integral safety rulers, 650 mm
119 Table opening 255 mm with controlled eccentric inserts
183 Table extension on both sides 670 mm with 2200 mm sliding frame
213 Electrically height-adjustable feeder support, incl. horizontal tube
Nlsdpfxjwztr No Ah Doi
220 Parts list holder with A9 clipboard

Advantages:
- Highly efficient electric spindle with stepless speed adjustment and HSK 63F interface
- Position control for milling height and angle ±46º
- Position control for milling fence including offset function
- Smartouch with intuitive e-motion control system
- Table opening with controlled eccentric inserts (optional)
- Electrically adjustable height for the feeder on overhead column (optional)

Further information:
- The electric spindle features a HSK F63 tool quick-change system
- Clamping range: 2–25 mm with OZ25 collets

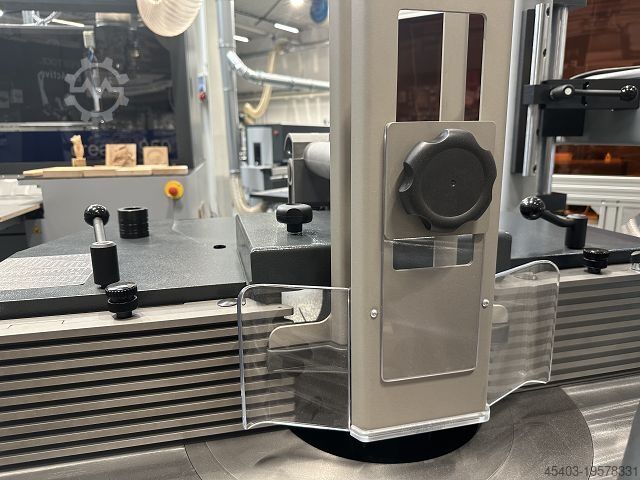

- "Integral" safety rulers: 650 mm
- Table extension on both sides 670 mm with 2200 mm sliding frame
- Table opening 255 mm with controlled, eccentric inserts

The listing was translated automatically. Translation errors are possible.
