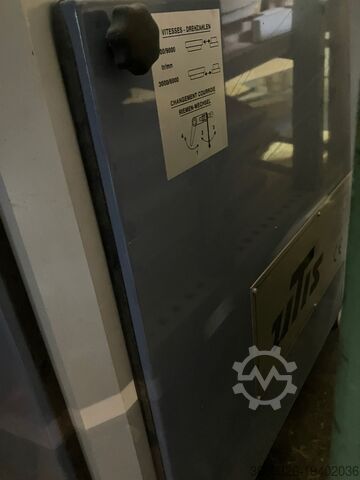

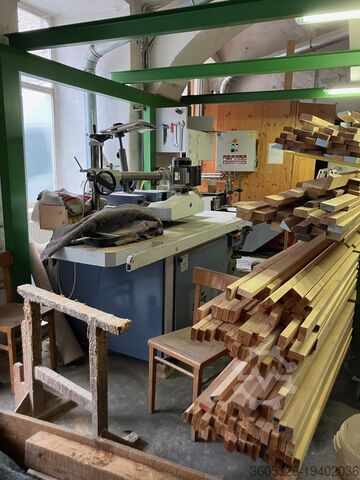

Swivel spindle milling machine

UTIS CSN

Condition: ready for operation (used), Technical characteristics En cours de vérification Control panel Digital adjustment of spindle height and speed Shaft height and motorized fence HSK F80 tilting spindle Tilting +30°/45 Speed 1500, 4500, 6000 and 9000 rpm Shaft diameter: 50 mm Shaft length: 160 mm Nlsdpet Splwofx Ah Dei Maximum tool diameter: 220 mm Quick tool change (hydraulic) Infeed/outfeed adjustable steel guide Top-of-the-range machine Ideal for joinery, windows and cabinetmaking Power and Motors Voltage: 400 V Pluging: Three-phased Power: 6 Kw Motor: 7,5 CV Overall dimensions Lenght: 1340 mm Width: 1430 mm Height: 1320 mm Weight: 1300 Kg

Year of construction: 1996, condition: excellent (used), Automatic slotting machine with two oscillating tables BALESTRINI 2CAP Maximum length of the groove 120 mm Maximum recess depth in mm 80 Spindle speed 9000 rpm Spindle motor 3 Hp Nsdpfx Ahjgmucpe Doli Oscillating motor Hp 1 Pneumatic clamp for the workpiece Overall dimensions: mm 1000 x 900 x 1250 Weight kg 500

Condition: ready for operation (used), Year of construction: 1988, functionality: fully functional, milling spindle length: 150 mm, power: 11 kW (14.96 HP), spindle diameter: 40 mm, overall weight: 1,500 kg, Double-sided swivel unit bearings with two sturdy segment guides, modern steel construction column, heavy-walled, heavily ribbed cast iron table, replaceable milling arbor, three-phase motor with 4 speeds, electric height and tilt adjustment in rapid and creep speed, and electronic digital display, incremental dimension switching for height adjustment, milling stop with fine adjustment and metal stop jaws and replaceable aluminum splinter guards, Nlodewcpqqopfx Ah Dei extraction nozzles on the milling stop and below the table, each 120 mm in diameter, minimum extraction speed at the extraction nozzle: 20 m/s, rotating table insert, locked reversing switch for left and right rotation, lockable main switch, cam switch, automatic motor brake Table size: 1350 x 800 mm Table height: 880 mm Motor power: 11 kW MK 5 milling arbor mount Speeds 3000/4500/6000/9000 rpm Mill arbor swivel range: -5° to +45° Height adjustment: approx. 145 mm Control: CNC Table extension on both sides, total length 2500 mm, including extendable frame support Stepless 4-roller feed 2-axis control Mill arbor with 40 mm diameter and 150 mm length

Condition: good (used), Year of construction: 2006, CNC Multitron PS 10 Control: Column-guided Material roller conveyor on both sides 4000 mm / 1000 mm Cutting speed 15 - 105 m / min Technical details Cutting diameter 320 mm Nlsdpfxjv I Rfuj Ah Dei Saw blade length 3280 mm Cutting width 320 mm Total power requirement 3.8 kW Machine weight approx. 115

Condition: new, capacity 90 degrees: round 305 mm capacity 90 degrees: square 260 mm 350x200 saw band length 3375x27x0,9 mm band speed 18 - 100 m/min table height 880 mm total power requirement 1,5/1,8 kW weight of the machine ca. 0,84 t dimensions of the machine ca. 1,85 x 1,9 x 2,0 m Demonstration system for a SPECIAL PRICE!! Fully automatic miter band saw • miter left 45° automatic operation • miter left 60° semi-automatic operation (cuts without programming) • Material height sensor (automatic cut start recognition) • Frame and gear made from one piece, very quiet cut and very low vibration • Removable chip tray (disinfection) • Shockproof and ergonomic control panel with oil-resistant EPDM cover • Top access to the saw, material and feed unit • Hinged safety cover • Fine feed adjustment • Semi-auto. Cut! • Optimize work processes with CNC control Possibility to enter various parameters such as quantities and material lengths, automatic calculation of the cutting channel • CNC control for 10 different saw programs with 99 sub-programs for different lengths and quantities, e.g. 1 cutting program with various section lengths Nedpfxsupw R Aj Ah Deli • Automatic feed unit (CNC) via ball roller spindle incremental feed with automatic length compensation. Adjustable for section lengths of 2 mm to 9,999 mm, remainder length 170 mm. Inclusive: - Micro-spray device - Leveling elements

Condition: as good as new (ex-display), Festo pneumatic cylinders RA1941 Manufacturer: Festo cylinders Some still Orginalverpackt alongside prices are per piece. 8 x ADVU-25-10-P-A 86,39€ 7 x ADVU-40-15-P-A 128,46€ 8 x ADVU-40-20-A-P-A 131,49€ 4 x ADVU-25-20-A-P-A 89,60€ 8 x DNC-63-160-PPV-A 198,00€ 1 x DNC-50-125-PPV-A 165,03€ 7 x DNC-40-80-PPV-A 139,50€ 1 x DNC-40-200-PPV-A 149,01€ 2 x DNU-32-50-PPV-A price on request 3 x STA-50-30-P-A-SA Price on request 1 x FENG-40-200-KT+DNC-40-200-99A 624,99€ 1 x FENG-40-200-KT 474,99€ 4 x DMM-25-15-P-A 46,38€ 1 x DFM-32-50-PA-GF 228,55€ 8 x DNC-32-40-PPV-A 120,54€ 1 x DNC-32-50-PPV-A 121,15€ 10 x DNC-32-80-PPV-A 122.93€ 10 x DNC-40-50-PPV-A 137,13€ 3 x DNC-50-80-PPV-A 160,87€ 2 x DNC-50-50-PPV-A 157,85€ Nljdpfxjk Abl Ns Ah Dsi 5 x DSNU-25-25-PPV-A 43,28€ 4 x ESNU-25-20-P-SA Price on request 1 x DSNU-25-10-P-A 36,59€ 2 x DSNU-20-20-P 34,65€ 1 x ESNU-16-25-P Price on request 1 x DSNU-20-20-P-A 34,65€ 1 x DSNU-20-50-PPV-A 40,77€ 2 x DGPL-40-450-PPVA-KFB price on request 7 x DNC-40-500-PPV-A 172,76€ 7 x DSNU-32-80-PPV-A 52,08€ 4 x DSNU-32-60-PPV-A 57,12€ 6 x DZF-25-12-A-P-A 110,52€ 1 x DZF-32-A-?-A price on request 2 x DZF-32-125-P-A-SA 126,57€ 2 x DSNU-25-125-PPV-A 45,05€ 1 x DSNU-25-125-PPV-A+2 SENSORS 101,30€ 1 x DSNU-25-300-PPV-A 48,35€ 1 x DNC-63-160-PPV-A-KP 815,28€ 2 x DNC-63-160-PPV-A 198,01€

Condition: used, Year of construction: 1994, functionality: unexamined, planing height: 120 mm, planing width: 230 mm, total height: 1,700 mm, total length: 4,600 mm, overall weight: 3,550 kg, Machine with 6 planing shafts bottom-right-left-top-top-bottom Working width max. 230 mm Nedpfxev Dx Eue Ah Doli Planing height max. 120 mm Feed speed 5 - 35 m/min.

Condition: used, with 7 spindles used Manufacturer Hemag Type Milling Rotor 190 Machine-No. 703134 Motor 7.5 kW mechanical brake 3 speed levels Right-left rotation Spindle 7 pieces Spindle diameter 30 mm Tool diameter max. at milling stop 210 mm Tool diameter max. in the machine 140 mm Table size 1300 mm x 1050 mm Extendable frame support Milling stop with fine adjustment Extraction connection D 120 mm Njdpewrtldsfx Ah Dsli Space requirement approx. 1300 mm x 1100 mm x 1200 mm Weight approx. 1100 kg Total connected load 7.5 kW Storage location 97447 Gerolzhofen, free loaded, unpacked Transfer in as-inspected condition, without warranty and guarantee

Condition: as good as new (ex-display), functionality: fully functional, power: 7.35 kW (9.99 HP), spindle diameter: 30 mm, pivoting range: 46 °, input voltage: 400 V, rotational speed (min.): 1,000 rpm, rotational speed (max.): 18,000 rpm, input frequency: 50 Hz, The new profil 92 M e-motion spindle moulder is Format4’s premium model, offering maximum operating comfort and ensuring absolute efficiency through minimal setup times during milling operations. The advanced electric spindle features an HSK 63F interface for a tool quick-change system with pneumatic clamping. The swiveling range of ±46° enables limitless machining versatility. With the self-explanatory e-motion control via a 15-inch touchscreen panel, spindle speed, spindle height and angle, as well as the fence position and even the table opening, can be set intuitively and precisely. Integrated memory for tools, spindle settings, and milling programs ensures perfect repeat accuracy and the shortest setup times. Electrically controlled, eccentric inserts provide maximum table support area and significantly reduce adjustment work, especially when swiveling the spindle. The newly developed heavy-duty precision milling fence features two powered axes for precise depth adjustment of the complete fence, plus an independent, adjustable depth stop for the right-hand feeding jaw. For convenient access during curve milling, the fence can be swung completely out of the working area. Optionally, the Format4 profil 92 M e-motion can be equipped with an electrically height-adjustable power feeder. Further technical data: - Maximum tool diameter: 250 mm - Usable spindle height: 140 mm - Height adjustment: electric Optional equipment: 12 Potential-free contact 106 HSK 63F spindle, Ø 30 mm, 140 mm 118 Integral safety rulers, 650 mm 119 Table opening 255 mm with controlled eccentric inserts 183 Table extension on both sides 670 mm with 2200 mm sliding frame 213 Electrically height-adjustable feeder support, incl. horizontal tube 220 Parts list holder with A9 clipboard Advantages: - Highly efficient electric spindle with stepless speed adjustment and HSK 63F interface - Position control for milling height and angle ±46º - Position control for milling fence including offset function - Smartouch with intuitive e-motion control system - Table opening with controlled eccentric inserts (optional) - Electrically adjustable height for the feeder on overhead column (optional) Nljdpfx Aewztr Nsh Dsi Further information: - The electric spindle features a HSK F63 tool quick-change system - Clamping range: 2–25 mm with OZ25 collets - "Integral" safety rulers: 650 mm - Table extension on both sides 670 mm with 2200 mm sliding frame - Table opening 255 mm with controlled, eccentric inserts

Condition: used, Year of construction: 1990, used, good conditionMake Panhanstype 240Year of construction 1990Machine no. 212Motor boosted 11 kWswiveling from -5 to +45Speed levels 3000 / 4500 / 6000 / 9000 ht-left runTable size 1350mm x 800mmTable top extension approx. 600/2400 mmFrame support extendableMilling arbor diameter 30 mmcast stop jawsMilling fence with fine adjustmentElectric height adjustment, tiltingDigital displays for swivel spindle spindle heightPower socket for feederExtraction connection D 2 x 120 mmSpace requirement approx. 2500 mm x 1300 mm x 1300 mmWeight approx. 1100 kgStorage location 97447 Gerolzhofen, freely loaded, unpackedHandover in the current condition as seen,without guarantee and guarantee Nlsdpovwfx Usfx Ah Dei
