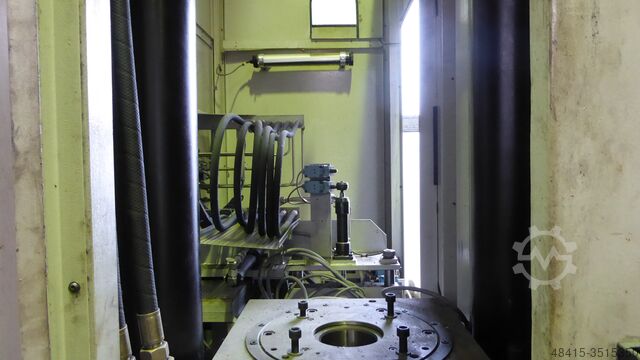

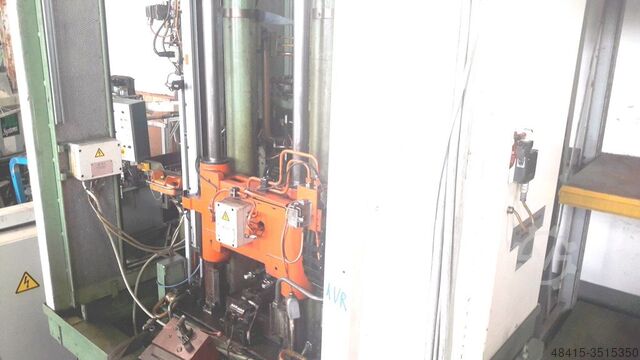

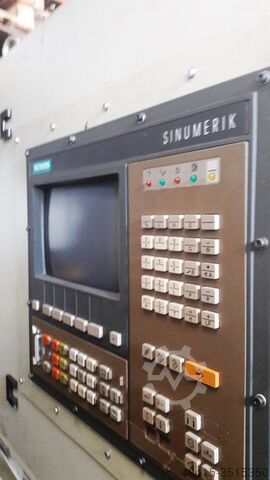

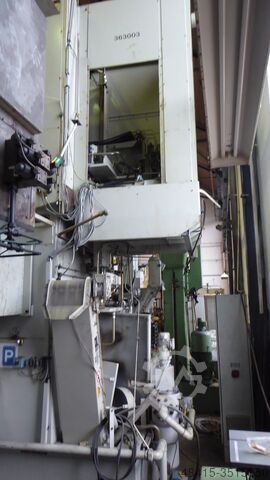

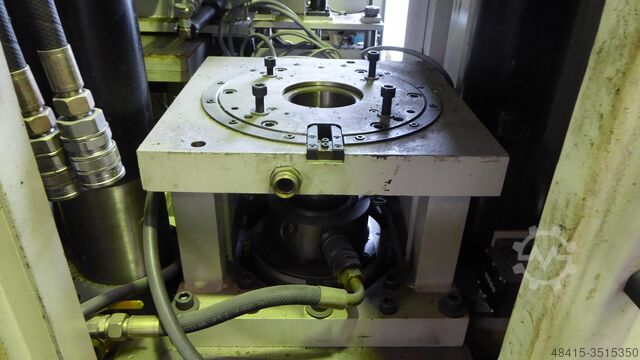

Broaching Machine - vertical

Forst RISZ 6,3 x 1000

Year of construction: 1992, condition: used, machine/vehicle number: 148, Broaching Machine – Vertical Hard Broaching Machine Manufacturer: Forst Typ: RISZ 6,3 x 1000 x 320 Machine number: 148 Year of manufacturing: 1992 Hedpodnk T Aefx Anpjp Force max.: 80 kN Stroke max.: 1.000 mm Weight: approx. 10 Tons (Machine+Control Cabinet+Hydraulic aggregate)

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Hedpfx Aevc Apbjnpsp Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Year of construction: 1995, condition: used, machine/vehicle number: 18891, Force: 10 to. Stroke: 1000mm 3 Broaching-stations With chip-conveyor + platform and safety door Hedpfsbrcmkox Anpep

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] Hodpfjuhaycsx Anpop - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Year of construction: 1997, condition: excellent (used), Universal Turning key drawing machine from Cardinal apply for toolmaker , mold maker, education and Locksmith Slot width 3 - 100 mm max. groove length 1250 mm Pulling force 6000 kg Draw length 1250mm Motor 5,5 KW Weight 1650 kg Dimensions 1000x1650x1000mm Hjdpfxoin Dkze Anpop

Year of construction: 1965, condition: used, machine/vehicle number: 2112, Color: green Force: 2,5 to Stroke: 1000mm Hedjbrclvepfx Anpep Weight: 1,2 to 3 KW Area required: appr. 140 x 130 cm

Condition: excellent (used), Mikron Gear Hobbing Machine A33/0 – for Module 0.5 to 2.5 – rarely used Manufacturer: Mikron Model: A33/0 – Gear Hobbing Machine (vertical) Version: Base machine with standard milling head Condition: used, very good condition, machine has been rarely operated Color: green Technical Data Max. workpiece diameter: approx. 80 mm Max. hobbing length: approx. 150 mm Module range: approx. 0.5 – 2.5 Ideal for small gears in the module range 0.5 – 1.0 Main drive: 3 kW Hsdpex A D Izsfx Anpep Electrical connection: 3 x 380 V AC, 50 Hz Total power consumption: approx. 9.5 kVA Dimensions & Weight L x W x H: approx. 1,450 x 1,380 x 2,080 mm Weight: approx. 2,200 kg Special Features Very well-suited for manufacturing small gears (module 0.5 – 1.0) Machine was rarely used in production, therefore minimal wear Availability / Service Detailed photos and operating video available upon request Quotation including price, delivery terms, and lead time possible Subject to prior sale and errors.

Condition: used, Year of construction: 2009, Technical details: rotor dia: 30-500 mm hobbing length: 500-1000 mm total power requirement: 80 kW weight of the machine ca.: 15 t dimensions of the machine ca.: 3,6 x 2,5 x 3,0 m max. module: 8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Hodpov Hrp Ejfx Anpop Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel *

Condition: good (used), Cardinal Broach Model TM7 Hsdjq R T Hcjpfx Anpop

Condition: ready for operation (used), Year of construction: 2008, A vertical internal broaching machine Frömag is available. Broaching tools: 3, stroke: 800mm, pulling force: 60kN, connected load: 15kW. Machine dimensions X/Y/Z: approx. 1050mm/900mm/3800mm, control: Frömag Commander PP-10. An on-site inspection is possible. Hjdpoxph Sdjfx Anpsp
