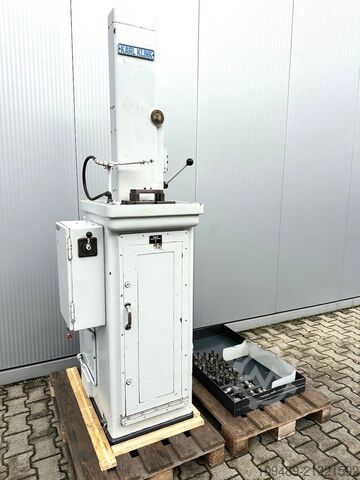

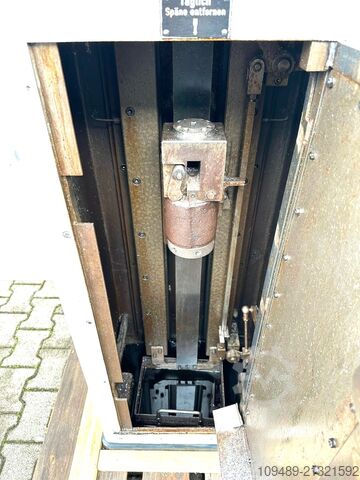

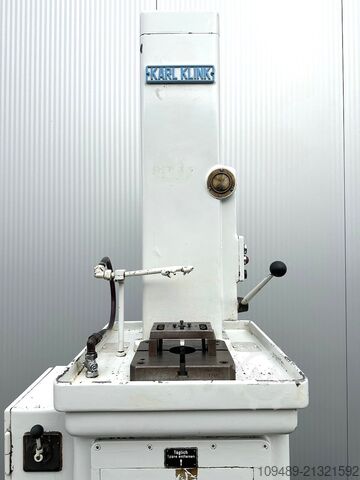

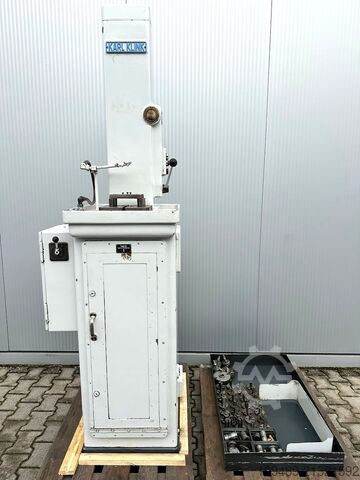

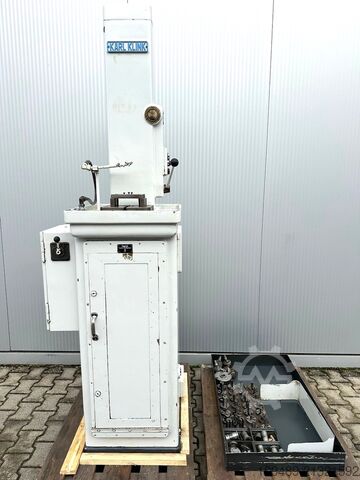

Broaching Machine – vertical

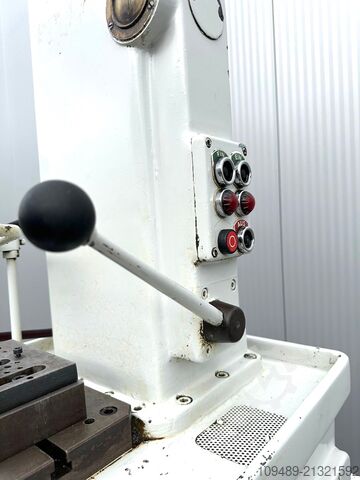

Karl Klink RSI-2,5

Condition: good (used), Manufacturer ESTARTA Model 301 MV Condition Used Stock number 4576 Location Badajoz, Spain Dimensions 1520x1020x1260mm Weight 1550 kg Opening between grinding wheels 1,5/50mm Max. grinding wheel width in plunge grinding plunge 125mm Dimensions of the working wheel (od x id x width) 300x125x175mm Øext.min. working wheel working wheel 220mm Max. depth of profile of working profile depth 8mm Dimensions of the driving wheel (od x id x width) 220x125x125mm Fsdjr Ezfpspfx Agmeft Øext.min. of driving wheel drive wheel 165mm Max. depth of profile of the driving wheel profile depth 8mm Grinding wheel motor power motor power 7,5Kw Motor power of grinding wheel driving motor power 0.75Kw Tilting angle angle of working working +/- 5º

Condition: good (used), Year of construction: 1997, TBT ML 200-2-850 deep hole drilling machine TECHNICAL DATA Type: M200-2-850 Number of spindles: 2 Drill carriage stroke: 850 mm Drilling method: Single-lip drilling Drilling depth with: Submersible spindle: 120 mm Sealing housing: 400 mm Sealing housing with bezel: 350 mm Spindle drive Power: 2 / 3.5 / 1.5 kW Voltage: 140 / 350 / 350 V Speed: 14 / 11 / 6 / A Feed - own drive Feed speed: 20 - 500 mm/min Rapid traverse speed NC operation: 12 m/min Feed force: 1.5 kN Motor power: 2.2 Nm at 3000 rpm Clamping tailstock Motor power: 0.75 kW at 1000 rpm Spindle speed: 500 rpm Fedpfjvca Rcox Agmjft Stroke max: 200 mm Main dimensions L x W x H: 4600 x 2500 x 2100 mm Transport weight: 3200 kg Control: Sinumerik 805 M No liability is assumed for the correctness, completeness and up-to-dateness of the information provided

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm Fodpfx Aevc Apbegmeft feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: like new (used), pressing force: 750 t, HOT FORGING PRESS MANZONI 750 TON Ffsdpfjt Dwu Djx Agmot

Condition: used, TECHNICAL DETAILS - Pulling force : 80 [kN] - Max. broaching stroke : 1250 [mm] Fodpfx Agou E U R Tsmeft - Max. feed stroke : 500 [mm] - Spindle lengths : 650 - 1400 [mm] - Table width : 400 [mm] - Broaching speed : 1 - 10 [m/min] - Return stroke speed : 1 - 15 [m/min] - Installed power : 25 [kW] - Machine weight : 4300 [kg]

Condition: used, Year of construction: 2003, Technical details: max. wheel diameter: 80 mm max. module: 3 total power requirement: 25-35 kW weight of the machine ca.: 10 t Fodpfowwlunex Agmsft workpiece weight: 15 kg workpiece length - max.: -50....+450 mm table diameter: 145 mm diameter of hob: 90 mm cutter length max.: 220 mm hob turning speeds: 1.000 U/min

Condition: excellent (used), Year of construction: 2004, Technical Specifications – ZS 130 T Gearwheel Shaving Machine Gear Specifications: * Gear diameter: 20 – 145 mm * Tooth width: 40 – 45 mm * Module range: 1.25 – 3.5 Working Area: Ffedpfjkwc Tfsx Agmjt * Swivel range of the shaving head: -23° to +90° * Taper adjustment (B-axis): +2° / -2° * Horizontal adjustment (X-axis travel): 160 mm * Swivel range of rotary table (E-axis): ±20° * Input resolution for all NC axes: 0.001 mm / degree Slide Travel (Z-Axis): * Travel range (Z-axis): 300 mm * Input resolution: 0.001 mm Shaving Cutter Dimensions: * Outer diameter: 230 – 256 mm * Bore diameter: 63.5 – 100 mm * Shaving cutter width: 50.8 – 0.2 mm Workpiece Parameters: * Outer diameter: 20 – 145 mm * Module: 1.25 – 3.5 * Gear width: up to 40 mm Rotational Speeds: * Tool spindle speed (infinitely adjustable): up to 600 rpm * Workpiece speed (machining): up to 3000 rpm * Workpiece speed (spin): up to 4500 rpm Feed Rates: * A-axis: up to 3.3 rpm * B-axis: up to 0.5 rpm * C0-axis: up to 60 rpm * X-axis feed: 10 – 10,000 mm/min * Z-axis feed: 10 – 10,000 mm/min Machine Weight: * Approx. 5,600 kg --- Machine Description: The ZS 130 T is a high-performance gearwheel shaving machine designed for the precise finishing of cylindrical gears after hobbing or shaping. Shaving is a crucial process in gear manufacturing, used to correct profile and lead deviations and to improve surface finish, ensuring quiet operation and extended gear life. This machine is capable of processing gears with modules from 1.25 to 3.5 and diameters up to 145 mm. With its CNC-controlled axes and flexible swivel and taper adjustment capabilities, the ZS 130 T allows for a wide range of gear geometries and high production efficiency. The machine is ideal for manufacturers requiring high precision, consistency, and productivity in gear finishing processes. Typical Applications: * Finishing of gears for automotive transmissions and gearboxes * Shaving of helical and spur gears * Volume production in automotive and industrial gear manufacturing * Correction of tooth profile and lead errors before heat treatment The ZS 130 T combines robust construction, high-speed capability, and flexible adjustment options, making it a reliable solution for demanding gear shaving applications.

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, workpiece weight (max.): 100 kg, wheel width: 400 mm, grinding wheel diameter: 400 mm, helix angle: 45 °, table diameter: 180 mm, table load: 100 kg, wheel diameter: 400 mm, overall weight: 10,000 kg, travel distance Z-axis: 660 mm, Equipment: documentation/manual, CNC Gear Grinding Machine HOFLER HELIX 400KK Ffjdpfx Agsx Nfwaemjt Diameter-Ø max: 400mm Dimeter-Ø min: 10mm Number of teeth variable Profilhöhe max: 35mm Modul: 1-10 Grinding head inclinaison: 45° Spindle speed max: 5400 1/min Counter height max: 745mm Table weight: 100 kg Total weight ca. 10000 kg Werkzeugdaten: Grinding wheel-Ø max: 300mm Grinding wheel-Ø min: 80mm Width max.: 30mm bore-Ø: 160mm Siemens 840 D Alle Achsen CNC gesteuert Ölnebelabsaugung Filtration unit Hydraulic clamping Dittel balancing unit Accessories with machine available : Various grinding wheel available 1 Diamnod disc Tailstock rotative and fixed( fest und mitlaufend )

Condition: used, Year of construction: 2005, Reishauer RZ150 gear grinding machine Ffedpfxjxz E Sro Agmjt

Condition: used, TECHNICAL DETAILS - max. force : 63 [kN] - broaching stroke : 1000 [mm] - spindle stroke : 400 [mm] - 3 cutting feeds : 2,5 - 5 - 7,5 [m/min] - return speed : 24 [m/min] - broaching positions : 1 - hydraulic motor : 9 [kW] - capacity of hydraulic tank : 600 [l] - capacity of cooling tank : 150 [l] - main voltage : 400 [V] - total power : 10,5 [kW] - floor space : 3.700 x 3.000 [mm] - total height : 3.200 [mm] - weight : 3.500 [kg] Ffsdpfxjug U H Uj Agmst
