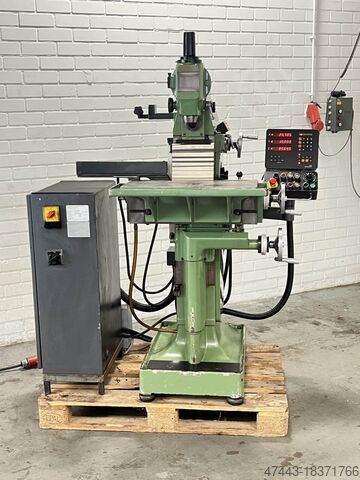

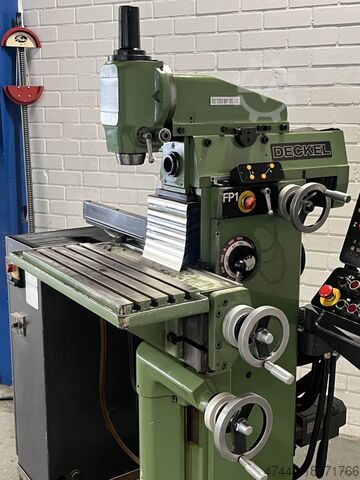

Universal Tool Milling and Drilling Machine

Friedrich Deckel FP1

Condition: ready for operation (used), Travel X/Y/Z: 290mm/150mm/330mm, vertical head stroke: 100mm, tool holder: SK40, speed: 2000rpm, feed rate: 500mm/min, rapid traverse: 1200mm/min, table dimensions X/Y: 600mm/195mm, max. table load: 150kg. Machine dimensions X/Y/Z: approx. 1250mm/1200mm/1400mm, weight: approx. 1800kg. On-site inspection is possible. Fgodpfxox Hz Rko Af Esa

Condition: used, Universal Tool Milling Machine DECKEL Type FP 1 Machine No. 51265 Year of manufacture: approx. 1967 Travel paths X: 300 mm Y: 150 mm Z: 340 mm Table size 600 x 200 mm Spindle taper SK 40 - S20 x 2 Spindle speed 40–2000 rpm, 16 steps Motor power 1.0 and 1.6 kW, pole-changing Power supply 380 Volt, 50 Hz - Feed on X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at vertical milling head 60 mm - Swiveling, rotating, and tilting angle table - Coolant pump in machine base - Separate control cabinet Space requirements L x W x H 1100 x 1100 x 1600 mm Weight 690 kg Fodpeghtvasfx Af Esga In good condition

Condition: ready for operation (used), travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, position of the milling head: SK40, input voltage: 400 V, Deckel FP1 2 axis Active Displacements: X = 300 mm Y = 160 mm Z = 340 mm Fgjdevuzg Aopfx Af Esa Speed 40-2000 Rpm Automatic feed and rapid traverse on the X, Y and Z axes. Continuously adjustable. Table dimensions 600 x 260 mm 2 axes Active control, point-to-point control. 3 axis digital readout from Heidehain. Spindle mounting SK40 Deckel mounting (outside thread)

Condition: not inspected (used), Please see technical details on photo. Fodpfjhvzxzsx Af Ejga

Condition: excellent (used), Year of construction: 2007, Universal Milling Machine, gear type, feed range X/Y/Z 500/350/400 mm, table size 800x400 mm, rotary / tilting table 600x300 mm, motor 3 KW, 18 speeds 40-2000 rpm., ISO 40, quill travel 60 mm, boring capacity Ø 40 mm, digital readout on 3 axis, automatic and rapid feeds, horizontal milling head, collant systen, halogen lamp, + round- / tilting table, dimensions 1500x1700x1750 mm, weight ca. 2200 kg; ex demonstration machine Fgjdpfjfvci Eox Af Eja

Condition: new, x-travel 300 mm y-travel 200 mm z-travel 350 mm table-size 700 x 200 mm spindle taper ISO 40 turning speed range - horizontal 150 - 1660 U/min Fedpfxjfrzuns Af Esga turning speed range - vertical 110 - 1230 U/min quill stroke 120 mm spindle drive 3,0 kW weight of the machine ca. 1,15 t dimensions of the machine ca. 1,31 x 1,38 x 1,65 m

Condition: good (used), Year of construction: 1980, Table size 1300 x 355 mm Tool holder, vertical + horizontal ISO 50 Travel X-axis 1000 mm Y-axis 350 mm Z-axis 450 mm Vertical milling head, swiveling R + L Quill stroke 100 mm Speed range 22.4 – 1400 rpm Feed range 6.3 – 630 mm/min Rapid traverse 2.5 m/min Drive power approx. 5 kW Space requirement L x W x H 1900 x 1800 x 2100 mm Weight 3200 kg Accessories / Special features: • 3-axis digital display, make FAGOR • Swiveling vertical milling head (R-L) with quill adjustment 100 mm • Vertical and horizontal milling spindle ISO 50 Fodpfx Afsvu Dv Tj Esga • Milling spindle vertical + horizontal • Large Clamping table 1350 x 350 mm • Feed and rapid traverse in all axes • Wide, stable guideways • Central lubrication • Swiveling control panel • Coolant system • EMERGENCY STOP switch Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Year of construction: 1994, condition: ready for operation (used), Cutting force: 200kN, working width: 2500mm, cylinder width: 2600mm, cylinder diameter: 400mm, opening between the cylinders: 25-100mm, conveying speed: 11-44m/min, connected load: 7.5kW, weight: 3t, with documentation. Fjdsix Ahbopfx Af Esga

Condition: good (used), Year of construction: 1989, Conventional Universal Milling Machine, travel X/Y/Z 400/300/400 mm, table size 320x750xmm, 18 speed 40-2000 rpm, motor 2,2 KW, spindle ISO 40, drilling quill 60 mm, tilting head +/- 90°, dimensions 1220x1810x1710 mm, ca. 2020 kgs; accessoires: horizontal milling device, shaping head Fsdpeip N Rgsfx Af Esga

Condition: used, Year of construction: 1991, pressure 60 t throat 280 mm stroke 10 - 90 mm ram adjustment 60 mm Fgedpfx Afov Az T Sj Eja no. of strokes 110 Hub/min table surface area 740 x 550 mm clamping plate 740 x 555 mm ram surface 380 x 200 mm daylight, max. stroke above - ram adjustment above 360 mm total power requirement 4 kW weight of the machine ca. 3,850 t dimensions of the machine ca. B 1,1 x T 1,6 x H 2,3 m - fixed table - clamping plate - hydraulic clutch Ortlinghaus with additional brake - manual central lubrication Machine is partially overhauled in our company as follows: - disassembled, cleaned and completely technically inspected - new colour - shaft pulling, crack inspection, new seals - new control cabinet with touchscreen - current press inspection
