Vertical lathe

FRORIEP 5 Achse 40KE 500/600-400 Spheromill

Condition: used, VTL SC 17 CC Vertical Turret Lathe Specification: Faceplate diameter: 1450 mm Swing diameter: 1700 mm Turning height: 1200 mm Dsdsxdcxujpfx Ah Sjul Weight of the machine ca.: 22 t

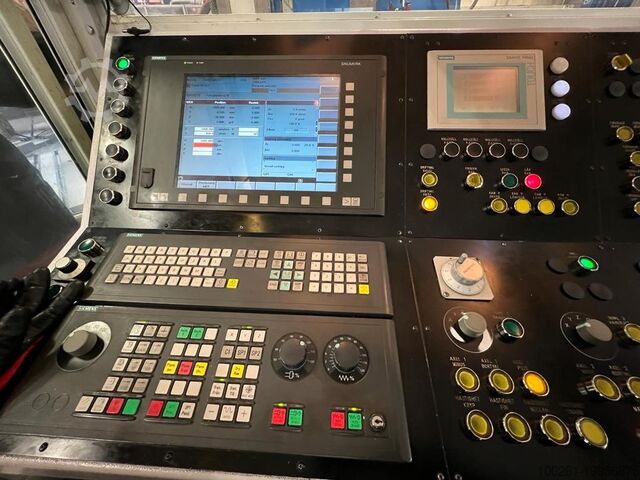

Condition: refurbished (used), Year of construction: 1980, turning height: 4,800 mm, Completely retrofitted Single Column Vertical Turning Lathe Blansko SKSJ 1A, equipped with a single vertical head suitable for both turning and milling operations. Technical specifications: - Face plate diameter: 6,300 mm - Maximum achievable outer diameter (with column at max. extension): 11,200 mm - Maximum workpiece height: 4,800 mm - Maximum turning diameter (column positioned near face plate): 8,000 mm - Maximum turning diameter (column at maximum extension, for internal turning): 16,000 mm - Infinitely variable face plate speed: 0.5 to 20 rpm - Maximum permissible workpiece weight on face plate: 125 tons The machine underwent a comprehensive retrofit in 2024-2025 and is equipped with the following brand-new components: Dujdpfxsw Hfm Nj Ah Ssl - New electrical cabinet with CE-compliant components (Siemens, Schrack, etc.) - New Siemens 828 CNC, 100 kW main drive motor, 27 Nm feed motors, and ZF reducers (ratio 1:5) - New ballscrews on 2 axes (vertical head and cross rail) - New Heidenhain absolute scales on 2 axes - Hydraulic and lubrication systems fitted with CE-compliant components (Rexroth, Brevini, Atos, etc.) - New DROPSA (Italy) or equivalent central lubrication system - Geometric accuracy according to ISO standards – as per new-machine specifications For further information, please contact us.

Condition: good (used), Year of construction: 2015, functionality: fully functional, workpiece weight (max.): 100,000 kg, turning diameter: 6,000 mm, rotational speed (max.): 25 rpm, spindle speed (min.): 25 rpm, travel distance Z-axis: 1,500 mm, Main Technical Features • Manufacturer: SCHIESS Model: 18’ VBM Chuck Diameter: 5,500 mm Maximum Turning Diameter: 6,000 mm (distance between columns) Maximum Workpiece Height: 4,400 mm Duodexnyh Uepfx Ah Ssl Movable Crossrail: 3,000 mm travel RAM (Z-axis): 1,500 mm travel Maximum Weight on Chuck: 100 tons Rotation Speeds: Range I: 1-8 rpm; Range II: 5-25 rpm • CNC Control: FAGOR 8055 (2015) Machine Condition: In operation and dismantled SCHIESS 18’ VBM vertical lathe—a robust machine featuring the oversized capacities typical of its era. Manufactured in Germany and retrofitted in 2015, this lathe is ideal for machining large, heavy workpieces. It is suitable for a wide range of industries, including metallurgy, general machining workshops, mechanical component production, heavy structural fabrication, and energy generation. PRICE AND FURTHER INFORMATION ON REQUEST (CNC, SIEMENS, HAAS, LAGUN, FAGOR, CINCINNATI, HEIDENHAIN, MACHINING, PINACHO, MORI SEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKES)

Condition: good (used), Year of construction: 2004, Table diameter: 1220 mm Max. turning diameter: 1500 mm Table speed range: 4.5 to 100 rpm Feed range: 0.127 mm to 6.35 mm per revolution Maximum height under crossrail: 900/1200 mm Slide travel (X-axis): 1000 mm Main drive motor: 41 kW Tool changer: 30 positions Accessories: - 8 clamping jaws - 30 tool holders with full enclosure - Oil mist extraction Dusdpexg Nmkjfx Ah Ssl

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, workpiece weight (max.): 125,000 kg, chuck outer diameter: 6,300 mm, turning diameter: 6,300 mm, total length: 14,200 mm, total height: 8,315 mm, turning height: 4,000 mm, overall weight: 223,000 kg, power: 161 kW (218.90 HP), Equipment: rotational speed infinitely variable, ECS Numerical Control Table diameter: 6,300 mm Maximum workpiece diameter: 6,300 mm Maximum workpiece height: 4,000 mm Distance from table to lower edge of crossrail: 3,690 – 690 mm Maximum permissible weight: 125,000 kg Maximum vertical travel of crossrail: 3,000 mm Duodexuqyujpfx Ah Ssl Maximum horizontal travel of tool holder head: 3,575 mm Maximum vertical travel of tool holder head: 2,000 mm Tool holder head inclination angles: –15° / +30° Horizontal travel of tool holder head from table center: 3,425 mm Horizontal travel of tool holder head beyond table center: 150 mm Rapid traverse speed (horizontal and vertical): 2,400 mm/min Crossrail traverse speed: 300 mm/min Table speed: continuously variable Installed power: 220 HP (161 kW) Machine weight: 223,000 kg Floor dimensions: 8,213 x 14,200 mm Height from floor: 8,315 mm Total height: 9,765 mm Complete with: - Copying device - Taper turning attachment - Set of gears for taper turning - Set of gears for threading USED MACHINE

Condition: excellent (used), Year of construction: 1986, workpiece weight (max.): 5,000 kg, turning diameter over cross slide: 1,700 mm, turning diameter: 1,620 mm, faceplate diameter: 1,620 mm, feed rate Y-axis: 1,380 m/min, rotational speed (max.): 150 rpm, rotational speed (min.): 3 rpm, workpiece diameter (max.): 1,700 mm, overall weight: 18,500 kg, faceplate torque: 22,500 Nm, Equipment: documentation/manual, VTL - SK16 - good condition Dsdpfsw Ulx Tjx Ah Seul

Condition: used, WEBSTER & BENNETT EV 36” HIGH SPEED VERTICAL BORER MAKE WEBSTER & BENNETT, MADE IN ENGLAND MODEL EV 36” TABLE DIA 915 mm SWING 1168 mm HEIGHT UNDER RAIL 533 - 1016 mm SPEED 13.5 - 300 rpm FEED RATE 0.005-0.250 inch/min MAIN SPEED 40 HP PLUS HIGH SPEED TAABLE EV SERIES MACHINE Duodpoxp Na Njfx Ah Sjl ELEVATING RAIL SAFETY GAURDING SET OF JAWS FULLY FUNCTIONAL GOOD SLIDES

Condition: new, Year of construction: 2026, turning diameter over cross slide: 620 mm, turning diameter: 6,000 mm, spindle bore: 103 mm, turning diameter over bed slide: 860 mm, New CNC-controlled machine with flat bed and Siemens Sinumerik 828D BASIC ShopTurn . Delivery date: approx. 4 months after technical and commercial agreement. Working range: - Center height [mm]: 330, 380, 430 - Rotation diameter over bed [mm]: 660, 760, 860 - Rotation diameter over cross slide [mm]: 420, 520, 620 - Center width [mm]: 1500 to 6000 - Bed width [mm]: 560 - Spindle nose DIN 55027/11 - Spindle bore [mm]: 103 - Max. Torque (spindle) [Nm]: 2000 - Speed control: Stepless - Speed stages: mechanical 3 - Total speed range [rpm]: 9 - 1320 / 12 - 1250 - Power [kW]: TUB660C: 15 / 18.5 - Feed rates X/Z [mm/min]: 1 - 3000 - Rapid traverse X/Z [mm/min]: 8000 - Quill diameter [mm]: 105 - Inner taper of quill [MK]: 6 - Quill stroke [mm]: 225 - Workpiece weights supported with tailstock [kg]: 1500 Options: - Fixed tailstock - Three- and four-jaw chuck - Face plate - Chuck flange - Hydraulic tailstock quill - Power chuck - Turret head with turret disk Duodpfx Ahsufgfys Sol - Drill rig with boring bar - And much more

Condition: used, Year of construction: 1992, functionality: fully functional, turning height: 1,500 mm, workpiece weight (max.): 130,000 kg, turning diameter: 6,500 mm, Technical Datas: CNC-Control SIEMENS Sinumerik 880T Faceplate diameter 6.000 mm max. turning high 2,300 mm max. turning diameter 6,500 mm Ram 2 pieces Ram travel 1,000 mm Cross beam adjustment 800 mm Max. Table load 130 to Djdju R Euaspfx Ah Seul Speed faceplate 0,56 - 63rpm Machine weight 180 to Power main motor 105 kW Dimensions L/W/H 16.500x10.600x5.500 mm Accessories: - 2 supports with live spindle 30 KW, 2160 rpm, with 2 gear stage. - Chip conveyor - cooling lubrication system
