Flexographic printing machineGallus
EM430 S
Flexographic printing machine
Gallus
EM430 S
Year of construction
2017
Condition
Used
Location
Oberschleißheim

Show images
Show map
Machine data
- Machine type:
- Flexographic printing machine
- Manufacturer:
- Gallus
- Model:
- EM430 S
- Year of construction:
- 2017
- Condition:
- excellent (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Bruckmannring 22, 85764 Oberschleißheim, DE
Call
Technical details
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A194-39476
- Update:
- 26.06.2025
Description
Gallus EM430S 6 colours, year of manufacture 2017
- Total output: 12,718,597 m
- Machine speed: 1 – 150 m/min
- Electrical power incl. UV approx. 80 kW at 60 m/min (20 kW standby)
- Material thickness: 36 μm up to 450 μm max, width 215–425 mm
- Unwinding and winding (winding with two winding spindles, left- & right-rotation) up to 1,000 mm diameter and 150 kg reel weight
- End-of-unwinding detection with sensor
- Web tension control infeed 30–300 N (± 10 N)
- Web edge guide, lateral tolerance ± 0.1 mm
Ijdpfx Ajwvi Nyjfpebc

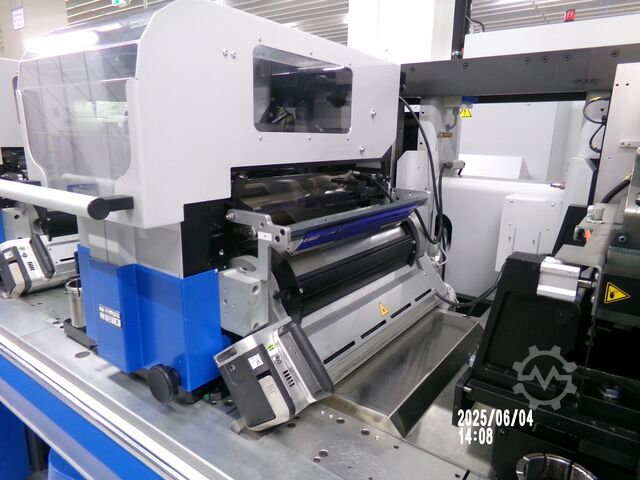

- 6 flexo printing units (12"–24" cylinder circumference), of which 1 unit allows front & back printing
- 6 GEW UV dryers
- 1 rotary die-cutting unit
- Automatic web tension control 0–400 N (± 5 N)
- Corona web treatment
- Contact web cleaning
- Longitudinal register control (all)
- 1 mobile laminating station for unwinding up to 800 mm diameter (10°–90° angle)
- 1 waste matrix removal unit, variably positionable up to 800 mm diameter
- 2 unwind/rewind towers, variably usable up to 800 mm diameter
- 2 web tension stations
The listing was translated automatically. Translation errors are possible.
- Total output: 12,718,597 m
- Machine speed: 1 – 150 m/min
- Electrical power incl. UV approx. 80 kW at 60 m/min (20 kW standby)
- Material thickness: 36 μm up to 450 μm max, width 215–425 mm
- Unwinding and winding (winding with two winding spindles, left- & right-rotation) up to 1,000 mm diameter and 150 kg reel weight
- End-of-unwinding detection with sensor
- Web tension control infeed 30–300 N (± 10 N)
- Web edge guide, lateral tolerance ± 0.1 mm
Ijdpfx Ajwvi Nyjfpebc
- 6 flexo printing units (12"–24" cylinder circumference), of which 1 unit allows front & back printing
- 6 GEW UV dryers
- 1 rotary die-cutting unit
- Automatic web tension control 0–400 N (± 5 N)
- Corona web treatment
- Contact web cleaning
- Longitudinal register control (all)
- 1 mobile laminating station for unwinding up to 800 mm diameter (10°–90° angle)
- 1 waste matrix removal unit, variably positionable up to 800 mm diameter
- 2 unwind/rewind towers, variably usable up to 800 mm diameter
- 2 web tension stations
The listing was translated automatically. Translation errors are possible.
