Rotary Forging Machine

GFM SXP-40

Condition: excellent (used), Year of construction: 2004, operating hours: 1,000 h, functionality: fully functional, turning diameter over cross slide: 380 mm, turning length: 350 mm, turning diameter: 200 mm, travel distance X-axis: 240 mm, rapid traverse X-axis: 12 m/min, Hembrug Mill-Turn Machine Model: Slantbed Mikroturn 100 CNC Siemens 840D Control Approximate Actual Run Time Hours: 1,000 Hydeostatic Spindle Hydrostatic Ways Scale Feedback Gjdpfx Aaewcfgbjcotu Suspended Granite Bed Garnite Spindle Housing Coolant Pump Coolant Circulation Pump Pneumatic Bearing Purge Hydraulic Temperature Control Coolant Temperature Control Return Oil Pump and Reservoir for Remote Location of Hydraulic / Cooling Unit. Options & Additional Purchased Features: Tailstock Vacuum Pump for Vacuum Chucking Programable Controlled Spray Mist C-Axis Milling / Drilling Renishaw Tool Touch Probe Non-Contact Tool Incoming Air Dryer / Filter Thousands of Dollars of Brand New Tooling: Live Center Tailstock Taper Adapter 8” Micro-Centric Pneumatic Chuck 3 Sauter Straight Live tooling heads 2 Sauter 90 degree Live tooling heads 1 Special VDI offset Tooling holder 16 VDI Tool Holders for Turning, boring, and on center drilling. Tool Pick-up Video System Additional Backup Hard Drive with Software Fully Loaded and Tested. Extra Siemens Control Pannel Complete Set of Manuals Machine Upgrades I added at additional cost. New Digital Hard Drive New Backup Hard Drive with software already loaded, plug and play ready, no downtime. New Z-Axis Heidenhain Scale Rewound Hydraulic Pump Motor, factory motor was running too hot for my liking. Replaced Operator Panel, back light on monitor went out, have the original, back light needs replacing. 50 Foot Extended Wiring Harness For Remote Location of Hydraulic / Cooling Unit.

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Gedohrihyjpfx Aacetu

Condition: used, Year of construction: 1992, Technical details: Gtedpfx Aor R Ek Seacou grinding diameter: 50 mm grinding length: 100 mm centre height: 100 mm centre distance: 200 mm

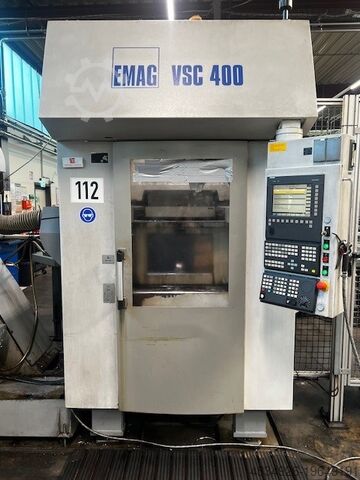

Condition: refurbished (used), Year of construction: 2015, Offered is a vertical turning center EMAG VSC 400 DD. The machine will be mechanically overhauled and rebuilt by EMAG before delivery. Depending on requirements, the machine can be equipped with other peripherals such as coolant systems, external automation and so on. The turning machine for automated machining of chucked components fits perfectly for the machining of series workpieces with the following dimensions: Workpiece diameter: 340 mm Workpiece height: 160 mm Optional the machine can be equipped with an additional millling or grinding unit. CONTROL Siemens 840Dsl TECHNICAL DATA chuck diameter: max 400 mm swing diameter: max. 420 mm X-stroke: 850 mm Y-stroke: 315 mm Z-stroke: 315 mm TOOL CARRIER EMAG wheel turret, 12x VDI 50 with driven tools Delivery time and additional equipment of the machine on request. Gtodpfxstngg Ue Aaceu

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, year of last overhaul: 2023, Offered is a VSC 250 vertical turning center, which has been mechanically and electrically overhauled by EMAG. The control system was upgrated to Siemens Sinumerik One. Depending on requirements, the machine can be equipped with various automation options (shuttle, O-type conveyor, L-type conveyor, turn around station) and other peripherals such as chip conveyors, coolant systems, etc. CONTROL Siemens Sinumerik One TECHNICAL DATA Workpiece diameter: 250 mm Workpiece height: 100 mm X-stroke: 860 mm Z-stroke: 200 mm MAIN SPINDLE power 28 kW Gtedpfx Ajrq Damjacju TOOL CARRIER EMAG wheel turret, 12x VDI 40 Delivery time and additional equipment of the machine on request.

Condition: used, Year of construction: 2002, Technical details: number of spindles: 8 spindle passage: 20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AG20 Yob: 2002 eight-spindle automatic lathe 8 main spindles for bars up to D=20mm control: Siemens 840D 1x polygonal turning/thread milling device (new 2011) 1x polygonal turning/thread milling device for long turning (new 2011) 1x thread cutting/quick drilling spindle (new 2011) 1x pick-up device incl. various pick-up collets 4 cnc-cross slides Double cross slide in position 7 Loading magazine PRA 52/P type 33 (bar length 3m), year 2004 High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004 Tool monitoring Brankamp Air conditioning unit Rittal in the front switch cabinet incl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slides The machine has been run with oil and has processed brass Please, contact us for getting more information and pictures on mail(at) or Gjdpfjwutgajx Aacetu *

Condition: ready for operation (used), Year of construction: 2008, operating hours: 72,284 h, functionality: fully functional, feed length X-axis: 685 mm, feed length Z-axis: 200 mm, travel distance X-axis: 685 mm, travel distance Z-axis: 200 mm, chuck outer diameter: 250 mm, rapid traverse X-axis: 45 m/min, rapid traverse Z-axis: 30 m/min, total length: 3,100 mm, total height: 2,650 mm, total width: 4,000 mm, rotational speed (max.): 6,000 rpm, torque: 460 Nm, overall weight: 7,800 kg, controller model: Siemens 840D, control type: CNC control, Equipment: cooling unit, For sale is an EMAG VSC250, year of manufacture 2008. Equipped with a Siemens 840 D control system. Features: - Infeed and outfeed conveyor (O-belt) - Pneumatically operated transfer unit - Stamping unit - Chip conveyor (ejection left) - Coolant system - Tool turret 12x VDI40 The machine is powered and available for inspection. Gtodow Dyqdepfx Aacou

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, For Sale: Used EMAG VSC 250 Vertical CNC Lathe (Year of Manufacture 2011) - High Precision and Automation We are offering for sale a used EMAG VSC 250 Vertical CNC Lathe from the year of manufacture 2011. This machine is designed for efficient and precise turning operations, especially for workpieces weighing up to approximately 6 kg. Thanks to its vertical design and advanced automation, this machine is ideal for medium to large-series production, ensuring high efficiency and repeatability. Main Features and Capabilities: • Vertical Design: Optimal chip evacuation and easy loading/unloading. • Control: Siemens SINUMERIK 840Dsl with integrated PLC S7-300 and a 15-inch TFT monitor. • High Precision: Positioning accuracy in X and Z axes is ±0.001 mm. • Main Spindle: High power and wide speed range. • Automated Loading/Unloading: Parts are fed to and removed from the machine via integrated automation. • Live Tools: The possibility of using live tools extends the machining range to include drilling and milling. Technical Data (EMAG VSC 250): • Manufacturer: EMAG Gtedpfx Aaewp Ukvjcsu • Year of Manufacture: 2011 • Machine Number: 103035 1. Main Drive: * Connected Load: 400 V/50 Hz / 43 kW * Drive Power of Main Spindle (100% ED / 40% ED): 18 kW / 28 kW * Main Spindle Torque: 300 Nm * Speed Range: 0-4500 rpm * Spindle Head: DIN 55026-A6 * Max. Workpiece Weight: ≤ approx. 6 kg 2. Chuck: * Hydraulic 6-jaw special chuck from EMAG with face clamping device and central lubrication. * Type: 6AGF 260 K6 K14 * Diameter: 260 mm * Weight: 57 kg * Max. Clamping Force (internal clamping at 50 bar): 12.8 kN * Max. Clamping Force (external clamping at 50 bar): 4.2 kN * Clamping Jaws: Special gripper jaws EMAG: HB-I-G-146-K14 for machining brass sheet (6-fold). * Adapter Jaws: (6-fold) L90x840xH50 with fine serration (SAV). * Weight of Adapter Jaw Set: 5.53 kg. * Soft Gripper Jaws: SMW MWB-DA 165 No. 03611 L70x B40x H60. * Weight of Soft Jaw Set: 2.70 kg. 3. Working Area: * Travel X-axis: 745 mm * Travel Z-axis: 300 mm * Rapid Traverse X-axis: 60 m/min * Rapid Traverse Z-axis: 30 m/min * Feed Force X-axis: 10 kN * Feed Force Z-axis: 10 kN 4. Control: * Siemens SINUMERIK 840Dsl with integrated PLC S7-300. * 15-inch TFT Monitor. * V24 Interface. 5. Working Accuracy: * Axes (X-axis / Z-axis): ±0.001 mm * Spindle (C-axis): ±0.01° 6. Tool Carrier: * EMAG Flange Turret Generation C361 - VDI 40. * Tool Stations: 12. * VDI Holder Shank Diameter: 40 mm. * Max. Tool Dimensions: Workpiece-dependent. * Tool Change Times (Turret / Live Tool): 0.03 min / 0.04 min. * Max. Speed of Live Tool: 6000 rpm. * Max. Torque of Live Tool (100% ED / 10% ED): 15 Nm/3.5 kW / 40 Nm/8.5 kW. 7. Coolant System: * Standard Delivery Pressure / Max. Delivery Pressure: 7 bar * Pressure Range of Internal Coolant Supply: 7 bar (not adjustable) * Coolant Tank Capacity: 360 liters 8. Part Catcher: * No part catcher available. Parts are fed to and removed from the machine via automation. 9. General: * Machine Dimensions (L x W x H): 3900 mm x 1500 mm x 3200 mm * Machine Weight: approx. 7000 kg * Ambient Conditions (Room temperature / Air humidity): up to approx. 30°C / max. 50% * Noise Level (Sound Pressure Level / Sound Power Level): 78 dB(A) Location: Zabrze, Poland Keywords: vertical lathe, CNC lathe, EMAG VSC 250, metalworking, turning, production machine, used lathe, Siemens Sinumerik 840Dsl, automation, live tools, Zabrze, Poland.

Condition: used, Year of construction: 2003, functionality: fully functional, machine/vehicle number: 2841823, Maximum workpiece diameter: 250 mm Maximum workpiece length: 175 mm Maximum chuck diameter: 315 mm Axis travel: Gedpfx Aajv U Emtocetu X-axis: 860 mm Z-axis: 200 mm Rapid traverse: X-axis: 45 m/min Z-axis: 30 m/min Main spindle speed: up to 4500 rpm Main spindle power: 28 kW Control system: SIEMENS SINUMERIK 840Dsl Tool turret: 12 positions Maximum workpiece weight: 6 kg
