Vertical lathe

EMAG VSC 250

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: M250.81009, Technical characteristics: # Main Drive: * Connected Load: 400 V/50 Hz / 43 kW * Main Spindle Drive Power (100% duty cycle / 40% duty cycle): 18 kW / 28 kW * Main Spindle Torque: 300 Nm * Spindle Speed Range: 0-4500 rpm * Spindle Nose: DIN 55026-A6 # Working Area: * Rapid traverse, X-axis: 60 m/min * Rapid traverse, Z-axis: 30 m/min * Feed force, X-axis: 10 kN * Feed force, Z-axis: 10 kN # Control System: * Siemens SINUMERIK 840Dsl * 15'' TFT monitor # Working Accuracy: * Axes (X / Z): ±0.001 mm * Spindle (C-axis): ±0.01° # Tool Carrier: * EMAG Flange Turret, Generation C361 - Capto C5 * Tool shank diameter: TN340009 * Max. tool dimensions: Workpiece-dependent * Tool change times (turret / driven tool): 0.03 min / 0.04 min * Max. speed, driven tool: 6000 rpm * Max. torque, driven tool (100% duty cycle / 10% duty cycle): 15 Nm / 3.5 kW / 40 Nm / 8.5 kW # Coolant System: * Standard delivery pressure / Max. delivery pressure: 7 bar * Pressure range for internal coolant supply: 7 bar (non-adjustable) * Coolant tank capacity: 360 liters # Part Handling: * No part catcher installed. Parts are loaded and unloaded via automation. * Ambient conditions (Room temperature / Humidity): up to approx. 30°C / max. 50% * Noise levels (Sound pressure / Sound power): 78 dB(A) # General Data: * Machine dimensions (L x W x H): 3900 mm x 1500 mm x 3200 mm * Machine weight: approx. 7,000 kg Main Features and Capabilities: # Vertical Design: Optimized for chip evacuation and convenient loading/unloading. # Control: Siemens SINUMERIK 840Dsl with integrated S7-300 PLC and 15'' TFT monitor. Crodpoxvx T Sjfx Adroh # High Precision: Positioning accuracy in X and Z axes of ±0.001 mm. # Main Spindle: High power and wide speed range. # Automated Loading/Unloading: Workpieces are handled automatically through integrated automation systems. # Driven Tools: Capability to use driven tools for extended machining, including drilling and milling operations. # Chip Conveyor # Equipped Chuck: EMB3 Expanding Mandrel (Autoblock) # Capto C5 Tool Holders on Turret (for external/internal machining, 2 units & 2 driven tools) # Tool Load Monitoring: Artis system capability available

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 103979, We offer for sale CNC vertical lathe EMAG, VL5i F., year of production 2016, used, preserved, functional. Still in production. Must see. EXW price incl. loading. Crodpfxsuyh Tde Adroh More information on request.

Condition: good (used), Year of construction: 2002, Machine type: CNC turning lathe Manufacturer: Reinecker Karstens Kopp - EMAG Model: VSC 250 DS Cedpfskyrwwsx Adrerh Serial number: M02.43446 Year of manufacture: 2002 Available immediately Ex works, for self-disassembly Optional, we can offer disassembly and loading services.

Condition: good (used), Year of construction: 2007, functionality: fully functional, The machine is in good technical condition, testing can be arranged by prior agreement. Cedpfsz A T S Hjx Adrerh

Condition: used, Year of construction: 2017, Machine type Vertical CNC turning center Manufacturer EMAG GmbH & Co. KG Model VL 4 Year of manufacture 2017 Control system Fanuc 32i-B CNC Number of axes 3 (X, Z, Y-Axis) Tool turret 12 stations, including fixed and driven holders (BMT65) Max. chuck diameter 260 mm (10.2 inches) Max. workpiece diameter 200 mm (7.9 inches) Max. workpiece length 200 mm (7.9 inches) X-axis 740 mm (29.1 inches) Crsdsyyazbjpfx Adroh Z-axis 400 mm (15.7 inches) Y-axis ±30 mm (±1.18 inches) Rapid traverse X-axis 60 m/min Rapid traverse Y-axis 15 m/min Rapid traverse Z-axis 30 m/min Power (40% cycle) 25 kW (33.5 hp) Power (100% cycle) 18 kW (24 hp) Torque (40% duty cycle) 280 Nm Torque (100% duty cycle) 202 Nm Max. speed 4,500 rpm Machine weight Approx 10,000 kg Machine dimensions (L × W) Approx 6,000 mm × 3,600 mm

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 107731, Equipment: cooling unit, (Please tell us your offer price) Sale only within Europe, incl. Turkey Price without packaging; delivery condition: FCA (machine location) ===== Cedpfxezzc U De Adrorh Technical data see handout. All warranty rights are excluded. For the correctness of the technical data and year of construction, for the completeness of accessories and tool equipment, and for compliance with all safety and environmental protection requirements specified in the accident prevention regulations. No sale to private individuals. Sales only within Europe, incl. Turkey Price without packaging; Delivery condition: FCA (machine location) ===== Technical data please see handout in attachment. German text leading language. Without any guaranty and warranty, including completeness of tools & accessories as well as environmental and safety regulations. No private sales.

Condition: used, Year of construction: 2008, Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Crsdeia Rtdepfx Adreh Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at) or *

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, year of last overhaul: 2023, Offered is a VSC 250 vertical turning center, which has been mechanically and electrically overhauled by EMAG. The control system was upgrated to Siemens Sinumerik One. Depending on requirements, the machine can be equipped with various automation options (shuttle, O-type conveyor, L-type conveyor, turn around station) and other peripherals such as chip conveyors, coolant systems, etc. CONTROL Siemens Sinumerik One TECHNICAL DATA Workpiece diameter: 250 mm Workpiece height: 100 mm X-stroke: 860 mm Z-stroke: 200 mm Crjdpferq Damox Adroh MAIN SPINDLE power 28 kW TOOL CARRIER EMAG wheel turret, 12x VDI 40 Delivery time and additional equipment of the machine on request.

Condition: ready for operation (used), Year of construction: 2015, A combined vertical CNC turning and cylindrical grinding center EMAG is available. Chuck diameter: 250mm, max. swing diameter: 260mm, travel X/Z: 680mm/200mm, rapid traverse X/Z: 45m/min/30m/min, grinding spindle speed: 45000rpm, tool stations: 12, basket dimensions X/Y: 400mm/600mm, basket stack: 3. Machine dimensions X/Y/Z: approx. 3200mm/1900mm/2650mm, weight: approx. 8000kg, control: Siemens 840DS, operating hours: approx. 35000h, program hours: approx. 22000h. Documentation available. An on-site inspection is possible with power. Crsdpfx Adox Dm Dzorsh

Condition: refurbished (used), Year of construction: 2012, Offered is a vertical turning center EMAG VSC 250. The machine had a mechanically overhaule in 2022 and will be sold like new. The machine is equipped with automation belt. Other peripherals is not included, and can be offerd if requested by customer. CONTROL Csdpfxeh Tkdqo Adrerh Siemens 840Dsl TECHNICAL DATA Workpiece diameter: 250 mm Workpiece height: 100 mm X-stroke: 860 mm Z-stroke: 200 mm MAIN SPINDLE power 28 kW TOOL CARRIER EMAG wheel turret, 12x VDI 40 Delivery time and additional equipment of the machine on request.

Condition: used, Year of construction: 2011, Vertical Twin-Spindle Turning Center Cjdpfjy N Snxox Adrerh - Siemens 840 D CNC control - VSC 400 Duo machine bed - 2 x disc turrets, 12 station, dia. 40 mm, driven - 2 x additional drilling and countersinking stations - Open workpiece transport system - Transfer and turning unit - Interface for an external handling system - Central high-pressure coolant supply with pump, 70 bar - Air blow-off for pick-up unit and clamping devices - Workpiece measurement system - Tool monitoring - Emag network option - Sister tool management system Swing diameter: 260 mm X travel: 860 mm Z travel: 200 mm Main spindles: 2 Max spindle speed: up to 4,500 rpm Spindle distance: 1,055 mm Main drive: 2 AC asynchronous motor 60% / 100% duty cycle: 39 / 28 kW Max torque: 460 Nm Rapid traverse (X / Z): 45 / 30 m/min

Condition: used, Year of construction: 2004, turning diameter 250 mm turning length 100 mm control SIEMENS 840 D total power requirement 35 kW weight of the machine ca. 7500 kg dimensions of the machine ca. m E M A G (Germany) Vertical CNC Controlled Hard Turning and Grinding machine Csdpfet Hxa Tox Adrsrh with tool turret and workpiece handling System Model VSC 250 DS Year 2004 # M7 28.69324 _____ Turning Ø, max. 250 mm Turning length internal / external 100 mm Workpiece length min./max. 29 – 100 mm 6-positon tool turret Ø / swing-Ø 480/790 mm Workpiece spindle Slide travel, X / Z / stroke 680 / 400 / 200 mm Feed rate / Quick feed X/Z 45/30 m/min. Feed force X/Z 5,5/11 kN Spindle speed 4.300 / 6.000 rpm Spindle drive 28 kW Total electrical load, approx. 35 kW - 400 V - 50 Hz Weight, approx. 7,500 kg Accessories / Special Features: * CNC – Continuous Path Control SIEMENS Model 840 D, with colour monitor, graphics, menu-supervised dialogue programming, and all the usual options, cycles and subprograms, etc. * Hexagon Tool turret head with 6 tool positions (Ø 40 mm) without motorized tools posts, two positions T 3 u. T 6 equipped with grinding spindles with 42.000 rpm and with 18.000 rpm, using CBN discs resp. regular grinding tools * Workpiece handling device with WP transportation frames and circulation system and pick-up and unloading of finished parts directly through the motor spindle which is equipped with a hydraulic 3 jaws chuck make SMW Autobloc with membrane clamping and clamping control system. * MARPOSS MIDA Measuring Probe for measuring blank parts a. the finished parts * NORGREN air measuring system, hydraulic weight compensation of spindle, * Main elements of machine are temperature stabilized by a coolant system made by HYFRA * Recooler for the grinding coolant sitting on a large Coolant device consisting of SEITZ Paper Band filter and a mobile Chipconveyor, Magnetic separator, Centrallubrication, etc. Vertical CNC lathes offer a thermo-resistant construction (chips do not fall onto the machine bed),fast workpiece change times (pick-up system through the main spindle) and a ridged tool arrangement,which also allows unrelated machining work, like hard turning or grinding process on the same machine. Condition : Good. Machine can soon be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

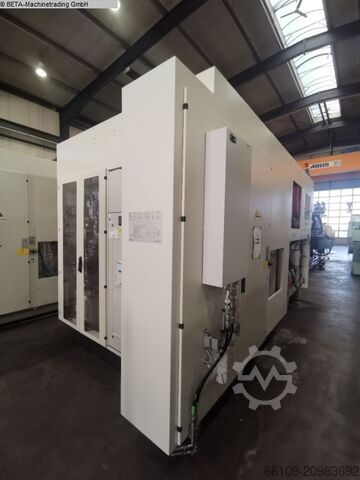

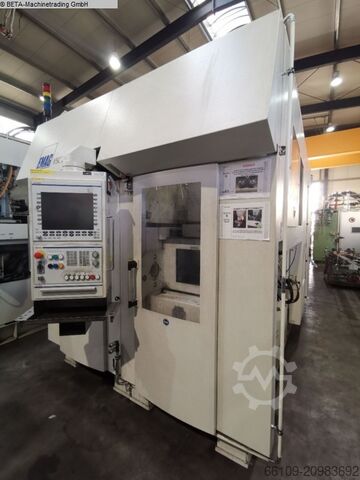

Condition: refurbished (used), Year of construction: 2014, functionality: fully functional, total width: 2,500 mm, total length: 4,500 mm, total height: 3,200 mm, Offered is a double spindle pick up turning machine VSC 250 DUO. There are 2 nearly identical machines available. Each machine is equipped with 2 independent working spindles and 2 EMAG turrets. The machine can produce 2 identical workpieces with the same machining operation, as well as one workpiece in two successive machining operations. The VSC 250 DUO will receive a general overhaul before delivery and gets a control upgrade to Siemens Sinumerik ONE. The machine can be equipped with other periphery (chip conveyor, coolant system, external automation, etc.), depending on requirements. COTROL Siemens Sinumerik One TECHNICAL DATA workpiece diameter: max. 250 mm workpiece height: max. 150 mm chuck diameter: 250/315 mm swing diameter: 350 mm X-stroke: 745 mm Z-stroke: 300 mm Crjdsr Nc Ufspfx Adroh TOOL CARRIER working area 1 1x EMAG disc turrets, 12x VDI 50 without driven tools working area 2 1x EMAG disc turret, 12x VDI 50 with driven tools Price, delivery time and equipment of the machine on request.

Condition: used, Year of construction: 2006, Technical details: Credpoxc Idgjfx Adroh turning diameter: 250 mm swing diameter: 260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools! *

Condition: good (used), Year of construction: 2010, functionality: fully functional, We offer you: CNC vertical turning center Manufacturer: EMAG Type: VSC 250 Duo DD Year of manufacture: 2010 / 2012 Control system: Siemens 840D sl Technical data: Max. turning diameter: 250 mm Max. swing diameter: 260 mm Main spindle: Max. speed: 4,500 rpm Max. torque: 250 / 340 / 460 Nm Spindle bore: 52 mm Chuck diameter: 250 mm Tool turret: Number of turrets: 2 Number of tool positions: 12 Max. tool diameter: 50 mm Max. workpiece weight: 20 kg Max. workpiece diameter: 240 mm Feeds: Rapid traverse (x / z): 45 / 30 m/min Total power consumption: 66 / 75 kW Machine weight: approx. 16 / 18.5 tons There are 3 identical machines available, 2 manufactured in 2010, 1 in 2012. Crodpfxszdbv Tj Adrjh Technical features & accessories: - Marposs measuring system - Open automation - W10 loading portal - Safety guard - Minimum quantity lubrication - In-process quality control - Central coolant supply (not included) - Chip conveyor Accessories, tools and clamping devices shown in the images are only included in the scope of delivery if this is stated in the additional information. Subject to change and errors in the technical data and information, as well as prior sale!
