Multispindle Lathe Schütte AG20

Schütte AG20

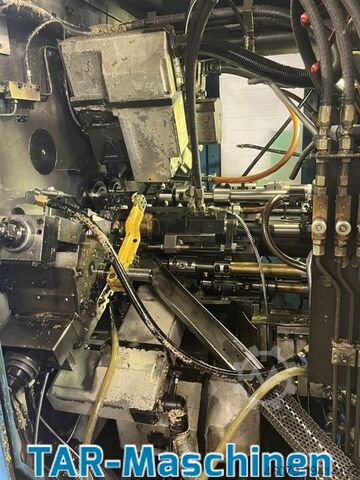

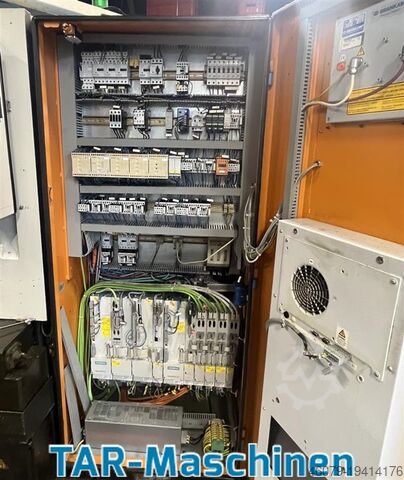

Condition: used, Year of construction: 2002, Technical details: number of spindles: 8 spindle passage: 20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AG20 Yob: 2002 eight-spindle automatic lathe 8 main spindles for bars up to D=20mm control: Siemens 840D 1x polygonal turning/thread milling device (new 2011) 1x polygonal turning/thread milling device for long turning (new 2011) 1x thread cutting/quick drilling spindle (new 2011) 1x pick-up device incl. various pick-up collets 4 cnc-cross slides Double cross slide in position 7 Gbodpewutgaefx Aa Isg Loading magazine PRA 52/P type 33 (bar length 3m), year 2004 High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004 Tool monitoring Brankamp Air conditioning unit Rittal in the front switch cabinet incl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slides The machine has been run with oil and has processed brass Please, contact us for getting more information and pictures on mail(at) or *

Condition: excellent (used), New 2008 Swing over bed - 600 (Ø 23.62) Diameter × length - Ø 300 × 600 (Ø 11.81 × 23.62) Max. diameter - Ø 380 (Ø 14.96) Max. travel range of Z/X axis - 600 / 240 (23.62 / 9.44); Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm; X-axis: FANUC 2.8 kW (4 HP) /3000 rpm Diameter of spindle bore/Draw bar bore - STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03) Spindle speed - Goderfx Tnopfx Aa Iobg STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm Chuck diameter - STD: Ø 8” ; OPT: Ø 10” Hydraulic Tailstock – travel 465 (18.3) MT. No.4 VDI Tool stations - OPT: 8 STD: 10 Coolant Chip conveyor Power requirement - 208-220 volts / 100 Amps / 3 Phases / 60 Cycles Floor area (L × W × H) - 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51) Gross weight (approx.) - 5200 kg (11440 Ibs)

Year of construction: 1996, condition: used, Schütte SF 26S DNT YOM 1996 Number of spindles: 6 Max bar diameter [mm]: 26 Auto bar loader: Cucchi BLT Multi-6 - (YOM 2015) Cross slide pos. 1, 3, 4, 6 CN slide pos 2, 5 Spindle stop attachment for main spindles Bar feeding pos. 6 Pickup spindle pos. 6 High pressure coolant system Chip conveyor, hinged belt type Oil mist filter ISI RON/A 2500A, ID 26295 Gbsdpfsi Hb Szjx Aa Iog

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Gbsdpfx Aed Tm D Eea Isg Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Year of construction: 1998, condition: good (used), CHIRON FZ 18L 1998year Sinumerik 810 with 4 Axis Nikken Travels X 2000 mm Y 400 mm Z 425 mm table2280 x 450 mm spindle max 8000 Toolchanger ATC: 20 pos tools SK 40 weight 6,70 T manual books dimensions lenght 3,9m width 2,45m Gjdpfx Ashpq U Uoa Iebg height 2,8m free loaded on truck EXW 01360 LOYETTES

Condition: excellent (used), Year of construction: 2004, operating hours: 1,000 h, functionality: fully functional, turning diameter over cross slide: 380 mm, turning length: 350 mm, turning diameter: 200 mm, travel distance X-axis: 240 mm, rapid traverse X-axis: 12 m/min, Hembrug Mill-Turn Machine Model: Slantbed Mikroturn 100 CNC Siemens 840D Control Approximate Actual Run Time Hours: 1,000 Hydeostatic Spindle Hydrostatic Ways Scale Feedback Suspended Granite Bed Garnite Spindle Housing Coolant Pump Coolant Circulation Pump Pneumatic Bearing Purge Hydraulic Temperature Control Coolant Temperature Control Return Oil Pump and Reservoir for Remote Location of Hydraulic / Cooling Unit. Gbjdowcfgbjpfx Aa Iog Options & Additional Purchased Features: Tailstock Vacuum Pump for Vacuum Chucking Programable Controlled Spray Mist C-Axis Milling / Drilling Renishaw Tool Touch Probe Non-Contact Tool Incoming Air Dryer / Filter Thousands of Dollars of Brand New Tooling: Live Center Tailstock Taper Adapter 8” Micro-Centric Pneumatic Chuck 3 Sauter Straight Live tooling heads 2 Sauter 90 degree Live tooling heads 1 Special VDI offset Tooling holder 16 VDI Tool Holders for Turning, boring, and on center drilling. Tool Pick-up Video System Additional Backup Hard Drive with Software Fully Loaded and Tested. Extra Siemens Control Pannel Complete Set of Manuals Machine Upgrades I added at additional cost. New Digital Hard Drive New Backup Hard Drive with software already loaded, plug and play ready, no downtime. New Z-Axis Heidenhain Scale Rewound Hydraulic Pump Motor, factory motor was running too hot for my liking. Replaced Operator Panel, back light on monitor went out, have the original, back light needs replacing. 50 Foot Extended Wiring Harness For Remote Location of Hydraulic / Cooling Unit.

Condition: used, Year of construction: 2011, Mazak HC Nexus 5000-II Mazatrol Matrix Nexus Year: July 2011 Pallet Size: 500 x 500 mm Movement: - X: 730 mm - Y: 730 mm - Z: 740 mm Gedov Tvh Sepfx Aa Ijbg Spindle Speed: 12,000 rpm Tool Changer: 40 positions Chip Conveyor: Chrome

Condition: excellent (used), Year of construction: 2001, Fast axis .machine in very good condition Gjdpfxormlwhj Aa Iebg

Condition: good (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 155436, Positioning B-axis with minimum increment 0.001 degrees Bar Feeder Interface Gedpfx Ajwb Epaea Isbg Automatic part pick-up Synchronized tapping for live tools Coolant through milling head 15 bar Rear belt chip conveyor

Condition: used, Year of construction: 1998, machine/vehicle number: 98BE510071, turning length: 90 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 11 W, overall weight: 6,300 kg, bar passage: 51 mm, 12 position upper turret (6 are driven) -10 position lower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control Gsdpjwidp Ijfx Aa Isbg
