Grinding Machine - Centerless

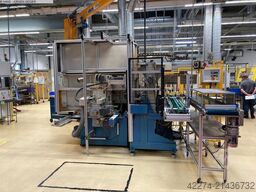

GHIRINGHELLI M 250 SP 610 CNC 8A

Condition: reconditioned (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 055 - 030.0221, Complete overhaul Year 2003 - Fanuc 16i-T Center height 175 mm and distance between centers 650 mm 2 external grinding wheels + B-axis fine adjustment Country of origin: CH Voltage: 3x400V Dimensions: 3680x2165x2100 mm Net machine weight: 5500 kg TECHNICAL SPECIFICATIONS Center height: 175 mm Distance between centers: 650 mm LONGITUDINAL SLIDE (Z) Maximum travel: 800 mm Speed: 0.001 – 10,000 mm/min Resolution: 0.0001 mm TRANSVERSE SLIDE (X) Maximum travel: 254 mm / SPW 650 Speed: 0.001 – 5,000 mm/min Resolution: 0.0001 mm Maximum weight of workpiece clamped between centers: 80 kg TAILSTOCK Taper: Morse 3 Sleeve: Ø 50 mm Sleeve travel: 35 mm UNIVERSAL GRINDING WHEEL HEAD Left wheel dimension: 500 x 80 x 203 mm Right wheel dimension: 400 x 80 x 203 mm Grinding wheel head power: 12.5 kW Rotation speed: 3,200 min-1 Programmable cutting speed up to: 50 m/s B-axis travel: -15 to +195° B-axis indexing accuracy: 0.0001 ° LEFT WORKPIECE HEAD Taper: CM3 Power: 4 kW Rotation speed: 1-1000 min-1 C-axis indexing accuracy: 0.001 ° RIGHT WORKPIECE HEAD Taper: CM3 Power: 4 kW Rotation speed: 1-1000 min-1 C-axis indexing accuracy: 0.001° Hydraulic feed with pressure control Subject to errors and omissions, the technical specifications are provided without commitment. Inventory No. 2250029: STUDER S31 CNC, S/No. 055 - 030.0221 Completely overhauled: Mechanical, geometry, hydraulics, and electrical components (checked and/or replaced) Grinding wheel head Disassembly, cleaning of parts, replacement of worn and defective parts, overhaul of the motor, replacement of bearings, replacement of belts, spindle disassembly, replacement of seals and O-rings + adjustment. New paint. Workpiece head Disassembly, cleaning of parts, replacement of worn and defective parts, overhaul of the motor, replacement of belts. New spindle bearings. New paint. Tailstock Disassembled, inspected, overhauled Hydraulics Disassembly, motor check, replacement of pipes, defective and worn parts. Check the hydraulic block. X-axis Disassembly, replacement of worn parts such as O-rings, seals, segments, etc., overhaul of the hydraulic piston, re-grinding of the tables. Z-axis Disassembly, re-grinding of the tables, replacement of worn and defective parts, overhaul of the hydraulic piston, new paint. Electrical cabinet Complete check, replacement of various relays. Ppsdpfxezbaz Ao Adwsw Paint Colors: White RAL 9003 and gray RAL 7011 Geometry according to manufacturer's protocol. Inspection and cleaning of various accessories.

Year of construction: 1979, condition: ready for operation (used), Components: headstock, main spindle, faceplate flange, taper, table, guideway, longitudinal guide, cross guide, tailstock, workpiece holder, tailstock taper, workpiece spindle. With documentation and records. An on-site inspection is possible. Pjdpfx Adsyln Dtewspw

Condition: used, Year of construction: 2020, Two machines from year of manufacture 2020 (G5 i) and one machine from 2022 (G5) available. Includes hydraulic unit, oil cooler, and air dryer Initial commissioning of the 2020 machines in March/May 2022, the 2022 machine in March 2023. The machining center can be used for grinding, milling, and drilling of metallic workpieces. A standard integrated dressing unit is included. This machining center is used for hard grinding and finish boring of holes in discs and flanges of precision planetary gear units. Machine Description: Makino Model G5 i Grinder Universal Machining Center With creep feed grinding function Makino Professional 5 Control System Machine Specifications (according to manufacturer): Travel: Column X-axis: 520 mm Spindle Y-axis: 560 mm Table Z-axis: 600 mm Spindle center to top of pallet: 80 – 640 mm Spindle nose to center of pallet: 70 – 670 mm Feed rates: Smallest increment: 0.001 mm Jog operation: 1 - 8,000 mm/min Machining feed: 1 - 48,000 mm/min Rapid traverse: 48 m/min Spindle: Spindle taper: ISO 40 Spindle motor (high torque): 18.5 / 22 kW AC Speed (2 ranges): 50 – 12,000 rpm Automatic tool changer Machine weight: 8,450 kg Controlled Axes: 5-axis simultaneous Podpfx Adeywgh Newjpw Special equipment for VIPER grinding: Dressing unit Rotary dressing unit (quick-change) – electric, incl. holder (52 mm) Electrical interface for dresser Workpiece clamping: Erowa ER-029392 Power Chuck Clamping/release control including pressure display Coolant preparation and supply: Water-based coolant filtration system Transfer tank High-pressure pump Self-tilting chip bin Coolant supply bridge Extraction unit including ductwork Makino interface for coolant system Makino interface for extraction system Coolant monitoring (pressure, flow, temperature) Programmable coolant nozzle (PCN) – through spindle, nozzle, base, and shower PCN nozzle assembly Other: Automatic workpiece measuring device (RMP600) Point Master unit (manual measuring probe) Bench Master Air dryer Special I/O interface Machine anchoring set FANUC warranty (2 years) C&F costs UK/Euro transformer High-speed rotary work spindle (100 rpm) Time-delayed splash guard Oil lubrication system for ballscrews and linear guides Programmable coolant nozzle for grinding wheels (PCN) Reinforced splash guard door Automatic front door (AWC) with light curtain Signal lights (3-color) Halogen work lamp (1 pc) Safety interlock package Optional equipment: Easy-Grind Max NC incl. HMI and Machine Manager Scale system X, Y, Z axes (0.05 μm) Switching the display language from English to German Freewheel function of rotary axes during operation Project management by NCMT and Melior Motion Easy-Grind Max+ (single station solution, custom configured)

Condition: used, Year of construction: 1975, workpiece diameter 125 mm grinding depth 50 mm clamping length 2000 mm total power requirement 0,5 kW weight of the machine ca. 1000 kg dimensions of the machine ca. m T E C H N I C A (Switzerland) Centre Hole Grinding Machine Model ZSM 5100 – 2.000 Year approx.. 1975 S/N 66 32 7872 – J 3278 _____ Distance between centres 50 – 2.000 mm Height of centres approx. 125 mm Workpiece Ø in clamping Vice 8 – 125 mm Swing of workpiece over tailstockguide 290 mm Swing of Workpiece max. over grinding head pillar 300 mm ght of workpiece 250 kg Max. centre hole taper Ø 2 – 50 mm Max. centre hole taper angle 60 ° Clamping range of vice approx. 5 – 160 mm Grinding head adjustable in vertical axis 160 mm Stroke of grinding tool on workpiece 0.75 – 5 mm Grinding tool Ø 15 – 60 mm Grinding spindle speeds 13,000 – 45,000 rpm Total electrical load, approx. 1 kW - 380 V - 50 Hz Weight, approx. 1.000 kg Accessories / Special Features Machine is suitable for workpiece length up to 2.000 mm with a basement extension * A cone shaped grinding wheel is employed, but it is only in line contact with the centrehole surface, in addition it is reciprocating simultaneously along this line. The workpiece remains stationary, enabling the generation of perfect centre holes. * To clamp cylindrical Workpieces one uses a height adjustable 2 jaw vice which gives three point contact and always coincides with the center of the grinding spindle. * Height-adjustable workpiece centering vice with carbide inserts. Manual adjustment of appropriate workpiece diameter with clamping screw. Pjdpfx Aovanrcjdwjpw * Dressing device, mounted on the side of the grinding spindle, stroke approx. 40 mm, for producing a geometrically exact conical form and with oscillation of diamond tool. * Pre-centering device for Workpiece adjustment between centers. * Pneumatic Oil Lubrification of grinding spindle by oil-mist. * Manually adjustable Tailstock with handwheel but without motorized drive. Condition : Good to very good. Machine can be inspected under power. Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract

Condition: good (used), Year of construction: 2014, Offered here is a centerless cylindrical grinding machine from the manufacturer Tschudin, including automation. The machine is in very good condition and can be inspected upon request. Technical data – see PDF. Ppjdpfox Urh Ajx Adwjw

Condition: excellent (used), Year of construction: 1981, Description to follow! Psdpjynmn Aefx Adwspw

Condition: used, Year of construction: 1995, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm Completely overhauled in 2013 Heavy duty workpiece headstock tailstock Psdpexyadaefx Adwspw Without chuck and without bezel in the photo Kelco 90 control The machine can be viewed in operation at the customer's premises from 2025 up to and including January 2026.

Condition: excellent (used), Year of construction: 2000, Description to follow! Psdoyrtwxepfx Adwopw
