Double Wheel Grinding Machine - vertic.

GIUSTINA R242

Condition: used, Cinetic Giustina R 242 A CNC Horizontal Double-Disc-Surface-Grinder Gbsdpfxexxyvaj Aa Ieg grinding wheel dia x width 762 x 220mm, MARPOSS E3 In Process Measuring System, CNC SIEMENS SINUMERIK 840D, 400V 50Hz 97kW, weight, ca. 13to

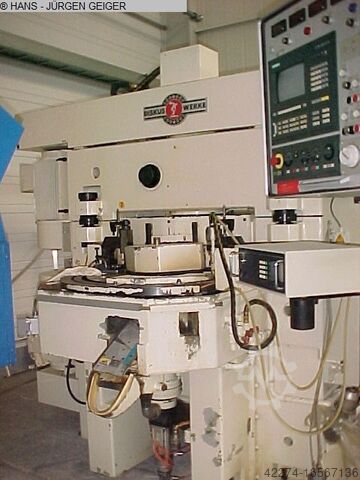

Year of construction: 1992, condition: used, grinding height 50 mm grinding width 120 mm grinding wheel diameter 600 mm total power requirement 85 kW weight of the machine ca. 9500 kg D I S K U S (Germany) CNC Controlled Double Sided Vertical Spindle Surface Grinder with Rotary Workpiece Feed System and IONIC Size Control Model DDS 600 III PLM - CNC Year 1992 erial No. 7924 _____ Grinding wheel Ø x bore x height, each 600 x 150 x 75 mm Approximate Workpiece dimensions: Grinding height, approx. 1.5 – 50 mm Grinding width, appox. 20 - 120 mm Vertical quill adjustment, each, approx. 150 mm Infeed of grinding wheels via CNC 0.0001 mm Feed of workpiece transportation device, infinitely variable 40 – 235 mm/sec Grinding wheel speed, each (30 m/s) 191 - 955 rpm Grinding spindle drive, each infinitely variable 37 kW Total electrical load, approx. 85 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features Gbedpfot Hw Najx Aa Ijg * SIEMENS CNC Control, Model SINUMERIK 810 G, with monitor, for 4 axes i.e. * Movement of 2 spindle quills, dressing device, WP Rotation. Direct programming of Grinding Process data on keyboard. In connection with a IONIC Size Control No. 17 A / 68.000 with two tracers for measuring the thickness of the workpieces after grinding process, and corresponding infeed of the grinding wheels. Continuous display of measuring results on the monitor, with statistics, workpiece counter, etc. Digital Display Ampere for both grinding wheel drives and for grinding spindle speeds, etc. . * Positioning control device for supervising the height of the lower grinding wheel.. * Double column design as a portal for extra stability and higher accuracy * Rotary workpiece transportation device with infinitely variable feeds. The workpieces are Manually stacked in a device and forwarded by a transportation carrier disk thru the grinding wheels, there are two WP- down holders, one equipped with a overheight stop-control. * Angled grinding wheel dressing device, with automatic dressing process, integrated in the control as CNC axis, with safety switch-off. * Separate large switch cabinet. * Automatic central lubrication. Large pneumatic control system * Large Coolant device 6 (F) with filtering unit and magnetic separator. * Various Grinding wheels, WP transport carrier disks, 2 flanges, large Olimist separator, etc. This machine is very suitable for simultaneous double-sided grinding of large series of workpieces, e.g. punched parts, piston rings, hydraulic parts, rotors, distance rings, etc. Condition : Very good. Machine can be soon inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: good (used), Year of construction: 1998, grinding wheel diameter: 915 mm, overall weight: 14,000 kg, GIUSTINA Grinder R242 to ground big bearings (up to 800mm). All machine's actions are controlled by Bosch Control. Beside controlling parts grinding process, the NC programs are also an operator guide for the machine set up and a source of information about wheel wear, thus allowing the operator to check wheels without opening the hood. Equipped with: Bosch CNC Control Specifications: Wheel Rotation Axis: Horizontal Grinding Wheel Size (OD): 915 mm Grinding Wheel Size, Usable Width: 65 mm Grinding Wheel Size, Peripheral Speed: 30 ms Spindle Motors: 75 kw Grinding Feedrate: 0.1 - 1000 mm/min Gjdpfsrtr D Iox Aa Iebg Spindle Type: Moving Quill Angular Contact Spindle Bearings (Precision): ABEC-7 (ISO4) Slide Position Accuracy: 0.001 mm Coolant Flow Rate: 600 l/min Work Capacity (Approx) Rotary: 20 -200 Dia. In.

Condition: used, Year of construction: 1988, Technical details: pressure: 630 t plate thickness: 16 mm Total force (nominal): 630 to stroke: 30 - 150 mm knife-edged ring capacity: 320 t Nominal force: 160 t : 910 x 1050 mm : 900 x 900 mm Godpfx Aovmht Hsa Ijbg dayligth: 410 mm ram adjustment: 120 mm plate width: 40 - 450 mm plate thickness: 0,5 - 16 mm : 1 - 1000 mm total power requirement: 100 kW weight of the machine ca.: 28 t dimensions of the machine ca.: 4.50x2.20x2.80 m Press Feintool + feeding unit *

Condition: excellent (used), Year of construction: 1987, pressure 320 t Godpfxjvwgl No Aa Iebg plate thickness 0 mm no. of strokes 80 Hub/min pressing capacity total 320 t stroke 30 - 80 mm table surface area unten: 630 x 740 mm table surface area oben: 630 x 630 mm total power requirement 60 kW This fineblanking press FEINTOOL HFA 320 was completely overhauled in 2019 and is in new condition with new CE mark MAIN RAM total force (nominal) 320 to stroke min. 30 mm stroke 80 mm V-RING nominal force 160 to stroke 30 mm COUNTER RAM nominal force 80 to stroke 30 mm TOOL DIMENSIONS lower table - width 630 mm lower table - depth 740 mm upper table - width 630 mm upper table - depth 630 mm daylight max. 320 mm ELECTRICAL SPECIFICATIONS total power consumption 60 kW

Condition: like new (used), Year of construction: 1989, operating hours: 810 h, functionality: fully functional, machine/vehicle number: 892161, total height: 2,860 mm, sheet thickness (max.): 6 mm, total width: 2,425 mm, overall weight: 9,000 kg, ram adjustment: 61 mm, pressing force: 160 t, Here you have the unique opportunity to purchase a Feintool GKP F 160 that has seen barely any use. The machine has only 810 operating hours. As you can see from the photos, the machine is in excellent condition. We acquired the press in 2019, but, just like the previous owner, never put it into operation. The machine was test run without tooling at our facility and is fully functional. An on-site inspection under power is possible by arrangement. Gbjdpfx Aasumigqo Isg Technical specifications of the FEINTOOL GKP F 160 fineblanking press: - Maximum sheet thickness: 6 mm - Maximum sheet width: 210 mm - Total force including auxiliary functions: 160 t - Shearing force: 100 t - Hydraulic counterforce (upper bolster): 1–40 t - Hydraulic force of the ring blank holder (lower bolster): 12–50 t - Ejector force (pump pressure): 4–8 t - Hydraulic shearing force: 7.5 t - Pneumatic shearing force: 6.6 t - Slide stroke: 61 mm - Maximum number of strokes: 72/min - Minimum number of strokes: 18/min - Motor power: 11 kW - Pump capacity: 4 kW - Air supply: 6 bar - Dimensions (L x W x H): 2380 x 1870 x 2860 mm - Weight of machine GKP F 160: 9000 kg

Year of construction: 1997, condition: used, Technical details: pressure: 250 t stroke: ca. 400 mm pass through width: 640 mm table above floor: 900 mm ram stroke speed: regulierbar/adjustable passage between the side columns: 470 mm table clamping surface LxW: 570x550 mm clamping area of ram: 570x550 mm total power requirement: 56 kW weight of the machine ca.: ca. 9,0 t dimension machine xH: 2,5x1,8x3,8 m transport dimensions LxWxH: 2,6x1,8x3,1 m - control manual and via automatic via SPS Allen Bradley Godpfx Aeu Nfn Rja Iobg - one hand and two hand control - ram guidance column, zero backlash - set up mode and automatic mode via SPS controlled - light curtain type "Sick" and safety curtains installed - no CE certification available i.D. *

Condition: good (used), functionality: fully functional, grinding wheel diameter: 720 mm, grinding width: 225 mm, Double-disc fine grinding machine Gedpowrpawefx Aa Iobg Highest stability thanks to full granite construction Visualized control Siemens S7 control Strong drive power, total 55 KW 3 separate drives with freely programmable rotation directions and ramps 6 runner discs Comprehensive service and monitoring software Working discs by arrangement (optional, extra charge) Auxiliary unit centrifuge (optional, extra charge)

Condition: used, Year of construction: 1983, Spiertz press Gbjdpexypzusfx Aa Ieg
