Gear Hobbing Machine - Vertical

GLEASON- PFAUTER P 2400/2800

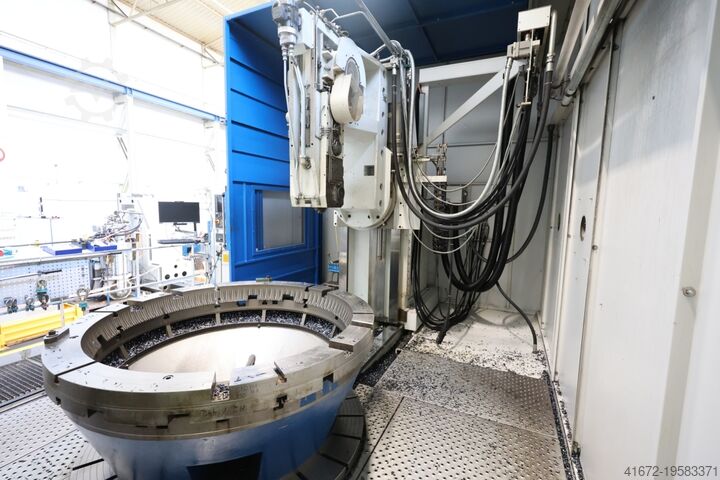

Condition: used, Year of construction: 2007, workpiece diameter nominal 2400 mm max. workpiece diameter 2800 mm max. module 30 mm control Siemens Sinumerik 840 D dividing plate diameter 2200 mm table diameter 2500 mm Table hole Diameter / depth 800 / 875 mm max. table load 40000 kg Table rpm 4,5 min-1 clamping length max. 375 mm clamping diameter max. 350 mm cutter diameter max. 2800 mm Cutter arbor cone HSK-B160 swivelling range milling head + 30/-45° Distance Cutter - Workpiece 615 / 1600 mm weight of the machine ca. 57 t Slide drives: Ijdpjw Rf S Sofx Agqea - Feed & rapid traverse speed: - axial 4000 mm/min - radial 3000 mm/min - tangential 3000 mm/min Equitment/Accessories: - IFK2 internal milling head - Milling arbor with spacers - chip conveyor - Oil mist extraction - technical Documentation

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 660 mm, spindle speed (max.): 80,000 rpm, CNC GE FANUC 16 - M GRINDING HEAD WORKING AREA: Grinding spindle speeds, continuously variable -With electric motors: rpm 4,500 – 80,000 -With air turbines: up to 100,000 and 160,000 rpm Grinding head rotation speed, continuously variable -With planetary movements: rpm 5 - 300 -With CN / C axis: rpm 0 – 20 Z travel speed -With Z stroke control, continuous variation: mm/min 0.5 – 14,000 -Max stroke frequency: Hz 5 Grinding spindle sleeve -Z stroke length, continuously variable: 170 mm -Z stroke length (manual service): 180 mm -Diameter: 100 mm -Weight compensation: pneumatic Radial increment of the grinding wheel, NC / U: 5.5 mm Capacity Cylindrical grinding (with Ø 100 mm wheel) -Without intermediate plate: Ø 230 mm -With intermediate plate: Ø 360 mm -Grinding length Z: 125 mm WORK FIELD: X axis travel (table slide): 1,200 mm Y axis travel (grinding head): 660 mm In the W axis (movable crosspiece): 635 mm FORWARD SPEED: In the X and Y axis (CNC command) Processing speed: mm/min 0 – 2,000 Rapid feed: mm/min 4,000 In the W axis: mm/min 800 ODDS DISPLAY: X and Y axis: 0.0001 mm Z axis: 0.001 mm C axis: mm 0.001° U axis: 0.0001 mm Point of origin: your choice TABLE: Useful table surface: 1,320 x 860 mm Allowed table load: 800 kg T-slot width: 14 mm Number of T-slots: 7 Distance between T-slots: 100 mm TOOL WAREHOUSE: No. of warehouse spaces: 8 Max grinding wheel diameter: 50 mm Maximum complete length of the grinding wheel: 135 mm Conical seat: HSK 25 Machine complete with: • Tank with paper filter • MSS Multi – Sensoric – System • Fire prevention system • Oil mist extractor (oil separator) • Instruction manuals and CE declaration Ijdsv Ay E Hspfx Agqja

Condition: used, Year of construction: 2007, control Siemens Sinumerik 840 D weight 57.000 kg voltage 400 V Gleason PFAUTER CNC gear hobbing machine P 2400/2800 for gear cutting of cylindrical and worm gears as well as all other regularly occurring rollable profiles and shapes on the cylindrical workpiece circumference. Large gear hobbing machines from Gleason offer maximum productivity for roughing and finishing cylindrical gears for many industries: wind turbines, industrial gearboxes, mining and shipbuilding, gear machining and many more. The power range of the drive takes future tool developments into account. Of course, the gear hobbing head drive is also backlash-free. These machines are particularly well suited for use with state-of-the-art, cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for dry or wet machining and is also equipped with the appropriate chip conveyor for both machining methods. The machine is equipped with an internal profile milling head as a motorised milling head. --> Working range and technical data Nominal workpiece diameter: 2.400 mm --> Largest millable diameter approx.: 2.800 mm --> Smallest/largest distance between cutter and workpiece axis: 100/1.200 mm --> Largest axial slide travel (special design): 1.300 mm --> Largest clampable cutter (internal milling head): --> Diameter max: 440 mm --> Max. cutter width: 90 mm --> Swivel range of the internal profile milling head/vertical axis: +/- 15° --> Milling mandrel taper: HSK-B160 --> Maximum milling cutter travel: 300 mm --> Table diameter: 2.500 mm --> Part wheel diameter: 2.200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40.000 kg --> Max. feed and rapid traverse speeds: --> axial (Z-axis): 4.000 mm/min --> radial (X-axis): 3.000 mm/min --> tangential (Y-axis): 3.000 mm/min --> Milling cutter cooling lubrication device/electric centrifugal pump: approx. 150 l/min --> Increased drop height of magnetic chip conveyor: 1,600 mm --> Increased main stand: 1,300 mm axial slide travel --> Internal profile milling head as motor milling head instead of standard motor milling head --> Max. millable profile depth in steel with approx. 600 N/mm² strength: Iedpowzyp Iefx Agqsa approx. 65 mm --> Infinitely variable milling speed: 50 - 150 min?¹ --> Max. milling cutter diameter: 440 mm --> Min. milling cutter base circle diameter: 310 mm --> Max. milling cutter width: 90 mm --> Min. internal diameter at 0° bevel angle: 800 mm+) --> Max. workpiece height at 0° bevel angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm

Condition: used, Year of construction: 2008, max. wheel diameter 900 mm gear width 450 mm max. module 10 min. module 1 min. number of teeth 8 milling cutter dia. x width 192 x 215 mm distance table / middle of spindle 910 / 630 mm Iedpfx Agjwzmp Ueqsa distance bet. workpiece spdl. ctr-milling sp. 50 / 550 shifting 200 mm swivelling of milling head 240 Grad table diameter 700 mm table bore diameter 160 mm milling head speed 25 - 160 U/min total power requirement 21 kW change gears, arbors, shifting, 2-cut circle, chip conveyor, outer steady # with crowning device # in excellent working condition

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm grinding length 600 mm centre height 175 mm longitudinal feed 750 mm workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min Isdpou D I Tljfx Agqoa cross movement - autom. and by hand 320 mm Control Kelco 80 total power requirement kW weight of the machine ca. 4,4 t dimensions of the machine ca. 3,1 x 2,1 x 2,0 m

Condition: reconditioned (used), Year of construction: 1997, functionality: fully functional, center height: 100 mm, grinding wheel diameter: 350 mm, workpiece weight between centers: 20,000 g, distance between centers: 400 mm, type of input current: three-phase, grinding wheel width: 30 mm, spindle speed (max.): 1,200 rpm, spindle speed (min.): 30 rpm, feed length Z-axis: 420 mm, grinding spindle motor power: 3,000 W, overall weight: 1,600 kg, year of last overhaul: 2025, input voltage: 400 V, Cylindrical grinder STUDER S 20 Favorit TECHNICAL CHARACTERISTICS: Year of manufacturing: 1997 Centre distance: 400 [mm] Height of centers: 100 [mm] Stroke Z axis: 420 [mm] Working feed Z axis: 100 - 3500 [mm/min] Orientation of table: 0 - 30 [°] Grinding spindle motor power: 3 [kW] Max. diameter grinding wheel: 350 [mm] Max. grinding wheel width: 30 [mm] Grinding wheel bore: 127 [mm] Workpiece spindle nose: W20 Workpiece spindle min. speed: 30 [rpm] Workpiece spindle max. speed: 1200 [rpm] Max. part weight in part holder headstock between centres: 20 [Kg] Workpiece swiveling range: 0 [°] / +90 [°] Workpiece spindle power: 0.5 [kW] Type of attachment tailstock: MT2 Iedowt Tgwjpfx Agqoa Tailstock quill stroke: 20 [mm] Supply voltage: 400 [V] Total power required: 8 [kVA] Machine dimensions: 2350 x 1480 [mm] Weight: 1600 [Kg] INCLUDED EQUIPMENT: x1 paper tape filtration device x1 SONY LH 31A 2 axis digital read out x1 WALDMANN LED lamp x1 internal grinding spindle type: 82060B / Speeds: 11,900 up to 28,400 [rpm] x1 SENSITRON contact indicator x1 grinding wheel balancing device x1 grinding wheel balancing arbor x1 three-jaw chuck FN Ø100 [mm] MT3 x1 magnetic chuck Ø160 [mm] MT3 x1 table-mounted wheel dresser x37 W20 collets x2 half-centres x2 full centres x1 blunt centre x1 pulley Ø105 [mm] for internal grinding spindle x2 external grinding wheel flanges x1 TYROLIT 494271 grinding wheel for external grinding operations Various internal grinding wheels x4 driving carriers Various miscellaneous Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD). Also see surface grinder, lathe, machining center, milling machine.

Condition: used, Year of construction: 2002, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m Photos of identical machine with centre height 225mm Base: Kellenberger Kel-Varia UR175-1000 Kelco 120 Grinding head UR with T1-T2-T3 Basic equipment: -T1 500mm grinding disc diameter -T2 400mm grinding wheel diameter -Infinitely variable, high-resolution axis -Marposs measuring device for tool measurement -Active longitudinal positioning -GAP on T1 and T2 from ELASO contactless integrated in the control interface Semi-automatic balancing from ELASO integrated into the control interface -Tailstock with manual retraction -MK5 workpiece headstock with short taper DIN 55026 Belt-driven internal grinding device Options at an extra charge: - New high-precision workhead with torque drive - Internal grinding device for high-frequency spindles diameter 120mm -HF internal grinding spindle Fischer MFM-1224/42/31 D-21 -HF spindle with HSK holder 24,000 rpm with integrated GAP sensor. (delivery time) -CNC-controlled C-axis non-circular grinding -hydrostatic threaded spindle in x -new hydrostatic unit with only 1 pump and pressure accumulator thus better energy efficiency. -monitoring of the water content in the hydrostatic system -Suction system Further options available on request Mechanical overhaul: -Complete machine overhauled according to Kellenberger measurement protocol -New service-friendly cab -repainting Electrical overhaul: -New modern CNC CIRCULAR GRINDING MACHINE control with BEMA rough grinding surface -New control cabinet -New drive technology -Replacement of all electrical cables Berus pressure switches etc. -New absolute glass scales in x and z -New absolute rotary encoder (for B-axis) Control system: The grinding software consists of a basic licence and various options that are possible depending depending on the equipment of the machine. Basic software - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal taper pendulum grinding - External and internal radius grinding, radius dressed on disc - Semi-automatic pendulum grinding - Workpiece zeroing - Grinding wheel zeroing - Measuring the dressing diamonds - 2 moulding diamonds - 1 shaped diamond or dressing roll (dressing roll required) - Moulding roller (dressing roller required) - 3 Flat dresser - Corrections - Z-position measurement (probe required) - GAP probing (grinding device required) OPTIONS at an extra charge: Isdpfx Ajuxfucsgqea Software profile plunge-cut grinding: - External and internal profile plunge-cut grinding with profile disc Profile grinding software: - External and internal profile grinding with straight disc Software thread grinding: - Single and multi-start external and internal thread grinding with thread on the disc disc Dressing. Dressing of single and multi-groove discs. Flank angle freely selectable. Trapezoidal thread grinding software: - Additional dressing of trapezoidal threads possible External and internal non-circular plunge-cut grinding: - External and internal non-circular plunge-cut grinding Non-circular grinding software: A prerequisite for non-circular grinding is that the workpiece axis is equipped with a high-resolution rotary encoder so th...

Condition: used, Year of construction: 2013, max. wheel diameter 260 mm gear width 320 mm max. module 4,5 min. module 0,5 Control SIN 840D ical angle +/- 45 ° Isdpfx Aevxwtmegqoa total power requirement 68 kW weight of the machine ca. 15500 Kg dimensions of the machine ca. 3,25 x 3,25 x 3,30 m Fire extinguishing system Siemens Sinorix TM Knoll Filtering system VL1500/8000 year 2017 Wekal loading cell

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m Isdsuwv H Tepfx Agqja As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, Year of construction: 1995, functionality: unexamined, Distance between centers: 650 mm Ijdewu Tdfspfx Agqja ID / OD 2-axis SONY digital read out Coolant tank
