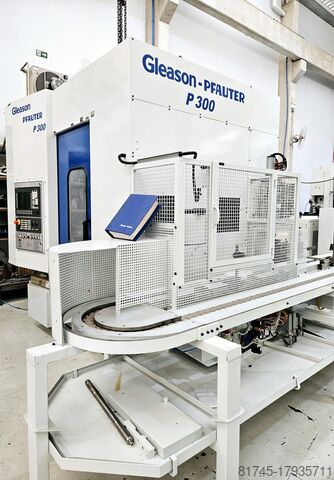

Gear Hobbing Machine

Gleason-Pfauter P300 - Siemens 840D - 8 axes

TECHNICAL DESCRIPTION:

Linear axes:
– Radial slide (X-axis)
– Tangential slide (Y-axis)
– Axial slide (Z-axis)
- Tailstock (Z4-axis)

Rotary axes:

– Milling head (A-axis)
– Workpiece table (C-axis)
– Swivel gripper for automatic workpiece change (E-axis)

Spindle:

– Milling cutter (S-Spindle)

TECHNICAL DATA:

– Control: SIEMENS SINUMERIK 840D

Gear hob:

– Largest permissible tip diameter: 130 mm
– Greatest length (depending on milling arbor diameter): 220 mm
- the max diameter of gear 380mm (depending of diameter of Hob)

MACHINE

Milling arbors:

– Diameter: 40 mm
– Acquisition cone: Steep cone ISO 40

Sledding trails:

– Radial (X-axis): 185 mm
– Tangential (Y-axis): 200 mm
– Axial (Z-axis): 250 mm

Largest milling head swivel angle:

– Direction +A: 35°
– Direction -A: 45°

Workpiece table:
– Outer diameter: 300 mm
– Boron: 80 mm

Speeds

Rapid traverse/Feeds:
– X-axis: 10.000 mm/min
– Y and Z axis: 5.000 mm/min

Drehzahlen:

– Tool: 90 – 900 rpm
– Workpiece table: 1 – 55 rpm

Electrical equipment:

– Operating voltage: 380/400 V
Chedpfxevdnm Uo Abwoc
– Supply voltage: 230 V
– Control voltage: 24 V
– Frequency: 60/50 Hz
– Connected load of the machine: 48 kVA
– Cable cross section: 25 mm2
– Protection: 100 A

Overall dimensions of the machine:

– Length/Width/Height: 6.435 x 4.930 x 3.210 mm
– Machine weight approx: 11500 kg

EQUIPMENT:
– Chip conveyor
– Lubrication and hydraulic unit
– Full coverage of the workspace
– Documentation

Notes:
Machine with Load conveyor
Machine in excellent condition
Complete maintenance 12/2024
Machine with Dialog Program
