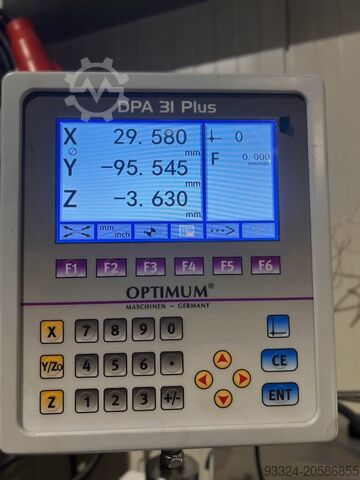

Condition: like new (used), Year of construction: 2024, Manufacturer: Optimum Year of manufacture: 2024 Condition: as new, workshop-tested Delivery time: immediately available Technical Specifications Centre height: 165 mm Centre distance: 830 mm Swing over bed: 330 mm Swing over cross slide: 208 mm Turning length in bed gap: 430 mm Spindle speed range: 16 steps, 70–2000 rpm Drive motor: 1.5 kW, 400 V, 50 Hz Spindle mount: Camlock DIN ISO 702-2 No.4 Spindle bore: 38 mm Spindle taper: MK5 Tailstock taper: MK3, quill travel 110 mm Weight: approx. 512 kg Machine dimensions (L×W×H): 1685 × 745 × 1590 mm Feeds and Thread Cutting Kedpfxoxyknis Ag Iedw Metric: 0.4–7 mm/rev (26 pitches) Imperial: 56–4 TPI (34 pitches) Longitudinal feed: 0.052–1.392 mm/rev (32 feeds) Cross feed: 0.014–0.38 mm/rev (32 feeds) Accessories: Fixed steady rest (Ø 6–50 mm) Travelling steady rest (Ø 8–30 mm) LED machine lamp Reducing sleeve MK5/MK3 Two fixed centre points MK3 Four-way tool post 16 mm Change gear set Machine base Initial fill with quality oil Operating tools

Condition: excellent (used), functionality: fully functional, 3-axis digital readout Centre distance: 800 mm Kdodpfexyh D Ujx Ag Ijw Centre height over bed: 175 mm Spindle bore: 46 mm 18 stepped speeds: 25 - 2000 rpm Power approx.: 2.2 / 4.4 kW .....

Condition: excellent (used), EMCO Precision Lathe EMCOMAT 17 D Including 3-axis EMCO digital readout Year of manufacture: 2007 with CE mark 2 units available! Centre distance: 700 mm Centre height: 170 mm Swing over bed: Ø 340 mm Swing over cross slide: Ø 190 mm Kdedpfx Agjxx S R As Ijw Bed width: 260 mm Longitudinal slide travel: 600 mm Cross slide travel: 220 mm Compound slide travel: 110 mm Compound slide length: 410 mm Compound slide width: 150 mm Bed slide guide length: 380 mm Tool section: 20 x 20 mm Distance spindle centre – compound slide: 34 mm Compound slide (support) swivel range: 60 / 120° Main spindle: Spindle mount: DIN 55029 (Camlock) Spindle bore: Ø 50 mm Internal taper to DIN 7178 1:22 Spindle diameter at front bearing: Ø 70 mm Max. chuck diameter: Ø 200 mm Max. faceplate diameter: Ø 200 mm Spindle speeds: 40 - 3,000 rpm Infinitely variable speed adjustment Mechanical speed ranges: 4 Main drive: Power at 40% duty cycle: 5.3 kW Max. rated torque at main spindle: 640 Nm Feed: 20 (28) longitudinal feeds Z: 0.045–0.787 mm/rev 20 (28) cross feeds X: 0.023–0.406 mm/rev Threads: 20 (28) metric threads (basic equipment): 0.4 – 7.0 mm Tailstock: Quill diameter: Ø 50 mm Quill internal taper: MT 3 Quill stroke: 120 mm Lateral offset: ±13 mm Permissible workpiece weight (between centers, unsupported): 50 kg, supported with tailstock: 150 kg Weight: 755 kg Dimensions: 1650 x 1060 x 1635 mm The EMCOMAT 17 D is a precision lathe suitable for all areas of mechanical engineering and training purposes. Equipment: - EMCO 3-axis digital display with color screen - Potentiometer - Emergency stop button - Digital speed display on control panel next to digital readout - 3-jaw chuck - MULTIFIX tool post, size B - Electrically interlocked chuck guard - Quick-action collet chuck - MICROJET coolant spray unit - Chip guard rear panel - Machine lamp - Machine feet - Bed stop Condition: Very good, from training facility Available from March 2026

Condition: good (used), Year of construction: 2000, machine/vehicle number: 8073, Offer 25432 Technical specifications: - Swing diameter: 320 mm - Distance between centers: 750 mm - Maximum turning diameter over bed: 550 mm - Maximum turning diameter over cross slide: 175 mm - Spindle bore: 32 mm - Spindle mount: - Tailstock quill taper: MT 3 - Quill stroke: 180 mm - 18 spindle speeds: 85 - 2000 rpm - Longitudinal and cross feeds - Metric thread pitches - Imperial thread pitches - Module threads - Diametral pitch threads - Quick-change tool post - Chuck - Steady rest - Drive: 400 V / 2.2 kW - Required space (approx.): W 2100 x D 750 x H 1300 mm - Weight (approx.): 750 kg Kdsdpfx Agexx Sp Es Iew

Condition: excellent (used), WEILER Precision Lathe PRAKTIKANT VC, Infinitely Variable Speed Featuring original WEILER 3-axis digital readout Year of manufacture: 2002, with CE certification and stepless speed control Center height: 160 mm Center distance: 650 mm Swing over cross slide: 198 mm Infinitely variable speed range: 30 – 4,000 rpm Speed control: stepless Spindle nose: DIN 55027 size 5 Spindle bore: 40 mm Tailstock quill stroke: 85 mm Tailstock quill taper: MT 3 24 longitudinal feeds: 0.02 – 0.63 mm/rev 24 cross feeds: 0.006 – 0.2 mm/rev Connected load: 6.6 kW Weight: 920 kg Machine dimensions: 1600 x 800 mm Technical data without obligation! Equipment: - Original WEILER 3-axis digital readout - MULTIFIX quick-change tool post size A - Lever-operated quick-action collet chuck, electrically interlocked - Chuck guard, electrically interlocked - Coolant system - Fixed stop on bed - Machine leveling feet - Lockable tool compartment Condition: Good to very good, from a training workshop Kedoxx R T Ajpfx Ag Ijdw Available from March 2026

Condition: good (used), Year of construction: 1985, functionality: fully functional, Lead and Feed Screw Lathe MARTIN KM 200 x 1000 Year of manufacture: 1985 HEIDENHAIN 2-axis digital readout Technical Data: Center height: 200 mm Swing over bed: 400 mm Swing over cross slide: 220 mm Faceplate diameter: 400 mm Distance between centers: 1000 mm Bed width: 330 mm Spindle: Spindle nose: 6 DIN 55022 Spindle bore: 45 mm Spindle diameter at front bearing: 80 mm Morse taper in tailstock quill: MT4 Internal taper of main spindle: 1:20 metric 50 Spindle speeds: 40 to 1800 rpm Feeds: -- longitudinal: 1.10 mm/rev to 0.08 mm/rev -- cross: 0.40 mm/rev to 0.03 mm/rev Thread pitches: 18 metric threads: 0.5 - 7 mm 24 threads per inch (TPI): 56 - 4 TPI 13 module threads: module 0.25 - 3.5 Tailstock: Quill diameter: 60 mm Maximum quill travel: 170 mm Morse taper: MT4 Kjdpjxx N A Asfx Ag Isdw Drive power: 5.5 kW Permissible max. workpiece weight between centers: without fixed steady rest: 750 kg with 1 fixed steady rest: 950 kg with 2 fixed steady rests: 1050 kg Installation dimensions: L 2,500 mm x W 1,500 mm x H 1,600 mm Weight: 1,400 kg

Condition: excellent (used), Year of construction: 1987, functionality: fully functional, Leadscrew and feed shaft lathe KERN Type D 20 A x 1000 Year of manufacture: 1987 HEIDENHAIN 2-axis digital readout Technical Specifications: Capacity • Center height: 200 mm • Swing over bed: approx. 400 mm • Swing over cross slide: approx. 200–250 mm • Distance between centers: 1000 mm Spindle / Drive • Spindle bore: typ. 52 mm • Spindle mount: Camlock • Speed range: approx. 12–1200 rpm • Main motor: typically 5–11 kW Feeds & Thread Cutting • Longitudinal and cross feed via feed gearbox • Capable of cutting metric and imperial threads • Leadscrew and feed shaft present • Automatic feed with safety clutches Carriage & Slideways • Heavy-duty cross and top slide • Top slide swivels ± 45° • Central lubrication for slideways • Gib strips adjustable Tailstock • Quill taper: MT4 or MT5 • Quill extension via handwheel • Longitudinally adjustable on bed • Partially with fine adjustment Bed & Construction • Heavily ribbed cast iron bed, flat or prism guideway based • One-piece bed, high rigidity • Precision ground guideways Coolant & Electrical Equipment • Coolant pump standard or optional • Electrics per machine guidelines at time of manufacture, often retrofitted • Direction of rotation switch, emergency stop, main switch Dimensions & Weight • Length: approx. 2.2–2.6 m • Width: approx. 1.0 m • Height: approx. 1.4–1.6 m Kdodsxxvhrepfx Ag Iow • Weight: approx. 1500–2000 kg Description The KERN D 20 (D/DS series) is a robust universal lathe (focus: conventional turning, universally suitable for single and series production). It features a solid bed, fully enclosed cast iron bed with box-type base, and a wide range of commonly used accessories (Multifix toolpost, faceplate, coolant system, central lubrication).

Condition: ready for operation (used), Year of construction: 1966, Immediately available from location: L & Z Lathe Weiler Year of manufacture approx. 1966 Kodsxxu A Ujpfx Ag Ijdw Centre height 140 mm Swing diameter 280 mm Over carriage 180 mm Turning length 800 mm Spindle bore 24 mm Spindle speeds up to 1600 rpm Drive power 2 kW Chuck diameter 140 mm Multifix tool holder with inserts Weight 1 ton Priced at EUR 1,500.— plus VAT ex location

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, As-new condition lathe Jessey Stutturn ST 1430 VS Year of manufacture: 2016 Main machine data: • Center height: 180 mm • Distance between centers: 750 mm • Swing over bed: 360 mm • Swing over cross slide: 215 mm • Swing in gap: 560 mm • Bed width: 250 mm • Cross slide travel: 195 mm • Top slide travel: 100 mm • Spindle bore: 42 mm • Spindle mount: K 5 DIN 55027 • Infinitely variable speed ranges: 2 ranges – 1st range: 35 - 440 rpm – 2nd range: 200 - 2500 rpm Tailstock: • Morse taper 3 in tailstock • Quill diameter: 50 mm • Quill stroke: 120 mm Feeds: • Longitudinal feed: 0.03-0.40 mm/rev • Cross feed: 0.01-0.13 mm/rev • Metric threads: 27 pitches / 0.4-7 mm • Whitworth threads: 36 / 4-72 TPI Kdsdsxxkg Njpfx Ag Iow • Diametral pitch threads: 21 / 8-44 DP • Module threads: 18 / 0.3-3.5 module Drive output: 3.75 kW Machine dimensions: • Length: 1830 mm • Depth/Width: 915 mm • Height: 1675 mm • Machine weight: 850 kg Accessories included: • 4-jaw chuck • Tool cabinet with turning tools and accessories Video available Available at short notice Price includes loading free onto truck

Condition: new, Year of construction: 2025, 0350 mm 196 mm 0650 mm 170 mm Kdjdpfx Agjxxb Azo Isw 42 mm 7,5 kW

Condition: good (used), For sale: Colchester Triumph 2500 lathe, fully functional and ready for operation. The lathe is equipped with a Fagor digital readout and has a coolant pump installed beneath the chip tray. Technical data: Center height: 167 mm, Distance between centers: 635 mm, Swing over bed: 330 mm, Swing over cross slide: 210 mm, Spindle bore: 40 mm, Drive power: 2.2 kW. The sale includes 15 tool holders, a live center, and machine feet. Loading is problematic. Kodoxw N I Nspfx Ag Isdw

Condition: used, turning diameter over bed 380 mm turning diameter over slide rest 190 mm turning length 1000 mm bar capacity 56 mm Kdsdpfxsxw Ik Ns Ag Ijw turning speed range 25 - 2000 U/min spindle nose A2-6 total power requirement 4,0 kW weight of the machine ca. 1,5 t dimensions of the machine ca. LBH ca. 2,5 x 1,2 x 1,8 m Includes 4-jaw chuck 200 mm Includes 3-jaw chuck RÖHM 200 mm Includes Multifix quick-clamping system with 3 cassettes Includes coolant pump with reservoir Includes various turning tool holders Includes various small parts and centers The electric motor is a bit loud and should be re-gilled if necessary. Otherwise, the gearbox runs quietly and the guides have no grooves, etc.

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, Weiler Commodor – Lead and Feed Screw Lathe (partially overhauled, year approx. 1990) Condition: Partially overhauled, very good overall condition Year of manufacture: approx. 1990 Manufacturer: Weiler Model: Commodor Machine type: Lead and feed screw lathe Technical specifications (approx.): Max. turning diameter over bed: 380 mm Max. turning diameter over carriage: 190 mm Max. turning length: 1000 mm Bar capacity: 56 mm Spindle speed range: 25 – 2000 rpm Spindle nose: A2-6 Drive power: 4.0 kW Tailstock: MT4 Automatic longitudinal & cross feeds: 0.011 – 0.80 mm/rev Thread cutting range: • Metric: 0.3 – 10 mm • Inch: 80 – 2 ¾ TPI • Diametral pitch: 80 – 5.5 Dp Ksdpoxv Sucjfx Ag Isdw • Module: 0.2 – 5 Dimensions (L x W x H): 2200 × 1200 × 1800 mm Weight: approx. 1500 kg ⚙️ Equipment & accessories: • 3-axis digital readout SINO (new) • 200 mm 3-jaw chuck (new) • Quick-change tool post size B + 1 insert • Bed stop • Work lamp (new) • Coolant system (new) • Complete documentation • Electrical chuck guard (new) • Emergency STOP switch • Various chuck keys Optional accessories: • Drill chuck • Live center • Lead and feed screw guard • Collet system 173E + collet set • Additional quick-change tool posts ✅ Special features: The machine has been partially overhauled and is in very good technical and visual condition. Ideal for workshops, training, single-part production, or maintenance. Delivery time: On order / on request – Subject to prior sale.

Condition: not inspected (used), Year of construction: 1991, Lead and feed screw lathe Weiler Commodor Manufacturer: Weiler Delivery time: Immediate - Subject to prior sale Machine is untested Year of manufacture: 1991 L x W x H: approx. 2200 x 1200 x 1800 mm Weight: approx. 1500 kg Dimensions: Swing over bed: approx. Ø380 mm Swing over cross slide: approx. Ø190 mm Turning length: approx. 1000 mm Bar capacity: approx. Ø56 mm Spindle: Speed range: approx. 25-2000 rpm Spindle nose: A 2-6 Drive power: approx. 3.8 kW Automatic longitudinal and facing feeds: Feed range: approx. 0.011–0.80 mm/rev Suitable for threads: Metric 0.30-10 mm Inch 80 – 2 3/4 TPI Diametral Pitch 80 – 5.5 DP Module 0.2 – 5 Tailstock: MT4 Kdsdexvpapepfx Ag Iew

Condition: good (used), Year of construction: 2003, functionality: fully functional, Lathe Format MD 180 VS Turning capacity: 360 x 1000 mm Spindle speeds: 35 - 2500 rpm via 2 gearbox stages, infinitely variable Spindle bore: 42 mm 3-jaw chuck steel Röhm 200 NEW 4-jaw chuck steel Röhm 200 used Live center, keyless drill chuck, Multifix B with 4 holders, machine feet. Tailstock: Morse Taper 3 Safety features: electrically monitored chuck guard, power-on protection, spindle brake, emergency stop, splash guard, covered leadscrew, CE marked. Condition: Good, smooth running and good guides, all functions OK. Dimensions: L 2.05m x W 0.92m x H 1.37m; Weight approx. 1.1 t Inspection under power possible without obligation Free loaded, D - 88433 Schemmerhofen. Kdedpfx Aoxvk Syeg Ijw

Condition: as good as new (ex-display), WEILER COMMODOR 180 GSD / New Machine - Showroom Model - Unused IMMEDIATELY AVAILABLE FROM STOCK - Showroom model / NEW - Unused - CE marking - 3-axis digital readout - Center height: 180 mm - Swing over bed: 380 mm - Swing over cross slide: 215 mm - Distance between centers: 1000 mm - Spindle bore: 56 mm - Speed / gearbox: 25 - 2000 rpm - Automatic longitudinal / face feed - Threads: Metric / Inch / Diametral - Tailstock / Quill taper: MT 4 - Quill stroke: 150 mm - Coolant system - Multifix quick change toolpost with insert - 3-jaw chuck 200 mm Kdsdpfx Aexviiqog Iew - Work light - Chip guard wall - Documentation Dimensions: LxWxH 2.6 x 1.6 x 1.7 meters / Weight 2000 kg Subject to errors and input mistakes.

Condition: good (used), Year of construction: 2012, spindle speed (max.): 3,000 rpm, spindle speed (min.): 30 rpm, – Distance between centers: 1000 mm – Swing over bed: 360 mm – Swing over cross slide: 515 mm – Swing over support: 220 mm – Spindle bore: 38 mm – 30–3000 rpm – Infinitely variable speed Kodexu N Nnepfx Ag Iodw – Digital speed display – Longitudinal and cross feed – Digital position display on three axes – Brake – Coolant – Multifix with 2 tool holders – Lighting – Safety guard – Three-jaw chuck – Four-jaw chuck – Emergency stop – Documentation – 400V

Condition: used, Year of construction: 1976, turning diameter over bed 0300 mm turning diameter over slide rest 180 mm turning length 750 mm turning speed range 44 - 1300 U/min spindle bore 41,0 mm quill stroke 105 mm Kdodexu Nrcspfx Ag Iow morse taper 3 MK bed width 245 mm total power requirement 2,2 kW weight of the machine ca. 1250 t dimensions of the machine ca. 2000 x 1200 x 1500 m

Condition: good (used), Year of construction: 1995, operating hours: 18,282 h, functionality: fully functional, turning diameter over cross slide: 246 mm, spindle bore: 54 mm, turning diameter: 400 mm, turning diameter over bed slide: 400 mm, center height: 585 mm, turning length: 1,250 mm, feed length X-axis: 210 mm, feed length Z-axis: 1,250 mm, quill stroke: 155 mm, quill diameter: 73 mm, total length: 2,740 mm, total width: 1,650 mm, total height: 1,560 mm, metric thread diameter (max.): 40 mm, swing diameter over top slide: 246 mm, bed width: 318 mm, Turning diameter in gap: 585 mm, rotational speed (max.): 2,750 rpm, rotational speed (min.): 6 rpm, overall weight: 2,300 kg, rapid traverse Z-axis: 6,000 m/min, quill mount: MK 5, spindle mount: MK 4, CNC lathe fully functional and ready for operation. All detailed technical documentation available in German. Programs, software, and zero point setting on USB stick. Accessories and tools included. FANUC control system. The lathe can be tested and is ready for use. Sale due to lack of utilization within the company. Invoice with separate VAT can be issued. Loading facility available. Kodsxr Ua Tjpfx Ag Ijdw

Condition: used, Year of construction: 1966, turning diameter over bed 330 mm turning dia. in gap 400 mm turning length 600 mm Kdodpexrg Atofx Ag Iow centre distance 750 mm spindle turning speed range 20 - 1000 U/min spindle bore 25 mm 3-jaw chuck Röhm, Ø 200 mm dimensions of the machine ca. 2000 x 800 x 1500 mm weight of the machine ca. 1200 kg Fixed bezel Turning bezel Turning center point Three-jaw chuck Röhm, Ø 200 mm, incl. inner and outer jaws Quick-change tool holder Original Multifix size B with 2 change holders Spindle brake Tailstock quill MK3 Machine feet Lathe chuck guard Chip guard Work light

Condition: used, functionality: fully functional, Centre height: 160 mm. Swing over cross slide: 190 mm. Distance between centers: 1000 mm. Spindlebore: 36 mm. RPM.: 20-3200. Width of bed: 250 mm. Tail stock taper: 4 Motor: 3 kW. Country of origin: Chech Republic. Kdodpfxjxrbv Uj Ag Iow Size (L x W x H): 2100 x 950 x 1400 mm. Weight: 1300 kg. Med Berglock quick tool changer. All our machines are tested and serviced before delivery.

Condition: used, turning diameter 210 mm turning length 1000 mm swing diameter over bed slide 435 mm centre height 210 mm greates pass round over bed 435 mm spindle head DIN 55027 / DIN ISO 702-3 spindle bore 52 mm turning speeds 44 - 2.000 U/min transmission ratio 12 feed per revolution 0,036 - 2 U/mm diameter of quill 65 mm quill stroke 120 mm taper bore DIN 228 MK4 total power requirement 5,5 kW From a training workshop Features: -Lead screw and feed screw cover -Brake for main spindle -Toolmaker precision according to DIN 8605 -High drive power and high torque on the main spindle -Large thread cutting range Ksdpfjxqrdyox Ag Iedw -Convenient operation -Digital position display (HEIDENHAIN ND 7013) -LED machine light -Coolant device

Condition: refurbished (used), Year of construction: 1981, functionality: fully functional, turning diameter over cross slide: 280 mm, spindle bore: 52 mm, turning diameter: 420 mm, center height: 210 mm, turning length: 1,000 mm, total length: 2,300 mm, total width: 1,300 mm, total height: 1,700 mm, spindle speed (max.): 1,500 rpm, spindle speed (min.): 33 rpm, quill mount: MK 4, Heidenhain ND 780 position display Röhm 3-jaw chuck, diameter 250 mm Multifix quick-change tool holder Coolant system Chuck guard Kedpfoxqpwksx Ag Isdw Chip backsplash CE compliant Year of manufacture: 1981

Condition: good (used), Year of construction: 2002, functionality: fully functional, spindle bore: 50 mm, turning diameter over bed slide: 340 mm, turning diameter over top slide: 170 mm, center height: 170 mm, turning length: 700 mm, spindle speed (max.): 2,350 rpm, Emcomat 17 S Spindle bore: 50 mm Turning diameter over bed: 340 mm Turning diameter over support: 170 mm Center distance: 700 mm Maximum 2350 rpm. Lathe features longitudinal and cross feeds. Digital two-axis position readout. Equipped with emergency stop and chuck guard. Year of manufacture: 2002 5.3 kW 400 V Kjdpfx Aexp Hudsg Isdw

Condition: used, Year of construction: 2007, Parallel Lathe PROMAC type 948 Year of construction: 2007 Between points: 800 mm Maxi Ø on bench: Ø 320 mm Maxi Ø over saddle: Ø 180 mm Maxi diameter in brocken bed: Ø 400 mm on 100 mm Spindle diameter: Ø 36 mm Spindle speed: from 90 to 1800 RPM Rapid Turret GOODSHAPE 3-jaws chuck LADNER Ø 160 mm Motor: 1,5 kW Threadings: Metric + Whitworth Steadies: One 3-points steady + one follow steady Tailstock: CM3 Supplied with one plate Ø 250 mm + one independant 4-jaws chuck Ø 200 mm+ + some jaws Lubricant pump Voltage: 380 V Length: 1700 mm Depth: 700 mm Total height: 1600 mm Weight: approx 800 KG PROMAC type 948 Year of construction: 2007 Between points: 800 mm Maxi Ø on bench: Ø 320 mm Maxi Ø over saddle: Ø 180 mm Maxi diameter in brocken bed: Ø 400 mm on 100 mm Spindle diameter: Ø 36 mm Spindle speed: from 90 to 1800 RPM Rapid Turret GOODSHAPE 3-jaws chuck LADNER Ø 160 mm Motor: 1,5 kW Threadings: Metric + Whitworth Steadies: One 3-points steady + one follow steady Tailstock: CM3 Supplied with one plate Ø 250 mm + one independant 4-jaws chuck Ø 200 mm+ + some jaws Ksdpfx Ajxpug Ueg Iedw Lubricant pump Voltage: 380 V Length: 1700 mm Depth: 700 mm Total height: 1600 mm Weight: approx 800 KG
